Fusion SG-DA41400

1400W Peak (880W RMS) Signature Series Class-D 4-channel Marine Amplifier

Fusion
Shop all Fusion
Product videos
highlight-star-icon

• 150 watts x 4 channel @ 4 ohm
• 220 watts x 4 channel @ 2 ohm
• Bridged: 440 watts x 2 channel @ 4 ohm
• Total RMS Power: 880 watts
• Class D 2 ohm Stable 4-Channel Amplifier

Learn more about the 010-01969-00

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

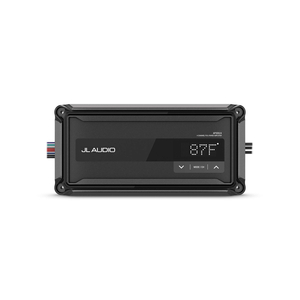

ap3004 thumbnail

JL Audio AP300/4

OUR PRICE: $499.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


• 150 watts x 4 channel @ 4 ohm
• 220 watts x 4 channel @ 2 ohm
• Bridged: 440 watts x 2 channel @ 4 ohm
• Total RMS Power: 880 watts
• Class D 2 ohm Stable 4-Channel Amplifier

Description


Fusion brand icon

Authorized dealer

Product Details:

  • Signature Series Class D 2 ohm Stable 4-Channel Marine Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 channel
    • 2 ohm: 220 watts x 4 channel
    • Bridged: 440 watts x 2 channel @ 4 ohm
  • Total power output: 880 watts
  • LED Power/Protect Light
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Rigid aluminum alloy heat
  • Stainless steel mirror
  • Weather-resistant construction
  • Conformal-coated circuit board
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Variable high-pass filter: 32 - 320 Hz
  • Variable low-pass filter: 32 - 320 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 80A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 11-13/16" L x 8-1/4" W x 2" H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
  • MFR #: SG-DA41400
PDF IconFusion 010-01969-00 owner’s manual

Product history:

JL Audio AP300/4 thumbnail
(newest, current model)
Fusion SG-DA41400 thumbnail
(previous model, replaced by JL Audio AP300/4)

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(54)

$189.99

List price $239.99

VAD8402v2 small

NVX VAD8402 v2 (VAD8402v2)

• 300 watts x 2 channel @ 4 ohm
• 420 watts x 2 channel @ 2 ohm
• Bridged: 840 watts x 1 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$229.99

List price $275.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Weather-Resistant
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
220 watts x 4 channel
Bridged RMS Power
440 watts x 2 channel
Amplifier Specifications
Series
Signature Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1400 watts
Total RMS Power Output
880 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Total Fuse Rating
80
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting screws (6)
Washers (6)
Three spare fuses
Allen wrenches (2)
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SG-DA41400

Weight:

7.72lbs

Internal SKU:

010-01969-00

Internal Product ID:

201974
