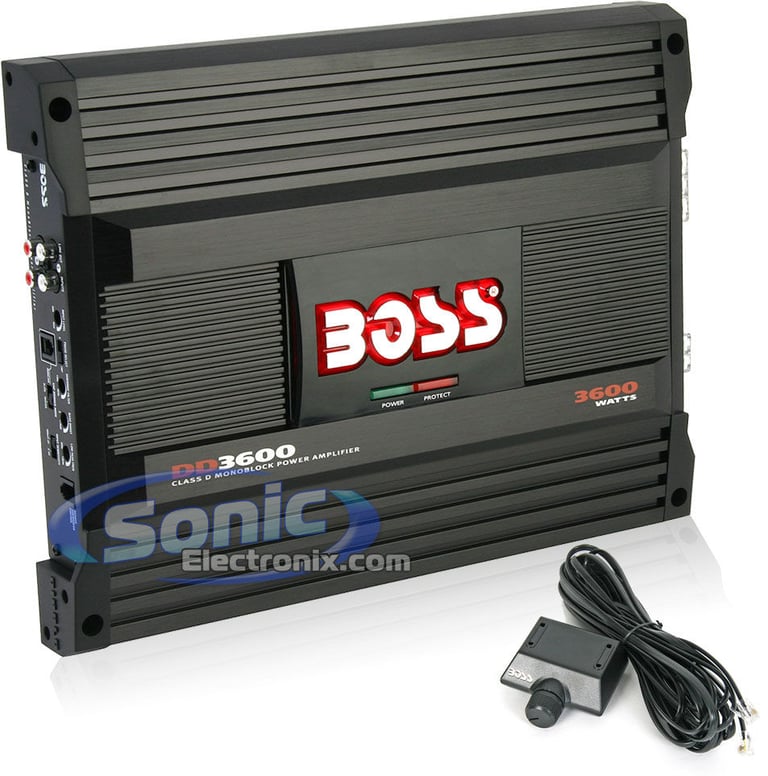

Boss DD3600 R/B

3600W Max, Class D Monoblock Diablo Series Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

Diablo Series Class D Monoblock Car Amplifier • 1350 x 1 chan. @ 4 ohm • 1850 x 1 chan. @ 2 ohm • 3600W x 1 chan. Max • Remote subwoofer control • Variable low pass crossover(24dB) • Input sensitivity selector

Learn more about the LS-dd3600-RB

We apologize

This item has been discontinued


Loading...
GM1590DDB main

Scosche GM1590DDB / GM1590AB Dash Kit

Install a new Double-DIN car stereo in select 1994-2012 vehicles from Chevrolet, GMC, Buick (Black)

57
72-9300 main

Metra 72-9300

Install New Car Speakers in select 1976-2015 vehicles from Subaru, Nissan, Mazda

8
-40.03%

$8.99

List price $14.99

70-1782 main

Metra 70-1782 Wiring Harness

Install a new car stereo in select 1985-2001 vehicles from Geo, Isuzu, Suzuki

1
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
FRING4 main

NVX FRING4

Universal 4" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

4
-36.91%

$11.98

List price $18.99

Limited time!
TS-G1020S main

Pioneer TS-G1020S

420W Peak (60W RMS) 4" G-Series 2-way 4-ohm Coaxial Car Speakers

2
-24.63%

$48.99

List price $65.00

Product Highlights


Diablo Series Class D Monoblock Car Amplifier • 1350 x 1 chan. @ 4 ohm • 1850 x 1 chan. @ 2 ohm • 3600W x 1 chan. Max • Remote subwoofer control • Variable low pass crossover(24dB) • Input sensitivity selector

Description


Boss brand icon

Authorized dealer

  • Diablo Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1350 watts x 1 chan.
    • 2 ohm: 1850 watts x 1 chan.
  • Max power output: 3600 watts x 1 chan.(1 ohm)

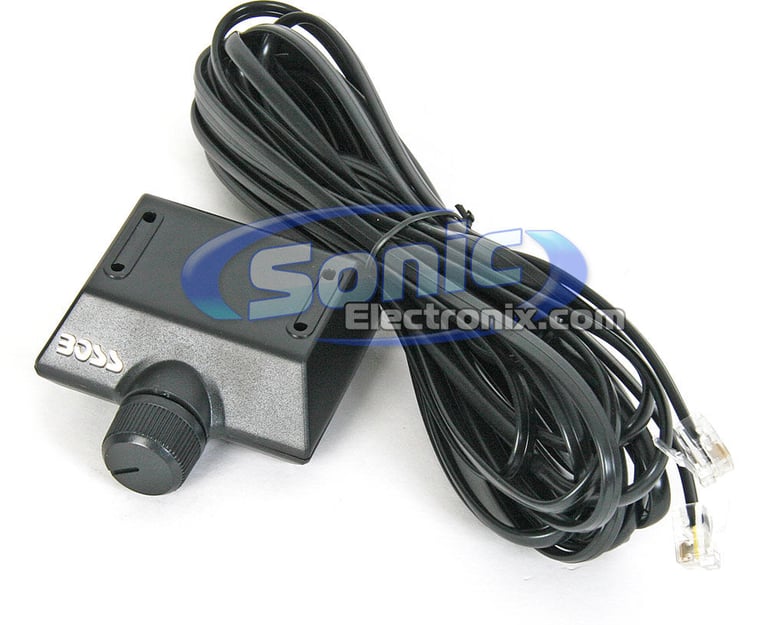

  • Remote subwoofer control
  • Line out(for system building)
  • Variable low pass crossover (24dB)
  • Variable Bass Boost: 0-18dB
  • Input sensitivity selector
  • Variable subsonic filter
  • Phase switch
  • LED Power and protection indicators
  • Frequency response: 20-1500 Hz
  • Dimensions: 14-3/16"L x 11"W x 2-5/16"H
  • 0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Item Condition: Factory Refurbished
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1350 watts x 1 channel
RMS Power @ 2 ohms
1850 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3600 watts
Total RMS Power Output
1850 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DD3600-RB

Weight:

16.00lbs

Internal SKU:

LS-dd3600-RB

Internal Product ID:

20419
