Rockford Fosgate Stage 5 HD14-PMX-STG5

Product Details:

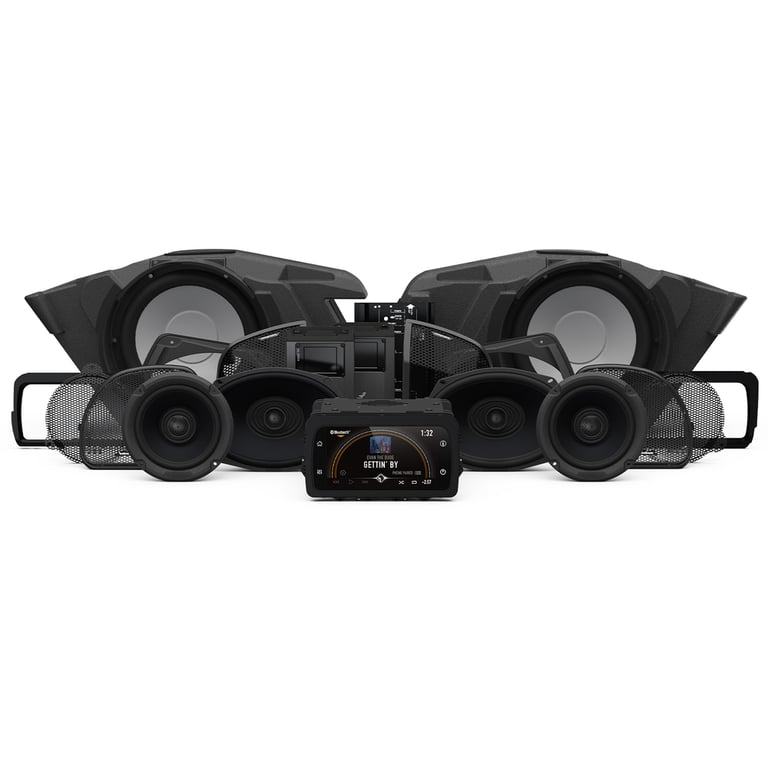

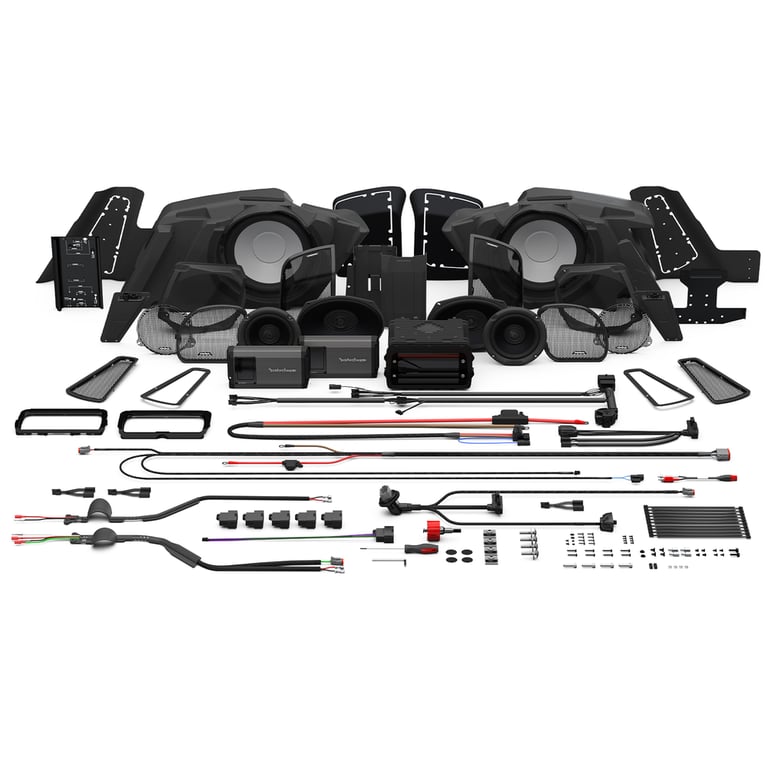

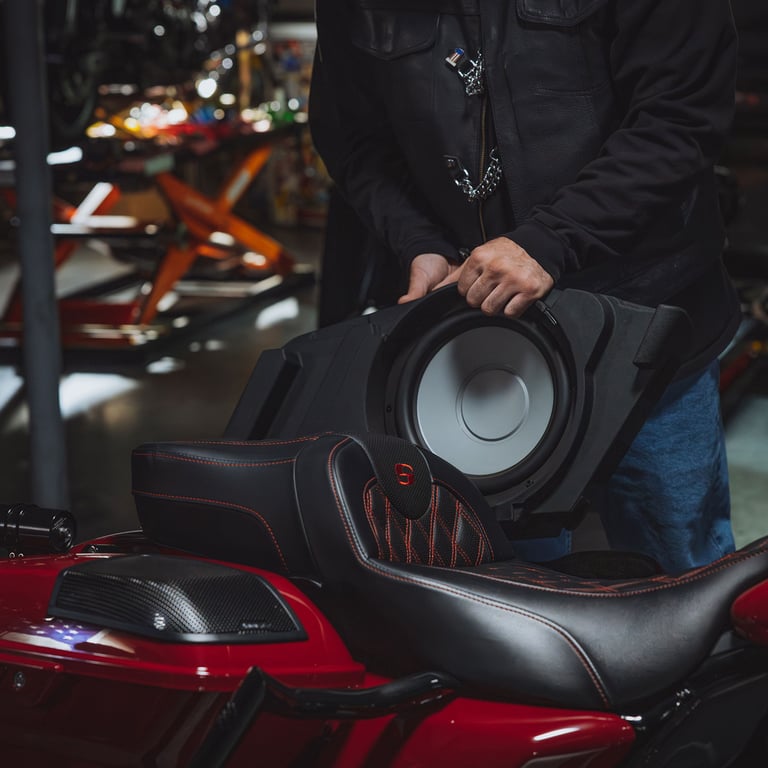

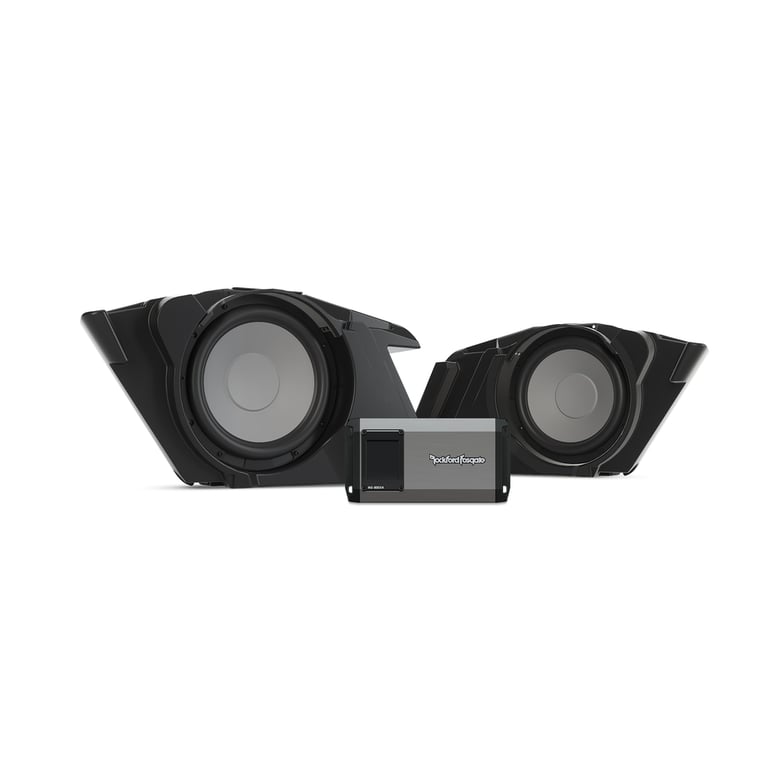

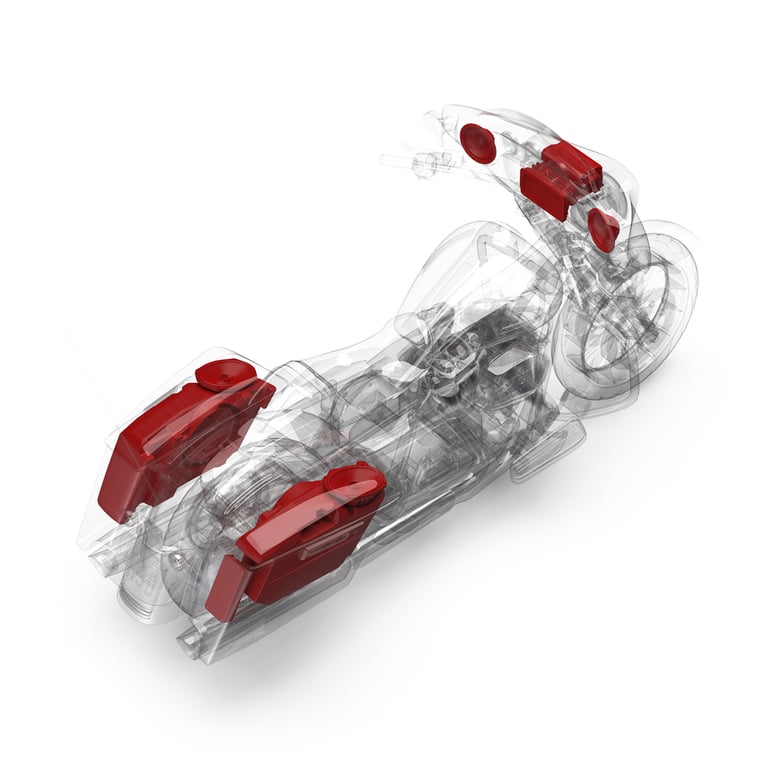

• System includes a pair of 6.5" fairing speakers, a pair of 6x9" saddleback speakers, one pair of 10" saddleback subwoofers one 7" digital media stereo, one 4-channel amplifier, and amplifier wiring kit
• Designed and engineered to match and compliment the factory fit and finish of select 2014-2024 vehicles Harley-Davidson
• Plug-and-play design for easy installation
• Speakers custom tuned to hear music over wind, road & exhaust noise at highway speed
• Retains factory thumb control functionality with no additional parts
• Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak
• T-harness supports front/rear fader (requires flash)
• T-harness features loop-thru for Digital Signal Processor (Rockford Fosgate DSR1 sold separately)
• RATS (Rockford Automated Testing System) tested
• 90-degree harness included with amp install kit for Road Glide installations
• No need to "flash" your radio
• Direct connect wiring harnesses for Harley-Davidson models
• Klippel Verified certification program delivers the best possible loudspeakers
• No drilling or cutting required
• IPX-6 water resistant
• CEA-2031 compliant
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty

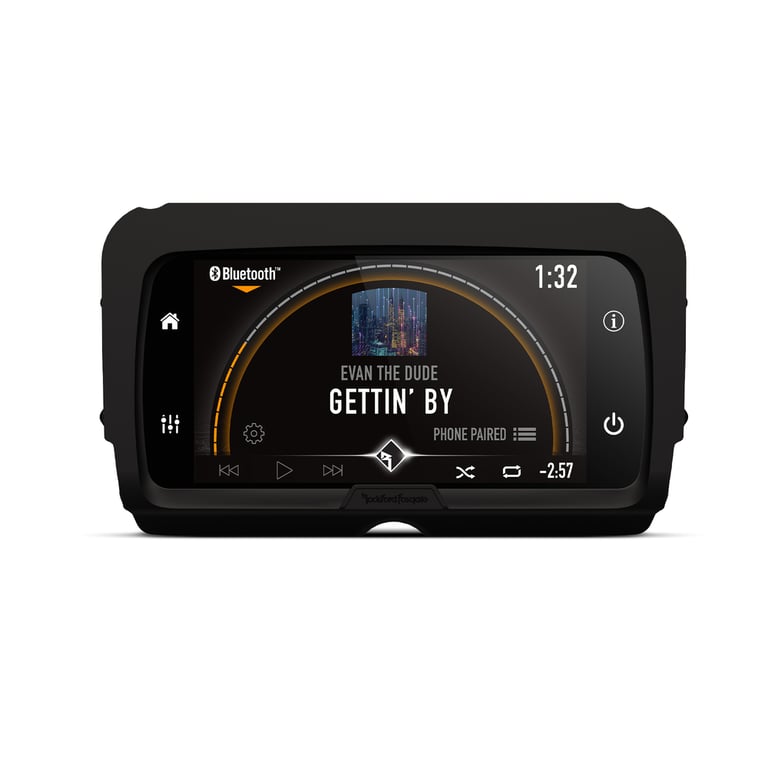

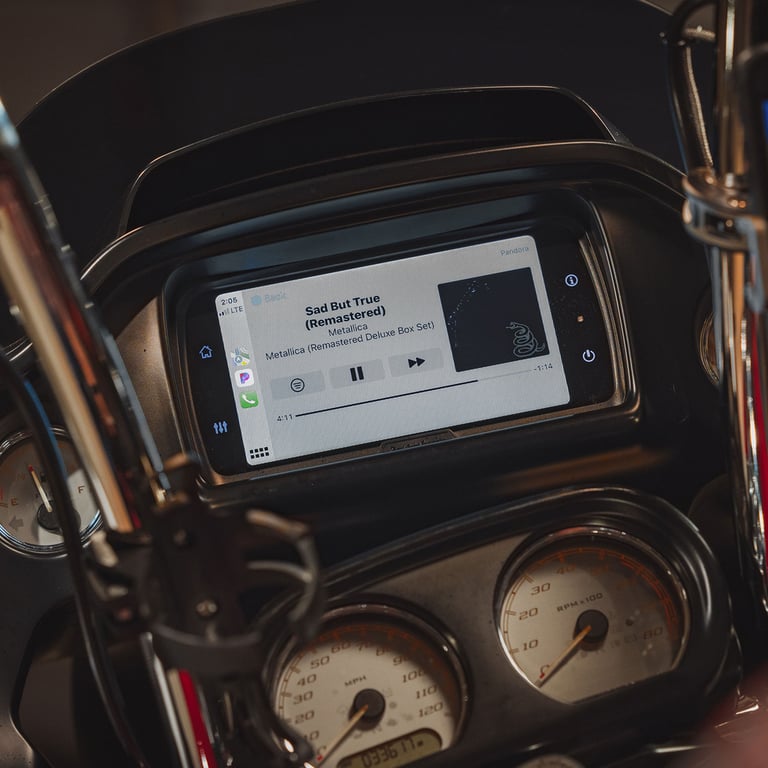

Rockford Fosgate PMX-HD14 7" Digital Media Stereo Specifications

• 7" TFT screen
• Internal power ratings:
• Peak: 50 watts x 4 channel
• RMS: 25 watts x 4 channel
• Keeps all factory handlebar controls, as well as CB and wireless headset connectivity
• Built-in Apple Carplay
• Street Party mode allows unit to pair with 8 radios and stream the same song from one unit
• Includes a batwing trim bezel for street glide, and sharknose trim bezel for road glide
• Glove friendly touch controls
• Built-in and optimized DSP presets with subwoofer control
• Bluetooth® connectivity with A2DP wireless audio streaming
• Software updatable via USB
• SiriusXM ready (requires SiriusXM SXV300V1, sold separately)
• USB Input with 1.5A USB Charging
• AM and FM radio with Weatherband tuner
• MP3/FLAC/WMA playback via USB and Bluetooth
• 14 Band Graphic Equalizer
• Three pairs of 4 volts RCA preamp outputs
• MFR #: PMX-HD14

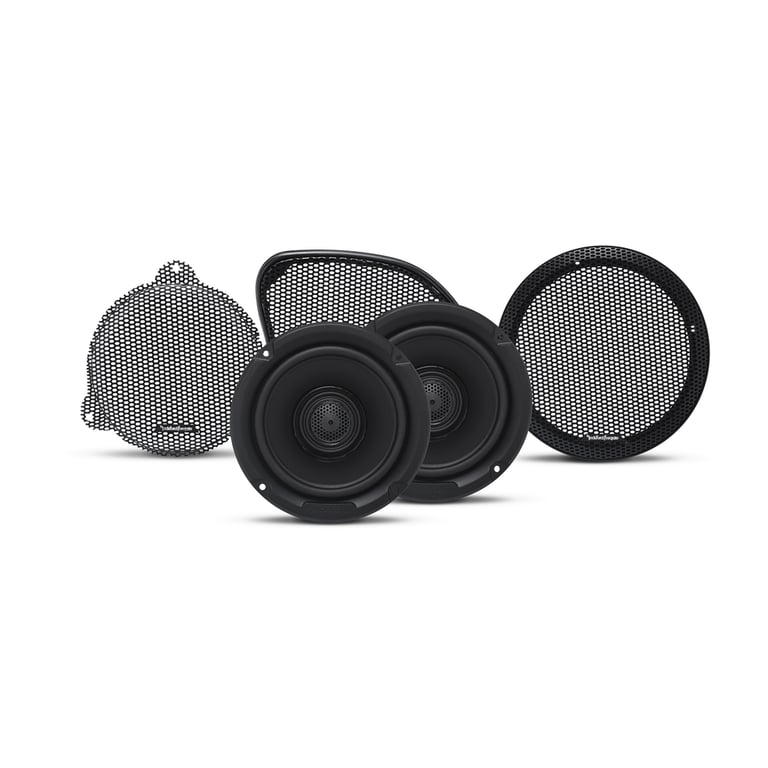

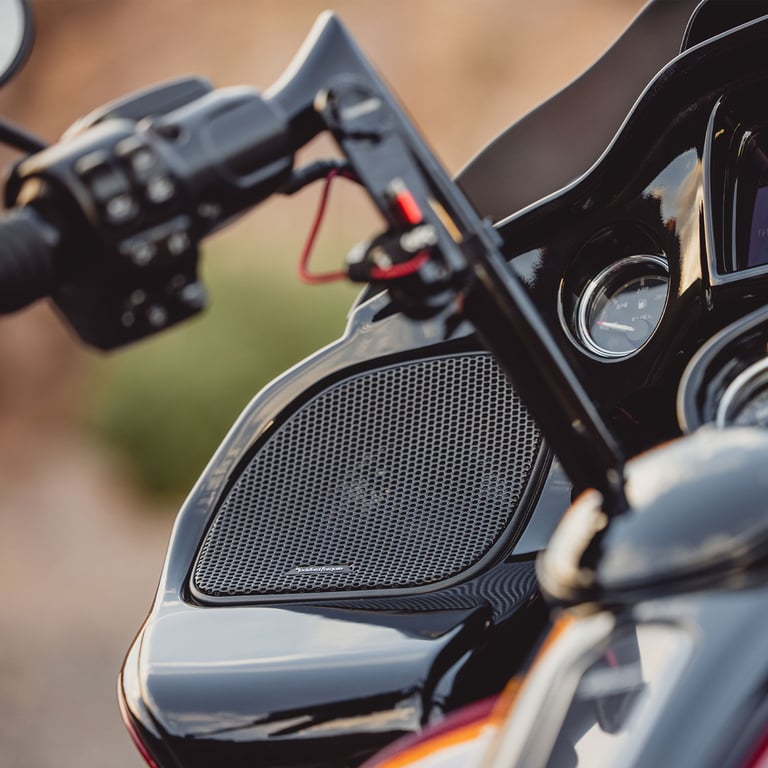

Rockford Fosgate TMS65 6.5" Full Range Fairing Speakers Specifications

• Carbon fiber-reinforced Polypropylene cone
• Santoprene surround
• Poly-cotton spider
• Integrated 6dB crossover with high-power Polyester capacitor
• Power Handling:
• Peak: 300 watts per pair / 150 watts each
• RMS: 150 watts per pair / 75 watts each
• 1" proprietary film dome neodymium tweeters
• Integrated phase plug
• ASA grilles for upper fairing, low fairing, and tour-pak included
• Integrated 6dB crossover with high-power polyester capacitor
• Low profile coaxial tweeter design
• Ultra-high temperature glass reinforced polymer frame
• 1.4" high-power voice coil
• Impedance: 4-ohm
• Frequency Response: 56 - 20000 Hz
• Sensitivity: 94 dB
• MFR #: TMS65

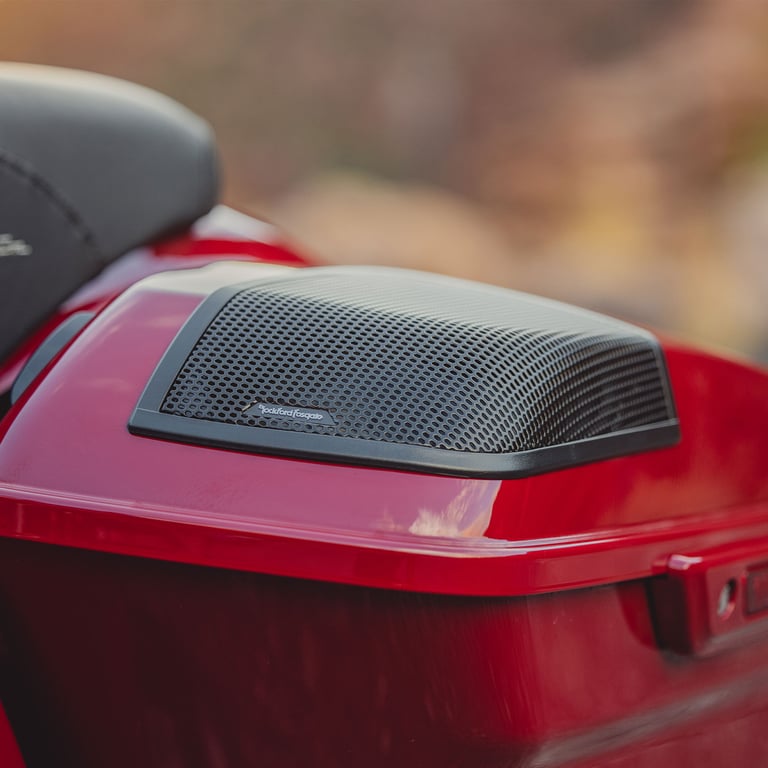

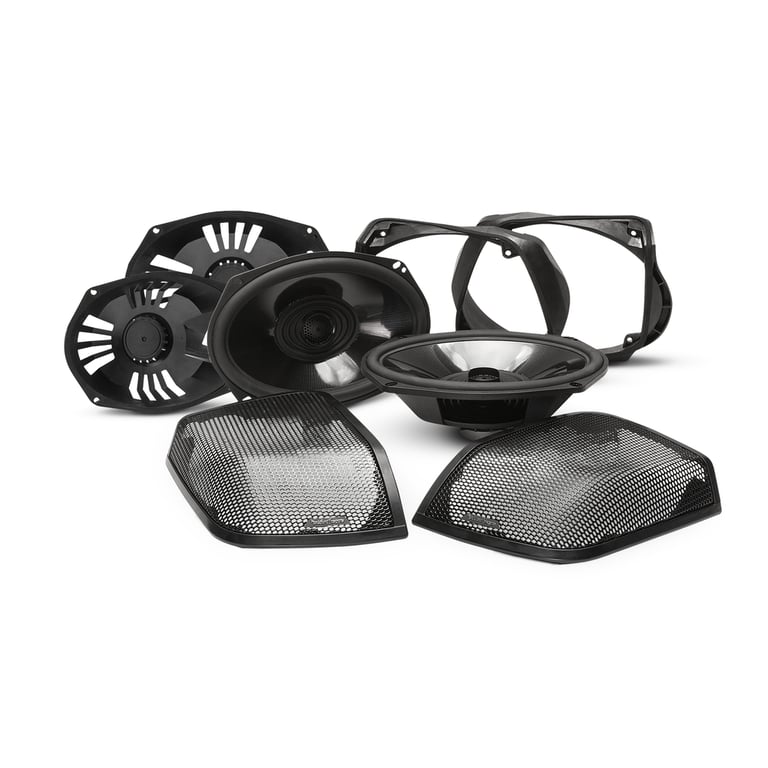

Rockford Fosgate TMS69BL14 6x9" Full Range Saddlebag Rear Speakers Specifications

• Includes two 6x9" 2-way speakers (Rockford Fosgate TMS69)
• Carbon fiber-reinforced Polypropylene cone
• Santoprene surround
• Poly-cotton spider
• Power Handling:
• RMS: 200 watts per pair / 100 watts each
• 1" proprietary film dome neodymium tweeters
• Integrated phase plug
• ASA grilles for upper fairing, low fairing, and tour-pak included
• Integrated 6dB crossover with high-power polyester capacitor
• Low profile coaxial tweeter design
• Ultra-high temperature glass reinforced polymer frame
• 1.4" high-power voice coil
• Impedance: 4-ohm
• Frequency Response: 56 - 20000 Hz
• Sensitivity: 89 dB
• MFR #: TMS69BL14

Rockford Fosgate TMS69BL14 6x9” Element Ready Saddlebag Retrofit Kit Details

• Includes all Installation Hardware and Accessories
• Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
• Rockford Fosgate TMS69 6x9” Element Ready 2-way speakers with integrated phase-aligned 25 mm tweeter included
• Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
• Sandwich Clamping Gasket Design for Environmental Seal
• Ultra‐High Temperature Glass Reinforced Polymer Frame
• Factory Harley-Davidson® Boom!™ Box 4.3, 6.5GT, and GTS must be flashed to use this kit
• Leave 2" minimum clearance under speaker magnet when packing bags
• MFR #: TMS69BL14

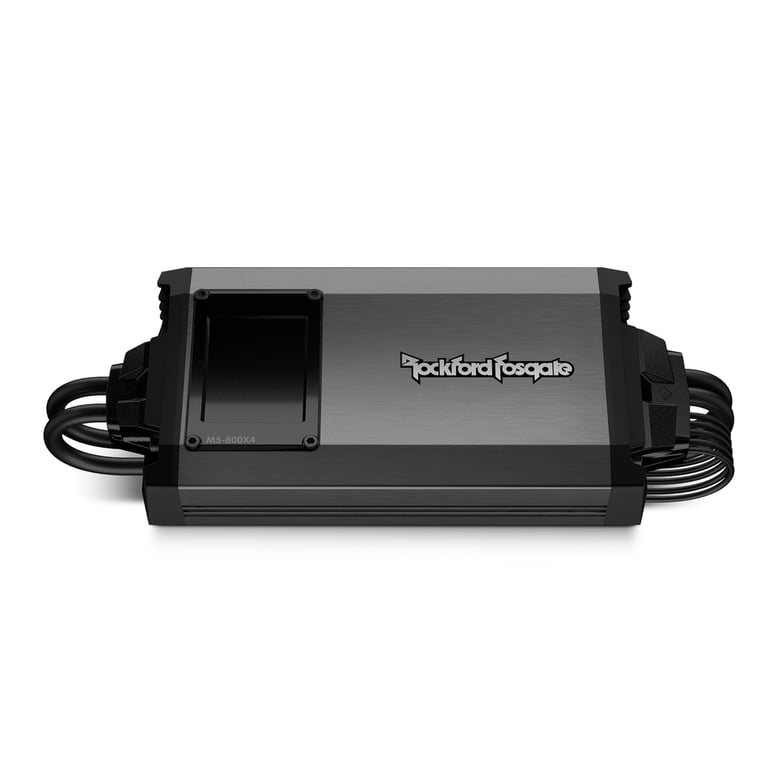

Rockford Fosgate M5-800X4 4-Channel Marine Amplifier Specifications

• Class-AD technology
• PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
• Element Ready design with integrated harness & panel seals
• OEM and aftermarket radio integration inputs
• Remote-Out feature when using high level inputs
• Top mounted control panel with Element Ready smoked lens cover
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Power Specifications
• 4 ohm: 125 watts x 4 channels
• 2 ohm: 200 watts x 4 channels
• Bridged @ 4 ohm: 400 watts x 2 channels
• Total RMS power output: 800 watts
• Frequency Response: 10 - 50000 Hz
• Total Harmonic Distortion (THD): <0.25%
• Variable low-pass filter: 50 - 250 Hz
• Variable high-pass filter: 50 - 250 Hz
• MFR #: M5-800X4

Rockford Fosgate RFK-HD14M5 Amplifier Installation Kit Details

• Includes a heatsink, bracket, hardware and wiring harness needed to install the M5-800X4 amplifier
• T-Harness allows for complete electrical integration without cutting or modifying factory wiring
• Boom! Audio bypass plugs for factory Harman Kardon® amplified systems
• Digital Signal Processor loop-thru for adding a DSR1 signal processor
• Y-adaptors supports expansion of speakers in lower fairing, saddlebag, or Tour-Pak
• 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
• MFR #: RFK-HD14M5
