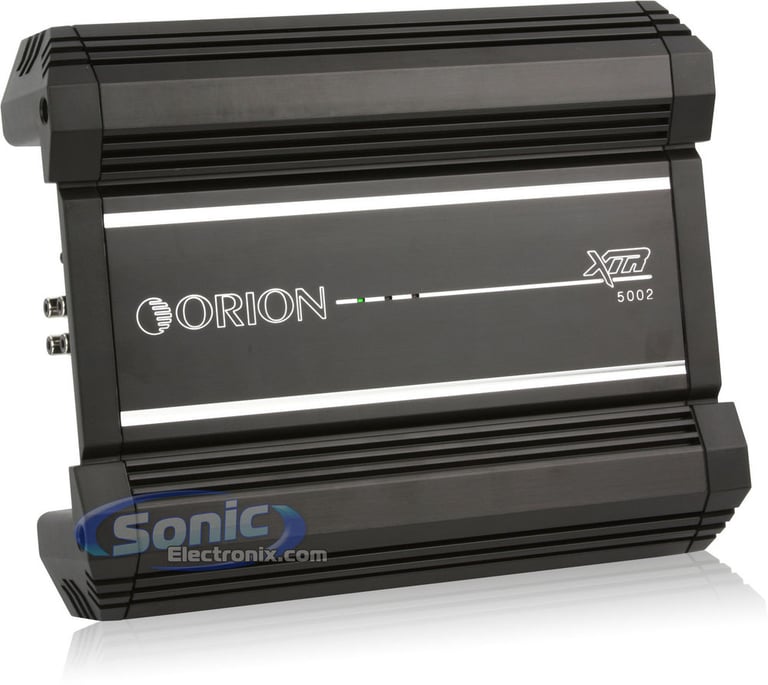

Orion XTR5002 (XTR 5002)

1000W Max 2-Channel XTR Series Amplifier with Crossover

Orion
Shop all Orion
Product videos
highlight-star-icon

XTR Series 2-Channel Car Amplifier • 150W x 2 chan. @ 4 ohm • 1000W Max • MOSFET Power supply • IntelliQ Bass optimization circuit • 3/2/1 Channel operation • Variable low- and high-pass filter

Learn more about the xtr5002

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
Limited time!
INFSPKRF607FSLUS main

Infinity REF607FSL (INFSPKRF607FSLUS)

330W Peak (110W RMS) 6.5" Reference Series 2-Way EZFit Coaxial 3-ohm Shallow Speakers

10
-37.16%

$87.95

List price $139.95

Limited time!
Stage3 527 main

JBL Stage3 527 (STAGE3527AM)

400W Peak (80W RMS) 5.25” Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-36.38%

$69.95

List price $109.95

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

JBL Stage3 627F (STAGE3627FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 2-way Coaxial 3-ohm Speakers

3
-20.01%

$79.95

List price $99.95

Product Highlights


XTR Series 2-Channel Car Amplifier • 150W x 2 chan. @ 4 ohm • 1000W Max • MOSFET Power supply • IntelliQ Bass optimization circuit • 3/2/1 Channel operation • Variable low- and high-pass filter

Description


Orion brand icon

Authorized dealer

  • XTR Series 2-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 250 watts x 2 chan.
    • Bridged, 4 ohm: 500 watts x 1 chan.
  • Max power output: 1000 watts
  • MOSFET Power supply and output stage
  • Power and protection LED Indicators
  • Remote gain control
  • Gain control continuously adjusts for full power output
  • IntelliQ Bass optimization circuit
  • Low-level RCA Inputs
  • Accepts high-level speaker inputs from an OEM stereo
  • Thermal, DC offset, short protection and under-voltage protection
  • 3/2/1 Channel operation

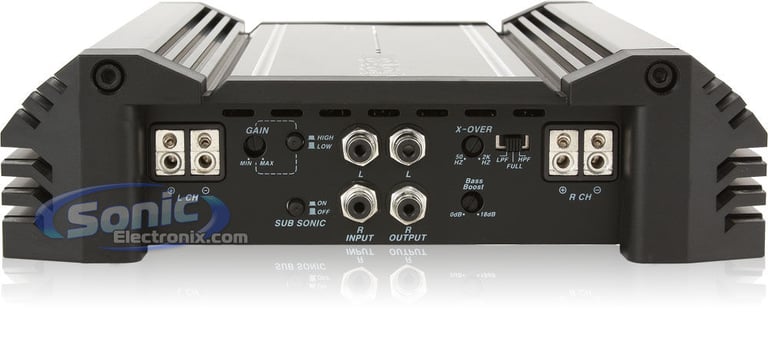

  • X-Over (crossover) activates the low-pass, FLAT and high-pass crossovers
  • X-Over frequency control adjusts the frequency for the high- and low-pass filters
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable high-pass filter (50-2,000 Hz, 12 dB/octave)
  • Variable Low-pass filter (50-2,000 Hz, 12 dB/octave)
  • Subsonic Filter (12 dB at 24 Hz)
  • Frequency response: 20-20,000 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 9.3"L x 11.5"W x 2.5"H

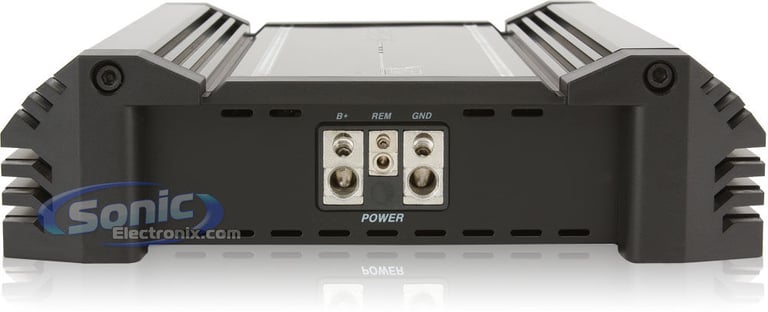

  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Sonic Electronix warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

ATOM-500.2 PRO small

Deaf Bonce Apocalypse ATOM-500.2 PRO

• 231 watts x 2 channel @ 4 ohm
• 390 watts x 2 channel @ 2 ohm
• 500 watts x 2 channel @ 1 ohm
• Bridged: 780 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 500 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$189.90

List price $189.90

VAD8402v2 small

NVX VAD8402 v2 (VAD8402v2)

• 300 watts x 2 channel @ 4 ohm
• 420 watts x 2 channel @ 2 ohm
• Bridged: 840 watts x 1 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$229.99

List price $275.99

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
250 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 2,000 Hz
Low-Pass Crossover Frequency
50 - 2,000 Hz
Subsonic Filter
24 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XTR5002

Weight:

12.00lbs

Internal SKU:

xtr5002

Internal Product ID:

20887
