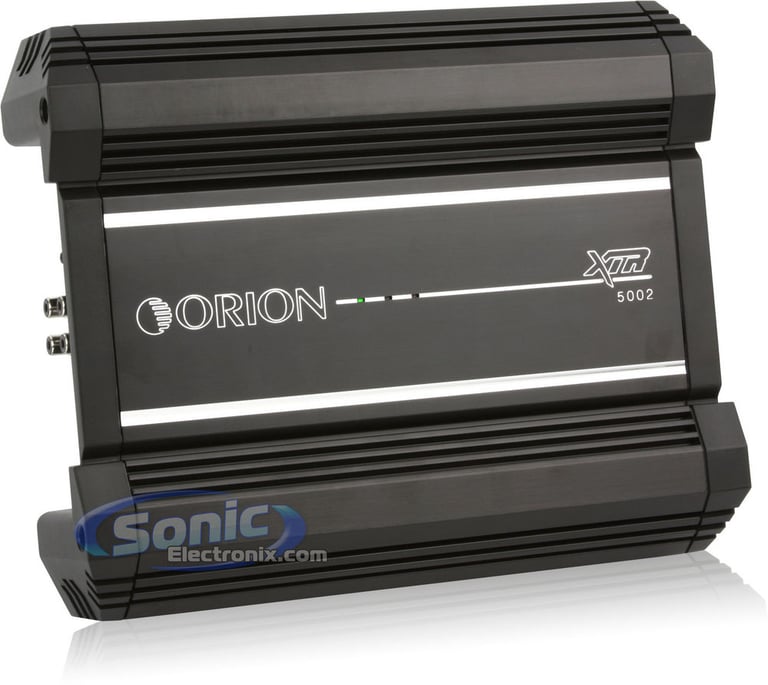

Orion XTR5002 (XTR 5002) R/B Image 1 — Orion XTR5002 (XTR 5002) R/B

Orion XTR5002 (XTR 5002) R/B Image 2 — Orion XTR5002 (XTR 5002) R/B

Orion XTR5002 (XTR 5002) R/B Image 3 — Orion XTR5002 (XTR 5002) R/B

Orion XTR5002 (XTR 5002) R/B Image 4 — Orion XTR5002 (XTR 5002) R/B

Orion XTR5002 (XTR 5002) R/B Image 5 — Orion XTR5002 (XTR 5002) R/B

Orion XTR5002 (XTR 5002) R/B Image 6 — Orion XTR5002 (XTR 5002) R/B

Product videos

Product highlights

• XTR Series 2-Channel Car Amplifier
• 150W x 2 chan. @ 4 ohm
• 1000W Max
• MOSFET Power supply
• IntelliQ Bass optimization circuit
• 3/2/1 Channel operation
• Variable low- and high-pass filter

Learn more about the LS-xtr5002-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

XTR Series 2-Channel Car Amplifier
Item Condition: Refurbished
RMS Power Rating:
- 4 ohm: 150 watts x 2 chan.
- 2 ohm: 250 watts x 2 chan.
- Bridged, 4 ohm: 500 watts x 1 chan.
Max power output: 1000 watts
MOSFET Power supply and output stage
Power and protection LED Indicators
Remote gain control
Gain control continuously adjusts for full power output
IntelliQ Bass optimization circuit
Low-level RCA Inputs
Accepts high-level speaker inputs from an OEM stereo
Thermal, DC offset, short protection and under-voltage protection
3/2/1 Channel operation
X-Over (crossover) activates the low-pass, FLAT and high-pass crossovers
X-Over frequency control adjusts the frequency for the high- and low-pass filters
Silver-plated RCA level inputs
Silver-plated screw terminals
Variable high-pass filter (50-2,000 Hz, 12 dB/octave)
Variable Low-pass filter (50-2,000 Hz, 12 dB/octave)
Subsonic Filter (12 dB at 24 Hz)
Frequency response: 20-20,000 Hz
CEA-2006 compliant amplifier
Dimensions: 9.3"L x 11.5"W x 2.5"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90 Day Sonic Electronix warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 2 channel

RMS Power @ 2 ohms

250 watts x 2 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

500 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

1000 watts

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 2,000 Hz

Low-Pass Crossover Frequency

50 - 2,000 Hz

Subsonic Filter

24 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
