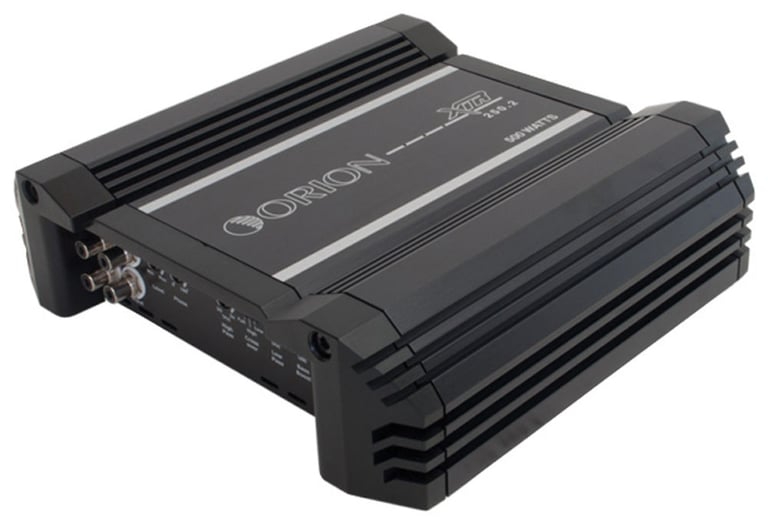

Orion XTR2502 (XTR 2502)

500W Max 2-Channel XTR Series Amplifier with Crossover

Orion
Shop all Orion
Product videos
highlight-star-icon

• XTR Series 2-Channel Car Amplifier
• 70W x 2 Chan. @ 4 ohm
• 500W Max
• MOSFET Power supply
• Low-level RCA Inputs
• Includes crossover
• High and low-pass filters
• X-Over frequency control

Learn more about the xtr2502

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

Product Highlights


• XTR Series 2-Channel Car Amplifier
• 70W x 2 Chan. @ 4 ohm
• 500W Max
• MOSFET Power supply
• Low-level RCA Inputs
• Includes crossover
• High and low-pass filters
• X-Over frequency control

Description


Orion brand icon

Authorized dealer

  • XTR Series 2-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 2 chan.
    • 2 ohm: 140 watts x 2 chan.
    • Bridged, 4 ohm: 250 watts x 1 chan.
  • Max power output: 500 watts

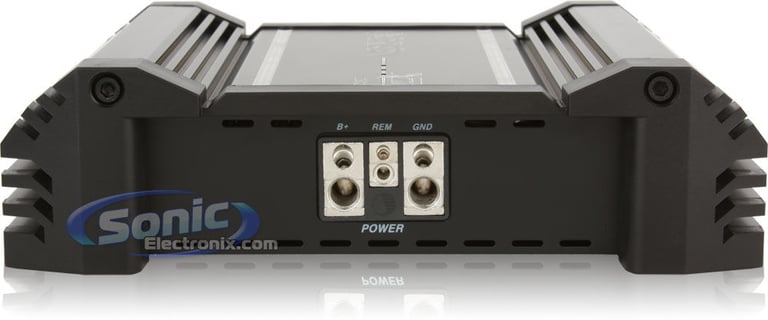

  • MOSFET Power supply and output stage
  • Power and protection LED Indicators

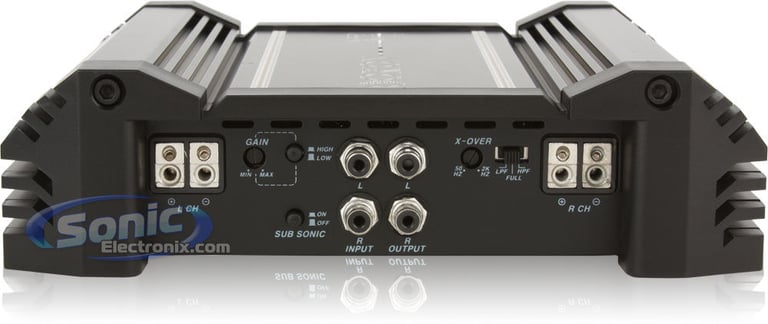

  • Low-level RCA Inputs
  • Accepts high-level speaker inputs from an OEM stereo
  • Thermal, DC offset, short protection and under-voltage protection
  • X-Over (crossover) activates the low-pass, FLAT and high-pass crossovers
  • X-Over frequency control adjusts the frequency for the high- and low-pass filters
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable high-pass filter (50-2,000 Hz, 12 dB/octave)
  • Variable Low-pass filter (50-2,000 Hz, 12 dB/octave)
  • Subsonic Filter (12 dB at 24 Hz)
  • Frequency response: 20-20,000 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 9-1/4"L x 8-3/4"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Sonic Electronix warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 2 channel
RMS Power @ 2 ohms
140 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
250 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total Peak Power Output
500 watts
Total RMS Power Output
250 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 2,000 Hz
Low-Pass Crossover Frequency
50 - 2,000 Hz
Subsonic Filter
24 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XTR2502

Weight:

12.00lbs

Internal SKU:

xtr2502

Internal Product ID:

20888

Product and How-to Videos


Customer Ratings & Reviews


Orion XTR2502 (XTR 2502) thumbnail image

5 star
80%
4 star
0%
3 star
0%
2 star
20%
1 star
0%



Durability
4.6
Value
4.6
Features
4.4
Design
3.6
Usability
4.2

Customer Reviews

Sort by:

Loading...

very good amp

I have this amp hooked up to an Orion xtr 10" woofer the amp puts out very clean and clear bass. This amp puts out all the bass i need and wanted.

By westtexas on October 14, 2011

17 found this helpful


great value

Mine is 300 RMS underated amp.

By justin on July 14, 2011

18 found this helpful


Orion XTR 2502

The amp I have was manufactured in January of 2010. The certificate of birth rates actual power at 294 watts; 96w x 2 RMS at 4ohms at 1% THD. This amp is a good value. It looks nice and clean, has indicator led lights, and hidden mounting screws. I'm using this amp to power my 6.5 component speakers on my rear channel. I'm using the XTR 5004 for the front channel. The sound is clean and static free. No complaints. Good for powering mids/highs or 6x9's. This amp will get very hot when played loud for a while, but has never gone off on thermal, even in Arizona in the 115 degree heat. The subsonic filter helps your mids live longer. This amp does not have bass boost, so you'll need a larger amp for your subs.

By basshead on November 10, 2011

15 found this helpful


big bang for the buck but only 1 flaw

I've been a Orion fan for over 20 years and the quality has not gone away,this amp is more than enough power for any single sub set, I got it running 1 xtr 15 and it hurts even just at half gain, the only flaw with the amp is there are no plate fasteners at the end of the screws for all the terminals, I put my own in as a work around but this should definitely be taken care of with any future amps, if the amp moves around at all any cable can fall out so be careful,other than that this amp will do the job.

By michael on April 26, 2013

14 found this helpful


Good amp but one thing makes it trash

The terminal lugs won't hold on to a piece of copper at all; Kicker 4 gauge. I tried to tighten it down normal; then with some extra copper removed. Nope, Orion decided it would be a good idea to have the screw/nut come down at a 35° so it lightly compresses the wire. That's not the worst though; the screw come down (amp side I=I---//-- not scale) so the lightest tug on the wire it comes out...

By Joe on June 26, 2012
