Audiobahn A5100T R/B

3180W Max, 5.1 Surround Sound 6-Channel Amplifier (Factory Refurbished)

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

6-Channel 5.1 Surround Sound Amplifier • 2 front channels, 2 rear channels, 1 center channel, and 1 subwoofer channel (1 ohm stable) • cooling fan • MOSFET power supply • digital voltage readout • blue illumination

Learn more about the LS-a5100t-RB

We apologize

This item has been discontinued

Product Highlights


6-Channel 5.1 Surround Sound Amplifier • 2 front channels, 2 rear channels, 1 center channel, and 1 subwoofer channel (1 ohm stable) • cooling fan • MOSFET power supply • digital voltage readout • blue illumination

Description


Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • 3180W Max, 5.1 Surround Sound 6-Channel Car Amplifier
    • Amplifier has 2 front channels, 2 rear channels, 1 center channel, and 1 subwoofer channel.
  • RMS Power Rating:
    • 4 ohm: (Front: 125W x 2 ch.) + (Center: 75W x 1 ch.) + (Rear: 75W x 2) + (Sub Channel: 300W x 1 ch.)
    • 2 ohm: (Front: 200W x 2 ch.) + (Center: 130W x 1 ch.) + (Rear: 130W x 2) + (Sub Channel: 500W x 1 ch.)
    • 1 ohm (Note: only the sub channel, the 6th channel, is stable at 1 ohm): 800W x 1 ch.
  • Max Power Output: 3180 watts @ 2 ohm stereo for channels 1-5 and 1 ohm for channel 6.
  • Because this amplifier is refurbished, Audiobahn provided us no wired remote bass level control included. An optional remote has ability to increase/decrease gain (volume) on center or subwoofer channels and you must check with Audiobahn for availability
  • Variable Input Mode: 2, 4, or 6 inputs so you can select which input mode applies to your setup.
  • Full MOSFET Power Supply with Soft Start Class A/B Circuitry
  • Preamp Outputs

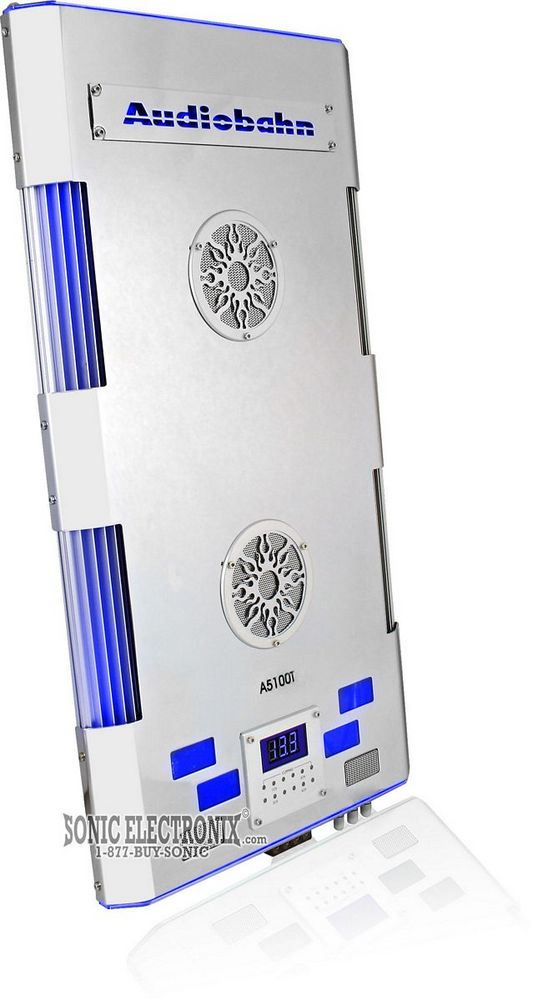

  • Cobalt Blue Illumination (on/off switch for your preference)
    • Circuit Board, Heat Sink, Audiobahn Name Plate, Volt-meter and End Caps illuminate
  • Cobalt Blue Digital Volt-meter Display
  • Clipping Blue LED Indicators under the volt-meter display

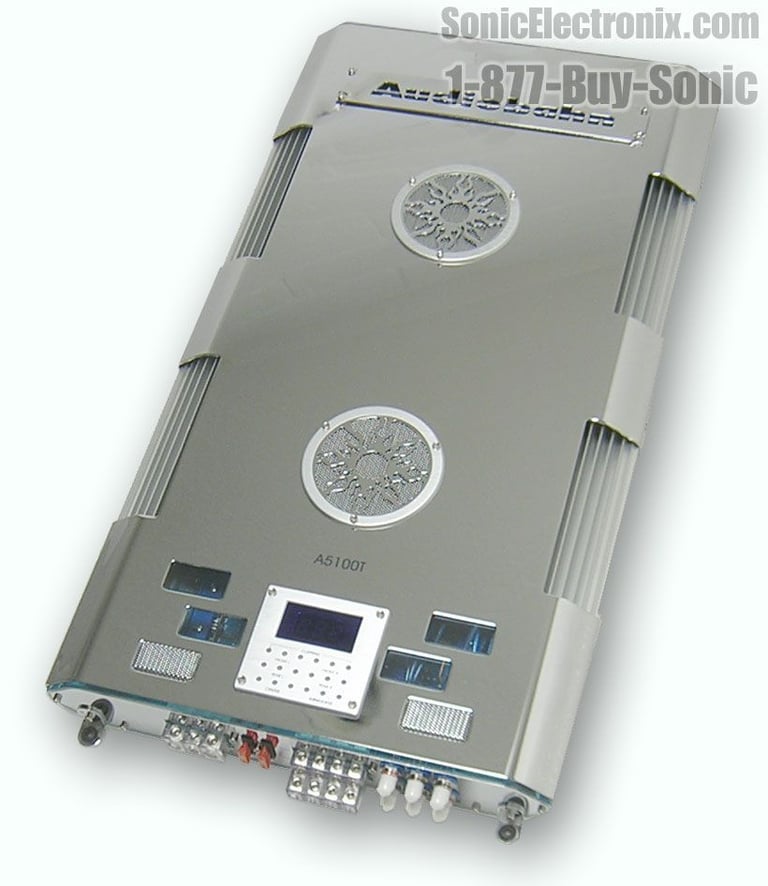

  • Dual Cooling Fans
  • Chrome Flame Cooling Fan Grills Cover Included (other optional designs available and sold separately)
  • Double Sided Glass Epoxy Circuit Board
  • High Gloss Chrome Plated Finish

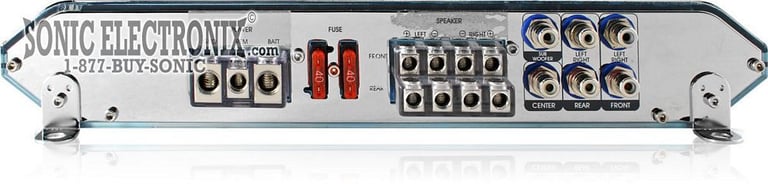

  • Nickel Plated Block Terminals
  • 3-way Protection Circuitry: Thermal, Short Circuit and Overload

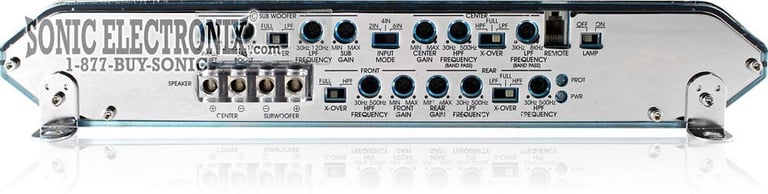

  • Specs for Front 2 Channels:
    • Variable High-Pass Crossover: 30-500Hz
    • Channel can also work in full-pass mode
  • Specs for Rear 2 Channels:
    • Variable High-Pass Crossover: 30-500Hz
    • Variable Low-Pass Crossover: 50-60Hz
    • Channel can also work in full-pass mode
  • Specs for Center Channel:
    • Variable High-Pass, Band-Pass Crossover: 30-500Hz
    • Variable Low-Pass, Band-Pass Crossover: 30-8000Hz
    • Channel can also work in full-pass mode
  • Specs for Subwoofer Channel:
    • Variable Bass Boost: 0-18dB
    • Variable Low-Pass Crossover: 30-120Hz
    • Channel can also work in full-pass mode
    • Phase Control: 0 or 180°
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • THD: 0.02%
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 23-3/16" L x 12-3/4" W x 2-1/4" H
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
(Front) 125W x 2, (Center) 75W x 1, (Rear) 75W x 2, (Subwoofer) 300W x 1
RMS Power @ 2 ohms
(Front) 200W x 2, (Center) 130W x 1, (Rear) 130W x 2, (Subwoofer) 500W x 1
RMS Power @ 1 ohm
800W (Subwoofer Channel is Only Stable Channel @ 1 ohm)
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
6-Channel
Minimum Impedance Unbridged
Channels 1-5: 2 ohms, Channel 6 (sub ch): 1 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
No
High-Pass Crossover Frequency
Scroll up to Features or Click Here
Low-Pass Crossover Frequency
Scroll up to Features or Click Here
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
40A x 2

Item Details


Manufacturer:

Model Number:

A5100T-RB

Weight:

25.00lbs

Internal SKU:

LS-a5100t-RB

Internal Product ID:

9984
