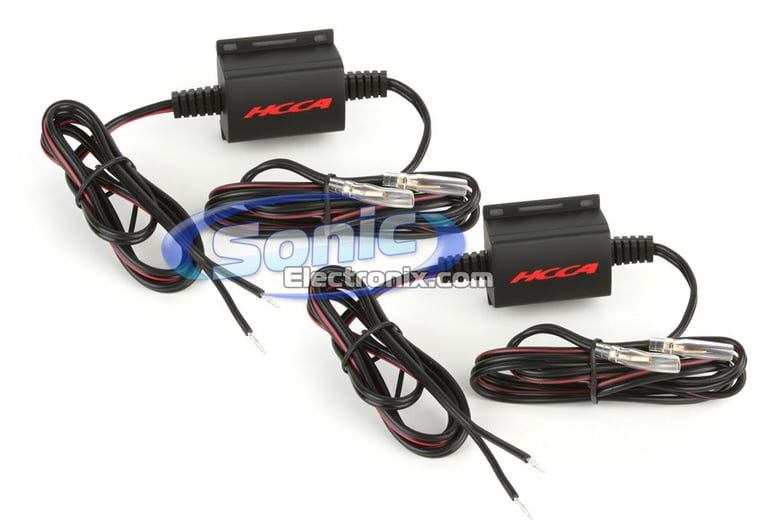

Orion HCCA10002 (HCCA-10002) Open Box Image 17 — Orion HCCA10002 (HCCA-10002) Open Box

Orion HCCA10002 (HCCA-10002) Open Box Image 18 — Orion HCCA10002 (HCCA-10002) Open Box

Orion HCCA10002 (HCCA-10002) Open Box -video

Product videos

Product highlights

HCCA Competition Series Car Amplifier • 2-Channel • Class AB • 1000W x 1 Chan. Bridged RMS • 500W x 2 Chan @ 2 Ohm • 250W x 2 Chan. @ 4 Ohm • IntelliQ Bass Optimization • CEA-2006 Compliant

Learn more about the LS-hcca10002-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

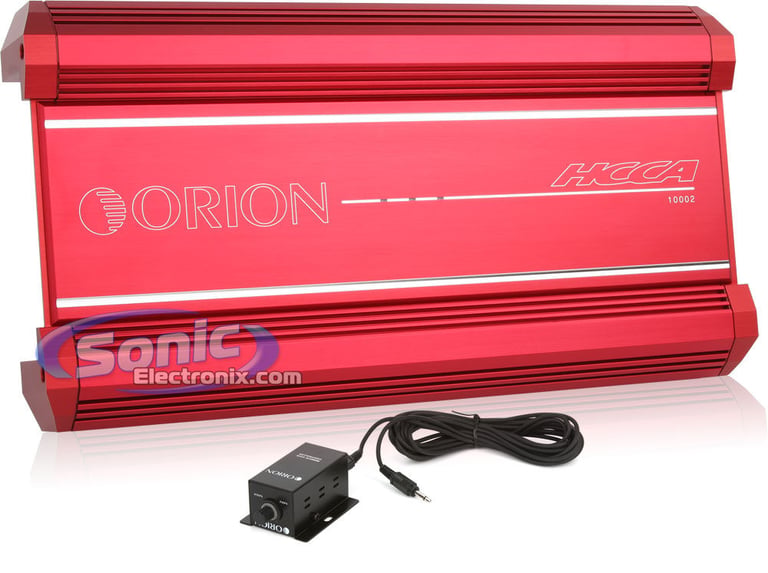

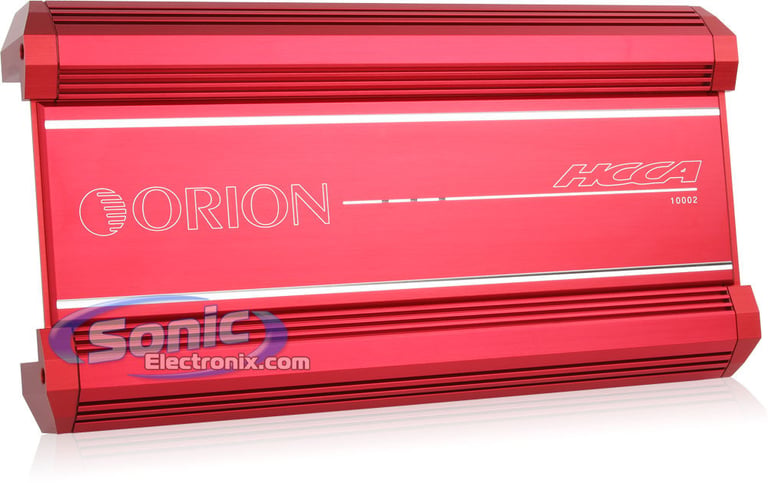

HCCA Competition Series 2-Channel Class AB Car Amplifier
RMS Power Rating:
- 4 ohm: 250 watts x 2 chan.
- 2 ohm: 500 watts x 2 chan.
- Bridged, 4 ohm: 1000 watts x 1 chan.
Max power output: 2000 watts x 2 chan.
MOSFET power supply

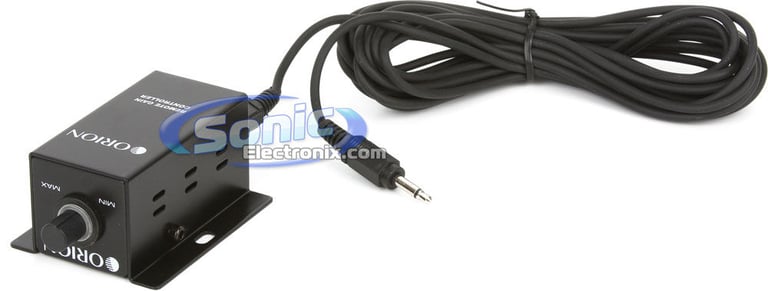

Wired remote bass level control sold separately
LED power and protection indicators
Tuned Bass EQ (0-10 dB bass boost)
IntelliQ Bass optimization circuit for enhanced bass response
2/1 channel operation
Accepts low-level inputs
Orion's unique patented ESP technology

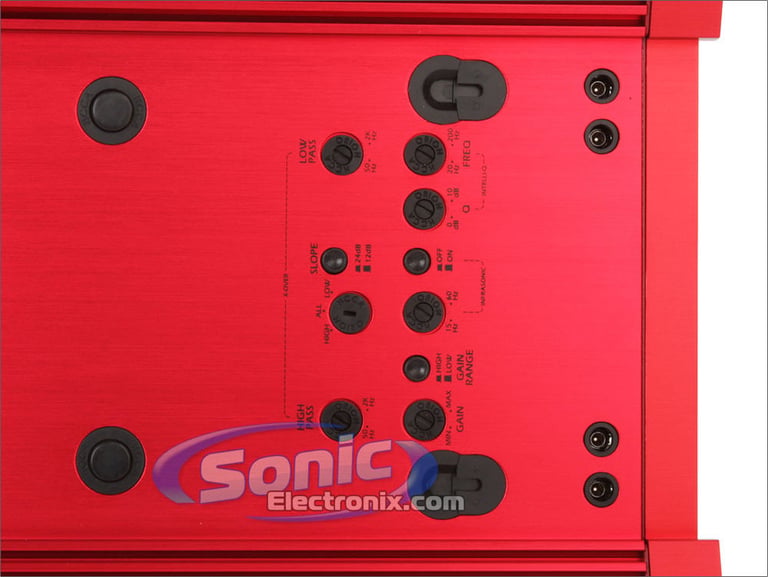

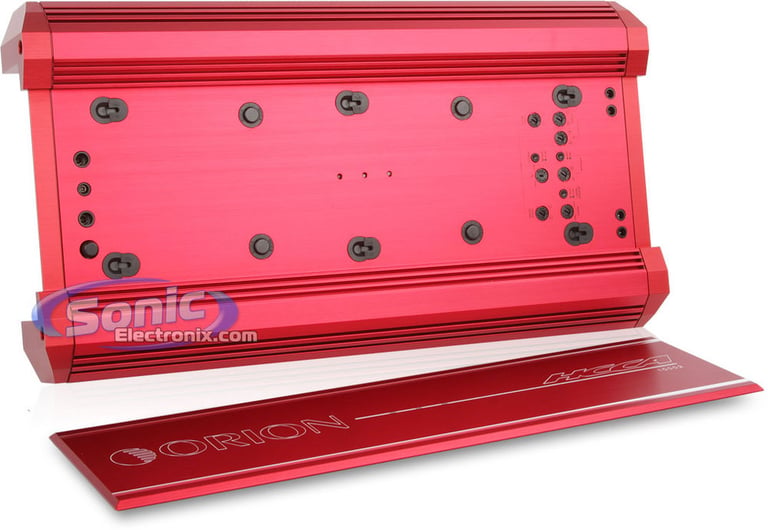

Controls conveniently concealed under the top locking panel
Heavy duty aluminum alloy heatsink for excellent heat dissipation

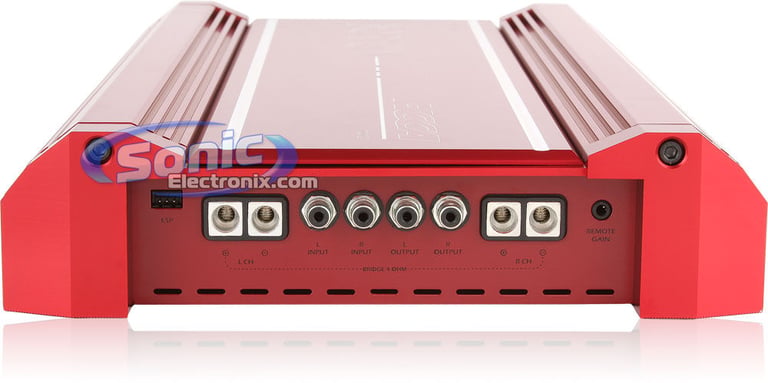

Nickel-plated RCA level inputs

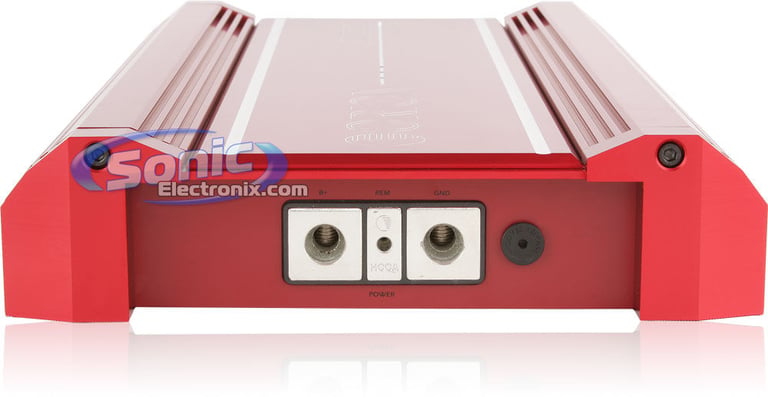

Nickel-plated screw terminals
Variable high-pass filter (50-2,000 Hz, 24 dB/octave)
Variable low-pass filter (50-2,000 Hz, 24 dB/octave)
Subsonic Filter (24 dB at 15 Hz)
CEA-2006 compliant amplifier
Frequency response: 20-20,000 Hz
Dimensions: 19-3/4"L x 10-3/8"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
30-Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

250 watts x 2 channel

RMS Power @ 2 ohms

500 watts x 2 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

1000 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

2000 watts

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 2,000 Hz

Low-Pass Crossover Frequency

50 - 2,000 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Fuse Rating

100A x 1

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
