Lanzar MXA254

4000W Max, 2-Channel Max Series Amplifier (MXA-254)

Lanzar
Shop all Lanzar
Product videos
highlight-star-icon

Max Series 2-Channel Car Amplifier • 4000W Max • 400W x 2-Chan. @ 2 Ohm • 300W x 2-Chan. @ 4 Ohm • Phase Shift 0-180° • 3-Way System Protection Circuitry • Stiffly Regulated PWM MOSFET Power Supply

Learn more about the mxa254

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

Limited time!
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-34.13%

$111.95

List price $169.95

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Product Highlights


Max Series 2-Channel Car Amplifier • 4000W Max • 400W x 2-Chan. @ 2 Ohm • 300W x 2-Chan. @ 4 Ohm • Phase Shift 0-180° • 3-Way System Protection Circuitry • Stiffly Regulated PWM MOSFET Power Supply

Description


Lanzar brand icon

Authorized dealer

  • Max Series 2-Channel Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 200 watts x 2 chan.
    • 2 ohm: 300 watts x 2 chan.
    • Bridged, 4 ohm: 4000 watts x 1 chan.
  • RMS Power Rating (THD):
    • 4 ohm: 300 watts x 2 chan.
    • 2 ohm: 400 watts x 2 chan.
  • Max power output: 2000 watts x 2 chan.
  • Stiffly regulated PWM (Pulse Width Modulated) MOSFET power supply
  • LED power (green) and protect (red) indicators

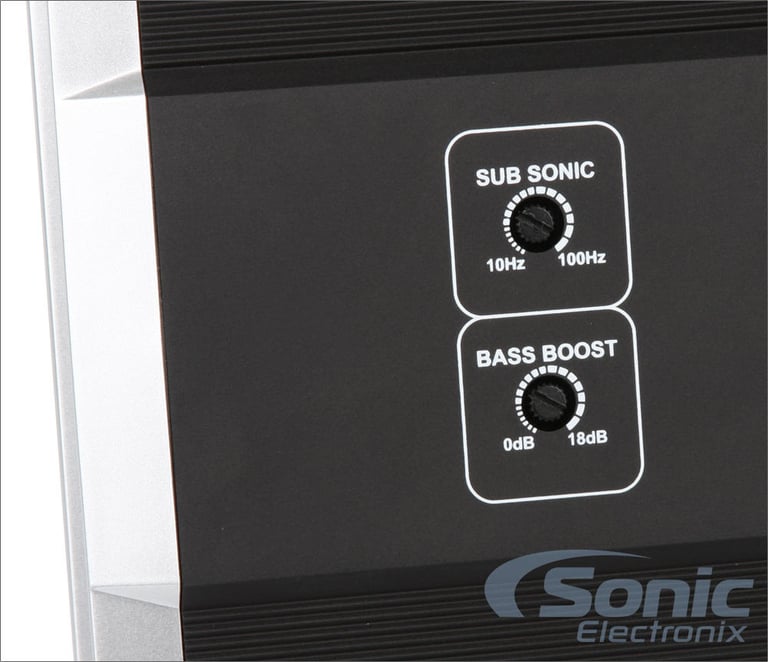

  • Bass Boost/EQ details (0 or +18 dB bass boost)
  • Input impedance: 10K Ohm
  • 2/1 channel operation
  • Preamp RCA outputs
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Variable input level: 200mV-6V
  • Heavy duty aluminum alloy heatsink for maximum heat dissipation
  • Nickle-plated RCA level inputs
  • Nickle-plated screw terminals
  • Variable high-pass filter (40-250 Hz, 24 dB/octave)
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Frequency response: 15-30,000 Hz
  • Dimensions: 17"L x 10-5/8"W x 1-3/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 2 channel
RMS Power @ 2 ohms
400 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
2000 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total Peak Power Output
4000 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
95 dB
Channel Separation
65 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
50A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MXA254

Weight:

12.00lbs

Internal SKU:

mxa254

Internal Product ID:

22135

Product and How-to Videos


Customer Ratings & Reviews


Lanzar MXA254 thumbnail image

5 star
50%
4 star
0%
3 star
0%
2 star
0%
1 star
50%



Durability
3
Value
3.5
Features
4
Design
4
Usability
4

Customer Reviews

Sort by:

Loading...

Just Don't

Had it for about a week and the ground terminal melted out of the amp. We were running the correct power to it and the dang thing fell out.

By Kyle on October 26, 2010

14 found this helpful


great amp

Nice power and steady many competitions won with this.

By James on October 18, 2011
