Alpine PSS-23FORD-F150

Product Details:

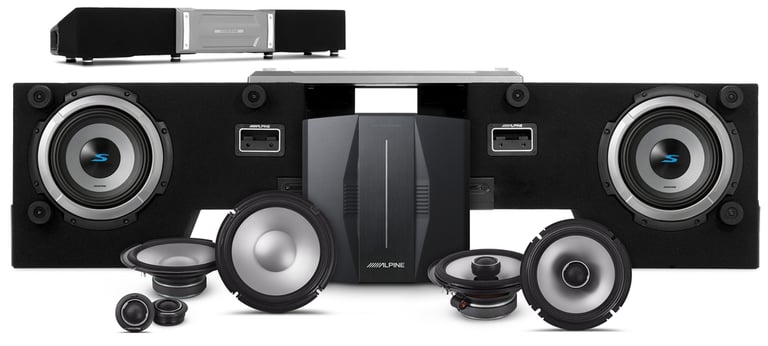

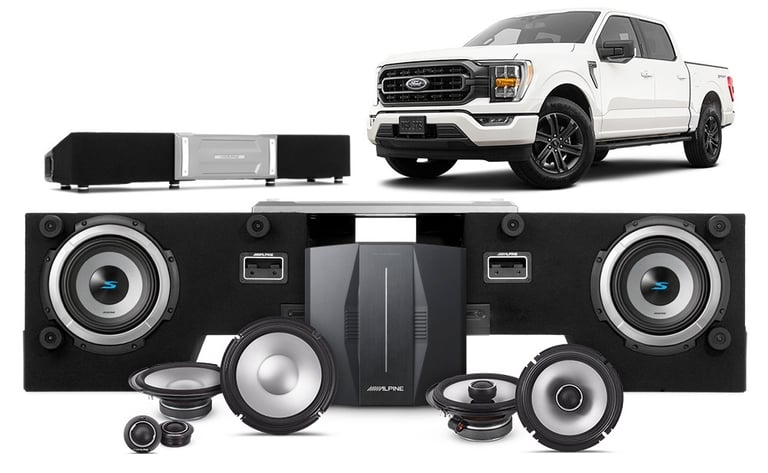

• System includes a pair of 8" component front speakers, a pair of 6.5" coaxial rear speakers, one loaded dual 8" vented truck enclosure, one 8-channel amplifier, speaker adapter rings, and plug-and-play harnesses
• Designed and engineered to match and compliment the factory fit and finish of your vehicle
• Enclosures for subwoofers integrate with no loss of passenger space
• Pre-tuned for F-Series truck cabin environment
• Plug and play design for easy installation
• Factory-fit integration with custom mounting hardware
• Power, speaker, and input and output harness included
• Not compatible with 2-door models
• Also available: Alpine PSS-23FORD-F150BO for B&O Audio Systems (Sold separately)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Compatible with select 2021-2024 F-150

8" 2-way Component Speaker Specifications (Alpine S2-S80C)

• Power Handling:
• Peak: 520 watts per set / 260 watts each side
• RMS: 170 watts per set / 85 each side
• Hi-Res Audio certified
• Polypropylene, Glass Fiber and Mica cone material
• High-Amplitude Multi-Roll (HAMR) speaker surround
• 1" Silk Dome tweeters
• Ferrite magnet motor structure
• Designed for lightweight construction, high output and low distortion
• Seamless OEM fitment with simplified installation
• In-line crossovers for optimal sound separation and precise tuning
• Top-mount Depth: 2.61"
• Cutout Dimensions: 7.02"
• Impedance: 4 ohm
• Frequency Response: 50 - 40000 Hz
• Sensitivity: 80 dB
• MFR #: S2-S80C

6.5" 2-way Coaxial Speakers Specifications (Alpine S2-S65)

• Power Handling:
• Peak: 480 watts per pair / 240 watts each
• RMS: 160 watts per pair / 80 watts each
• Hi-Res Audio-certified
• Polypropylene, Glass Fiber and Mica cone material
• High-Amplitude Multi-Roll (HAMR) speaker surround
• 1" Cloth Dome tweeters
• Ferrite magnet motor structure
• Top-mount Depth: 2-5/16"
• Cutout Dimensions: 5-1/8"
• Impedance: 4 ohm
• Frequency Response: 70 - 40000 Hz
• Sensitivity: 88 dB
• Speaker grilles optional, sold separately
• MFR #: S2-S65
• 1-year Manufacturer's Warranty

Loaded Dual 8" Ported Enclosure Specifications (Alpine S-DB8V-TRK):

• 5/8" medium-density fiberboard construction covered with carpet
• Rugged center link plate links two preloaded enclosures together
• RMS Power Handling: 600 watts
• Final Impedance: 2-ohm x 2 sets
• Kevlar Reinforced Pulp Paper cone
• Ribbed Santoprene surround
• Frequency Response: 34-200 Hz
• Sensitivity: 84 dB
• Dimensions: 40 - 51" L x 8-3/4" H x 13-1/4" W
• MFR #: S-DB8V-TRK

Class D 8-Channel Amplifier Specifications (Alpine PXE-C80-88)

• RMS Power Rating:
• 4 ohm: 50 watts x 6 channel + 150 watts x 2 channel
• 2 ohm: 50 watts x 6 channel + 300 watts x 2 channel
• Total power output: 900 watts
• Speaker-level (high-level) inputs
• Quick and real-time sound optimization
• Center image mode feature
• Hi-res audio playback at 96kHz/24Bit
• Real-time acoustic analysis
• Manual and automatic tuning through Alpine OPTIM App on iPhone (10+) or Android
• Manual and automatic tuning through Alpine OPTIM App on PC
• Eliminates factory EQ curve for clean sound
• AutoEQ with APVD Collection Quickly creates a flat vehicle response
• Included Remote Controller with quick access to presets and controls
• User-Friendly Interface Intuitive app for seamless tuning
• Factory Integration Seamlessly integrates with OEM systems
• 4 pairs of pre-amp outputs
• Signal sensing remote turn-on
• Frequency Response: 20 - 40000 Hz
• Total Harmonic Distortion (THD): 10%
• Signal to Noise Ratio: 100 dB
• Variable high-pass filter: 20 - 20000 Hz
• Variable low-pass filter: 20 - 20000 Hz
• Fuse Rating: 40A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 8.86" L x 8.68" W x 2.13" H
• MFR #: PXE-C80-88
