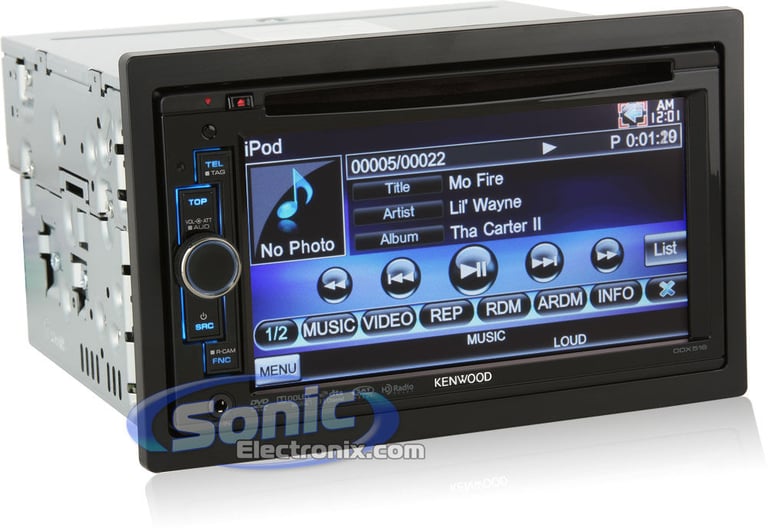

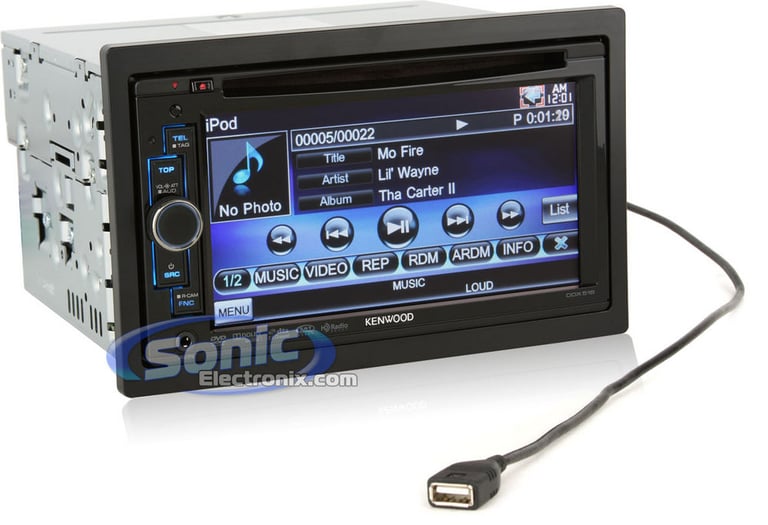

Kenwood DDX516 (DDX-516)

General Features:

• In-dash DVD, AM/FM, CD, MP3, WMA, AAC Receiver
• Offers complete control with the latest iPods and iPhones
• Fixed faceplate with buttons on the left
• Large 6.1" full color display
• Widescreen touch-sensitive panel display
• High resolution display has a 800 x 480 resolution
• Optional remote control: Kenwood KNA-RCDV331
• Variable color illumination button lighting to match OEM interior lights

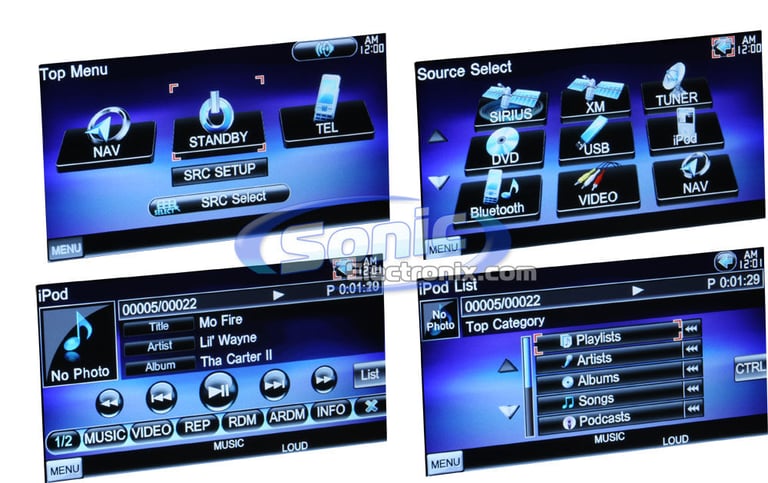

• Easy to navigate menu with interactive video graphics
• CEA-2006 compliant amplifier
• Power Output:
  • Peak: 50 watts x 4 channels
  • RMS: 22 watts x 4 channels
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• 1-year Sonic Electronix warranty

Playback and Audio Features:

• Playback of DVD, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD DL, DTS-CD, VCD, CD, CD-R, CD-RW, MP3, WMA, and AAC
• CR-2 tuner with 18FM/6AM presets
• SNPS (Station Name Preset) allows for the assigning of programmable names to each radio station preset
• Built-in RDS (Radio Data System) for enhanced radio features
• System Q-EX/System E's+ sound shaping for enhanced audio playback
• EQ3 (3-band parametric equalizer with 8 preset tone curves)
• Built-in Dolby Digital and DTS 2.0 audio decoding
• Loudness feature
• Individual source adjustment for volume and equalization
• Dual zone capability allows the playing of separate sources to the front of the car and the rear of the car
• 24-bit Digital-to-Analog converter for superior audio quality
• Four selectable viewing modes for the perfect playback of video files

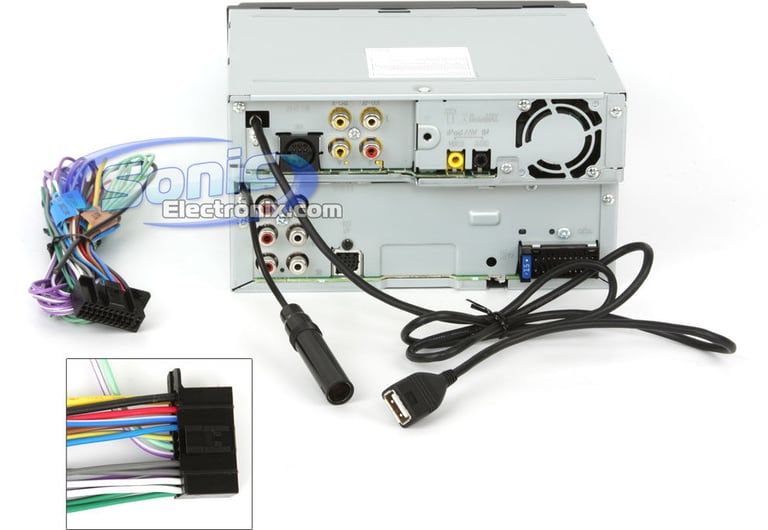

Expandability Options:

• 3 Sets of 2V preamp outputs (front, rear and subwoofer)
• Navigation Ready: Kenwood Remote-Mount Navigation Unit required and sold separately
• Bluetooth Ready: Kenwood KCA-BT200 required and sold separately for hands-free calling and A2DP music streaming
• SIRIUS or XM Satellite Radio Ready: Kenwood SIRIUS Satellite Radio Package or XM Satellite Radio Solution Package required and sold separately
• HD Radio Ready: HD Radio Tuner required and sold separately
• iPod and iPhone Ready: Kenwood KCA-IP301V required for playback, charging, and control of iPod
• Front-panel A/V input: 3.5mm (headphone jack) allows connection to portable media devices such as DVD players, gaming systems, MP3 players, and other external audio/video sources
• Rear Video input: Rear input for rear view cameras with a RCA composite input, however the Kenwood CMOS-200 or the Kenwood CMOS-300 is recommended
• Rear USB input for connection to digital media devices
• Rear auxiliary input: RCA Audio Input
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately
