Sound Storm Labs (SSL) EV5000D

5000W Peak Evolution Series Class-D Monoblock 1-Ohm Stable Amplifier

Product videos
highlight-star-icon

• RMS: 1800W x 1 @ 4 ohms, 2500W x 1 @ 2 ohms
• Peak: 2200W x 1 @ 4 ohms, 3500W x 1 @ 2 ohms, 5000W x 1 @ 1 ohm
• Wired Bass Level Remote
• Bass Boost: 0-18 dB
• DataLink Cable for Connecting Two Evolution Amps
• Dimensions: 10"D x 19-1/2"W x 2-3/8"H

Learn more about the ev5000d

We apologize

This item has been discontinued

Product Highlights


• RMS: 1800W x 1 @ 4 ohms, 2500W x 1 @ 2 ohms
• Peak: 2200W x 1 @ 4 ohms, 3500W x 1 @ 2 ohms, 5000W x 1 @ 1 ohm
• Wired Bass Level Remote
• Bass Boost: 0-18 dB
• DataLink Cable for Connecting Two Evolution Amps
• Dimensions: 10"D x 19-1/2"W x 2-3/8"H

Description


Sound Storm Labs (SSL)

Authorized dealer



Amplifier Features:

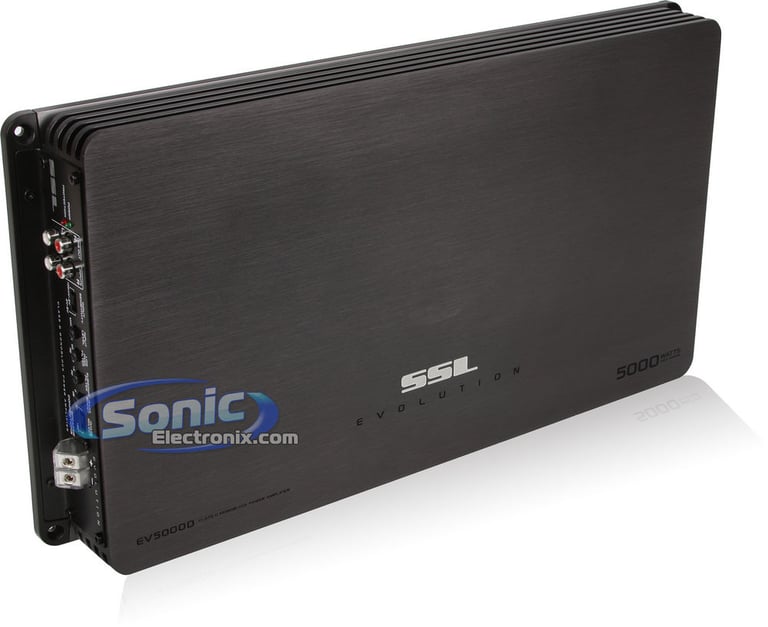

  • Evolution Series Single-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 1750 watts x 1 chan.
  • Max power output:
    • 2 ohms: 3500 watts x 1 chan.
    • 1 ohm: 5000 watts x 1 chan.
  • MOSFET PWM (Pulse Width Modulated) power supply)
  • 1 Ohm stable
  • Wired remote bass level control included
  • Power and protection LED indicators
  • Variable tuned bass EQ (0-18 dB bass boost)
  • Single channel monoblock operation

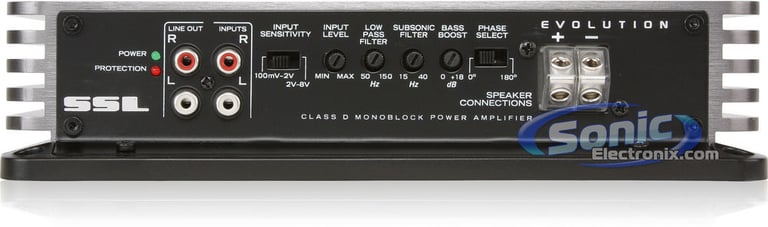

  • Selectable input sensitivity (100mV-2V or 2V-8V)
  • Thermal, overload, and speaker short protection
  • 1 Pair of preamp RCA outputs
  • Soft turn-on circuit
  • Selectable 0/180 phase shift

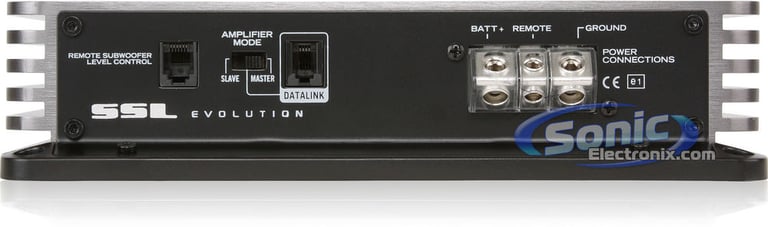

  • DataLink cable included for connecting two Sound Storm Evolution amplifiers together
  • Variable input gain control
  • Dark gray anodized heatsink
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Subsonic Filter (15-40 Hz, 12 dB/octave)
  • Frequency response: 50-150 Hz
  • Dimensions: 10"D x 19-1/2"W x 2-3/8"H
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

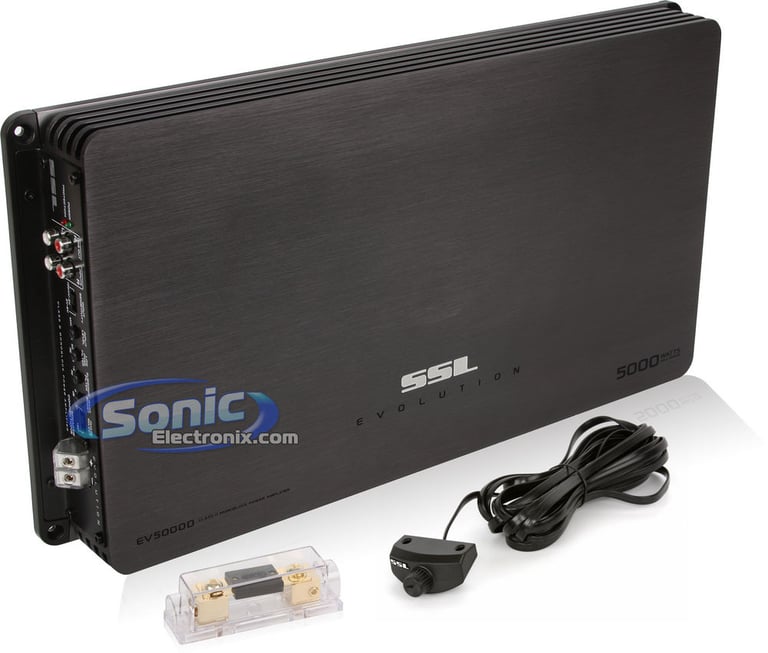

Package Includes:

  1. Class D Amplifier
  2. Remote subwoofer level control
  3. Remote subwoofer control cable

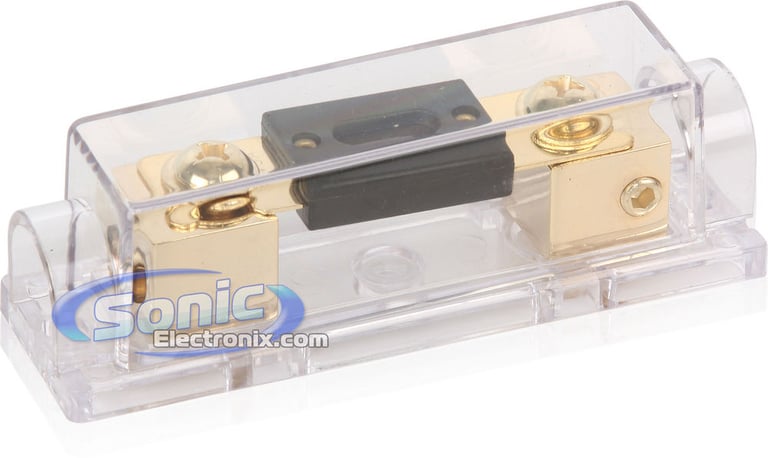

  4. ANL Fuse holder
  5. 200A Fuse

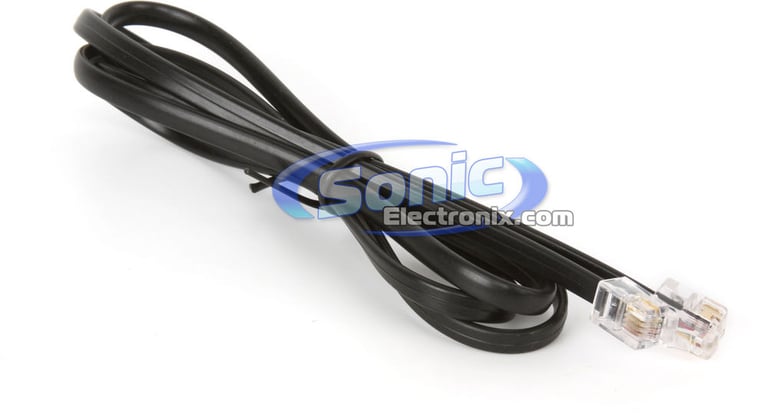

  6. DataLink cable
  7. Four mounting screws

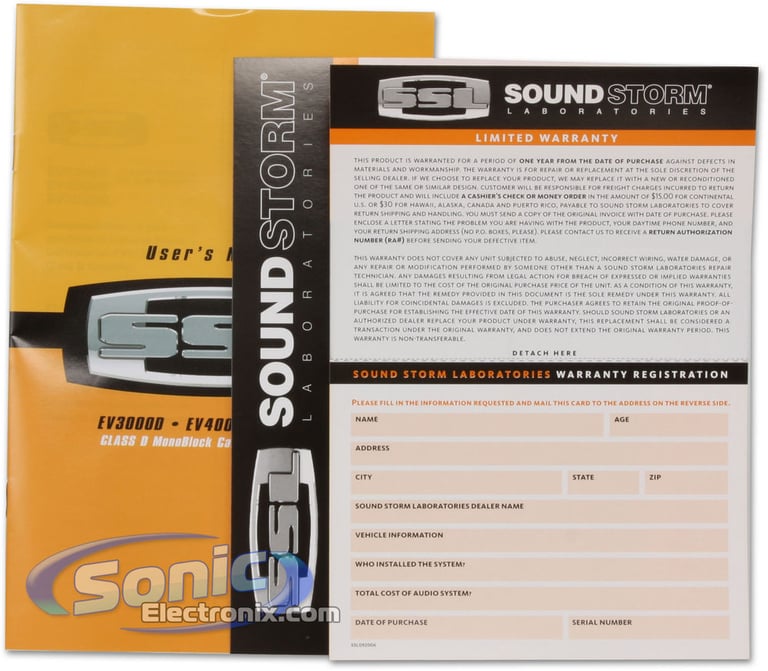

Sound Storm Labs (SSL) EV5000D owner’s manual



Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
938 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 1 channel
RMS Power @ 1 ohm
5000 watts x 1 channel
RMS Power @ .5 ohm
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Evolution Series
Marine Certified
No
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
1750 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Strappable
Yes
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

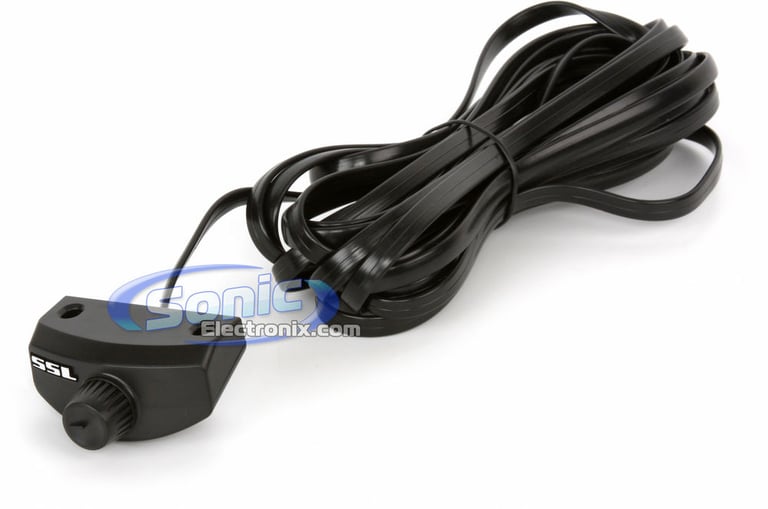

Wired gain knob (wire attached)

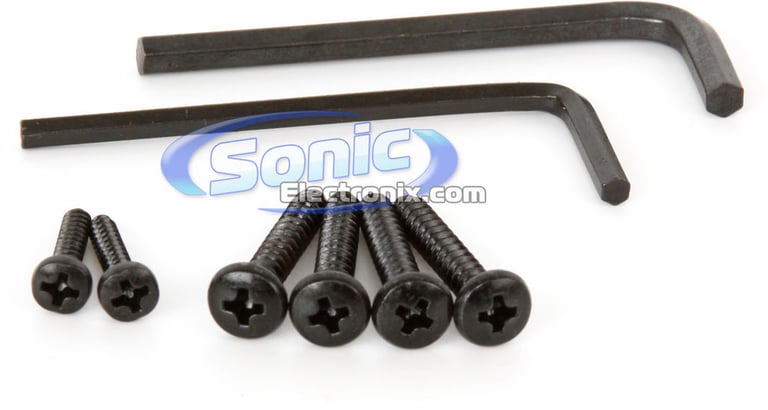

Mounting screws (4)
Allen wrenches (2)
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV5000D

Weight:

19.00lbs

Internal SKU:

ev5000d

Internal Product ID:

23062

Product and How-to Videos


Customer Ratings & Reviews



5 star
72%
4 star
19%
3 star
7%
2 star
0%
1 star
2%



Durability
4.8
Value
4.8
Features
4.6
Design
4.8
Usability
4.7
Sort by:

Loading...

Ridiculousness

I got this for my S-10 and all i have to say is get 0 gauge wire. 8 gauge does this amp no justice at all. I had a 1000.2 hooked up to my three 15's before this amp. I switched it out with the SSL 5000.1 with 8 gauge power and ground. No doubt it pounded louder than the 1000. I decided to do the big 3 (from SonicElectronix, i recommend, big time!), also 0 gauge power and ground. The after effects. I have a glass table in my room with a full gumball machine. I forgot my wallet one day after i started my truck and my music hadn't started playing and of course it was at full tilt 3 clicks from full volume. I started running up the stairs and my whole house started rattling white girl, i mean every picture, cup, vase, controller that was out was rattling. I went in my room and my full gumball machine was vibrating off my table. My town of 11,000 now hates me!!! Thanks SonicElectronix!!!!

By SIMEE on November 27, 2011

25

found this helpful.

SoundStorm. (SSL) EV5000D

I recently bought this amp for my 2 15" KicKer Drivers 1200 watts rms and and those subs with that amp POUND. The SoundStorm (SSL) EV5000 is a very good amp and its Black with a thin sleak Design with gains and a base boost ajustment. Also I like that it came with a bas e boost control nob that i ran beside my stering wheel so I can ajust bass easy. Extra things sent with amp was a base nob , fuse system with 100 amp fuse , and a cable that you can connect 2 amps together so they get same signal. In all I would buy this amp again and might try some of SoundStorms other products. Thnx. Great equipment.

By Dano on January 29, 2015

24

found this helpful.

Powerful

This is a powerful amp i purchase this amp a month ago I have 2 kicker 15in sub and it makes them sound like there trying to jump out of the box. granted that there 500watts peek power but I would recommend this amp to every one looking a good and powerful amp, yea it might not be the 5000watts but it's atleast 2000 to 2500watts it depend on how you wire up your sub, damm good amp for the price (that's a fact)

By Bigdog on October 26, 2014

24

found this helpful.

SSL is the best amp i have owned

i have had my SSL for about 4 months now and it can fry my orion hcca very easy if you are having a problem with it shutting off then upgrade your remote wire to 8 gage that is what i did and it solved my problem this amp needs alot of power so i also added a cap and extra battery i would definitely recommend this amp to a friend i will be taking this amp to competitions

By cody on June 22, 2014

24

found this helpful.

Purchased Amp

I would highly recommend your car audio needs o be met here. Fast free shipping. And the product is Wonderful. I give this company two thumbs up.

By Phil on February 7, 2015

22

found this helpful.

Check this out.

It's a good amp it pushes my 2 dd 3500 15s pounding down for the price u can't beat It

By jr on July 27, 2014

22

found this helpful.

Sweet Deal

Ok I got this in for a buddy of mine. we took it to the local shop and had them do a true bench test and while it is over rated for the money it is a great amp.
4ohm:523 true watts
2ohm:1053 true watts
1ohm:2001 true watts

so it is a pretty decent amp for the cost just over rated.

By Public Disturbance on November 23, 2011

21

found this helpful.

great amp for a great price

This a great amp I love it. Its very powerful I hooked it up to 2 kicker comps and wired them at 2 ohms and they beat workers in the back of walmart were I worked at said they could here me pull into the parkin lot and as far as sound quality goes I just used a name brand crossover which made the sound so much louder and deeper and clear. But without the crossover it still very bada** I didn't use the crossover to make it louder though cause it was already so strong it was melting my speakers litterally I just used it only to help get a lower frequency. But the amp is huge all my friends go crazy when they see it or hear it they think I'm some kinda audio expert I'm actually about to hook up a system today for a guy cause he heard my subs but recently I sold the comps and switched to 2 kicker cvr 15 4 ohm subs and wire them at 1 ohm man when I say this car bang so hard I have to turn it all down cause it gives me a headache I see windows on buildings shaking around me people who are in my car complain for me to turn it down mad cause I ruined there hair and don't think I'm an idiot who just packs his car with bass and it sounds horrible well I have alpine door and reak deck type r they sound perfect alpine headunit cde-102 I had an dvd screen at first but I took it out and gave it to my dad so no one would break my windows on my car tryin to get it and they broke his window and stole it from his car a week later but that's how it is in the hood lol and that's why I took it out my car my friends were sayin I downgraded my car but I didn't car I save my window and it became somebody elses who's got smashed but anyways I also amped my inside alpine door and deck with a 1000 watt alpine amp and I used a raptor capacitor on my subs which I bought here as well and I use 4 sq tweeters on a seprate crossover and a yellow top battery can't think of the name of my battery at the moment but it cost me 200 dollars but I had it long before I got a system and that's my review I would definetly say get this amp if your want to crack concrete with sound volume lol even those guys at car**ys were surpise to hear how good and loud it sound they claim there that jl audio subs are better than kicker subs well I heard 1 jl audio W7 maxxed out and a solo x maxxed out solo x kills it even the L7 kills it and a lot of people hate on the L7 well there better than FI BTL that's it and Kicker still takes that.

By michael on September 23, 2011

24

found this helpful.

Great buy for the money

This amp has done good by me. It doesnt push the power that they claim. Maybe 1700w rms at 2 ohm. But for the price paid, cant complain a bit.

By Jared on January 13, 2012

21

found this helpful.

overrated, like everything.

I've seen bench testing that showed 2143 into 1 ohm. Speaks for itself really, Its not a bad amp at all, makes some pretty good power, especially for the money. Just dont expect to get anywhere close to the ratings on this one.

By Nic on February 10, 2011

21

found this helpful.
