Name: Soundstream PCA1-650D R/B
Brand: Soundstream
SKU: LS-pca1650d-RB
Price: 129.99 USD
Availability: Discontinued

by Soundstream

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Soundstream PCA1-650D R/B Image 1 — Soundstream PCA1-650D R/B

Soundstream PCA1-650D R/B Image 2 — Soundstream PCA1-650D R/B

Soundstream PCA1-650D R/B Image 3 — Soundstream PCA1-650D R/B

Soundstream PCA1-650D R/B Image 4 — Soundstream PCA1-650D R/B

Soundstream PCA1-650D R/B Image 5 — Soundstream PCA1-650D R/B

Soundstream PCA1-650D R/B Image 6 — Soundstream PCA1-650D R/B

Product videos

Product highlights

Picasso Monoblock Class D Car Amplifier • 650W x 1 Chan. @ 2 Ohm • 500W x 1 Chan. @ 4 Ohm • High Quality FR-4 Circuit Board • TST(Twin Stack Technology) • Variable Low-Pass Filter • Subsonic Filter • Phase Shift

Learn more about the LS-pca1650d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

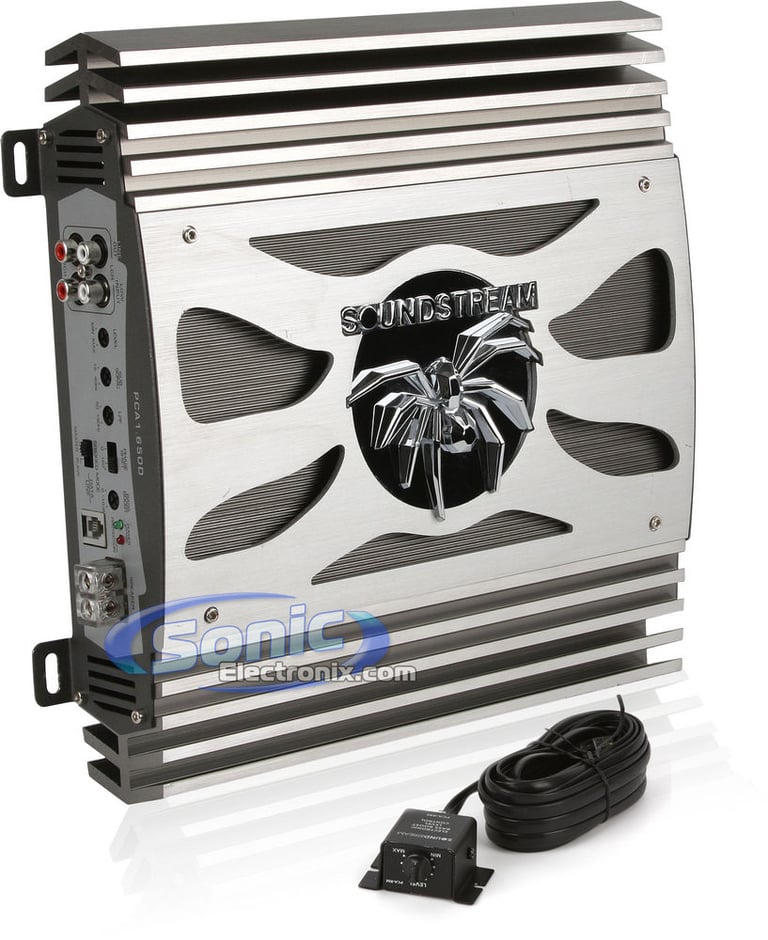

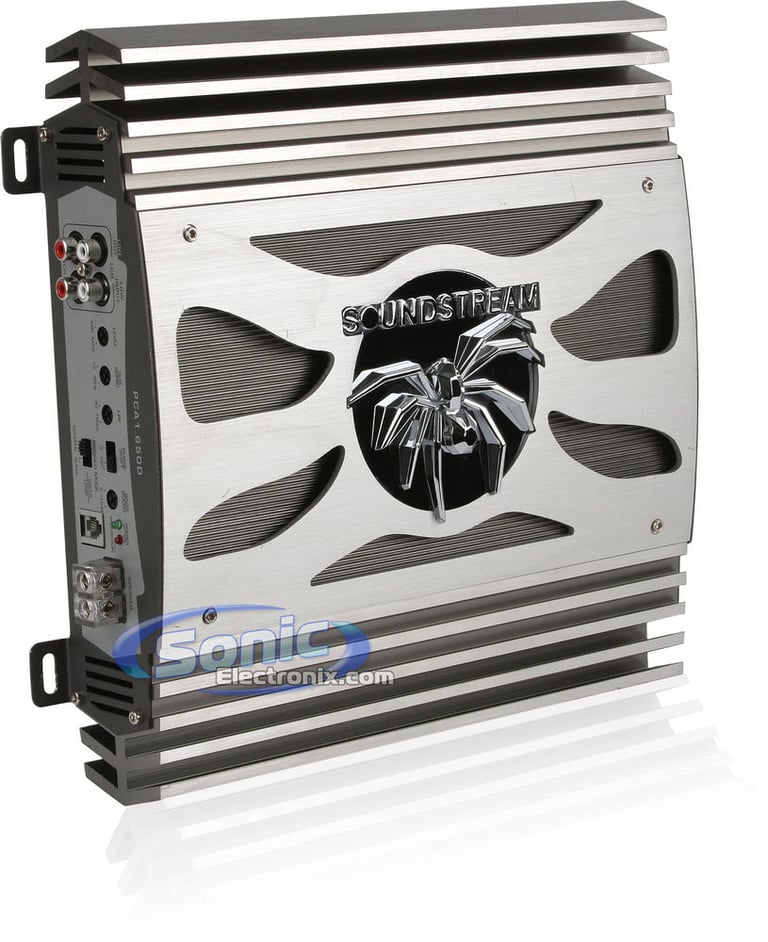

Picasso Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 500 watts x 1 chan.
- 2 ohm: 650 watts x 1 chan.
Class D MOSFET power supply
High quality FR-4 circuit board

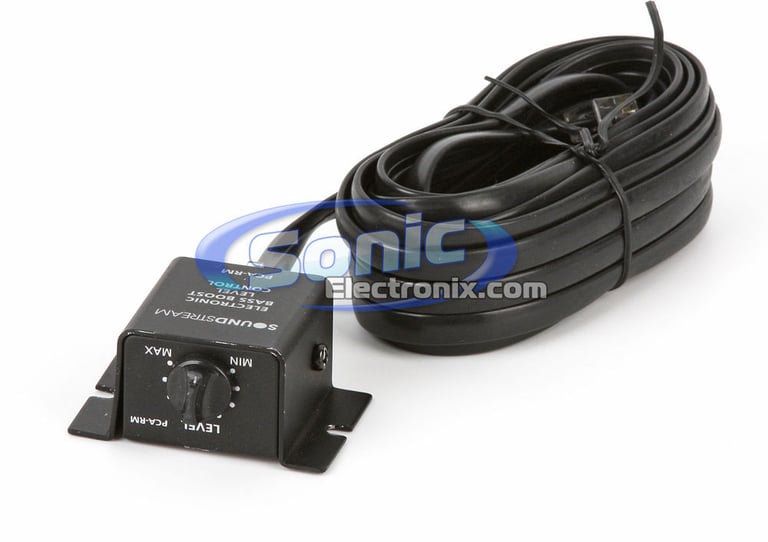

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost)
TST(Twin Stack Technology) Allows 2 amplifiers to drive 1 voice coil
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Input sensitivity:
- Level: 200mV-6V
Variable low-pass filter (50-150 Hz, 24 dB/octave)
Subsonic filter (24 dB at 15-40 Hz)
Phase Shift: 0-180°
Damping factor: >200
Frequency response: 5-250 Hz
Dimensions: 11"L x 11"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty
Item Condition: Factory Refurbished

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

650 watts x 1 channel

Bridged RMS Power

Not Bridgeable

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

650 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<0.5%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

85 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

30A x 3

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
