Name: Soundstream PCX700D R/B
Brand: Soundstream
SKU: LS-pcx700d-RB
Price: 139.99 USD
Availability: Discontinued

by Soundstream

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Soundstream PCX700D R/B Image 1 — Soundstream PCX700D R/B

Soundstream PCX700D R/B Image 2 — Soundstream PCX700D R/B

Soundstream PCX700D R/B Image 3 — Soundstream PCX700D R/B

Soundstream PCX700D R/B Image 4 — Soundstream PCX700D R/B

Soundstream PCX700D R/B Image 5 — Soundstream PCX700D R/B

Soundstream PCX700D R/B Image 6 — Soundstream PCX700D R/B

Soundstream PCX700D R/B Image 7 — Soundstream PCX700D R/B

Soundstream PCX700D R/B Image 8 — Soundstream PCX700D R/B

Product videos

Product highlights

Soundstream Picasso Series Monoblock Amplifier • 350W x 1-Chan. @ 4 Ohm • 520W x 1-Chan. @ 2 Ohm • 700W x 1-Chan. @ 1 Ohm • PWM MOSFET Power Supply • Twin Stack Technology • Includes Bass Control Remote

Learn more about the LS-pcx700d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Soundstream Picasso Series Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 350 watts x 1 chan.
- 2 ohm: 520 watts x 1 chan.
- 1 ohm: 700 watts x 1 chan.
PWM MOSFET power supply
TST (Twin stack technology) allows 2 amps to power 1 voice coil
FR4 Circuit board
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 35-80 Hz)
Monoblock operation
Preamp RCA outputs to daisy chain multiple amps
Glossy black hairline anodized heatsink for maximum heat dissipation
SMT cooling fan built in
Platinum RCA level inputs
Platinum 4-gauge power connectors

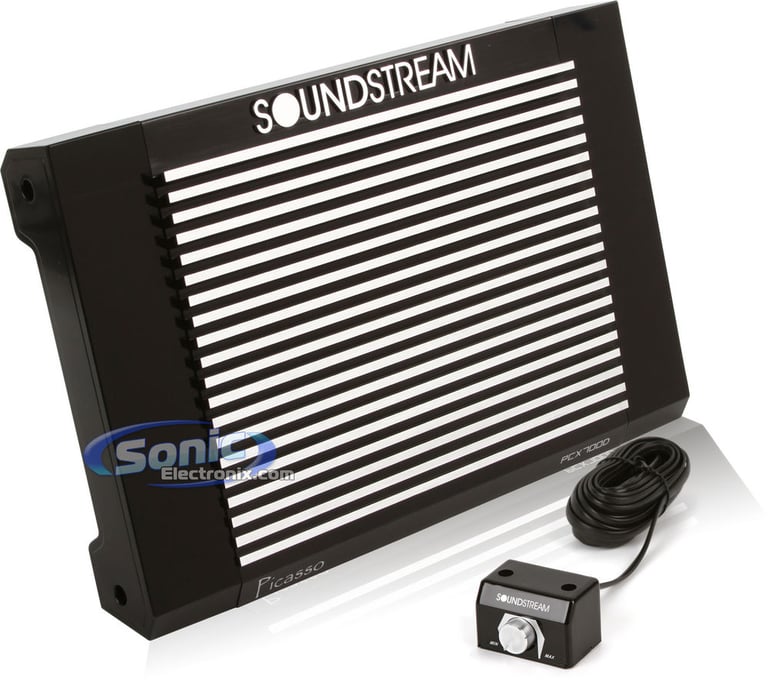

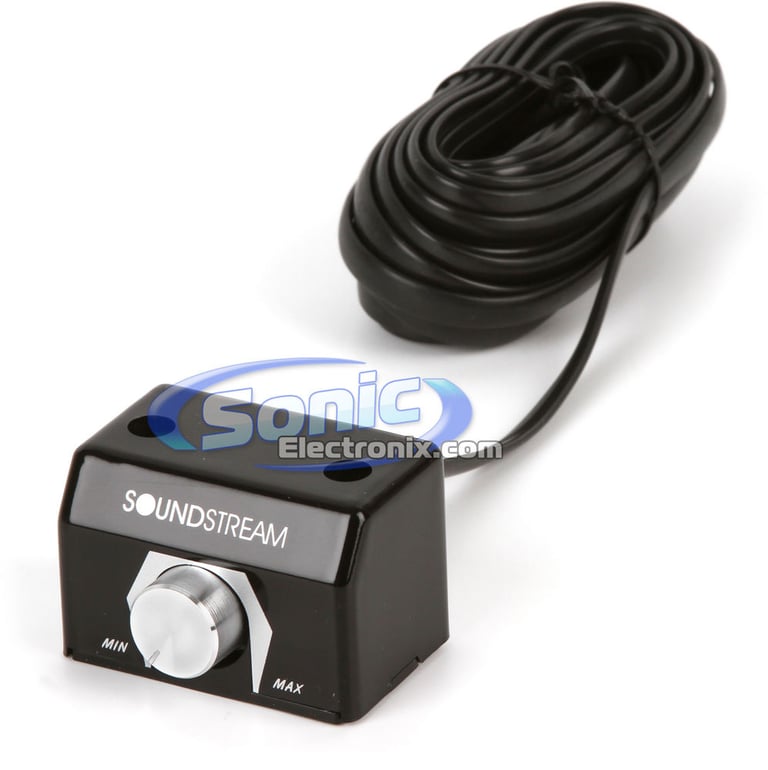

Includes bass control remote
Input sensitivity:
- Input Level (Balanced): 0.02V-8V
Variable low-pass filter (50-150 Hz @ 24dB)
Subsonic filter (15-40 Hz @ 24dB)
Phase Shift: 0-180°
Damping factor: >200
Frequency response: 15-250 Hz
Dimensions: 14-2/5"L x 10"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

350 watts x 1 channel

RMS Power @ 2 ohms

520 watts x 1 channel

RMS Power @ 1 ohm

700 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

700 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.50%

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

>85 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

30A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
