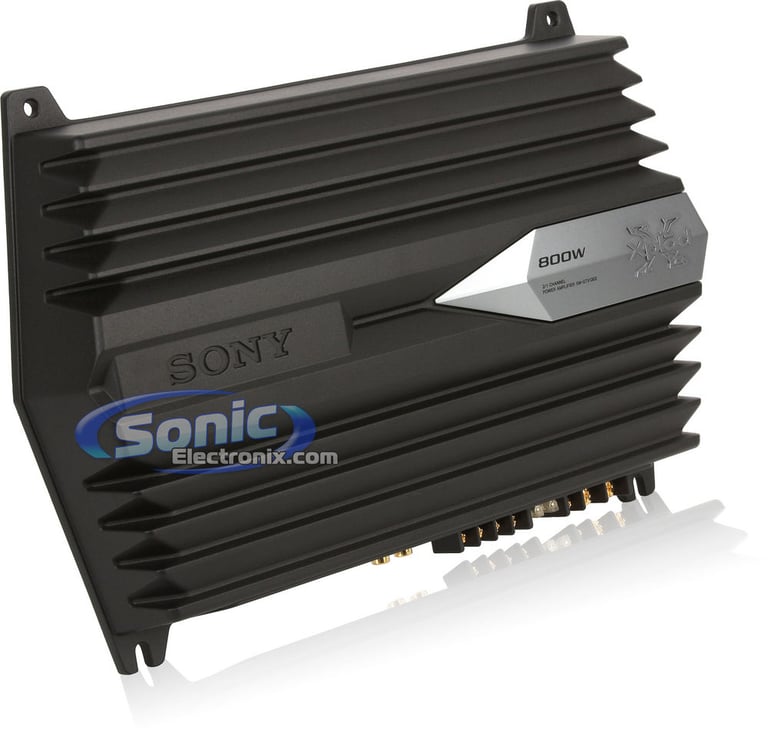

Sony Xplod XM-GTX1302

800W Max GTX Series 2-Channel Power Amplifier

Sony
Shop all Sony
Product videos
highlight-star-icon

GTX Series 2-Channel Car Amplifier • Class AB • 800 Watts Max • 130W x 2 Chan. @ 4 Ohm • 170W x 2 Chan. @ 2 Ohm • 0-10 Tuned dB Bass Boost • Speaker-Level Inputs • Gold-Plated Contacts • CEA-2006 Compliant

Learn more about the xmgtx1302

We apologize

This item has been discontinued


Loading...
99-5700 main

Metra 99-5700 Dash Kit

Install a new Single-DIN car stereo in select 1975-2000 vehicles from Ford, Mercury, Mazda

5
-12.50%

$27.99

List price $31.99

70-1772 main

Metra 70-1772 Wiring Harness

Install a new car stereo in select 1979-1988 vehicles from Ford, Mercury, Lincoln

1
-14.31%

$5.99

List price $6.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

12
-10.50%

$179.00

List price $200.00

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

DEH-S6220BS main

Pioneer DEH-S6220BS

Single DIN CD Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-13.05%

$199.99

List price $230.00

Product Highlights


GTX Series 2-Channel Car Amplifier • Class AB • 800 Watts Max • 130W x 2 Chan. @ 4 Ohm • 170W x 2 Chan. @ 2 Ohm • 0-10 Tuned dB Bass Boost • Speaker-Level Inputs • Gold-Plated Contacts • CEA-2006 Compliant

Description


Sony brand icon

Authorized dealer

  • GTX Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 130 watts x 2 chan.
    • 2 ohm: 170 watts x 2 chan.
    • Bridged, 4 ohm: 340 watts x 1 chan.
  • Max power output: 800 watts @ 2 ohm
  • OTL Output transformerless circuit pulse power supply
  • Tuned Bass EQ (0-10 dB bass boost at 40 Hz)
  • Power and protection LED indicator
  • 2/1 channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on)
  • 1 pair of preamp RCA outputs
  • High level sensing power on
  • Heavy duty aluminum alloy heatsink for efficient heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Switchable high-pass filter, low-pass filter, and off setting
  • Variable high-pass filter (80 Hz, 12 dB/octave)
  • Variable low-pass filter (80 Hz, 18 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 5-50,000 Hz
  • Dimensions: 10"D x 15-1/8"W x 2-1/4"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
130 watts x 2 channel
RMS Power @ 2 ohms
170 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
340 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
340 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
80 Hz
Low-Pass Crossover Frequency
80 Hz
Signal-to-Noise Ratio
93 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XM-GTX1302

Weight:

9.00lbs

Internal SKU:

xmgtx1302

Internal Product ID:

23328
