MB Quart ONX1.1000D

1000W RMS ONYX Series Class D Monoblock Amplifier (ONX-1.1000D)

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

ONYX Series Monoblock Class D Car Amplifier • 1000W x 1 Chan @ 1 Ohm • 750W x 1 Chan @ 2 Ohm • Dual Speaker Terminals • Preamp RCA Outputs • 4-Way System Protection Circuitry • Piano Black Gloss Finish

Learn more about the onx11000d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

oa10001 thumbnail

MB Quart OA1000.1

OUR PRICE: $149.95

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


ONYX Series Monoblock Class D Car Amplifier • 1000W x 1 Chan @ 1 Ohm • 750W x 1 Chan @ 2 Ohm • Dual Speaker Terminals • Preamp RCA Outputs • 4-Way System Protection Circuitry • Piano Black Gloss Finish

Description


MB Quart brand icon

Authorized dealer

Success is a Measurement of Quality and Power

The success of any car audio amplifier depends on system quality and construction, ease of installation and configuration, and sound enhancing features. MB Quart engineers built the all new Onyx series amplifiers from the ground up to be an affordable amplifier with the audiophile and performance enthusiast in mind. This series is composed of value-packed class-D and A/B class amplifiers that boast affordability without sacrifice to power or quality. All Onyx Amplifiers come clothed in a beautiful new age piano black finish which accents interiors and brings a whole new level of sophistication to swallow. To match, the line of Onyx Speakers shows off the same piano black finish applied to their polypropylene cone woofers. It’s a perfect match every time.

Speaking of features, Onyx amplifiers bring the full tuning spectrum to your fingertips with variable high-pass, low-pass and subsonic filters built-in. To increase endurance, MB Quart designed Onyx amplifiers with military grade printed circuit boards and built-in system diagnostics that keep these amps running strong. High speed MOSFET output devices are used in the power supply to give you the best watts-per-dollar ratio. It’s not hard to see how success has been written all over these amplifiers, though with a piano finish that looks that good, we know you will be staring.

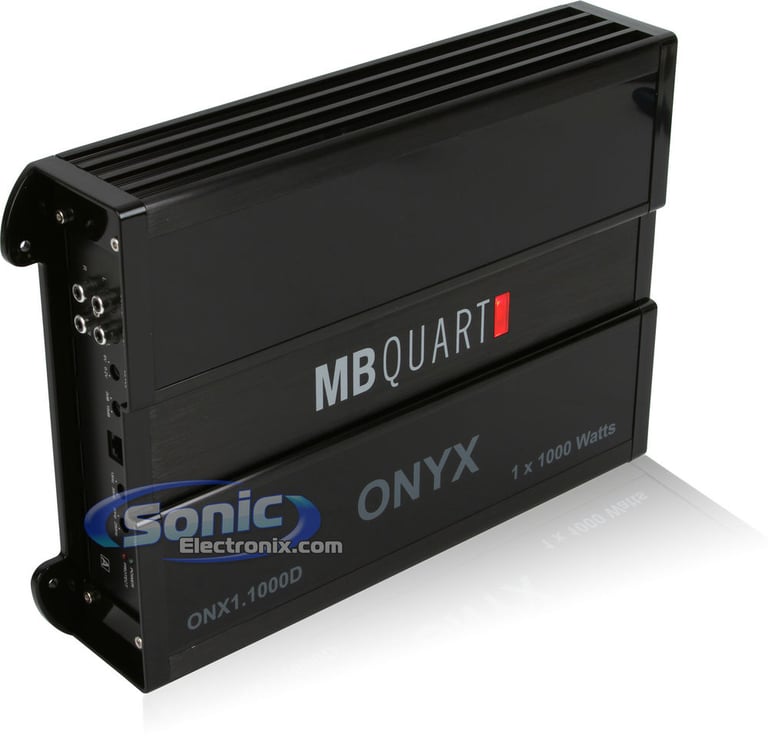

  • ONYX Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • CEA-2006 compliant amplifier
  • PWM (Pulse Width Modulated) MOSFET power supply

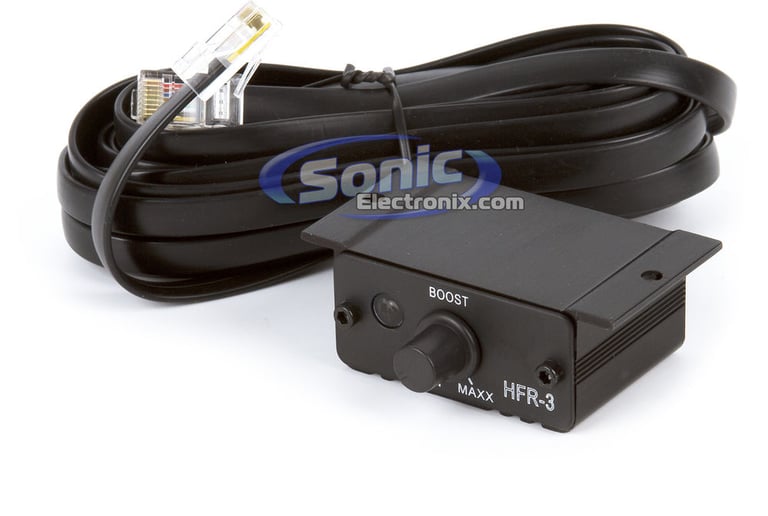

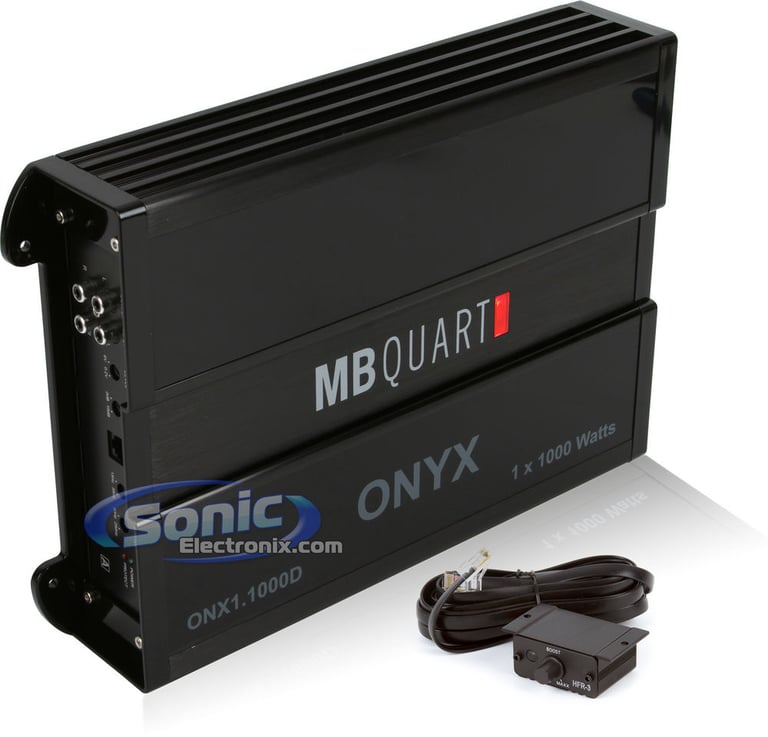

  • MB QR-2 Wired remote bass level control included

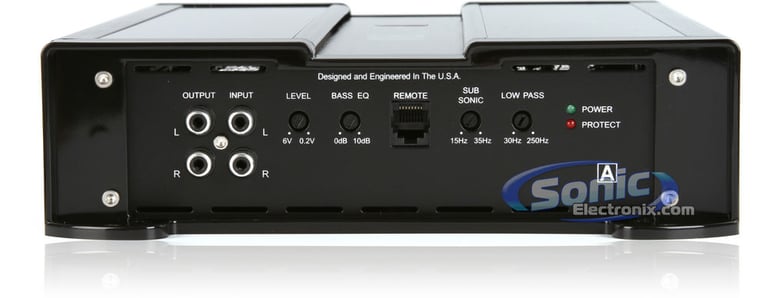

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz
  • Mono channel operation

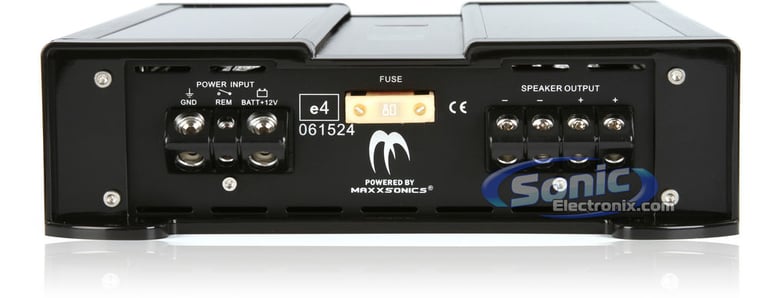

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)

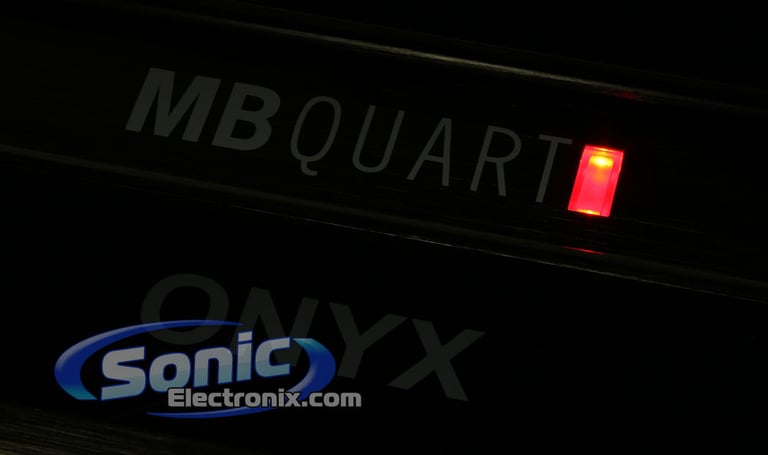

  • Piano black gloss finish with illuminated logo
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15-35 Hz)
  • Damping factor: >200
  • Frequency response: 15-250 Hz
  • Dimensions: 13-11/16"L x 9"W x 2-1/2"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

MB Quart OA1000.1 thumbnail
(newest, current model)
MB Quart ONX1.1000D thumbnail
(previous model, replaced by MB Quart OA1000.1)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
475 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.10%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
70A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ONX1.1000D

Weight:

10.00lbs

Internal SKU:

onx11000d

Internal Product ID:

23874

Product and How-to Videos


Customer Ratings & Reviews


MB Quart ONX1.1000D thumbnail image

5 star
74%
4 star
16%
3 star
3%
2 star
3%
1 star
3%



Durability
4.5
Value
4.7
Features
4.5
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Good power doesnt get hot

Just installed this amp it is cea-2006 compliant but I feel doesn't give as much as rated power but it does pretty close. They do rate at 14.4v. Its a solid build and doesn't get hot. I have it running at 2ohms and after an hour or so its still like ice. Powering 2 infinity reference 1260w and they sound great and hit hard. Clean power.

By Josh on March 10, 2013

39 found this helpful


Great solid and clean high end amp!

Got this for my M3 vert and have been extremely happy since. Had punch amps and low end garbage attempting to drive my solobaric 10" L7 for a while with minuscule results. Very happy with the performance, sound,, the shiny, solid construction, and the overall purchase. :0)

By Jason on April 11, 2011

37 found this helpful


great amp

I got this amp pushin 3 12" Digital Desgins @ 1 ohms and this thing rocks. Never shut down or got too hot. I also have mb quarts onx4.125 @ 2 ohms 2 pair of kenwood "6x9" and 4ohms on kenwood 6 1/2 im told you can hear me cumin at lease 3 blocks (LOL). Got a ticket to prove it great amp great price I had a kicker 1200w D class and it almost hits just as hard.

By Teddy Bear on September 24, 2012

36 found this helpful


Buy this amp!!

I installed this amp for my cousin with two used sony comps. I told him that Sonic asked me to leave a review and this is what he said: tell them that it knocked my mirror off got me sick and buckled the roof yes it kicks!!!!

By Justin on August 14, 2012

36 found this helpful


great amp!

This is an impressive amp; loads of power. So far, I have had a subwoofer to match the power. First one was a 12" Infinity 1220W single 4 ohm, so the amp was at 475watts, the subwoofer was rated at 600-1200watts, it melted within a week. Then, a new 12" Kicker 07CVR122 dual 2 ohm wired at 1 ohm, the amp was at 1000 RMS; too much for that poor subwoofer. I recommend a high end subwoofer with over 1000 watts RMS, or two or more woofers for this amp. It can handle it with ease. Even though I was pushing it hard, it was cool to the touch and have never felt it heat up once. Best amp I've ever had for that price! I will be getting a 4 channel onyx amp to finish off my setup.

By woofer cooker on July 17, 2012

35 found this helpful


Compact and Powerful

This amp is a great buy. I'm running 2 10" MA Audio subs that peak at 1,000w and rms at 500w and it has a great punch to them. The power is very clean and the amp is so small attached to the back of my seat in the trunk. I would reccomend this amp to anyone. I had a 2,400w amp in my old car and it was way too much power. This amp is perfect for your everyday driving to working bumping some music.

By drivingcrzy on February 9, 2012

32 found this helpful


Watch out! This amp is on fire!

Mb quart's speakers have gone down hill but their amps have stay strong as ever! This amp is pushing 1 RE Audio SEX10d4 (soon to be 3 sex10's). And powers it perfectly, makes it slamm hard! Never gets hot or goes into protect mode. Just an overall great amp and nice bang for your buck, with tons of adjustments to tune to your specific preferences. But the red light is cheesy and screws up the whole classy gloss black scheme. If you have reservations about this amp, forget them and buy it! You won't be disappointed!

By Justin on July 14, 2011

33 found this helpful


Nice Amp!

I bought this to power my two Alpine type r's and this is a great amp! Really nice style and a clean black finish I love the look of it! But enough of that. This is a strong amp it pushes my two type R's to the limit but it still does this with a nice clean sound this amp it great if your looking for something with great power but also nice sound I would recommend this amp and anything Maxxsonic at that matter! They make great products and this one is definitely included! I highly recommend this amp, buy it you won't be disappointed!

By David on August 12, 2010

32 found this helpful


awesome amplifier for a great price!

This thing sounds amazing, great SQ and SPL. MB Quart and Maxxsonics are great quality stuff. the only con to this amp is it has a plastic housing on the edge that vibrates sometimes when you pump up the bass. besides that this thing rocks. i only have it hooked up to two 8's in a sealed box too and its suprisingly loud. would love to see it hooked up to two 15s they would pound hard of this amp

By ryan on July 20, 2011

31 found this helpful


Good

Can't complain, doesn't heat up, and for the cost it produces at 1 ohm stable.

By Vaughn on March 4, 2013

29 found this helpful




DEH-P5500MP small

Pioneer DEH-P5500MP

$209.99

List price $279.99

99-5814HG small

Metra 99-5814HG

Single DIN or Double DIN Stereo Dash Kit for select 2008-2012 vehicles from Ford, Mercury, Mazda (High Gloss Black)

$42.99

List price $78.99

VPLBPS small

Victor Fitness VPLBPS

100% Top-Grain Leather 7mm Thick 4" Wide to 2.5" Taper Heavy-Duty Dual Prong Pink Weightlifting Belt for Women made with Vegetable Tanned Leather (Small)

$19.99

List price $79.99

NE101S_R2D210 small

NVX NE101S w/ Rockford Fosgate Prime R2D2-10

Single 10" Sealed 3/4" MDF Black Carpeted Subwoofer Enclosure – 0.65 Cu. Ft. with Polyfil and NVX Logo w/10" Prime Series Dual 2-ohm Car Subwoofer

(24)

$155.98

List price $213.98

DEQ-P8000 small

Pioneer DEQ-P8000

5.1 Channel Digital Audio Processor with Dolby« Digital / DTSÖ / Dolby« Pro-Logic« II

$399.99

List price $499.99

AVIC-U250 small

Pioneer AVIC-U250

Add-On GPS Navigation System for Select Stereos

(1)

$349.99

List price $449.99

2H15-3.4-BLACK small

Sonic Sub Box: 2H15-3.4 (Black)

Dual 15" Hatchback MDF Enclosure

(2)

$54.99

List price $159.99

HB 2 15-GRAY small

Ground Shaker HB 2 15-GRAY

15" Dual Sealed Hatchback Subwoofer Box

$99.95

List price $149.95

Beats Studio (Red) small

Beats By Dr. Dre STUDIO (Red)

Studio High-Definition Noise Canceling Headband Headphones from Monster Cable (Red)

$199.00

List price $349.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Honda CR-V

1986 Mazda 626

2002 Mazda Protege

2015 MINI Cooper

2017 Ram 2500

2002 Mitsubishi Eclipse

2024 Jeep Gladiator

2009 GMC Acadia

2015 Ford Explorer

2002 Ford Explorer

Vehicle
Store
Delete

2007 Harley Davidson FXD Dyna Super Glide

Vehicle
Store
Delete

2018 Can-Am Defender HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
