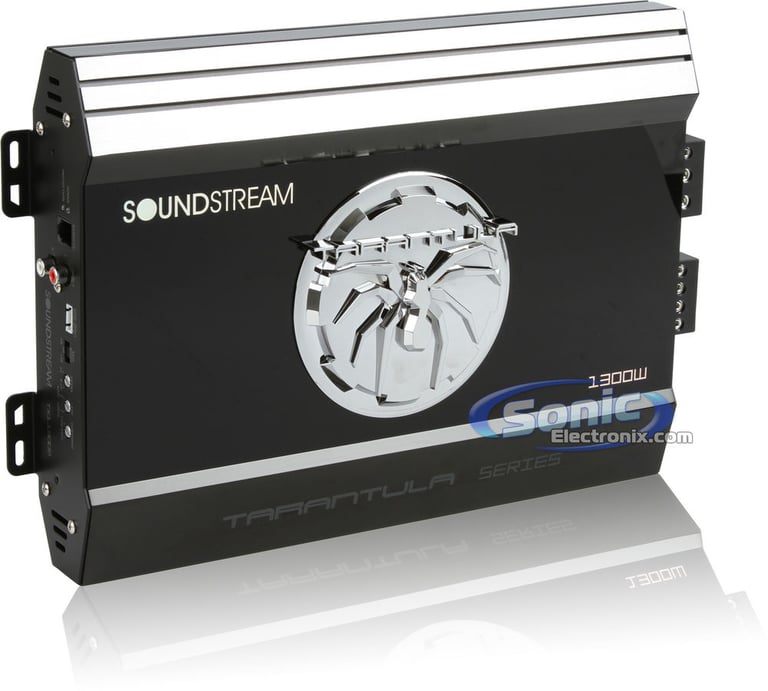

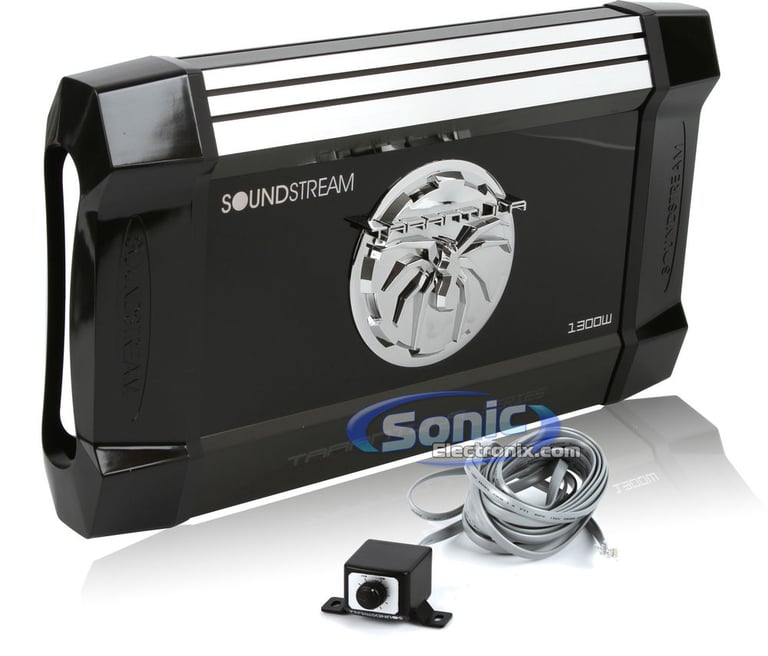

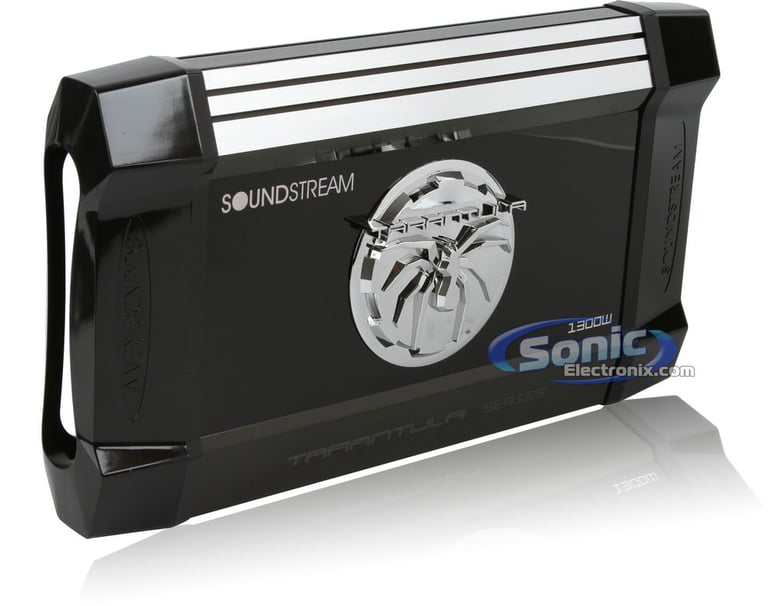

Soundstream TX1.1300D

1300W RMS, Tarantula Series Class D Monoblock Amplifier

Product videos
highlight-star-icon

Tarantula Series Monoblock Class D Car Amplifier • 900W x 1 Chan. @ 2 Ohm • 520W x 1 Chan. @ 4 Ohm • Double Side PCB And SMD Components • Remote Bass Level Input • Active X-Over • 3-Way System Protection Circuitry

Learn more about the tx11300d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

H7652 main

Cerwin Vega H7652

640W Peak (120W RMS) 6.5" HED Series 2-Way Coaxial 4-ohm Speakers

32
-16.67%

$69.99

List price $83.99

Product Highlights


Tarantula Series Monoblock Class D Car Amplifier • 900W x 1 Chan. @ 2 Ohm • 520W x 1 Chan. @ 4 Ohm • Double Side PCB And SMD Components • Remote Bass Level Input • Active X-Over • 3-Way System Protection Circuitry

Description


Soundstream brand icon

Authorized dealer

  • Soundstream Tarantula Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 520 watts x 1 chan.
    • 2 ohm: 900 watts x 1 chan.
    • 1 ohm: 1300 watts x 1 chan.
  • Full MOSFET Power Supply
  • Double side PCB and SMD components
  • LED power (green) and protect (red) indicators

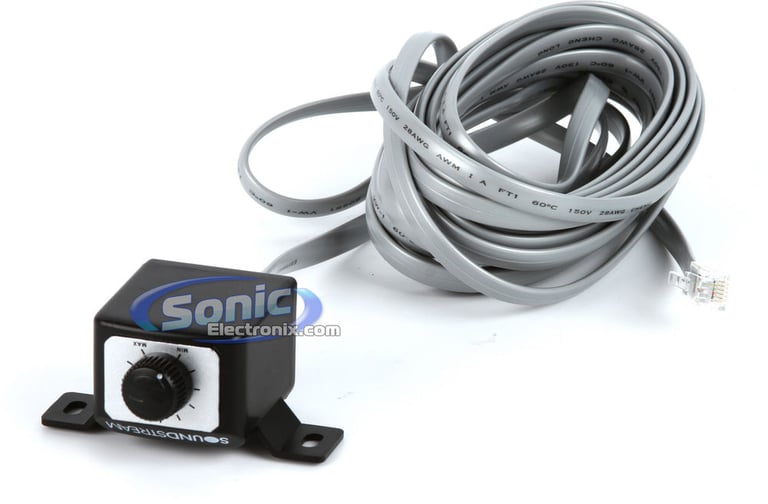

  • Remote bass level control included
  • Monoblock operation
  • Removable end-caps for a professional installation
  • Matte black design with chrome logo
  • Active X-over function
  • 3-Way System Protection circuitry (thermal, overload, high/low voltage)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

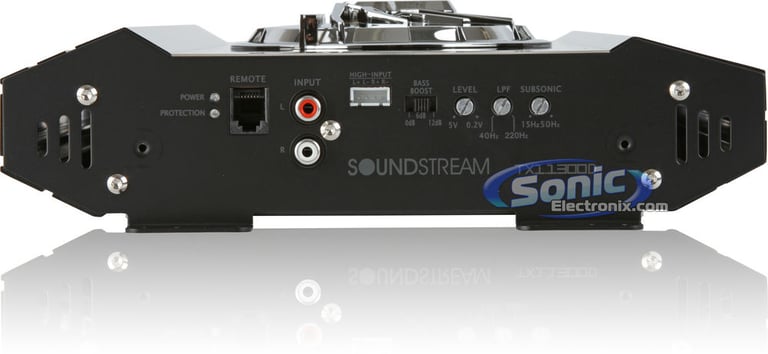

  • Nickel-plated RCA level inputs

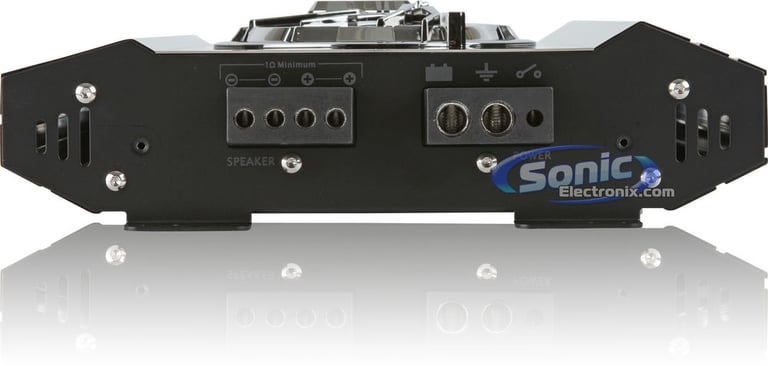

  • Nickel-plated screw terminals
  • RoHS compliant device
  • Variable high-pass filter (10-50 Hz)
  • Variable low-pass filter (40-220 Hz)
  • Subsonic Filter (10-50 Hz)
  • Bass boost frequency: 50 Hz
  • Bass boost level: 0, 6, 12 dB
  • Signal-to-noise ratio: >85 dB
  • THD (Total harmonic distortion): 0.5%
  • Damping factor: >200
  • Frequency response: 10-220 Hz
  • Dimensions: 17-3/8"L x 9-7/8"W x 2-5/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Product history:

Soundstream TX1.1300D thumbnail
(newest, current model)
Soundstream TRX1500D thumbnail
(previous model, replaced by Soundstream TX1.1300D)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
520 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
RMS Power @ 1 ohm
1300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 50 Hz
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>85 dB
Bass Boost
0, 6, 12 dB
Remote bass/level controller
Yes
Fuse Rating
120A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TX1.1300D

Weight:

10.00lbs

Internal SKU:

tx11300d

Internal Product ID:

23886

Product and How-to Videos


Customer Ratings & Reviews


Soundstream TX1.1300D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

wow this stuff is great

i got this amp at my homies shop and i have it hooked up to 2 12'' rockford fosgates p3d4 and wow this amp pushes them just perfect i have it on my 03 chevy tahoe wit a custom box and dang.. people think i got 3 or 2 15''

By mikey on April 23, 2010

4 found this helpful
