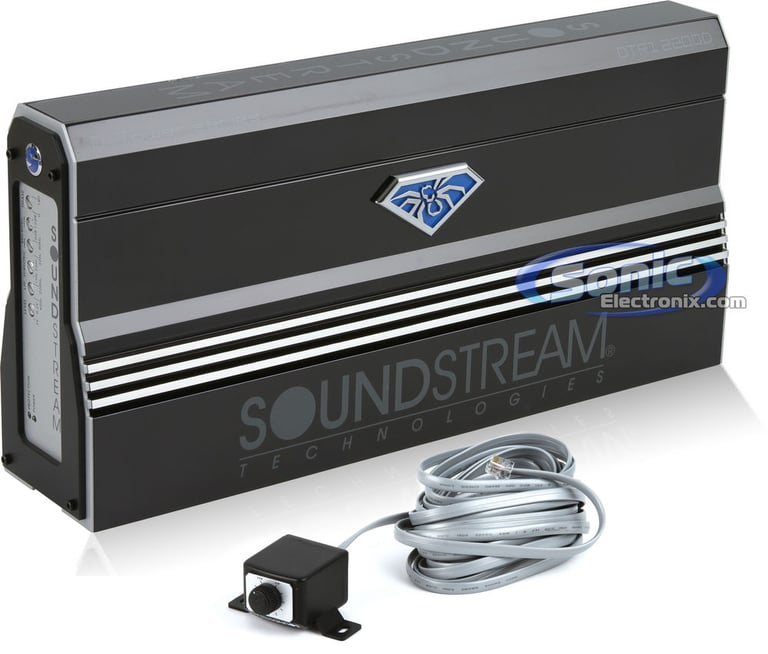

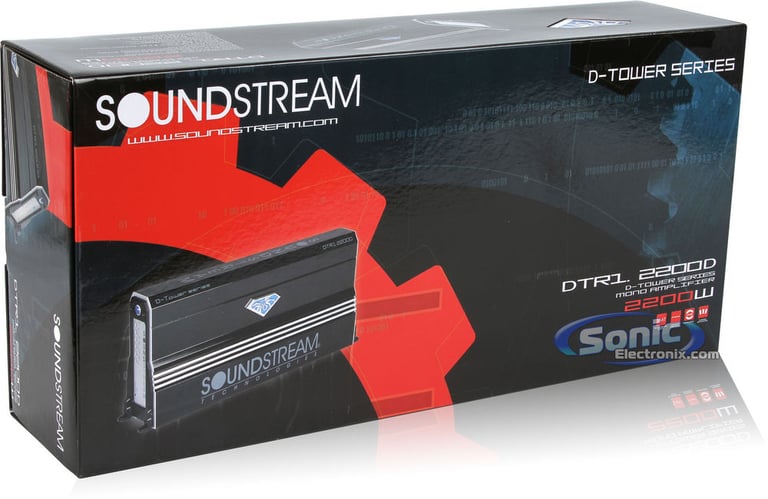

Soundstream DTR1.2200D

2200W RMS, D-Tower Series Class D Monoblock Power Amplifier

Product videos
highlight-star-icon

D-Tower Series Monoblock Class D Car Amplifier • 2200W x 1 Chan. @ 1 Ohm • 1400W x 1 Chan. @ 2 Ohm • Double Side PCB And SMD Components • Remote Bass Level Input • Gloss Black Finish • 3-Way System Protection Circuitry

Learn more about the dtr12200d

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
99-6506 main

Metra 99-6506 Dash Kit

Install a new Single-DIN car stereo in select 2004-2008 Pacifica

1
-12.12%

$28.99

List price $32.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
ZS35CX main

Hifonics ZS35CX

250W Peak (50W RMS) 3.5” Zeus Series 2-way 4-ohm Coaxial Car Speakers

10
FKB113 main

MB Quart FKB113

180W Peak (90W RMS) 5.25" Formula Series 2-Way 4-ohm Coaxial Car Speakers

4
-57.15%

$29.99

List price $69.99

Product Highlights


D-Tower Series Monoblock Class D Car Amplifier • 2200W x 1 Chan. @ 1 Ohm • 1400W x 1 Chan. @ 2 Ohm • Double Side PCB And SMD Components • Remote Bass Level Input • Gloss Black Finish • 3-Way System Protection Circuitry

Description


Soundstream brand icon

Authorized dealer

  • Soundstream D-Tower Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 2 ohm: 1400 watts x 1 chan.
    • 1 ohm: 2200 watts x 1 chan.
  • Full MOSFET Power Supply

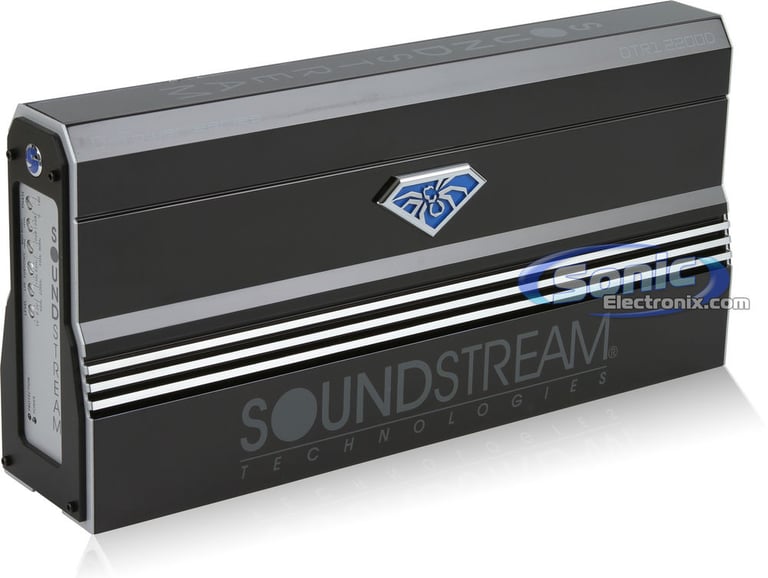

  • The worlds first vertical automotive stereo amplifier
  • Double side PCB and SMD components

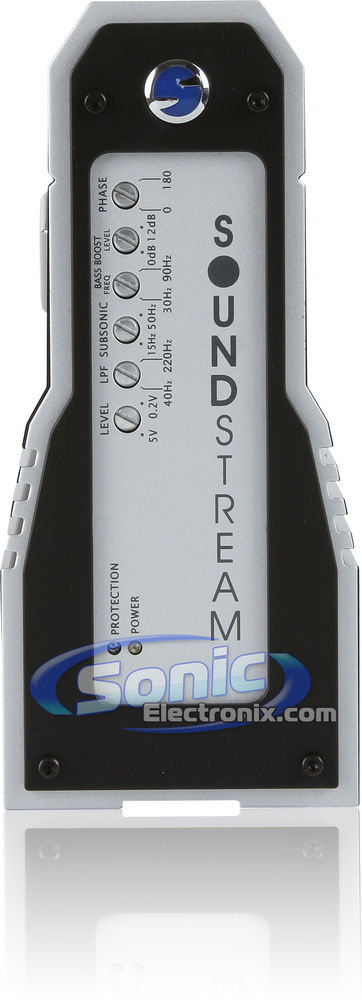

  • LED power (green) and protect (red) indicators
  • Monoblock operation
  • Gloss black finish w/ brushed accents

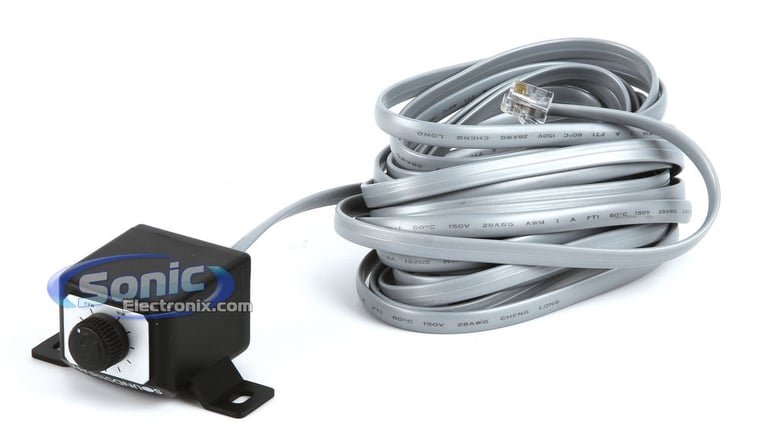

  • Dash mounted remote gain control
  • 3-Way System Protection circuitry (thermal, short, impedance)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

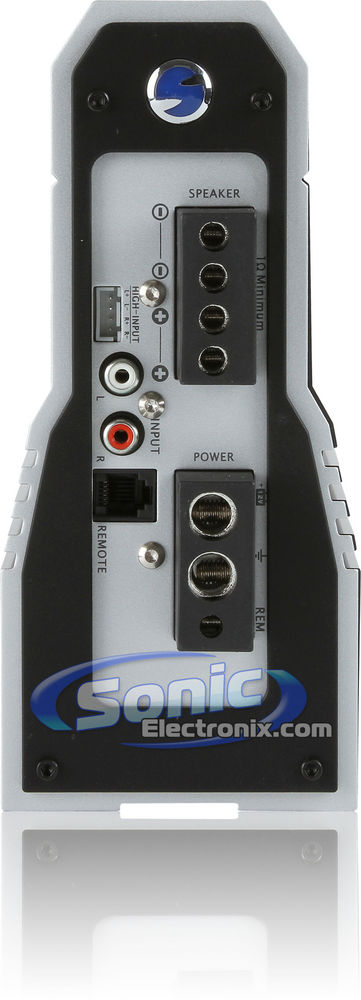

  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (10-50 Hz)
  • Variable low-pass filter (40-220 Hz)
  • Subsonic Filter (10-50 Hz)
  • Bass boost frequency: 30-90 Hz
  • Bass boost level: 0-12 dB
  • Signal-to-noise ratio: >85 dB
  • THD (Total Harmonic Distortion): 0.5%
  • Damping factor: >200
  • Frequency response: 10-220 Hz
  • Dimensions: 15-3/4"L x 3-5/16"W x 7-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 2 ohms
1400 watts x 1 channel
RMS Power @ 1 ohm
2200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
2200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 50 Hz
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
200A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DTR1.2200D

Weight:

15.00lbs

Internal SKU:

dtr12200d

Internal Product ID:

23964

Product and How-to Videos


Customer Ratings & Reviews


Soundstream DTR1.2200D thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.7
Design
4.7
Usability
4

Customer Reviews

Sort by:

Loading...

Great Value

Really nice amplifier I like how I can mount it vertically it saves a lot of space runs very cool. Looks nice and pushes over 2400rms @ 14.4 volts to 1 Orion HCCA 10.2.

By Brandon on September 17, 2010

8 found this helpful


cool amplifier

tested this amplifier with two kicker L5 15" subwoofer with extera battery,powerful with low price is benefit of this amplifier.

By Amir Designer on May 13, 2014

4 found this helpful


soundstream dtr 2200

I was skeptical about buying this amp but boy am i glad i did. I am running 2 re audio se 12s and before i had them on an audioque 1200d and it slammed but i wanted more... Well i got it! This amp gives my subs more power than they will ever need and it is crazy efficent to do not be afraid to purchase this amp i have been in the car audio game for awhile in soundstream did well with the dtr series.. This amp does rated power and then some benched it at 2300 watts at 13.1
