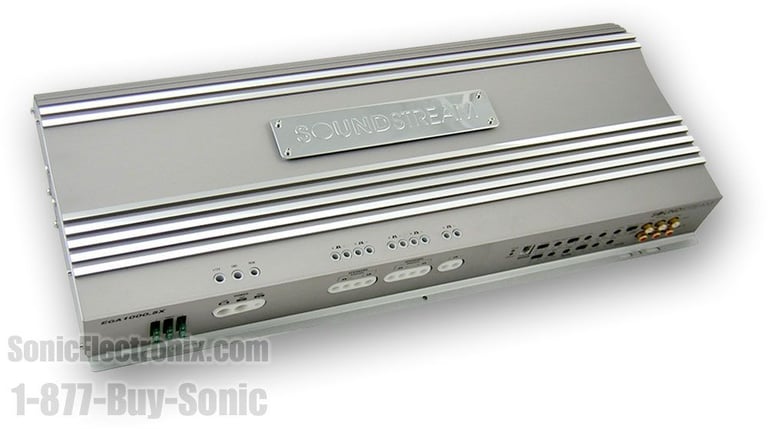

Soundstream EGA1000.5X Edge Series

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

5-channel power amplifier • fully regulated MOSFET power supply • PWM circuitry • tri-guard amplifier protection • continuously variable high and low-pass crossovers • subwoofer equalizer control switch • OEM floating ground input • tri-mode operation

Learn more about the ega10005x

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

FKB110 main

MB Quart FKB110

160W Peak (80W RMS) 4" Formula Series 2-Way 4-ohm Coaxial Car Speakers

-36.18%

$29.99

List price $46.99

Product Highlights


5-channel power amplifier • fully regulated MOSFET power supply • PWM circuitry • tri-guard amplifier protection • continuously variable high and low-pass crossovers • subwoofer equalizer control switch • OEM floating ground input • tri-mode operation

Description


Soundstream brand icon

Authorized dealer

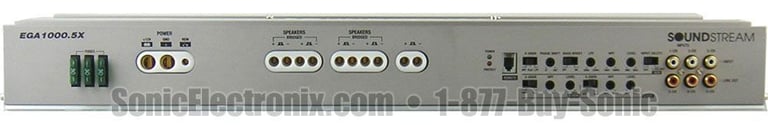

  • 5-channel power amplifier
  • fully regulated MOSFET power supply
  • PWM circuitry
  • tri-guard amplifier protection
  • IDI (Intelligent Distress Indicator) gives a visual indication of the amplifier's protection status
  • platinum RCA inputs and outputs
  • bi-linear selectable crossovers for inputs and outputs (hi/ full/ low)
  • continuously variable high and low-pass crossovers
  • subwoofer equalizer control switch
  • variable phase shift control (0° - 180°)
  • input select switch
  • OEM floating ground input
  • platinum 4-gauge power connectors
  • tri-mode operation
  • optional remote bass boost control (EGA - RM)
  • dimensions (DxHxW): 22" x 2.4" x 11"

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 chan, + 150 watts x 1 chan
RMS Power @ 2 ohms
100 watts x 4 chan, + 300 watts x 1 chan
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 2 chan, + 300 watts x 1chan
Amplifier Specifications
Number of Channels
5-Channel
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
No
Signal-to-Noise Ratio
>97 dB
Bass Boost
0 - 18 dB
Fuse Rating
30A x 3

Item Details


Manufacturer:

Model Number:

EGA1000.5X

Weight:

22.00lbs

Internal SKU:

ega10005x

Internal Product ID:

2401
