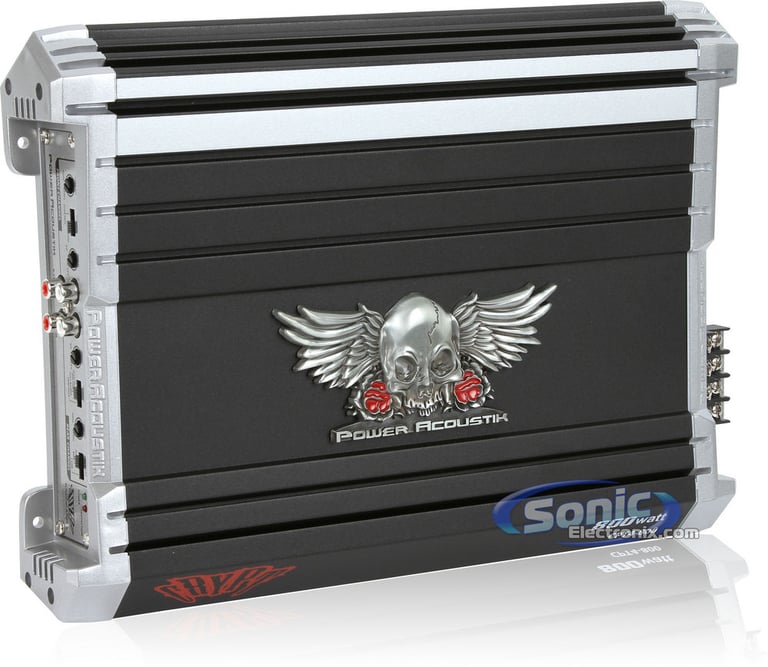

Power Acoustik CPT4-800

800W CRYPT Series 4-Channel Amplifier

Product videos
highlight-star-icon

• 80W x 4-Chan @ 4 ohm
• 100W x 4-Chan @ 2 ohm
• MOSFET PSU Transistors
• LED Indicators
• Selectable Bass Boost
• Aluminum Alloy Heatsink
• 3-Way System Protection Circuitry

Learn more about the cpt4800

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Product Highlights


• 80W x 4-Chan @ 4 ohm
• 100W x 4-Chan @ 2 ohm
• MOSFET PSU Transistors
• LED Indicators
• Selectable Bass Boost
• Aluminum Alloy Heatsink
• 3-Way System Protection Circuitry

Description


Power Acoustik brand icon

Authorized dealer

  • Power Acoustik CRYPT Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Max power output: 800 watts
  • MOSFET PSU transistors
  • Regulated PWM Power Supply
  • Black texture finish with silver trim and cast metal badge
  • Extruded aluminum chassis
  • LED power (green) and protect (red) indicators
  • Selectable Bass Boost (6dB, 12dB @ 45 Hz)
  • High Pass, Low Pass, and Subsonic Filters
  • 4-Channel operation
  • Low level speaker-level inputs (200mV - 8V)
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable high-pass filter (50-250 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Subsonic filter (50-250 Hz)
  • Signal-to-Noise ratio: 90dB
  • THD (Total Harmonic Distortion): .01%
  • Frequency response: 10-20,000 Hz
  • Dimensions: 13"L x 9-7/8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Series
Crypt Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
50 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
6dB, 12dB @ 45 Hz
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CPT4-800

Weight:

9.00lbs

Internal SKU:

cpt4800

Internal Product ID:

24267

Product and How-to Videos


Customer Ratings & Reviews


Power Acoustik CPT4-800 thumbnail image

5 star
0%
4 star
50%
3 star
25%
2 star
25%
1 star
0%



Durability
4.3
Value
4.3
Features
4
Design
4.8
Usability
4.3

Customer Reviews

Sort by:

Loading...

cpt4-800

not bad for the money but nothing like the jbl i had before it

By Alien on November 20, 2010

16 found this helpful


Ok A/B Amp

I have 4 100 watt 4 ohm speakers hooked up to this amp and it sounds no different than my head unit. I even maxed out all the gains for the front and the rear speakers and still maybe 5 db louder than what my head unit puts out. I checked the voltage from the output of the RCA's. (Left and right output) and still had 3.6 volts from the head unit. Don't understand how it rated at 100 watts per channel with 4 OHM application and sounds no loader than 25 watts per channel from the head unit.

By CJ on May 29, 2014

14 found this helpful


Great Amp

As far as I know I was the first to purchase this model. I received the box that said "open for photo purposes only." So far it has been an excellent amp. I installed it last week, Everything I expected.

By Tanner on May 2, 2010

13 found this helpful


Cpt4-800

Great Amp have not been disappointed yet!!!

By Lowerghut on June 22, 2010

12 found this helpful
