Power Acoustik CPT1-3200D

3200W Max CRYPT Series Class D Monoblock Amplifier

Product videos
highlight-star-icon

• RMS: 1000W x 1 @ 4 ohm, 1400W x 1 @ 2 ohm, 1800W x 1 chan @ 1 ohm
• Total Peak Power: 3200W
• Class D Circuitry
• Bass Boost: 0-12 dB at 45 Hz
• 1 Pair of Preamp Outputs
• Dimensions: 13"L x 9-13/16"W x 2-5/16"H

Learn more about the cpt13200d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-34.13%

$111.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Product Highlights


• RMS: 1000W x 1 @ 4 ohm, 1400W x 1 @ 2 ohm, 1800W x 1 chan @ 1 ohm
• Total Peak Power: 3200W
• Class D Circuitry
• Bass Boost: 0-12 dB at 45 Hz
• 1 Pair of Preamp Outputs
• Dimensions: 13"L x 9-13/16"W x 2-5/16"H

Description


Power Acoustik brand icon

Authorized dealer

  • CRYPT Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 chan.
    • 2 ohm: 1400 watts x 1 chan.
    • 1 ohm: 1800 watts x 1 chan.
  • Max power output: 3200 watts
  • Pulse Width Modulated power supply
  • MOSFET PSU Transistors

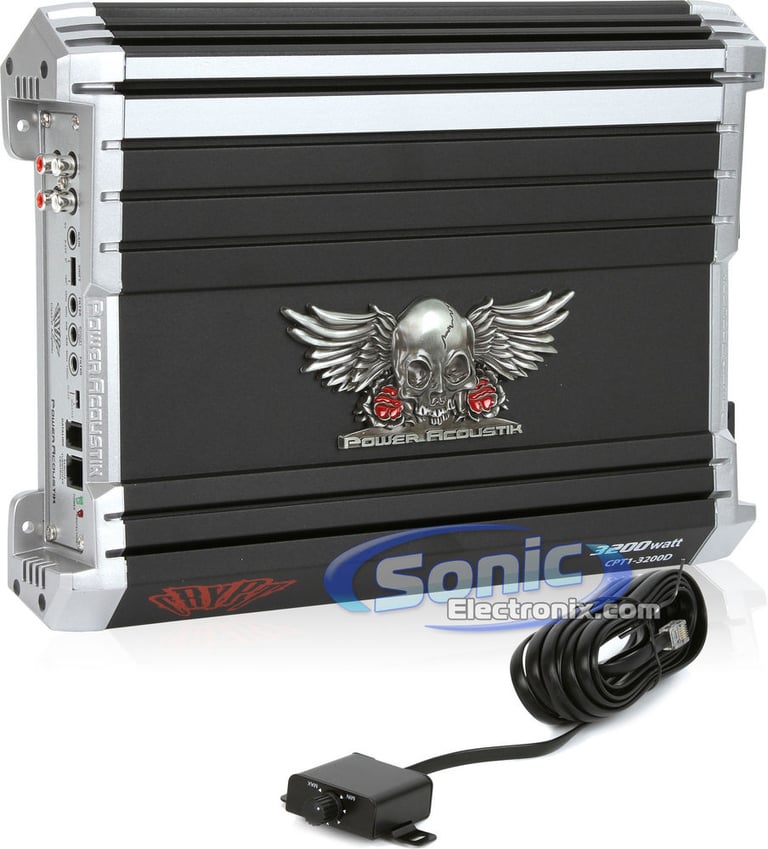

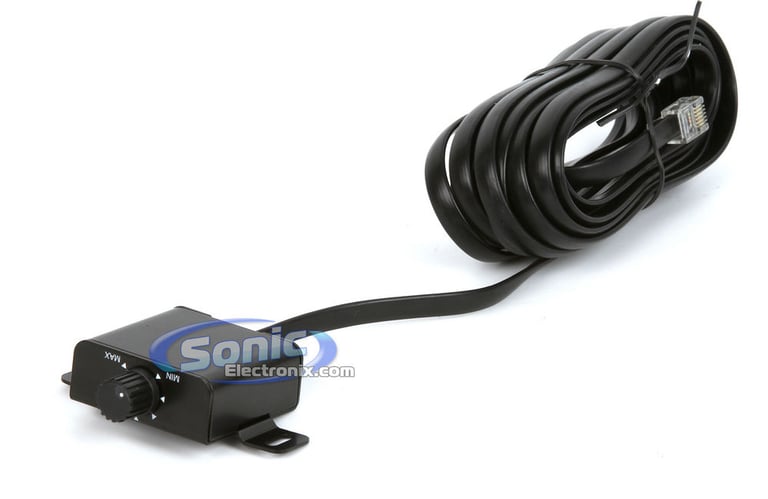

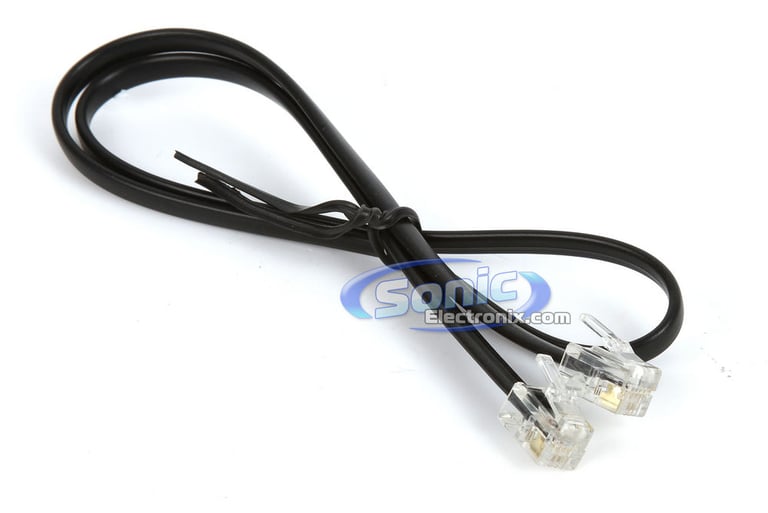

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Selectable bass boost (6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty extruded aluminum chassis heatsink for maximum heat dissipation

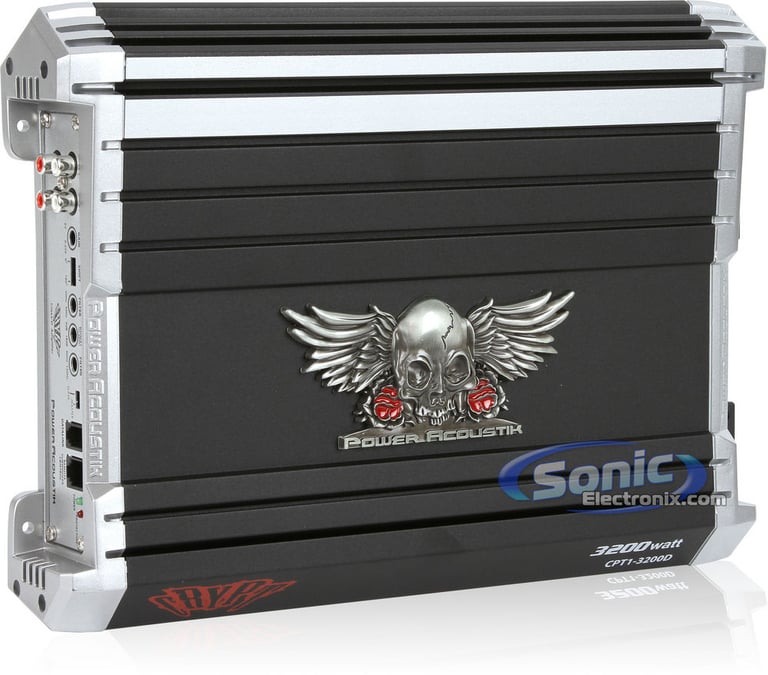

  • Black textured finish with silver trim and cast metal badge

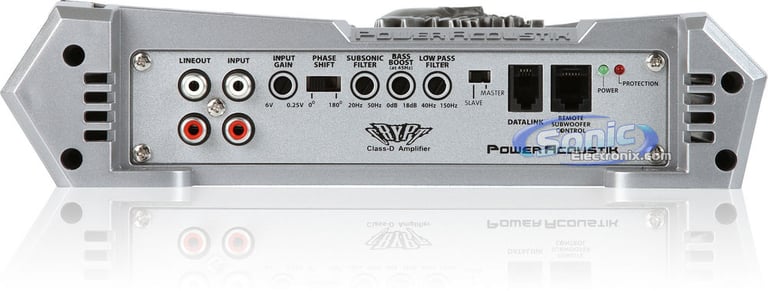

  • Nickel-plated RCA level inputs

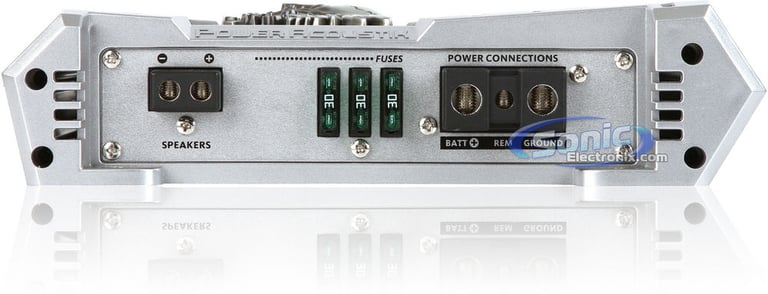

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-8V
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Subsonic filter (20-50 Hz)
  • Phase Shift: 0-180 Degrees
  • Frequency response: 15-150 Hz
  • Dimensions: 13"L x 9-13/16"W x 2-5/16"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

GP-3500.1D small

Crunch GP-3500.1D

• 875 watts x 1 channel @ 4 ohm
• 1750 watts x 1 channel @ 2 ohm
• 3500 watts x 1 channel @ 1 ohm
• Total Peak Power: 3500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$99.99

List price $219.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1000 watts x 1 channel
RMS Power @ 2 ohms
1400 watts x 1 channel
RMS Power @ 1 ohm
1800 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3200 watts
Total RMS Power Output
1800 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
6, 12 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CPT1-3200D

Weight:

11.00lbs

Internal SKU:

cpt13200d

Internal Product ID:

24268

Product and How-to Videos


Customer Ratings & Reviews


Power Acoustik CPT1-3200D thumbnail image

5 star
63%
4 star
0%
3 star
38%
2 star
0%
1 star
0%



Durability
3.8
Value
4.7
Features
4.4
Design
4.8
Usability
4.4

Customer Reviews

Sort by:

Loading...

It was good, but now its not...

OK, bought this mono block amp to power two 12" DVC subs running 2000 watts RMS at 1 ohm I bought amp since at 1 ohm its RMS power was 1 ohm: 1800 watts x 1 chan. so I had it all hooked up and tuned and for a week it sounded great pushed my subs well and one day something in it must have shorted made my alternator bog down and made everything strobe before it would blow a fuse.. ( did ti with speakers disconnected also ) so it was not my error it is in for repair/ replacement hopefully it was just a fluke other wise this seems to be a pretty solid amp.

By Ken B on January 14, 2011

20 found this helpful


Not too happy

So i purchased this amp to power 2 kicker 10" L7's (600 watt rms 1200 watt max each) in a sealed enclosure. The subs are wired to 2 ohms and sound great. I clamped the amp at full volume and it was only pushing about 900 watts. No where near its advertised specs. To make matters worse, they sound distorted like crazy at anything above 600 watts. The remote gain control knob really is only sensative for the first half turn. The "12 o'clock" position is max.
Probably the worst part is that only after less than five minutes of play time, the bottom plate of the amp rattled loose and stripped the four tiny screws that were holding it on. I tried to re fasten it on using slightly larger screws and some locktite but that only held for like 3 hours. The amp is mounted to the back of the seat and not on the sub box (cause it should never be)
For a cheap, good sounding amp running no more than 500 watts this is perfect.

By Matthew on November 20, 2011

18 found this helpful


Great Amp

I just bought this amp and paired it with 2 of the Power Acoustik P3w10 subs from Sonic with the fiberglass sealed box i made for my ranger and the amp powers the subs with ease. The amp is a very powerfull amp and has a great design on it too make the final touch to your set up

By Big B on October 29, 2010

18 found this helpful


power acoustic amp

Its a great amp one of the best amps I've ever owned I would buy another.

By tim on August 23, 2011

17 found this helpful


Bang for your buck

I'm running 4 10" rockford fosgate p2s off this amp slams extremely hard

By Jarrod on September 17, 2013

15 found this helpful


amp

I've got my amp pushing 2 pioneer 3500 watt's. I cant even get a full song out of my amp with it kickin out. I think the amp get's to hot to fast. But pushe's good.

By chucky on August 8, 2011

16 found this helpful


Great Power for a Great Price

I have this amp powering 2 12" Power Acoustik Mofo-X subs. Personally I think the amp powers them wonderfully. I can not talk to anyone in the back seat. I cant even hear my car running (idk if thats a good thing or not) But for the price I am well satisfied.
I do like how the bass knob will turn off the output to the subs when turned to minimum. Makes it easy to cut out the bass.
I'm not too fond of the design on the amp, but I love how it works so I cant complain.

By Mikell on November 22, 2010

15 found this helpful


Power Acoustik CPT1-3200D

Just had this amp installed and so far so good.. Does not get hot to touch like my other ones did.

By THOMAS on October 5, 2010

14 found this helpful
