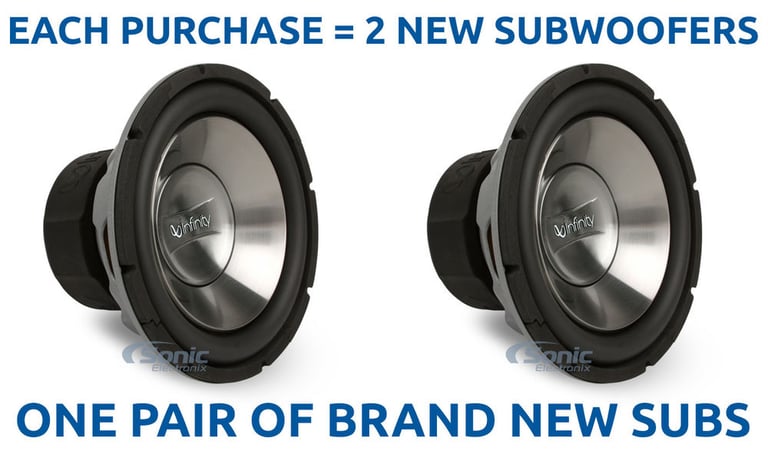

2 Pack of Infinity Reference 1062W

Pair of 10" Dual 4-ohm Reference Series Car Subwoofers

Infinity
Shop all Infinity
Product videos
highlight-star-icon

Two 10" Dual 4 Ohm Reference Series Subwoofer • 275 Watts RMS • 1100 Watts Max • High-Gloss Polypropylene Woofer • Large-Roll Rubber Surround • 2" Voice Coil • Vented Pole Pieces

Learn more about the 2subs_1062w

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48

Product Highlights


Two 10" Dual 4 Ohm Reference Series Subwoofer • 275 Watts RMS • 1100 Watts Max • High-Gloss Polypropylene Woofer • Large-Roll Rubber Surround • 2" Voice Coil • Vented Pole Pieces

Description


Infinity brand icon

Authorized dealer

To Infinity, and Beyond Your Normal Woofer

Some think of the 10 inch subwoofer as a compromise of power handling, sensitivity, space and performance. In most cases, this would be true; however this Infinity makes no compromises when it comes to sound quality and crisp bass.

Infinity's product quality and excellence stem from their passion for music. This fact is evident in each of their lines, with no exception to their Reference Series subwoofers. Whether you listen to rock, hip-hop, jazz, country or anything else, these woofers will shine through with every note. High-gloss polypropylene woofer cone is lightweight which assures maximum efficiency which produces high output with modest amplifier power. This in no way means the Reference woofers don't have a sound quality side, far from it. Sound quality is the name of Infinity's game, and every beat will be smooth, crisp, and hard hitting. The large-roll rubber surround absorbs distortions that travel through the cone, ensuring clean bass response. Vented polepieces help cool the motor structure which allows for an increase in power handling. Engineering at Infinity is state-of-the-art and a great deal of computer aided design software is used to devise their products. This commitment shows in all of their product lines, and with such a good reference, it's a no brainer.

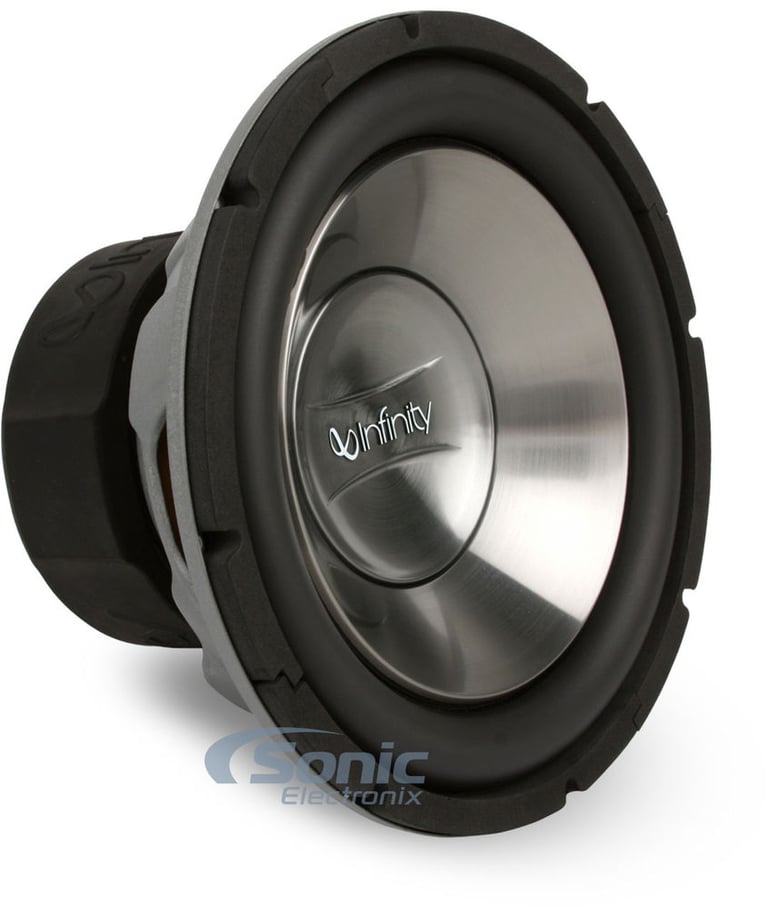

Infinity Reference 1062W

275W 10" Reference Series Dual 4 ohm Subwoofer
Quantity: 2

General Features:

  • 10" Dual 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 2200 watts per pair / 1100 watts each
    • RMS: 550 watts per pair / 275 watts each
  • Recommended power range: 300 - 550 watts RMS total

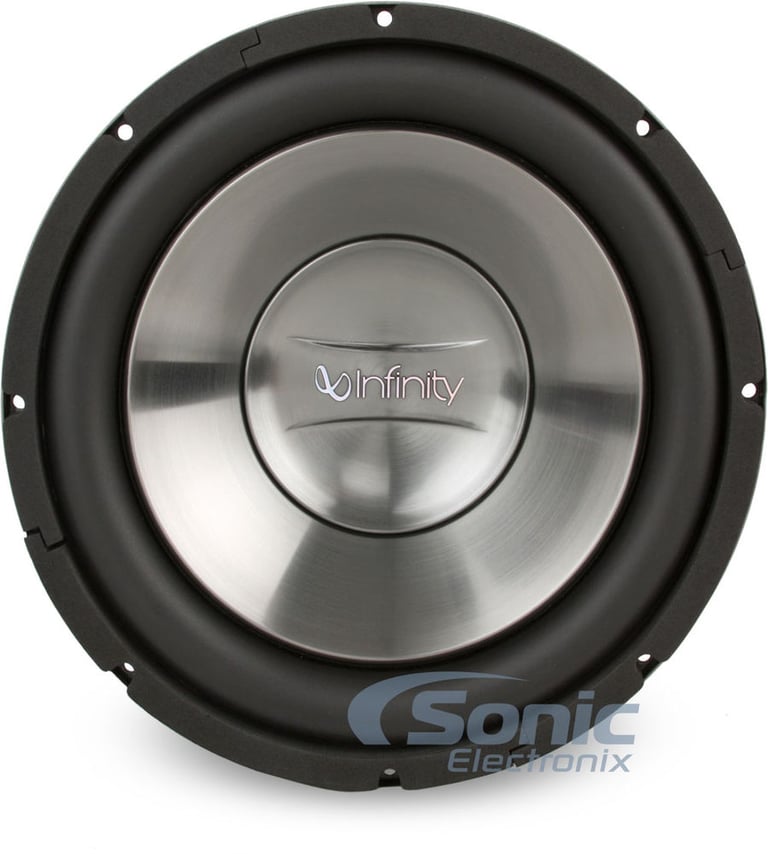

  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions

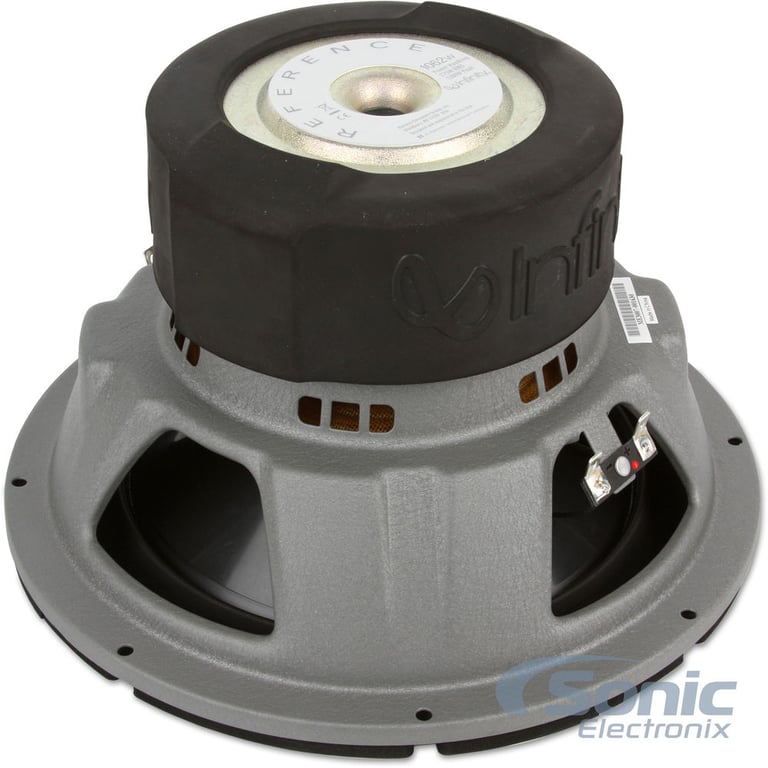

  • Vented pole pieces provide additional cooling of the motor
  • 2" Voice coil
  • Also found as: REF1062W
  • Frequency response: 25-400 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 5-7/8"
  • Cutout Diameter: 9-1/4"
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 2 Pack of Infinity Reference 1062W Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 2 Pack of Infinity Reference 1062W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 2 Pack of Infinity Reference 1062W Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 2 Pack of Infinity Reference 1062W Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
10"
Peak Power Handling
1100 watts
RMS Power Handling
275 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 400 Hz
Sensitivity
91 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

1062W-2-PACK

Weight:

31.00lbs

Internal SKU:

2subs_1062w

Internal Product ID:

24857

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


2 Pack of Infinity Reference 1062W thumbnail image

5 star
73%
4 star
23%
3 star
0%
2 star
4%
1 star
0%



Durability
4.6
Value
4.8
Features
4.6
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

"Boomy-ness"

The following review is for 1062W, which is a part of the bundle you are viewing.

The sub not only looks pretty and modern, but it performs very well! I power this with a 400 watt MTX Terminator amp and it is housed in a basic box purchased from Sonic Electronix. I couldn't be more happy with this set up. It is moving onto it's third car this week; originally a Grand Cherokee, then a BMW, now a Ford Explorer.

By John on February 22, 2013

53 found this helpful


Infinity Subwoofer 1062W

The following review is for 1062W, which is a part of the bundle you are viewing.

First lets start with first rate shipping standards from Sonic "Bravo". I have always had the greatest respect for Infinity's engineering standards.My entire home 7.2 surround system is Infinity,driven by Sony's top of the line amp.I bought a new car with a Bose sound system from the factory and have been replacing all the speakers with Infinitys.My final speaker was the 1062W 10" subwoofer installed in a vented Bbox in my trunk. This system is powered by a 650 watt 5 channel amp,with 350 watts going to the sub.On a trip to the dealer for an oil change,I noticed that 3 mechanics where gathered around my car,then 2 salesmen came over,someone cranked it up it sounded great in that big bay area.I was told latter by the shop manager that the boys in the shop are impressed by the system and needed to know what was in the car,cause it beat the hell out of the factory Bose system.Thank's Sonic for everything.

By Chip on October 8, 2014

48 found this helpful


Great to deal with

The following review is for 1062W, which is a part of the bundle you are viewing.

Ordered on a Monday and had Tuesday . Great service!!! Would buy from this company anytime

By Twisted on May 22, 2014

44 found this helpful


Clean subs

The following review is for 1062W, which is a part of the bundle you are viewing.

Clean sounding subs, had a pair in a 1.5 cube sealed box, and they sounded great, but they werent loud enough for my huge car. I recently sold them to a friend and they kill his neon with both loudness and cleanness

By E.Day on December 6, 2010

46 found this helpful


Clean, tight and responsive.

The following review is for 1062W, which is a part of the bundle you are viewing.

I'm an old school SQ guy. I listen to blues, rock, metal, country, jazz, pretty much anything but hip hop and new rap. I wired a pair of these guys 2ohm stereo in a sealed 1.5 cubic foot sealed box. I'm driving them with a Soundstream Rubicon 2.600. They are just what I was looking for. Tight, fast and responsive. I detest loose, sloppy subs, because of what I listen to. If you want natural sounding subs, these are for you.

By William on June 11, 2013

47 found this helpful


wow

The following review is for 1062W, which is a part of the bundle you are viewing.

Install this single 10 inch sub and wow the bass i got from it is super nice bass is nice and tight suprise at the price great buy.

By alfonso on August 18, 2011

42 found this helpful


Pleasantly Surprised

The following review is for 1062W, which is a part of the bundle you are viewing.

I bought this for my teenage daughter's car. I put it in a box, hooked up the amp and it sounds great. From talking with friends, she was hoping for a 12", but is now more than happy with the performance of this single 10".

It doesn't perform quite as well as the JL 10's I have, but for the price it can't be beat.

By Lee on January 11, 2014

42 found this helpful


Great sound quality sub

The following review is for 1062W, which is a part of the bundle you are viewing.

I have owned these for 6 months and they are great crisp clean subs that are well worth the money. Great for all music types, but if you want to bump I wouldn't recommend these as they are most sound quality subs not spl. But overall great sub for the money.

By Fred on July 21, 2010

42 found this helpful


Infinity 1062W

The following review is for 1062W, which is a part of the bundle you are viewing.

I replaced expensive JBL woofer with the Infinity 1062W. Bass was more crisp and I am satisfied with the woofer. Recommend this woofer!

By Eman on March 17, 2014

42 found this helpful


Excellent sound / great sub

The following review is for 1062W, which is a part of the bundle you are viewing.

Just picked up one of these to replace a Kicker aluminum cone one (CVR maybe? forget the model) and freaking WOW. Sounds WAY better... The box I have is a pre fab way too small vented box. I think its .8 cu ft VENTED. 1/2 OF the recommendation from Infinity and it sounds GREAT! Think I'm going to pick up another one and build a better box... Can't wait!

By Mike Payne on May 25, 2011

43 found this helpful




SV-9154 small

Crimestopper SV-9154

3.5" Digital LCD Universal OEM Replacement Rear View Mirror Backup Camera

$64.50

List price $249.95

11VS12L72 small

Kicker VS12L72 (11VS12L72)

750W 12" Solo-Baric L7 Series Ported Loaded Subwoofer Enclosure

(3)

$349.95

List price $549.95

i1015 (Black) small

Pelican i1015 Micro Case (Black)

Micro Case For iPod/iPhone/Blackberry/Droid Smartphones with Clear and Black Liner

$22.99

List price $39.95

NE-770X-Sky small

NuForce NE-770X-Sky

Polycarbonate Chambers with 8mm Drivers and Neodymium Drivers

(5)

$16.99

List price $49.00

SV-6703 small

Crimestopper SV-6703

Ultra Small SecurView Flush Mount CMOS Color Camera with 170-degree Viewing Angle

(9)

$26.99

List price $99.95

45321 small

Ideal Industries 45321

Coax Stripper

$10.00

List price $14.00

MPS-50 small

BACtrack MPS-50 (MPS50) Select Series Replacement Mouthpieces

50 Pack of Select Series Replaceable Mouthpeices

$14.99

List price $29.99

CZ100 small

Clarion CZ100 (CZ-100)

In-Dash CD, MP3, WMA Receiver with Front Panel Aux In-put and Remote Control

(10)

$79.99

List price $99.99

1SV15-BLACK small

Sonic Sub Box: 1SV15 (Black)

Single 15" Vented MDF Enclosure

(2)

$59.99

List price $89.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Audi A4

2018 Ford Explorer

1981 Audi Coupe

2017 Ford Taurus

2013 Lexus LS460

2004 Ford Taurus

2003 Audi A4

2006 Ford Explorer

2007 Mazda 3

2012 Chrysler 300

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
