Product videos

Product highlights

Big Bang Series Monoblock Class D Car Amplifier • 3000W Max • 2400W x 1-Chan @ 1 Ohm • Strap Two Amps Together for Twice the Power • Subsonic Filter • Variable Bass Boost (0 to +18 dB) • Wired Remote Bass Level Control

Learn more about the LS-bb24001-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

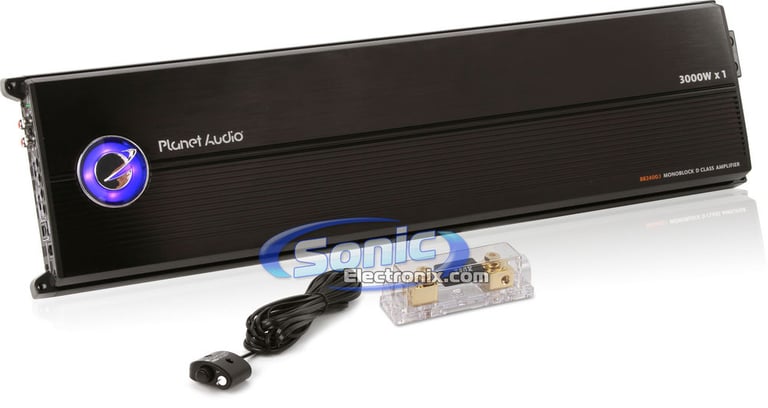

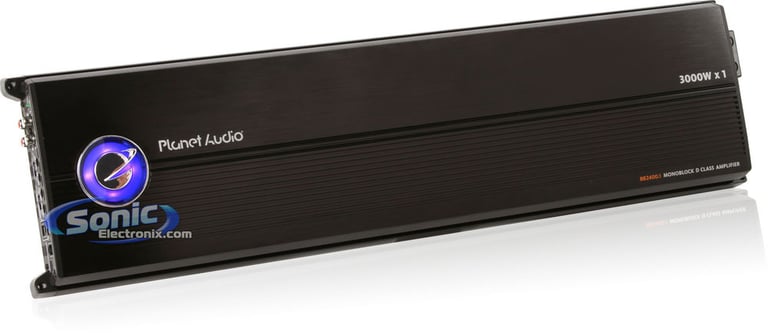

Big Bang Series Monoblock Class D Car Amplifier
Item Condition: Refurbished
RMS Power Rating:
- 4 ohm: 1000 watts x 1 chan.
- 2 ohm: 1600 watts x 1 chan.
- 1 ohm: 2400 watts x 1 chan.
MAX Power Rating:
- 1 ohm: 3000 watts x 1 chan.
Pulse Width Modulated MOSFET power supply

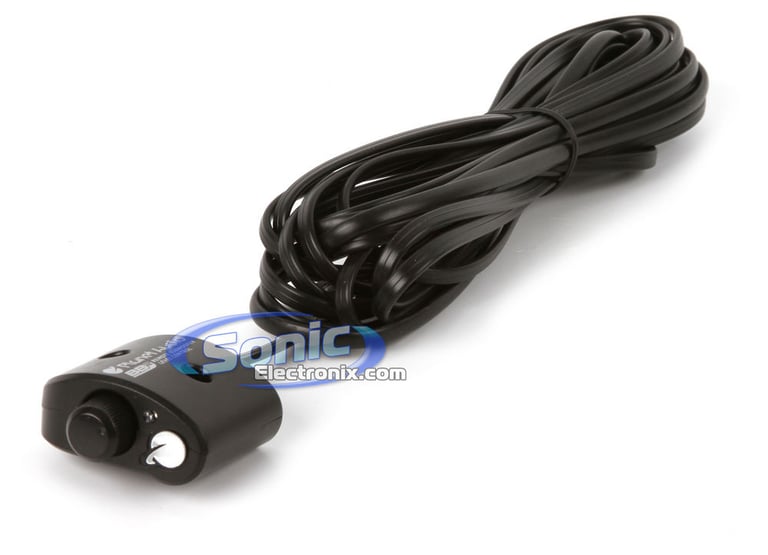

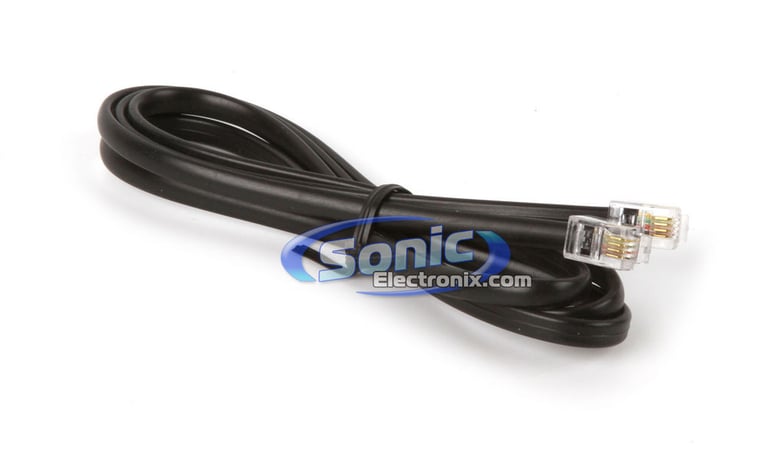

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost)
Soft Start Turn-on
Mono channel operation
Strap two amps together for twice the power
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation

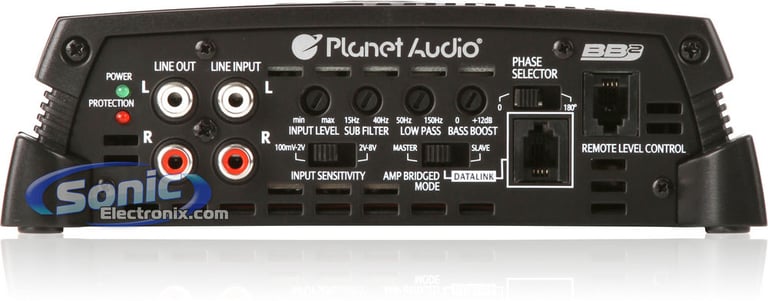

Chrome-plated RCA level inputs

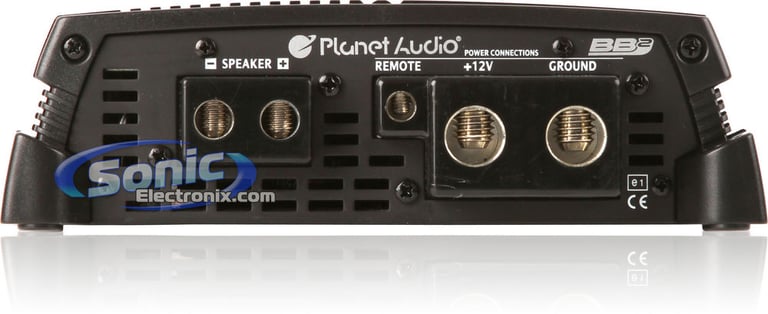

Chrome-plated set-screw terminals
Input sensitivity:
- Low level: 100mV-2V
- High level: 2V-8V
Variable low-pass filter
Subsonic filter (15-40 Hz)
Phase Shift: 0-180º
Frequency response: 20-250 Hz
Dimensions: 21-3/4"L x 6-7/8"W x 2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

1000 watts x 1 channel

RMS Power @ 2 ohms

1600 watts x 1 channel

RMS Power @ 1 ohm

2400 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3000 watts

Total RMS Power Output

2400 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Planet Audio BB2400.1 R/B thumbnail image

Overall rating distribution

5 star		85%
4 star		8%
3 star		0%
2 star		8%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.4
Value		4.8
Features		4.8
Design		4.6
Usability		4.7

Customer Reviews

Sort by:

amp planet audio

I bought this refurbished amp and it still works like new. Yall now have a loyal customer.

By dee on February 28, 2012

8 found this helpful

Report abuse

Not disappointed

I like the narrow foot print of the amp, it allows me to use two in a space that i originally could only fit one amp in. As for the power? The amp plays well and the power is def somewere around 2000 watts. The only issue i have is plastic mounting feet. They are very week and will snap off. Be careful when installing it.

By Kee on June 22, 2012

7 found this helpful

Report abuse

worth every penny

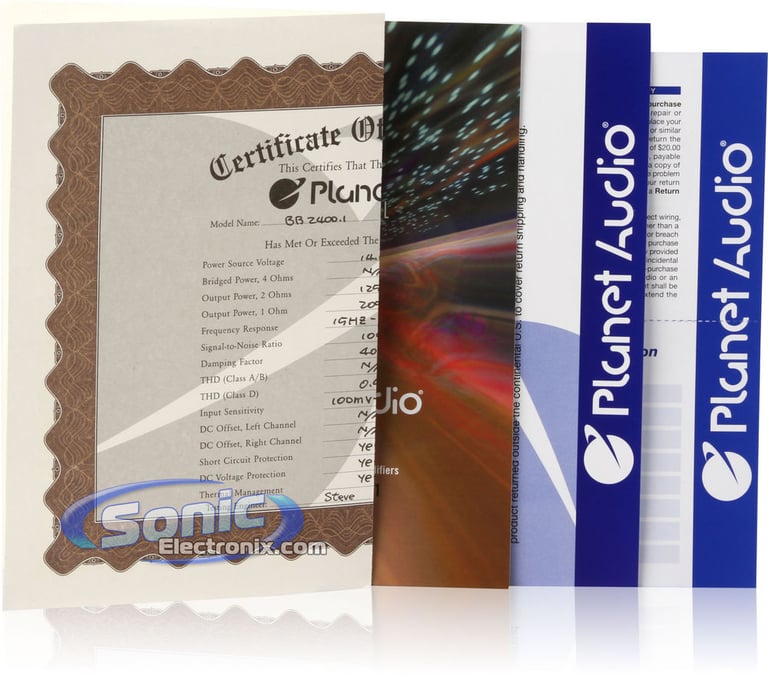

Bought it refurbished, came with everything except the sheet that shows exactly how much power it can push out at 1 ohm. I have 3 10" rockford fosgate woofers. Blew them today had everything hooked up for a week. Need some stronger subs gonna match them up with the amp, can't wait. Also, the subs blew. Had the amp turned up to maybe a level 2 so yeah THIS IS A SERIOUS AMP!!

By BUGSY on March 8, 2012

7 found this helpful

Report abuse

POWER HOUSE.....

Love the amp. Size look... all of it... it has massive power with it, not the strongest ive ever owned but its top 3. For the $ its a great buy. It wont do 2400rms like its rated but will do 2000 - 2200 clean power no distortion. My favorite quality about the amp is the stealthy look and the small foot print for the amount of power you get. If your like me (2 batts in hatch, 7.3 cube box in hatch as well), then amp size kind of matters for mounting but the amp fits perfect. Only cons is im not big on the plastic mounting feet. BE CAREFUL because it's a "POWER JUNKY" but you got to think it takes power to make power.

By bryan (bgowdy31 on CA.com) on March 26, 2012

6 found this helpful

Report abuse

Good budget amp

Running 4 strapped on 4 audioque hdc4 18s, each at .35
Great for the price!!

By AQMONSTER on April 20, 2014

4 found this helpful

Report abuse

POWER!!!!!

I bought two of these to push my Orion HCCA 10.2 subs.........I should have bought 15's!!!!!! These put out enough power with the gain half way up, if your concerned with refurbished get a squar trade warranty. But let me tell you I have been running these in the Arizona heat non stop and they have yet to stop, 1ohm all day long baby!!!!!!!!

By Chad on July 3, 2012

4 found this helpful

Report abuse

ABSOLUTELY AMAZING!!!!

I have been out of the car audio business for a lil while now, but I am truly glad to see Planet Audio is still doing its thing with the long Big Bang series amplifiers. This amp is amazing. For the price you cannot beat the power & performance of this monster. Just be sure your electrical is upgraded, because it does draw a lot of current. Pushes my 3 Kicker CVX 15's to the max!!!!! Not for use with cheap subwoofers; they wouldn't stand a chance.

By 155THINF on May 17, 2012

4 found this helpful

Report abuse

great amp

lets start off with the facts 12VDC x 250A = 3000, that is the peak power of this amp, RMS is a DC equivalent of an AC rating, and it is 75% for practical purposes. this amp will do what it is rated to do. i paired it with a jbl w12gti mkII , so far they seem to go well together @ 3 ohms (taking roughly 1200watts). considering the sub is rated at 700 watts it speaks well on behalf of JBL. i do like the size, weight, build, and appearance of this amplifier. it has no on board fuse so u must fuse it externally, however it does have solid wire terminals that allow for more than 1/0 gauge (seems to be able to fit 2/0 maybe 3/0 if u really take care into placement). that being said u will need at least 1/0 gauge wire to run this amp, also consider beefing up your battery connections and your battery to chassis wire to about 2/0 to allow plenty of flow for all the existing electrical components, and this new one. I would also recommend using 8 guage speaker wire at minimum. Also as im sure most would recommend, buy another battery. and sorry for the long review but u will need at least a 90A alternator (if im not mistaken, which i could be, the rating on alternators is at idle(750-1000 rpm)) buy this amplifier , u will not regret it.

By anthony on April 27, 2012

4 found this helpful

Report abuse

BB2400.1

I have 1 of these pushing 2 Kicker CVX 12's @ 2 ohms and it is all they want, definitely got power. I am running 1 ga. wire, 290 amp alternator, 2 batteries, & a 20 farad capacitor. You definitely need to have correct electrical or these amps will fry if pushed hard!!! I am also running a stinger digital volt gauge so i constantly know what my electrical is doing and not fry the amp. Have owned same setup for over 3 years with no problems ever.

By o004hp on March 24, 2012

4 found this helpful

Report abuse

Great Amp!

Very nice amp for the money. I will probably buy again!

By Mindy on August 3, 2012

3 found this helpful

Report abuse

See all 13 reviews
