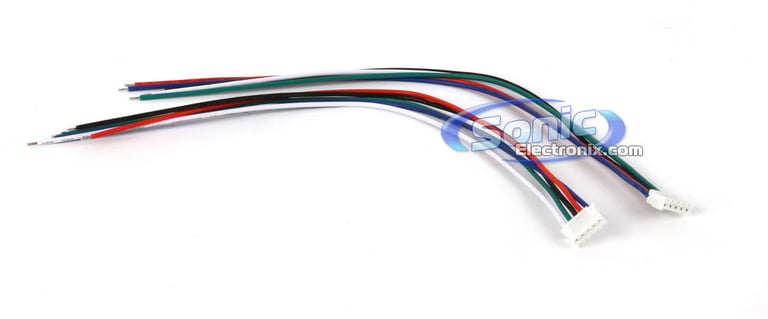

Planet Audio AP600.4 R/B Image 7 — Planet Audio AP600.4 R/B

Planet Audio AP600.4 R/B Image 8 — Planet Audio AP600.4 R/B

Planet Audio AP600.4 R/B Image 9 — Planet Audio AP600.4 R/B

Product videos

Product highlights

Apocalypse Series 4-Channel Class A/B Car Amplifier • 600W Max • 150W x 4 Chan @ 2 Ohm • Speaker Level Inputs • Preamp RCA Outputs • Chrome Plated Terminals • Bass Remote • Variable Bass Boost • Phase Shift

Learn more about the LS-ap6004-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

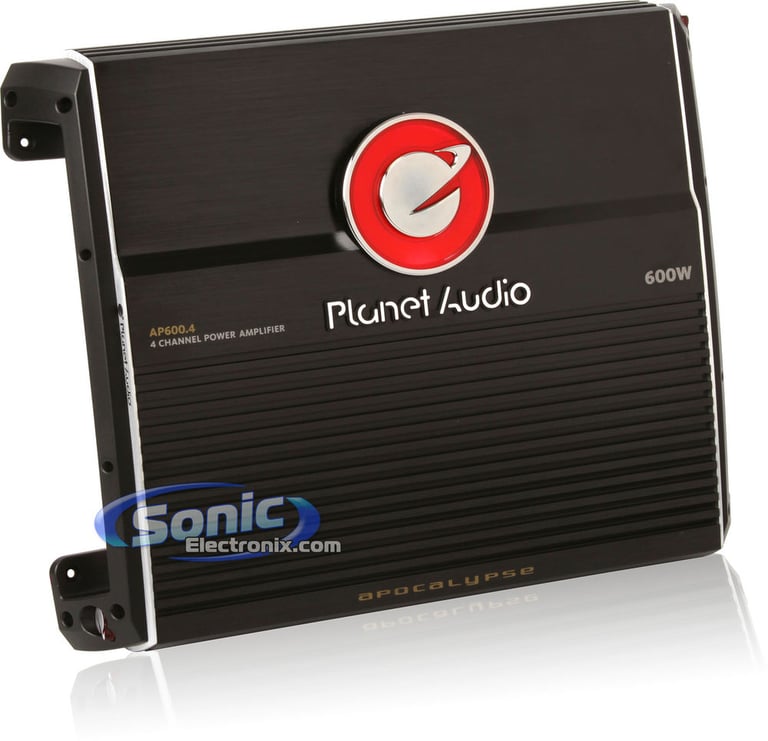

Apocalypse Series 4-Channel Class A/B Car Amplifier
RMS Power Rating:
- 2 ohm: 75 watts x 4 chan.
- Bridged, 4 ohm: 300 watts x 2 chan.
MAX Power Rating:
- 2 ohm: 150 watts x 4 chan.
Pulse Width Modulated MOSFET power supply

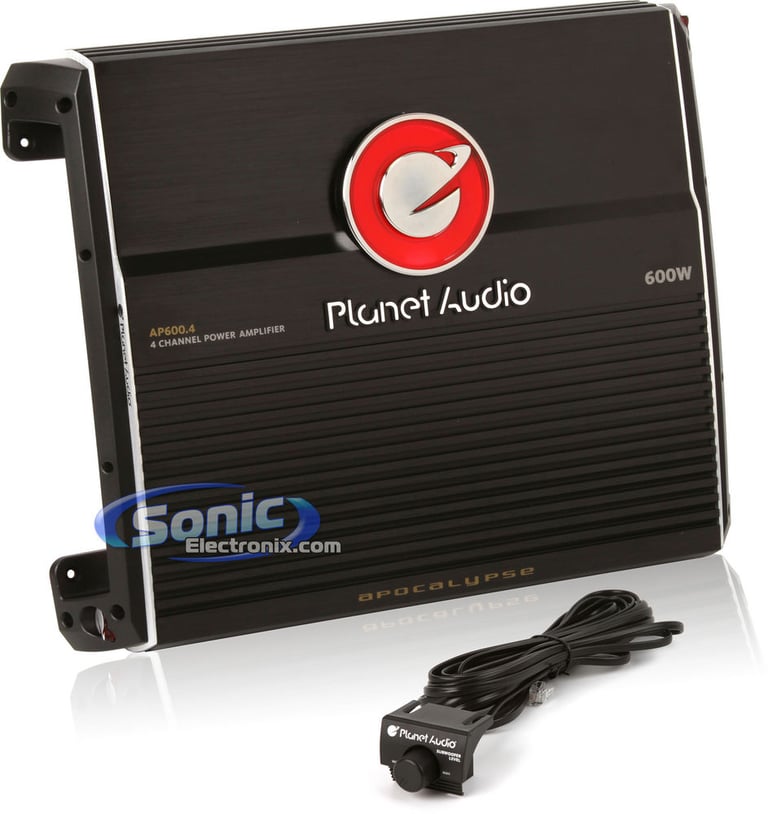

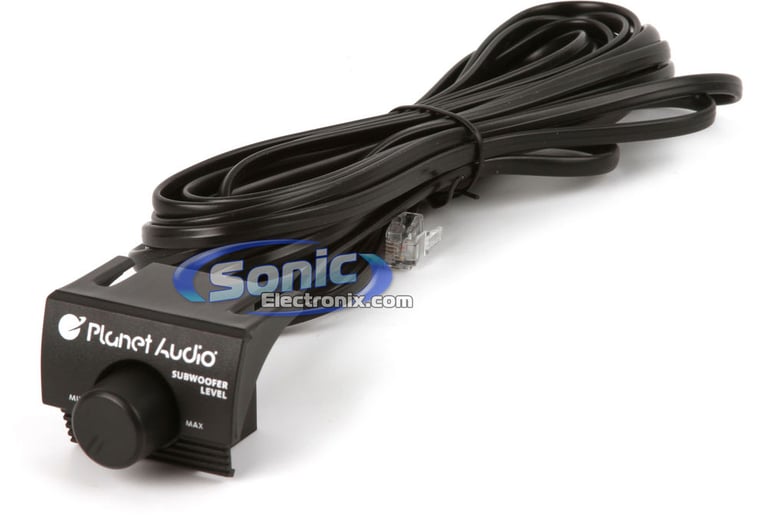

Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost)
Soft Start Turn-on
4/3/2 Channel operation
Speaker-level inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Chrome-plated RCA level inputs

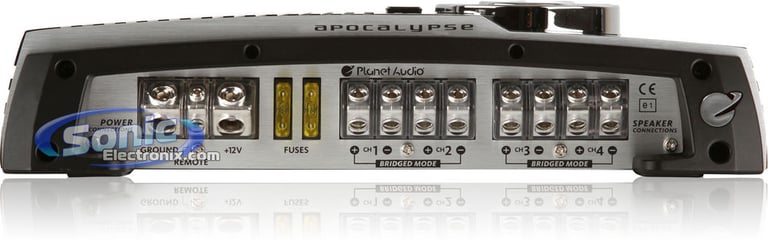

Chrome-plated set-screw terminals

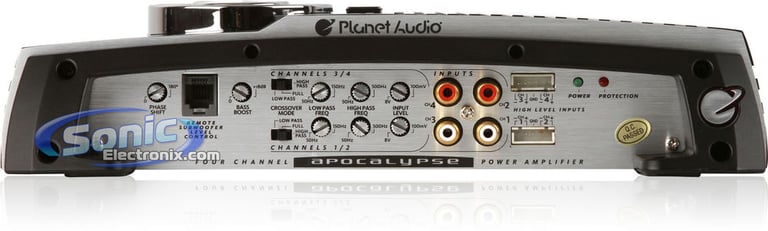

Variable high-pass filter
Variable low-pass filter
Switchable Phase Shift: 0-180°
Frequency response: 20-20,000 Hz
Dimensions: 13-9/16"L x 10-5/8"W x 2-5/16"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
Item Condition: Manufacturer Refurbished
90 Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

300 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

600 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Speaker Level Inputs

Yes - with included adapter

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 150 Hz

Signal-to-Noise Ratio

102 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

20A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
