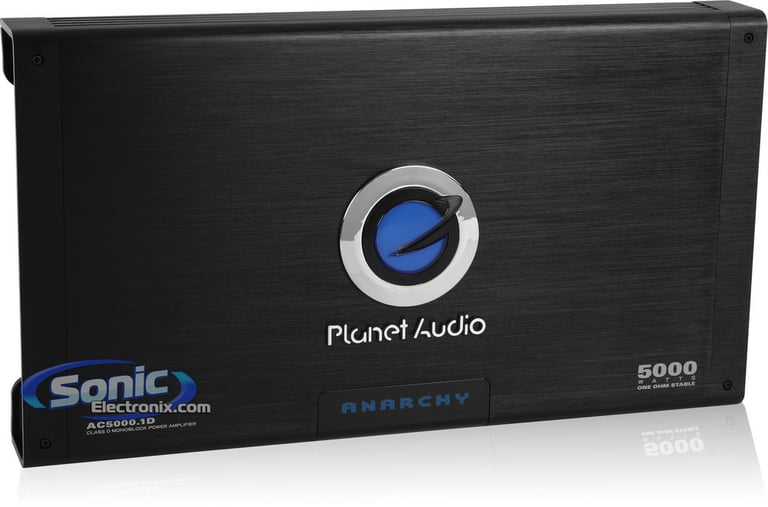

Planet Audio AC5000.1D

5000W Max Anarchy Series Class D Monoblock Power Amplifier

Product videos
highlight-star-icon

• RMS: 1800W x 1 @ 4 ohm, 2500W x 1 @ 2 ohm, 3500W x 1 @ 1 ohm
• Total Peak Power: 5000W
• Illuminated Logo
• Bass Boost 0-18 dB
• Chrome-Plated Connections
• Dimensions: 18"L x 10"W x 2-3/16"H

Learn more about the ac50001d

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

72-5605 main

Metra 72-5605

Install a New Tweeter in select 2011-2024 vehicles from Ford, Lincoln

-22.23%

$13.99

List price $17.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

Product Highlights


• RMS: 1800W x 1 @ 4 ohm, 2500W x 1 @ 2 ohm, 3500W x 1 @ 1 ohm
• Total Peak Power: 5000W
• Illuminated Logo
• Bass Boost 0-18 dB
• Chrome-Plated Connections
• Dimensions: 18"L x 10"W x 2-3/16"H

Description


Planet Audio brand icon

Authorized dealer

Planet Audio Authorized Dealer

Product Features

  • Anarchy Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1800 watts x 1 chan.
    • 2 ohm: 2500 watts x 1 chan.
    • 1 ohm: 3500 watts x 1 chan.
  • Peak Power Rating:
    • 1 ohm: 5000 watts x 1 chan.
  • Pulse width modulated MOSFET power supply

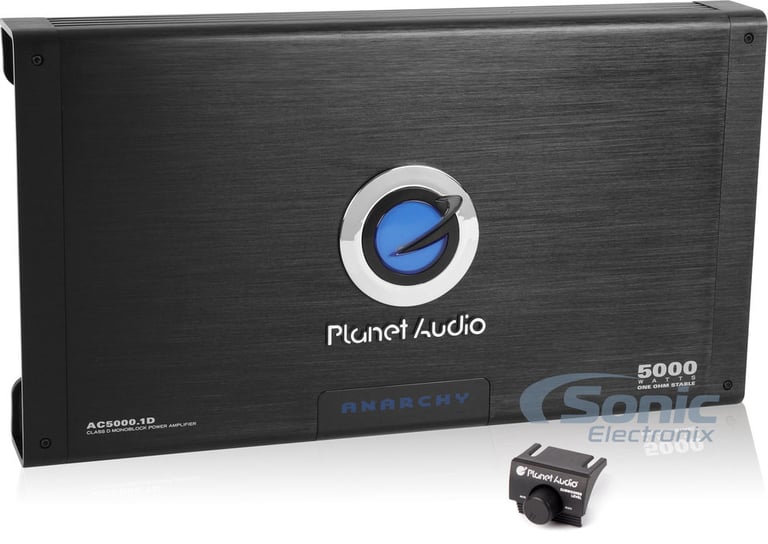

  • Convenient remote subwoofer control
  • 1 ohm stable operation
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +18 dB
  • Chrome-plated connections enhance durability
  • Variable low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

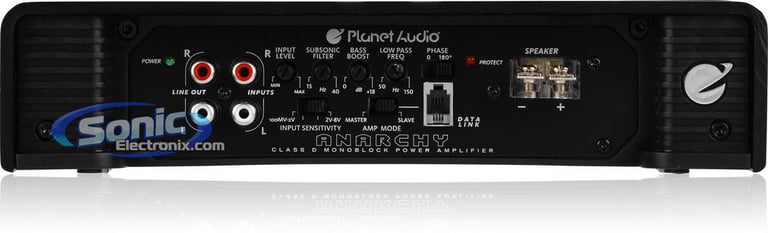

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Low level high inputs
  • Heavy-duty set-screw terminals
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable low-pass filter (50-150 Hz, 24 dB/octave)
  • Damping factor: >200
  • Subsonic filter: 15-40 Hz
  • Phase Shift: Switchable 0-180°
  • Signal-to-Noise Ratio: 105 dB
  • Frequency response: 20-250 Hz
  • Strapping capabilities allow user to strap two amps together for twice the power using included DataLink cable (2 ohm only)
  • Dimensions: 18"L x 10"W x 2-3/16"H

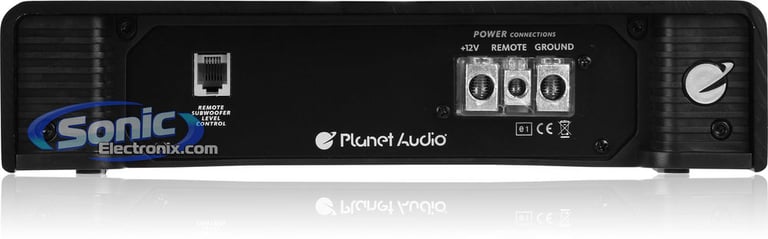

  • 1/0-gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

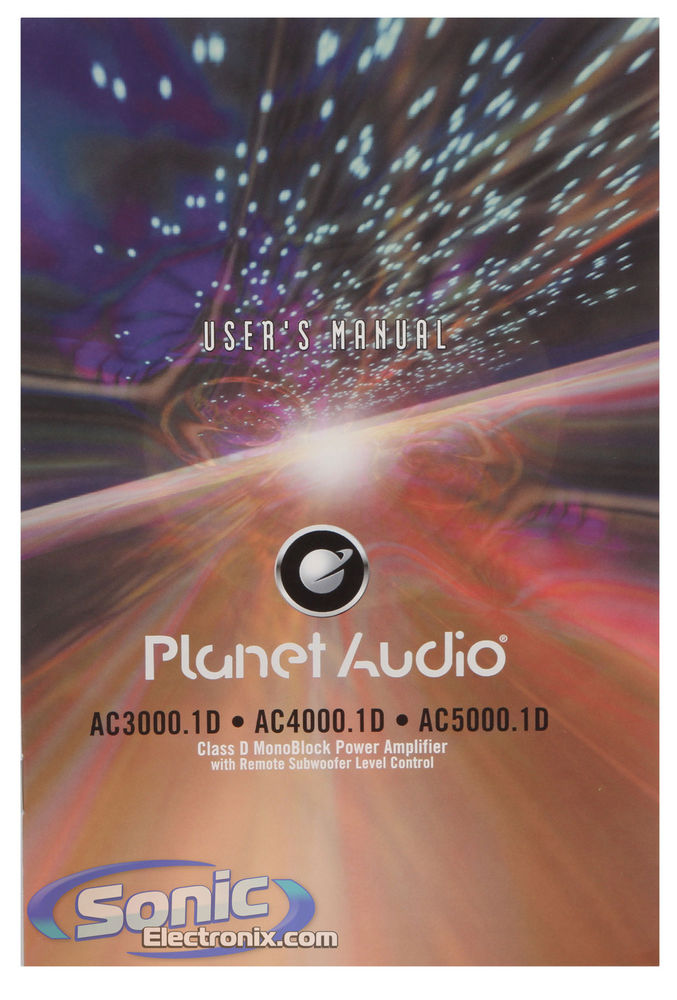

Planet Audio AC5000.1D owner’s manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(14)

$199.99

List price $287.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1800 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 1 channel
RMS Power @ 1 ohm
3500 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 1 ohm
5000 watts x 1 channel
Amplifier Specifications
Series
Anarchy Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
3500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Strappable
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

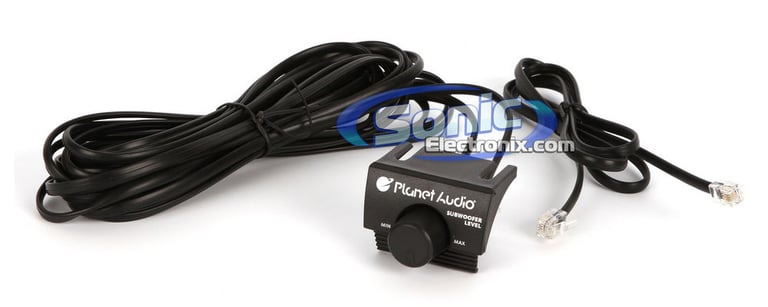

Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AC5000.1D

Weight:

14.00lbs

Internal SKU:

ac50001d

Internal Product ID:

25312

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio AC5000.1D thumbnail image

5 star
68%
4 star
11%
3 star
8%
2 star
1%
1 star
12%



Durability
4.1
Value
4.4
Features
4.4
Design
4.4
Usability
4.6

Customer Reviews

Sort by:

Loading...

just a great amplifier!

I highly recommend this amplifier! I have two of them.They do exactly what they say they do! My friends can't believe how effective these 2 amplifiers are. Thanks sonic electronics for making it easy and affordable! My amplifiers were tested at 1ohm @ 14.8 volts and mines are doing 4187 watts and 4193 watts! My planet audio ac 5000.1 d's are awesome!

By ronald on April 21, 2014

49 found this helpful


Impressed!

I bought this amp (Planet Audio ac5000.1d) to power my 15.4 Orion HCCA. i didn't think it could move the monster sub but it did amazingly well. It wasn't cheap because i had to buy 2 XS Power 3400d batteries so my lights in my car wouldn't dim plus the 0 gauge wire. Once you have the power for the amp, I highly recommend this amp. Had it for about 3 or more months and still no problems and running strong. With Sonic Electronix's fast shipping it only took 2 days to show up on my front porch. So thank you Sonic Electronix!

By joshua on December 5, 2013

43 found this helpful


planet audio anarchy 5000.1

I recently got a planet audio anarchy 5000.1 that was supposed to be new and it wasnt so i contact them and they exchanged it right away . Im satisfied with the amp is working great!

By mayito on September 15, 2014

42 found this helpful


okkkkkkkkkkkk

Its an ok amp for the price..depending on what's it's pushing

By Keith on September 17, 2014

39 found this helpful


great amp for the money

Well let me start off by saying if you are looking for 5000 watts do not buy this amp. It is 5000max not rms. But when making a purchase like this u should do your homework and know these things. Now to the amp its self. This amp is great for me I was looking for 3000rms at 1ohm. And it does that all day long. It beats my two planet audio bb2400 12" Subs hard. I gave it only two stars on ease of use and durability because the first one I bought completely blew up on me after a month. It poped and filled my truck with smoke and the back fed and blew up my remote turn on on my deck. But I knew some had done that before I bought it so I returned it which was a breeze at sonic electronix. And now I've got one that works and I love it . I had mine clamped and it is doing 3280 watts at 1ohm and I couldn't be happier . Because I wasn't looking for 5000watts just at least a solid 2500watts so im super pleased .

By richmon on December 9, 2013

37 found this helpful


Planet Audio AC5000.1D

ANSWER is all I can say. I will be purchasing more from this dealer and highly recommend this to anyone else who is looking.

By Ray Ray on February 19, 2015

38 found this helpful


love sonic electronic

They stand behind their product and Wil help you iv bought. Three amps so far

By Jamie on December 17, 2014

37 found this helpful


nice product, great price

planet audio, the best amplifier on the market , my bass shake all the car around

By y21 on July 1, 2014

38 found this helpful


planet audio amp

I have no complaints with this product it works great the only thing is my emblem doesn't glow .

By Donny on July 21, 2014

36 found this helpful


good

Got it on four 15 and it's slamming haven't had no problems out of it

By Odomboys3 on November 29, 2013

37 found this helpful




PRO-65ND small

Beyma PRO 65ND

Competition Series 6-1/2" Midwoofers

$349.99

List price $399.99

SK4000 small

Parrot SK4000 Open Box

(Open Box) Bluetooth Hands-Free Kit for Motorcycles and Scooters (SK-4000)

$39.99

List price $199.99

ELW1214.2 small

Bazooka ELW1214.2

12" 4 ohms Subwoofer ELW1214

(3)

$39.99

List price $129.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Mazda B3000

2017 Ford Escape

2002 Jaguar S-Type

1986 Ford EXP

2000 Mazda 626

2019 Dodge Durango

2017 Chevrolet Impala

2013 Infiniti M37

2017 Ford Mustang

2012 Hyundai Sonata

Vehicle
Store
Delete

1997 Honda VFR750F Interceptor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
