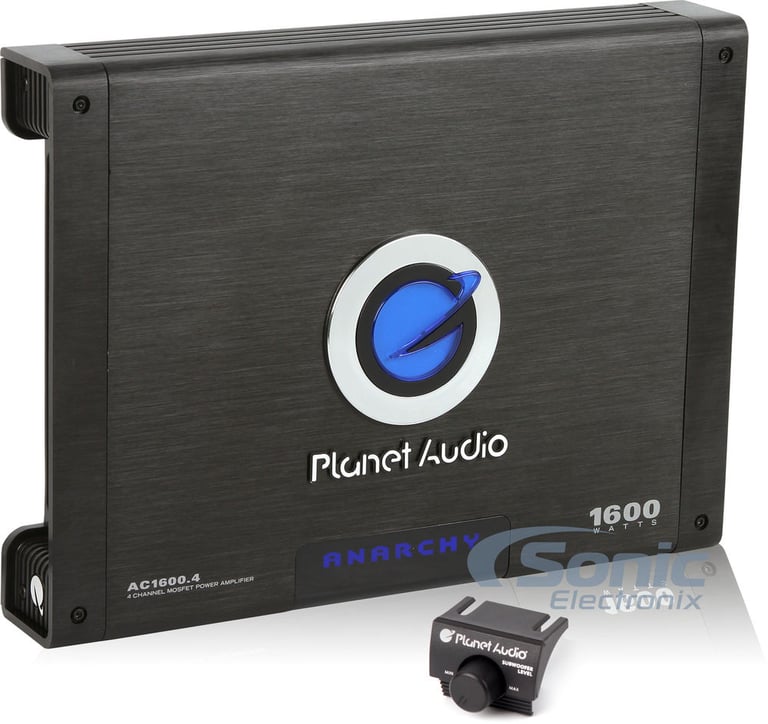

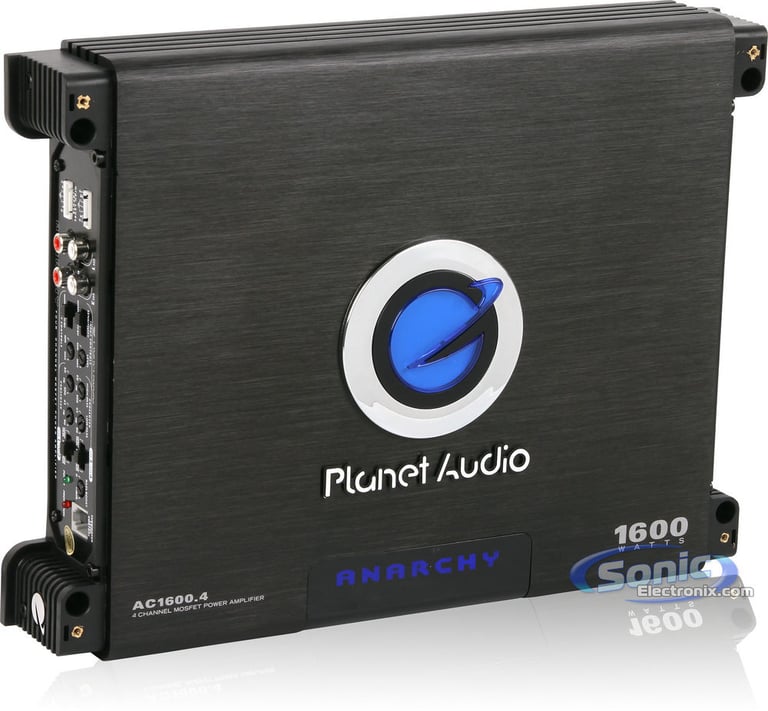

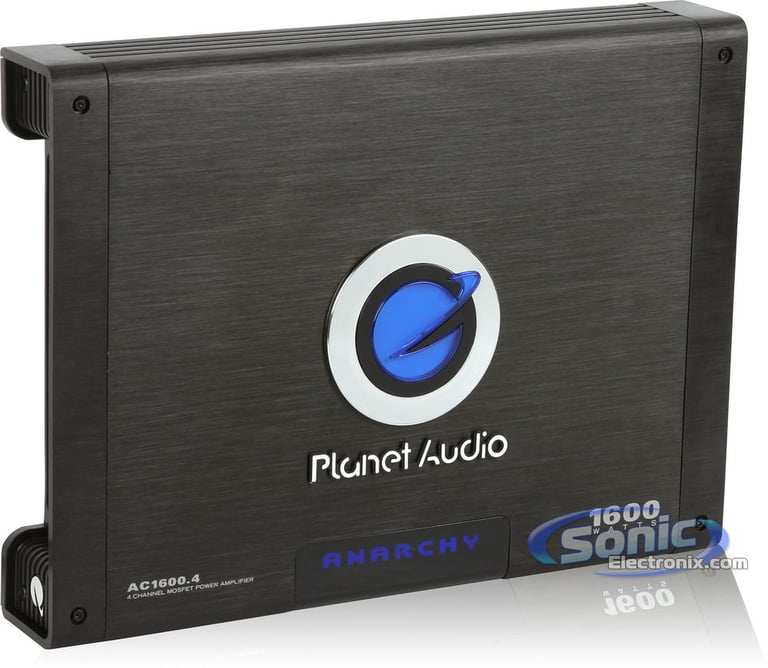

Planet Audio AC1600.4

1600W Anarchy Series 4-Channel Class AB MOSFET Power Amplifier with Remote Level Control

Product videos
highlight-star-icon

• RMS: 300W x 4 @ 2 ohms
• 1600W Max.
• Switchable Phase Shift
• Input Sensitivity Selector
• Remote Subwoofer Control
• Heavy-Duty Screw Terminals
• Chrome-Plated Connections
• Illuminated Logo

Learn more about the ac16004

We apologize

This item has been discontinued

Product Highlights


• RMS: 300W x 4 @ 2 ohms
• 1600W Max.
• Switchable Phase Shift
• Input Sensitivity Selector
• Remote Subwoofer Control
• Heavy-Duty Screw Terminals
• Chrome-Plated Connections
• Illuminated Logo

Description


Planet Audio

Authorized dealer

Planet Audio Authorized Dealer

General Features

  • Anarchy Series 4-Channel MOSFET Car Amplifier
  • RMS Power Rating:
    • 2 ohms: 300 watts x 4 chan.
    • Bridged, 4 ohms: 600 watts x 2 chan.
  • Max power output:
    • 2 ohms: 400 watts x 4 chan.
  • Pulse width modulated MOSFET power supply
  • Convenient remote subwoofer control
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +18 dB
  • Bridgeable Tri-mode operations
  • Chrome-plated connections enhance durability
  • Variable high and low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

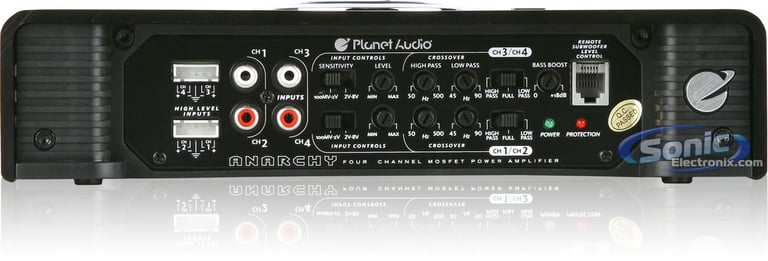

  • Low level and high level inputs

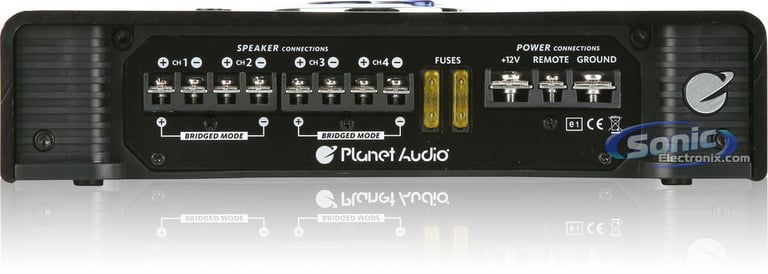

  • Heavy-duty set-screw terminals
  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (45-90 Hz, 24 dB/octave)
  • Signal-to-Noise Ratio: 102 dB
  • Frequency response: 20-20,000 Hz
  • Dimensions: 12-3/8"L x 10"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
300 watts x 4 channel
Bridged RMS Power
600 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
300 watts x 4 channel
Peak Power @ 2 ohms
600 watts x 4 channel
Bridged Peak/Max Power
1600 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Anarchy Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
4
Total Peak Power Output
1600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
102 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
20A x 1
Total Fuse Rating
20
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

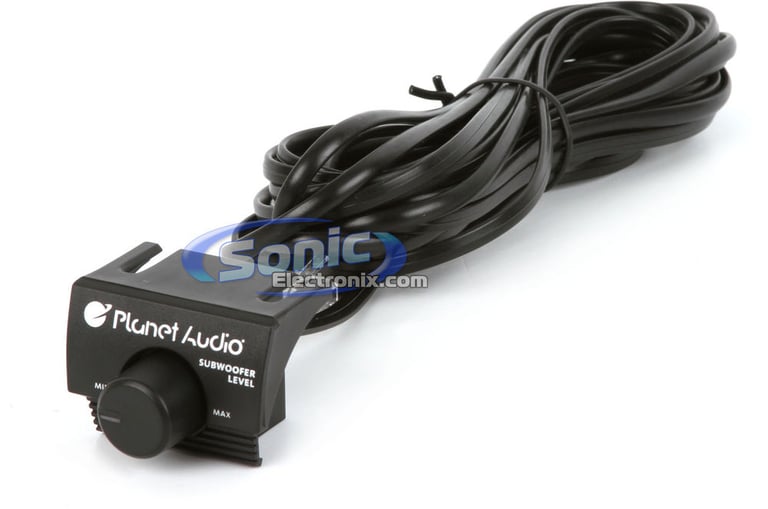

Wired gain knob (wire attached)

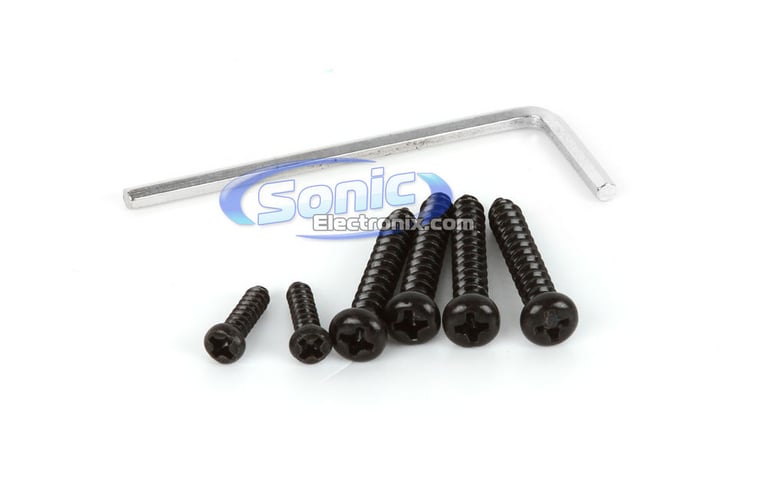

Mounting screws (4)

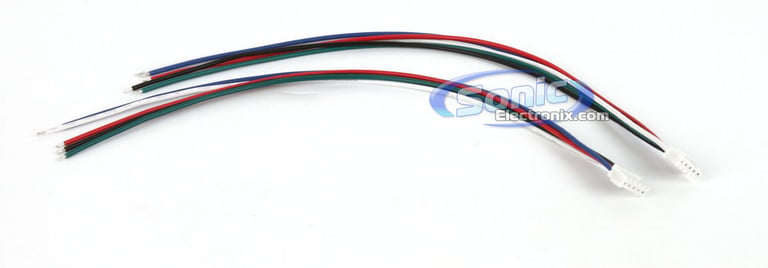

High-level input wiring harness w/ molex connector
Allen wrench
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AC1600.4

Weight:

12.00lbs

Internal SKU:

ac16004

Internal Product ID:

25324

Product and How-to Videos


Customer Ratings & Reviews



5 star
62%
4 star
24%
3 star
0%
2 star
0%
1 star
14%



Durability
4.5
Value
4.4
Features
4.4
Design
4.6
Usability
4.5
Sort by:

Loading...

planet audio

Great super cheap 4 channel shops around here were asking almost twice the price found it here for far less super deal

By alfonso on August 18, 2011

47

found this helpful.

planet audio 1600 watt amp JUNK

It seems Planet Audio has gone to Boss audio like quality.
Planet Audio used to be pretty good and actually under rated their amps.

This amp carrys two 20 amp fuses. The calculation for watts is voltsxamps=watts. so thats 14 volts(which most people aren't running) times forty amps= 560 watts. Thats until the fuses pop.

So you ask "why would a company design an amp that would pop the built in fuses when turned up". That's becuase they don't. It's roughly a 500 watt amp. not 1600. If you want to pay 90 bucks for a 600 watt amp go ahead. You can find better things for that price to wattage ratio.

By grandam88 on December 9, 2010

47

found this helpful.

I like em!

Soon as I received this amp I installed it in my 2005 X-Runner. It drives two component sets of boss audio; that’s 4 x 6.5 with 4 x 2” tweeters. Paired with my Pioneer AVIC-F700BT, it sounds great and delivers a crisp clean sound! No clipping, no fading when I drive it hard and it runs pretty cool compared to some other amps I’ve had. I was so impressed with it that I purchased the Mono amp to match it and they look and sound great in my truck. For my small cabin I get all the sound separation I need, clarity and good kick bass accompanied by deep, hard hitting bass from the AC 1500.1. There is no way I’m getting all the power these amps claim to be capable of but they are good budget amps if you are simply going to install them for sheer listening pleasures only. They are not competition amps. I’m a 43 year old man who enjoys listening to hip-hop on a regular basis and I love the quality of sound I receive from my Anarchy series Amps!

By Onixxf on April 6, 2011

43

found this helpful.

great amp.

I used it on four 6x9 pioneer and two 6.5 pioneer nice clean sound

By chainbreaker on January 2, 2015

42

found this helpful.

super buy

This amp is more than enough for me in fact have it turned down some it powers everything 2- 6.5 2-6.5 +tweeters plus 12in sub sounds awesome

By richard on May 29, 2013

40

found this helpful.

So you gave it a bad review because it's advertised in max rating.

Everyone is advertising their stuff at max wattage these days. The specs of the amp clearly back your statements. And I agree that it only delivers the RMS power that it advertises. Wow. I cannot believe you left a negative 1-star review trashing this amp just because it's advertised at max rating and not RMS rating. Everyone does that.

By Rick on January 10, 2011

43

found this helpful.

Planet audio amp

I love this amp it works great haven't had any problems with it yet works good sounds clear bumps hard one of the best amps I've owned

By Bray on February 23, 2013

38

found this helpful.

Great Amp

I love this amp. I've put this lil thing through soo much hell. Right now I have 4 Sony 6x9s running off 1/2 channel and 3/4 have a Kicker CVR 15in sub its a great amp for highs and decent for lows i wouldnt really approve this for full time lows but full time highs and mids Definitely yes. Currently at the moment im updating the system to two Kicker 15in L7s running off of a Power Acoustik 2000/1 BAMF Series with a Planet Audio Equalizer and Boss Bass Expander. If your in Polk county Florida just keep an eye out for a blue Jeep on 35s with a big ol Cvr in the back youll hear a jeep beat down

By Zeke on June 16, 2011

40

found this helpful.

A Must Have

Ordered both this and the 2 channel version matched with the infinity reference's through a kenwood H.U. I am blown away by the clarity and shear power. I cant even turn it up to the max it's so loud. Did I mention no distortion?

By Black-Ice on June 19, 2012

37

found this helpful.

definitely worth it

Clean signal great power for low price. I got this amp pushin my dash and door speakers in my grand cherokee, sound is clean crisp and loud.

By kdbjeep on March 12, 2012

37

found this helpful.
