Name: Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)
Brand: Planet Audio
SKU: LS-ac16004-OBIRA243471
Price: 74.99 USD
Availability: Discontinued

by Planet Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

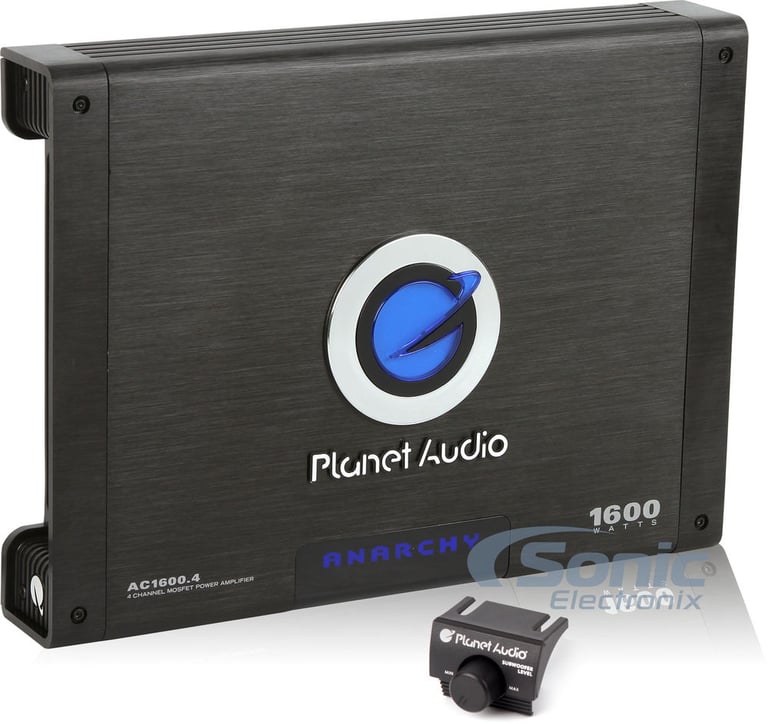

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 1 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

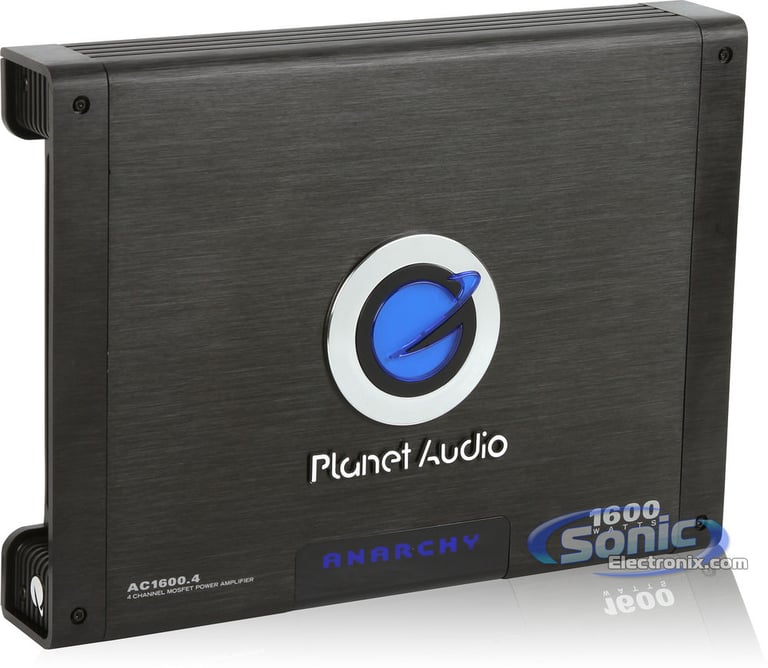

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 2 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 3 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 4 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

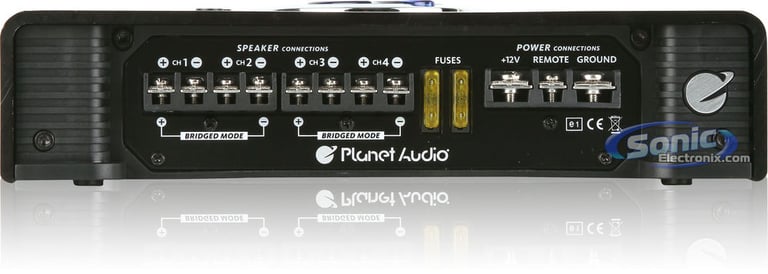

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 5 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 6 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 7 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 8 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 9 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 10 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

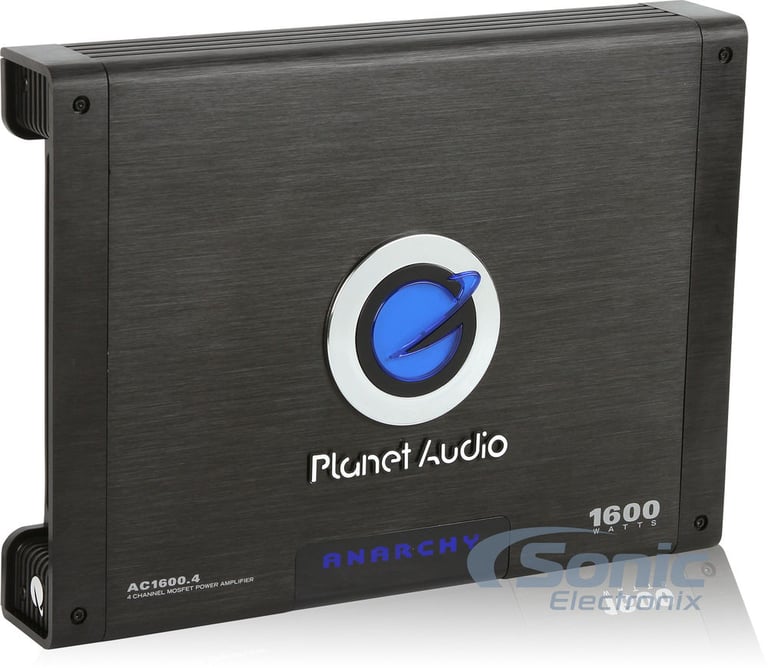

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 11 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 12 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

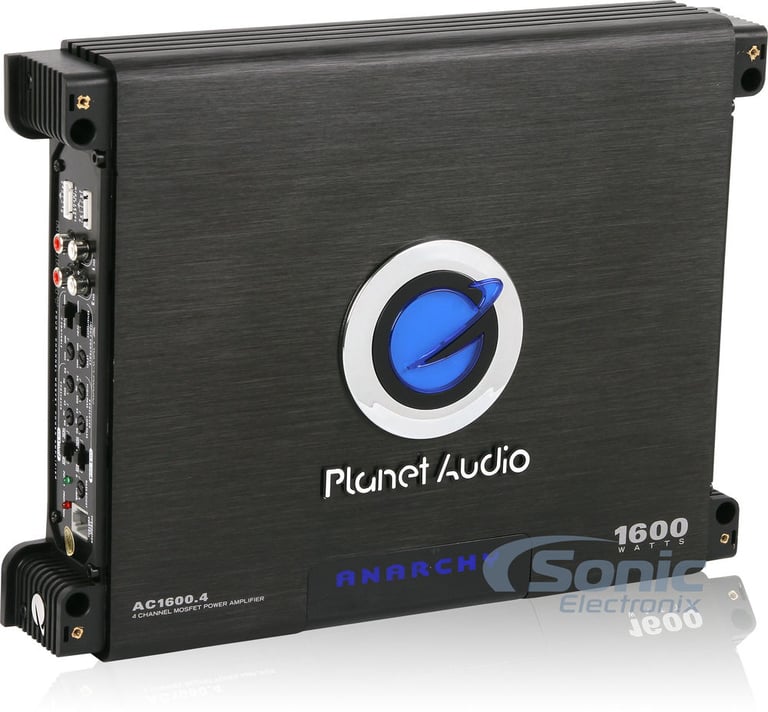

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 13 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 14 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE) Image 15 — Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)

Planet Audio AC1600.4 (OPEN BOX INCOMPLETE)-video

Product videos

Product highlights

• RMS: 300W x 4 @ 2 ohm
• 1600W Max.
• Switchable Phase Shift
• Input Sensitivity Selector
• Remote Subwoofer Control
• Heavy-Duty Screw Terminals
• Chrome-Plated Connections
• Illuminated Logo

Learn more about the LS-ac16004-OBIRA243471

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

This is an Open Box Item

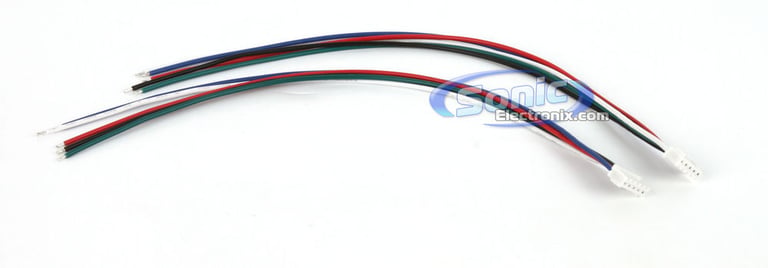

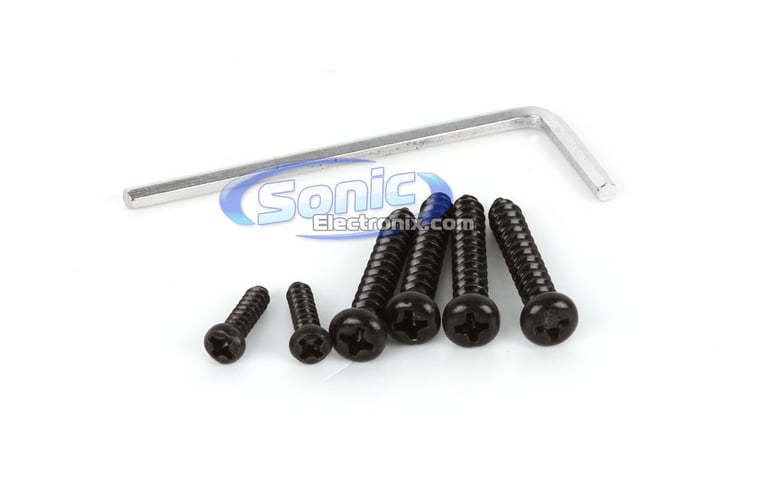

This is an open box item. We have checked, tested, and confirmed this item to function properly, however it is missing the bass knob wire, installation hardware

This open box product has a 30-day return policy and a 90-day warranty

Item Condition: Open Box Incomplete

Item is missing the bass knob wire and installation hardware, Item has been installed and has installation marks, used, and has some scratches

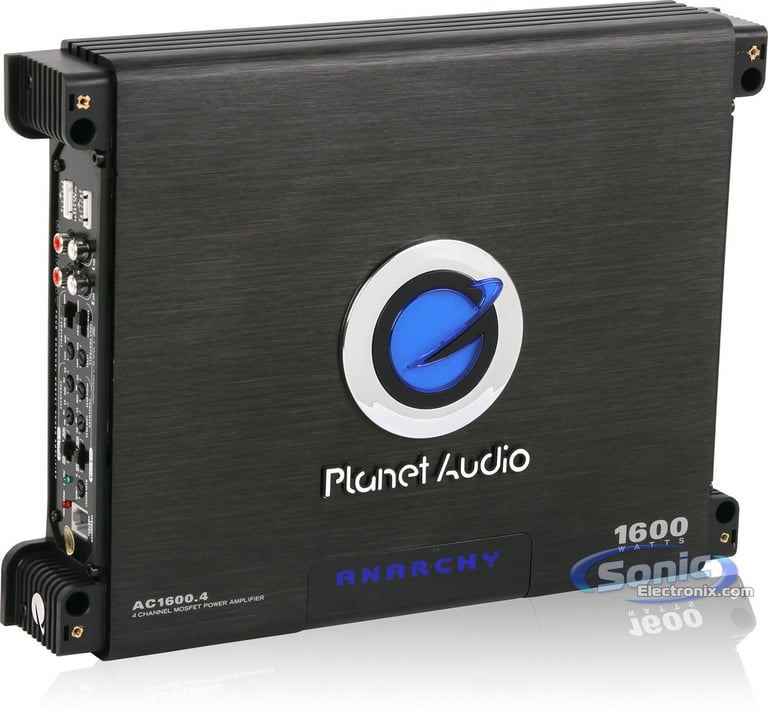

Anarchy Series 4-Channel MOSFET Car Amplifier
RMS Power Rating:
- 2 ohm: 300 watts x 4 chan.
- Bridged, 4 ohm: 600 watts x 2 chan.
Max power output:
- 2 ohm: 400 watts x 4 chan.

Pulse width modulated MOSFET power supply

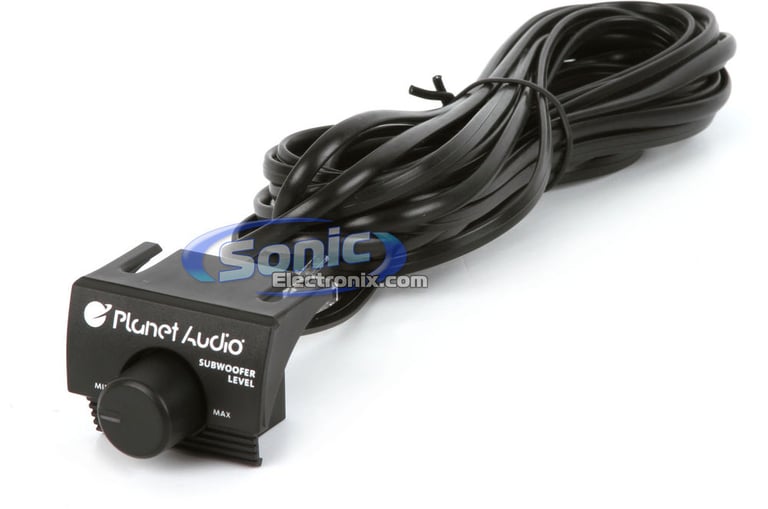

Convenient remote subwoofer control

LED power (green) and protect (red) indicators

Variable Bass Boost 0 to +18 dB

Bridgeable Tri-mode operations

Chrome-plated connections enhance durability

Variable high and low pass crossovers

Illuminated logo

3-Way System Protection circuitry (thermal, overload, and speaker short protection)

Heavy duty aluminum alloy heatsink for extreme heat dissipation

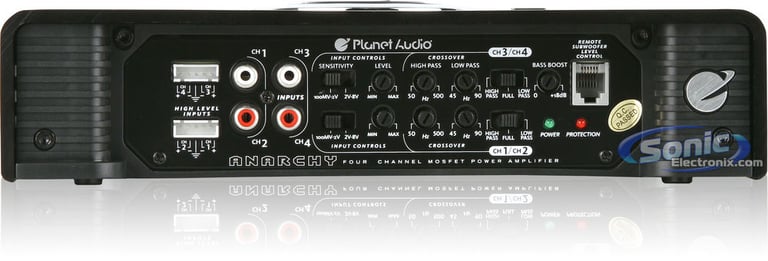

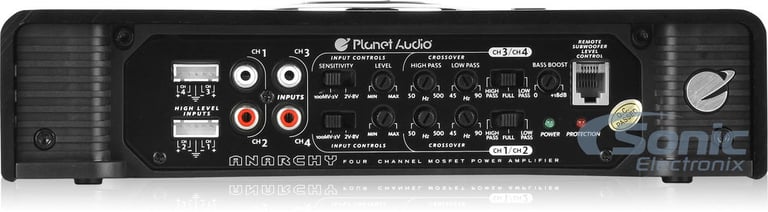

Low level and high level inputs

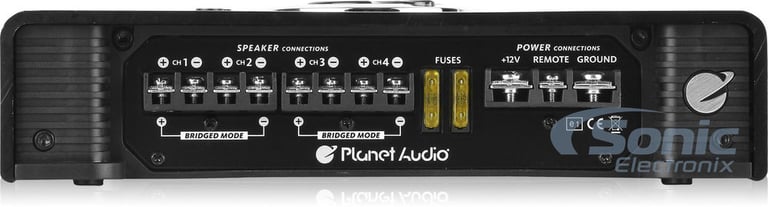

Heavy-duty set-screw terminals

Input sensitivity:

Low level: 100mV-2V
High level: 2V-8V

Variable high-pass filter (50-500 Hz, 24 dB/octave)

Variable low-pass filter (45-90 Hz, 24 dB/octave)

Signal-to-Noise Ratio: 102 dB

Frequency response: 20-20,000 Hz

Dimensions: 12-3/8"L x 10"W x 2-3/16"H

4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.

Authorized Internet Dealer

1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 2 ohms

300 watts x 4 channel

Bridged RMS Power

600 watts x 2 channel

Amplifier Specifications

Series

Anarchy Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1600 watts

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.01%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

45 - 90 Hz

Signal-to-Noise Ratio

102 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Fuse Rating

20A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
