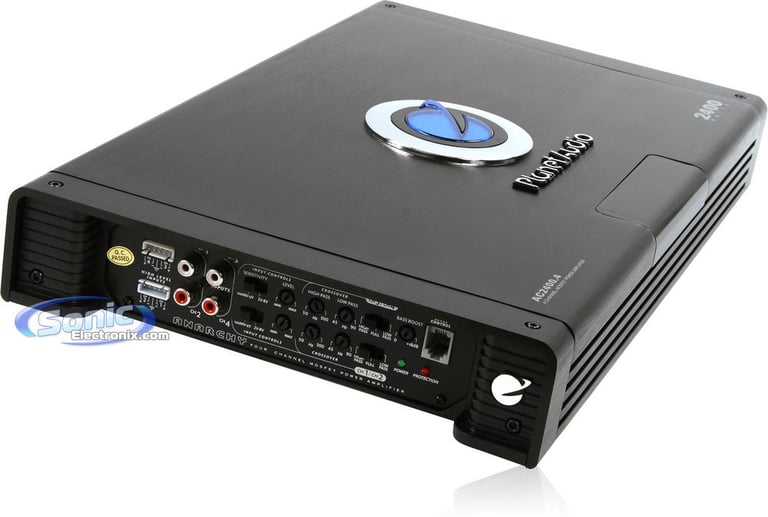

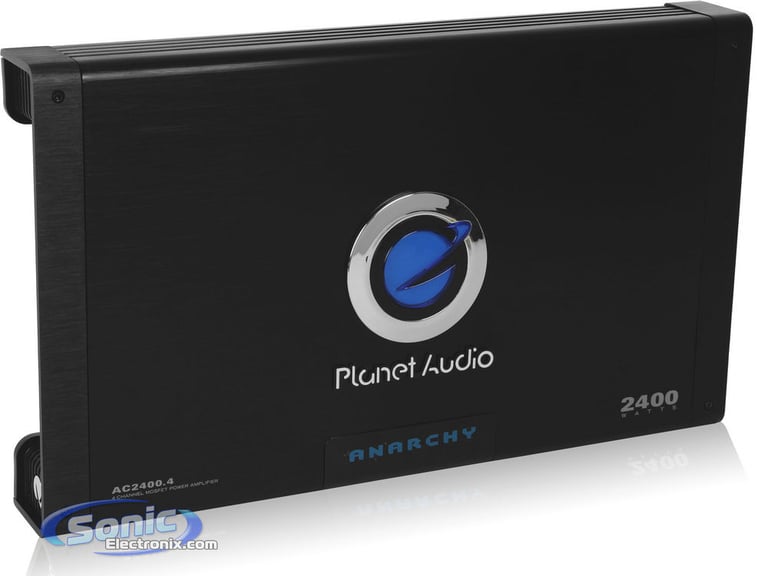

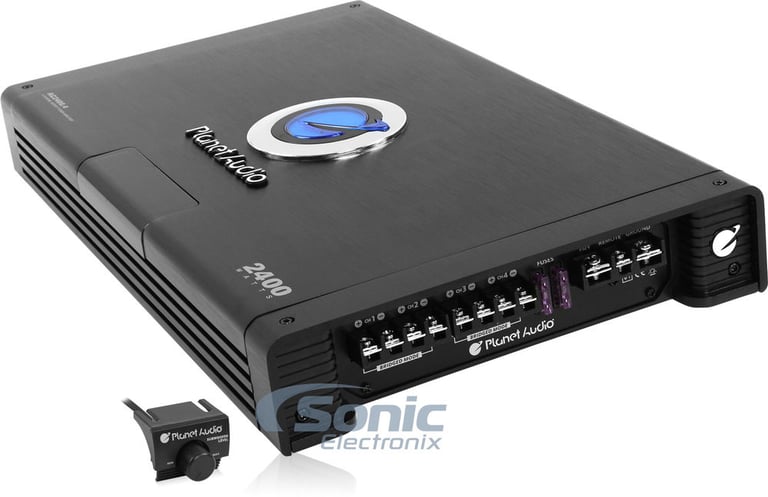

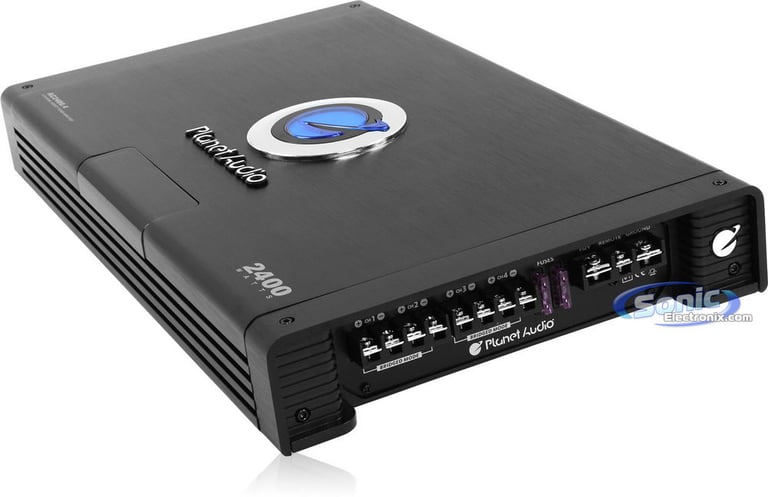

Planet Audio AC2400.4

2400W Anarchy Series 4-Channel Class AB MOSFET Power Amplifier with Remote Level Control

Product videos
highlight-star-icon

• RMS: 2 ohms: 420 watts x 4 chan.
• 2400W Max.
• Switchable Phase Shift
• Input Sensitivity Selector
• Remote Subwoofer Control
• Heavy-Duty Screw Terminals
• Chrome-Plated Connections
• Illuminated Logo

Learn more about the ac24004

We apologize

This item has been discontinued

Expert built bundles that save you more (1)


Choose from any of our many bundles that include this product for even more savings!

Planet Audio AC2400.4 with Amplifier Wiring Kit

2400W Anarchy Series 4-Channel Class AB MOSFET Power Amplifier with Remote Level Control

(17)

$213.98

Product Highlights


• RMS: 2 ohms: 420 watts x 4 chan.
• 2400W Max.
• Switchable Phase Shift
• Input Sensitivity Selector
• Remote Subwoofer Control
• Heavy-Duty Screw Terminals
• Chrome-Plated Connections
• Illuminated Logo

Description


Planet Audio

Authorized dealer

Planet Audio Authorized Dealer

General Features

  • Anarchy Series 4-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 225 watts X 4 chan.
    • 2 ohms: 420 watts x 4 chan.
    • Bridged, 4 ohms: 840 watts x 2 chan.
  • Pulse width modulated MOSFET power supply

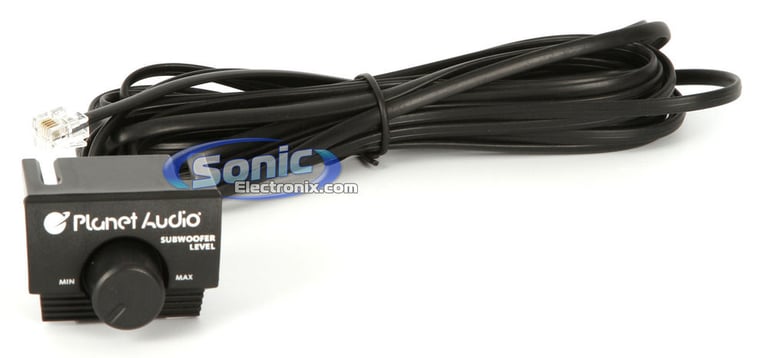

  • Convenient remote subwoofer control
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +18 dB
  • Bridgeable Tri-mode operations
  • Chrome-plated connections enhance durability
  • Variable high and low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

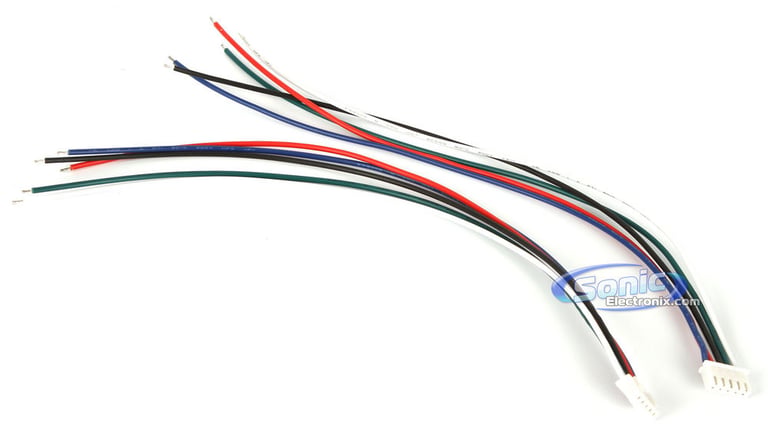

  • Low level high inputs

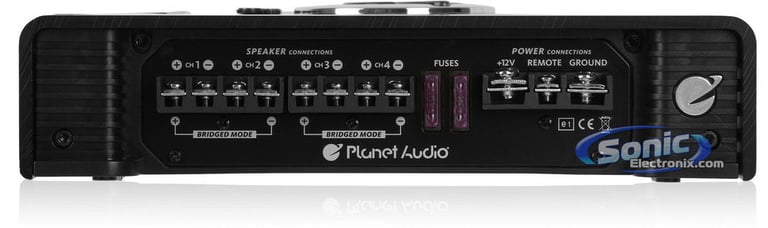

  • Heavy-duty set-screw terminals

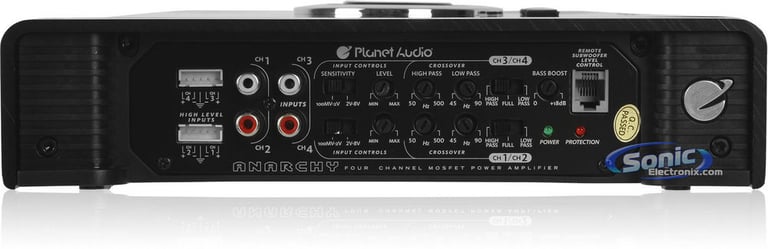

  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable high-pass filter (45-90 Hz, 24 dB/octave)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • Damping factor: >125
  • Signal-to-Noise Ratio: 102 dB
  • Frequency response: 20-20,000 Hz
  • Dimensions: 15-9/16"L x 10"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
225 watts x 4 channel
RMS Power @ 2 ohms
450 watts x 4 channel
Bridged RMS Power
900 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
450 watts x 4 channel
Peak Power @ 2 ohms
600 watts x 4 channel
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Anarchy Series
Marine Certified
Amplifier Class
A/B
Number of Channels
4
Total Peak Power Output
2400 watts
Total RMS Power Output
1800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
102 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
30A x 2
Strappable
CEA-2031 Compliant
No
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AC2400.4

Weight:

14.00lbs

Internal SKU:

ac24004

Internal Product ID:

25325

Product and How-to Videos


Customer Ratings & Reviews



5 star
91%
4 star
9%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.8
Features
5
Design
4.9
Usability
4.9
Sort by:

Loading...

So far so good

I bought the planet audio Ac2400.4 about a month ago I wired 11 speakers to it 4. tweeters 2. 6.5. 3. 6x9 and 2 prv horns at first the amp would clip once we cranked up the volume but as I broke in the amp I noticed that I'm able to turn the volume up higher just at a slower rate and I'm cool with that the cars sounds amazing and the gain on the amp is about half way up or a little less so it's been good to me

By shaun on September 20, 2014

38

found this helpful.

great value

This is a great amp for the price I recommend it

By chainbreaker on August 11, 2014

38

found this helpful.

great value

Good amp for a low price I advise any one that wants decent power to purchase......

By chainbreaker on August 15, 2014

35

found this helpful.

Review

Still have it installed in my car,great ,no problems

By J on July 31, 2013

33

found this helpful.

Planet audio AC2400.4

Great for a hi fi audiophile system,clear kids & highs

By Cj on June 1, 2015

15

found this helpful.

GREAT PRODUCT

ABSOLUTELTY AMAZED WITH THE CLAIRITY OF THIS UNIT!! GRAT BUY!! I USE IT FOR ALL OF MY MIDBASS AND BULLET TWEETS.vERY CLEAR!!!!!

By jimmy on June 23, 2015

13

found this helpful.

Great amp.

I am using the 2400watt 4 channel Audio Planet with a Alpine S 15 inch running in bridge mode... so I am running about 840watts according to the manual. There is a lot of output(gain). It sturdy and I have it bolted down so it doesn't move. The only problem was with the purchase they sent me a 4 pin cable when it should have been 5 pins thus the volume controller didn't work. I ended up using another volume control knob instead.

Visually the amp looks nice (since it glows blue) and there is a power light on the back that shows you that it's working at a glance. I have it up and going with a setup of 8 speakers and one subwoofer for about 2 months now with a 2 external amplifers (I have 4 speakers connected directly to my kenwood units built-in amp), 4 connected to a 1600 watt absolute and then the 4channel audioplanet connected to the 15 inch alpine S sub to the 2400 watt audio planet independently. I have the volume settings maxed out from the amp itself both channel volume and bass boost and having it running in full mode (unfiltered).

I am very pleased with the purchase and it works great and I feel it is a good value and aceeded my expectations EXCEPT FOR THE FACT the volume remote knob didn't work but I think it was the wrong cable and I just wired it up to a PAC RCA remote volume control instead.

By Benny Heflinger on October 13, 2016

7

found this helpful.

Great for the price and it's simple to install plus it works great.

Great piece of equipment for the price. Plus it's simple to install and works great.

By Doyle on March 11, 2020 checkmarkIcon Verified purchase

6

found this helpful.

Good for cheap

I would recommend This amplifier because of the performance for a very cheap price

By Steven on April 13, 2021 checkmarkIcon Verified purchase

5

found this helpful.

cheap but works great for me

quick delivery. works great has my jeep pounding with two tens. i would recommend this product. for use with subs or without. good clarity with my inifinty gold speakers.

By Joshua on May 2, 2018 checkmarkIcon Verified purchase

5

found this helpful.
