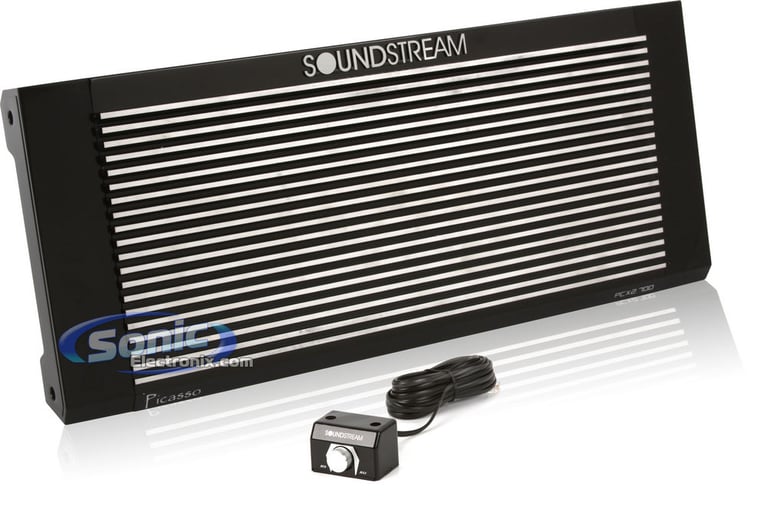

Soundstream PCX2-700-RB Image 1 — Soundstream PCX2-700-RB

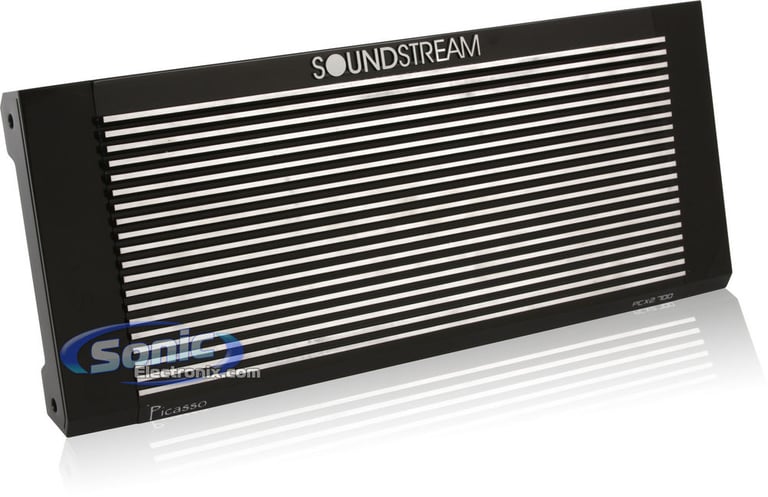

Soundstream PCX2-700-RB Image 2 — Soundstream PCX2-700-RB

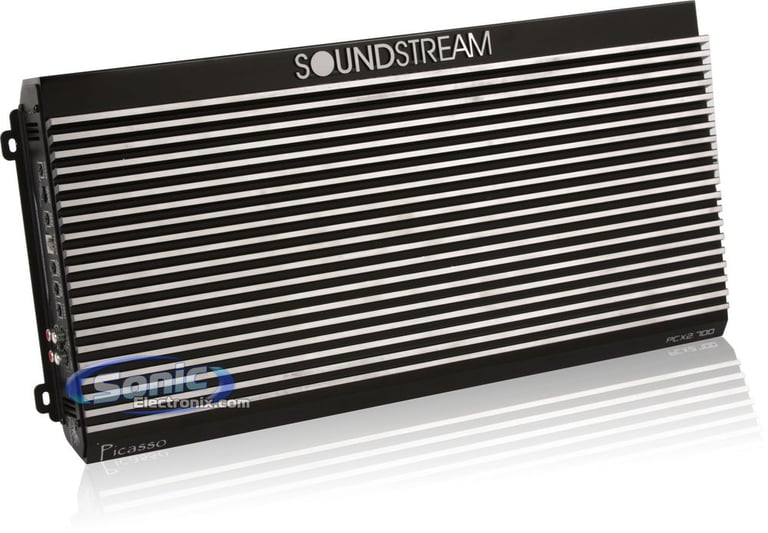

Soundstream PCX2-700-RB Image 3 — Soundstream PCX2-700-RB

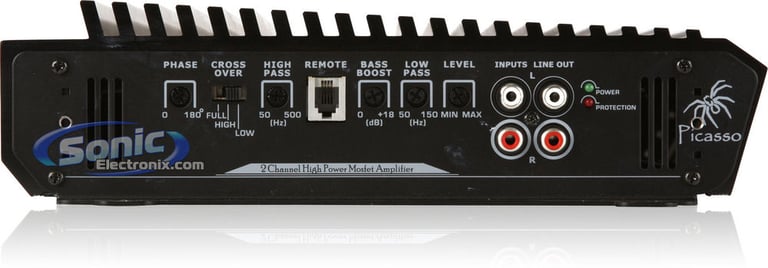

Soundstream PCX2-700-RB Image 4 — Soundstream PCX2-700-RB

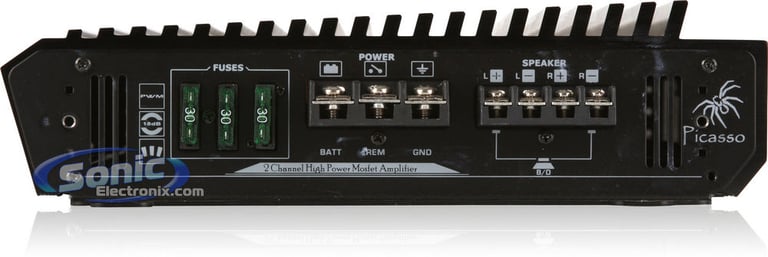

Soundstream PCX2-700-RB Image 5 — Soundstream PCX2-700-RB

Soundstream PCX2-700-RB Image 6 — Soundstream PCX2-700-RB

Product videos

Product highlights

Picasso Series 2-Channel Class AB Car Amplifier • 220W x 2 Chan. @ 4 ohm • 350W x 2 chan. @ 2 ohm • 700 Watts Total • Bi-linear selectable • Tuned Bass EQ • Platinum-Plated Contacts • End Caps Included

Learn more about the LS-pcx2700-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Picasso Series 2-Channel Class AB Car Amplifier
RMS Power Rating:
- 4 ohm: 220 watts x 2 chan.
- 2 ohm: 350 watts x 2 chan.
- Bridged, 4 ohm: 700 watts x 1 chan.
Fully Regulated MOSFET PWM Power Supply
Power and protection LED indicators
Tuned Bass EQ (0-18 dB bass boost at 50 Hz)
Tri-Guard amplifier protection
2/1 Channel operation
1 Pair of preamp RCA outputs
Bi-linear selectable, infinitely variable crossovers (HP/Full/LP)
IDI (Intelligent Distress Indicator) for thermal, short, and impedance protection
Turn on/off delay for soft start-up
Black hairline anodized aluminum heatsink for excellent heat dissipation
Platinum-plated RCA level inputs
Platinum-plated screw terminals
Variable high-pass filter (50-500 Hz, 24 dB/octave)
Variable low-pass filter (50-150 Hz, 24 dB/octave)
Professional end caps for a clean install
Frequency response: 10-35,000 Hz
Signal-to-Noise Ratio: >95 dB
THD (Total Harmonic Distortion): 0.10%
Damping Factor: >200
Dimensions: 24-1/8"L x 10"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

220 watts x 2 channel

RMS Power @ 2 ohms

350 watts x 2 channel

Bridged RMS Power

700 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

700 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.10%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 150 Hz

Signal-to-Noise Ratio

>95 dB

Bass Boost

0 - 18 dB

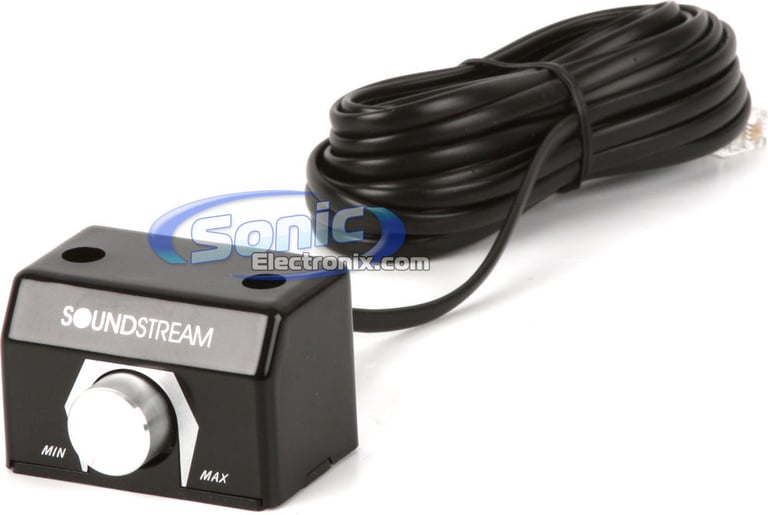

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
