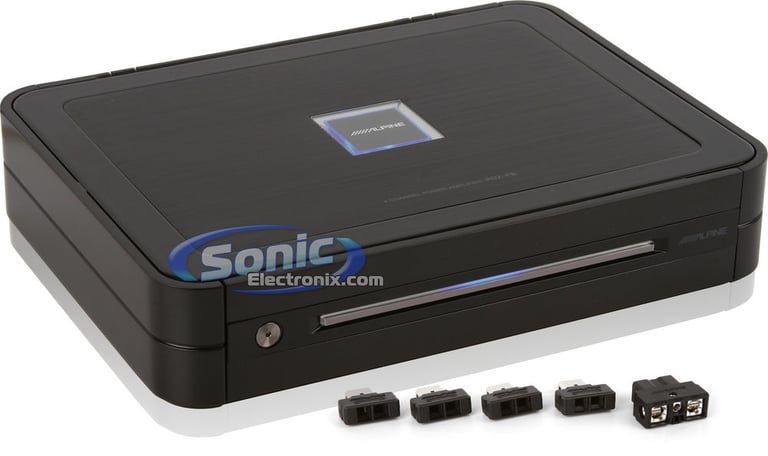

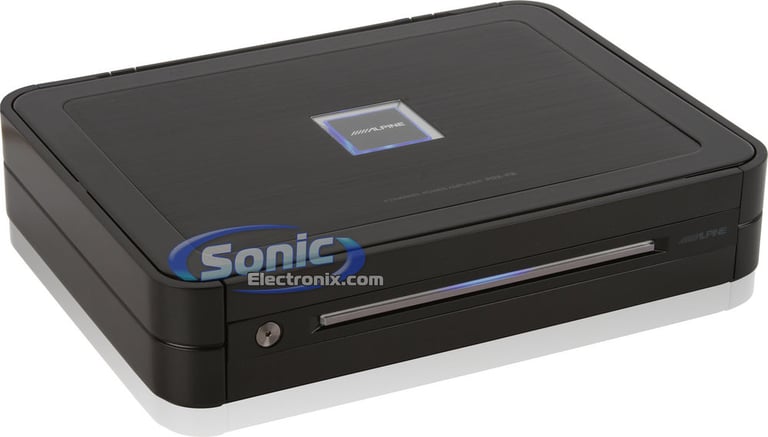

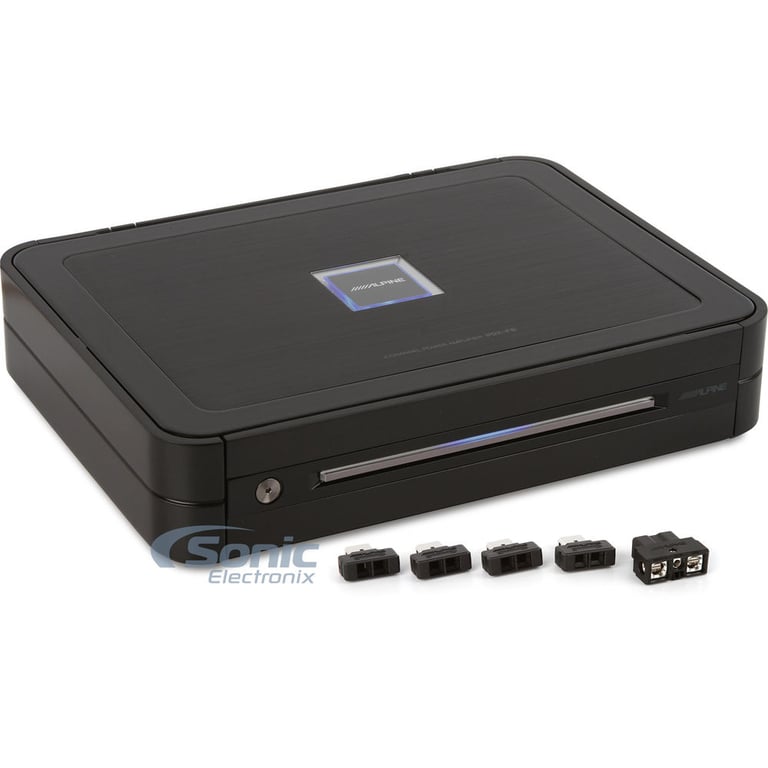

Name: Alpine PDX-F6
Brand: Alpine
SKU: LS-pdxf6-OB
Price: 449.99 USD
Availability: Discontinued

by Alpine

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Product videos

Product highlights

PDX Series 4-Channel Car Amplifier • Class D • 600 Watts RMS • 150 Watts x 4 Chan. RMS • Variable High-Pass and Low-Pass Filter • Blue LED Power/Status Indicator • Compact Size

Learn more about the LS-pdxf6-OB

Product Highlights

PDX Series 4-Channel Car Amplifier • Class D • 600 Watts RMS • 150 Watts x 4 Chan. RMS • Variable High-Pass and Low-Pass Filter • Blue LED Power/Status Indicator • Compact Size

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

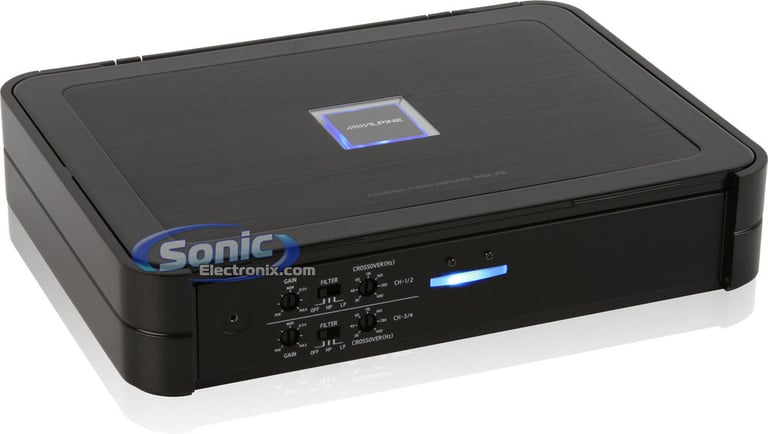

PDX Series 4-Channel Class D Car Amplifier
Product is Open Box

Previously Installed

RMS Power Rating (@ 14.4V):
- 4 ohm: 150 watts x 4 chan.
- 2 ohm: 150 watts x 4 chan.
- Bridged, 4 ohm: 300 watts x 2 chan.
Total RMS output: 600 watts
DC-DC PWM Power supply with STAR circuitry
Blue LED power/status indicator conveniently located on the top
Discrete pre-amp stage
6-Layer glass epoxy PC board
Automatic over-current protection system
Soft start turn-on prevent initial system popping
4/3/2 channel operation
System Protection circuitry keeps the amp running properly
Large aluminum alloy heatsink for extreme heat dissipation

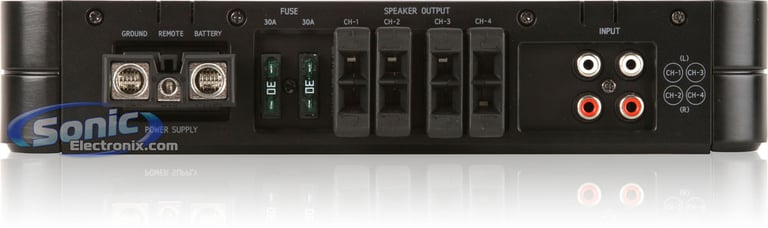

Gold-plated RCA level inputs

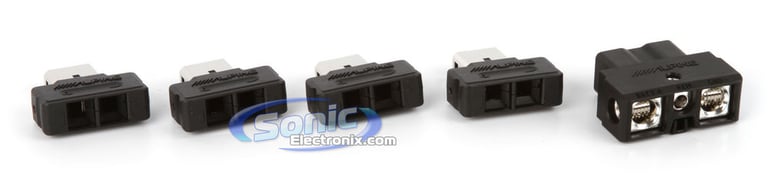

Proprietary screw terminals ensure a solid and secure connection
Input sensitivity:0.2-4 V with input level

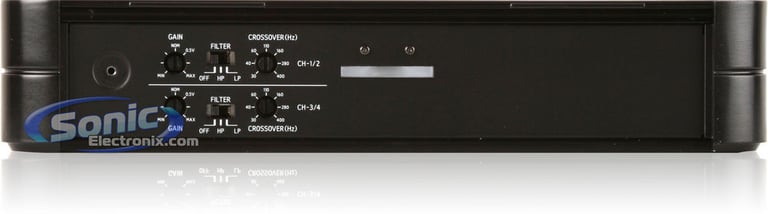

Variable high-pass filter (30-400 Hz, 12 dB/octave)
Variable low-pass filter (30-400 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 5-100,000 Hz

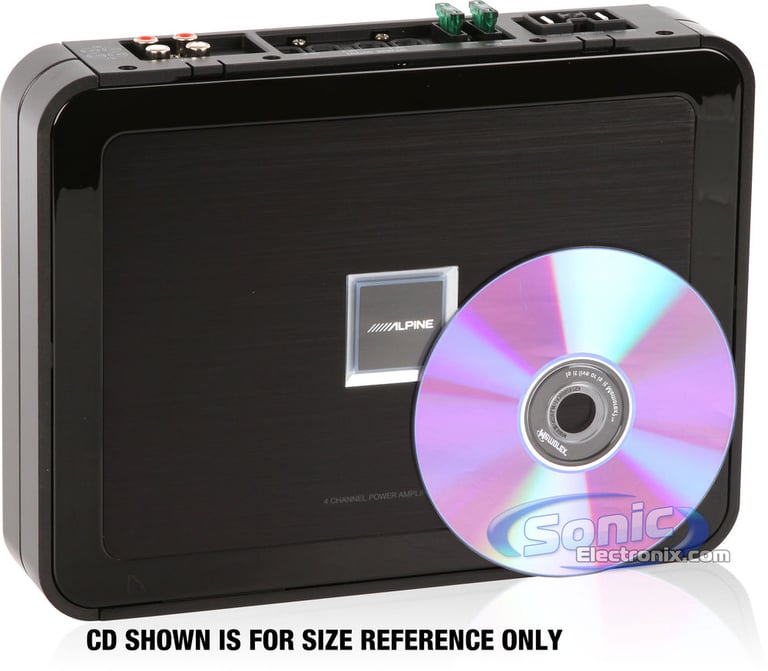

Dimensions: 7-9/16"D x 10-1/8"W x 2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
30-Day Sonic Electronix warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

Bridged RMS Power

300 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.003%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

30 - 400 Hz

Low-Pass Crossover Frequency

30 - 400 Hz

Signal-to-Noise Ratio

94 dB

Remote bass/level controller

Fuse Rating

30A x 2

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
