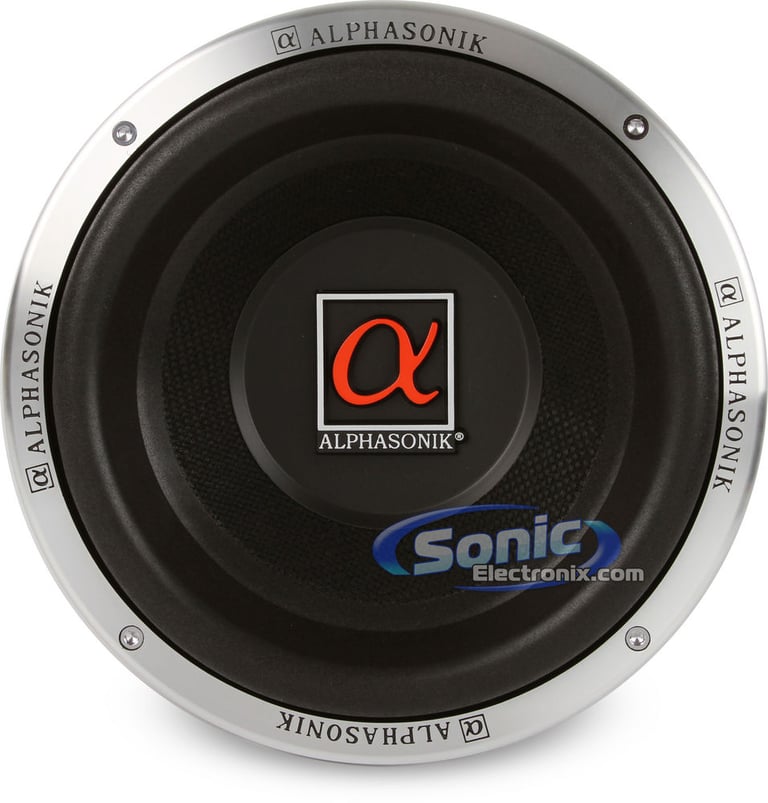

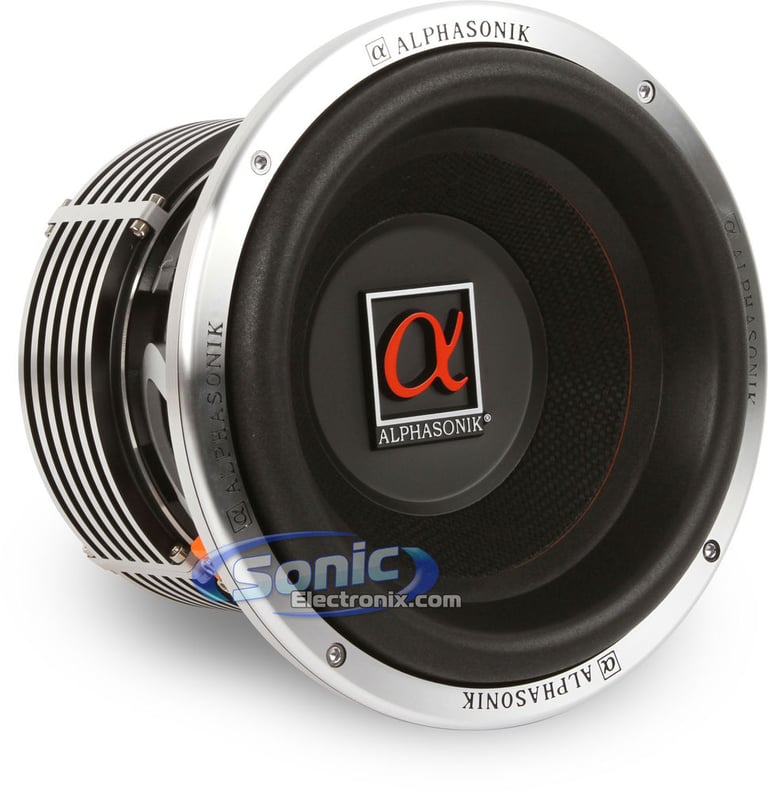

Alphasonik PSW810E

10" Dual 4 ohm ALPHA 800 Series Subwoofer

Product videos
highlight-star-icon

10" Dual 4 ohm ALPHA 800 Series Subwoofer • RMS: 800 Watts • Kevlar-Reinforced Cone • High Tinsel Strength Two-Layer Surround • Spiral Woven Leads • Motor Assembly Heat Sink • Dual 2-1/2" Voice Coils

Learn more about the psw810e

We apologize

This item has been discontinued


Loading...
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Limited time!

JVC CS-J6820

500W Peak (60W RMS) 6x8” J-Series 2-way 3-ohm Coaxial Car Speakers

3
-36.72%

$49.99

List price $79.00

Product Highlights


10" Dual 4 ohm ALPHA 800 Series Subwoofer • RMS: 800 Watts • Kevlar-Reinforced Cone • High Tinsel Strength Two-Layer Surround • Spiral Woven Leads • Motor Assembly Heat Sink • Dual 2-1/2" Voice Coils

Description


  • 10" Dual 4 ohm ALPHA 800 Series Subwoofer
  • Power Handling:
    • RMS: 800 watts
  • Impedance: 4 ohm
  • Kevlar-Reinforced cone
  • High tinsel strength two-layer surround
  • Exclusive mounting ring included
  • Flat progressive rate nomex damper with spiral woven leads

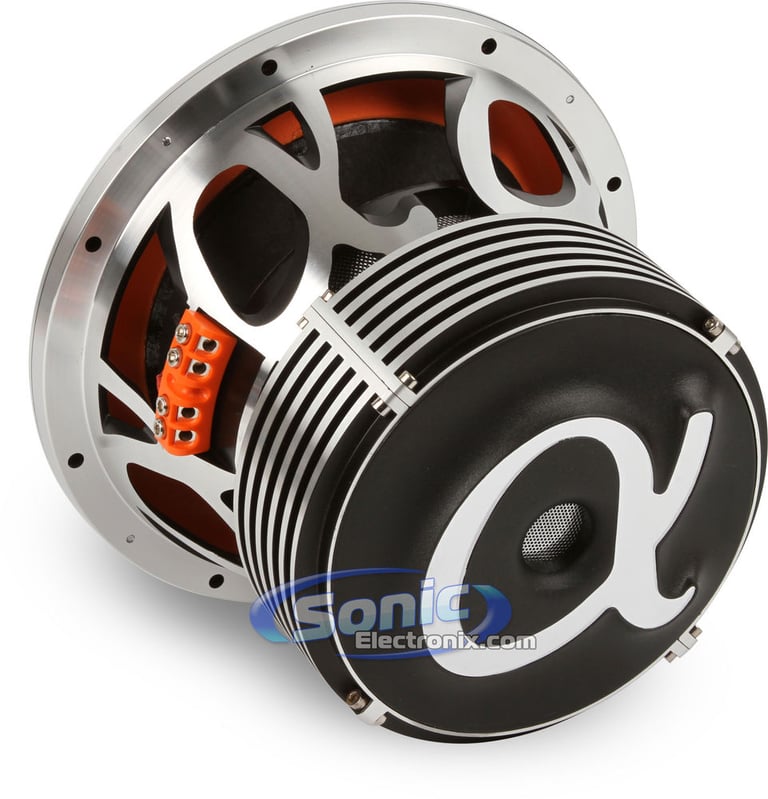

  • Cast aluminum CNC machine finished alpha basket
  • Motor assembly heat sink

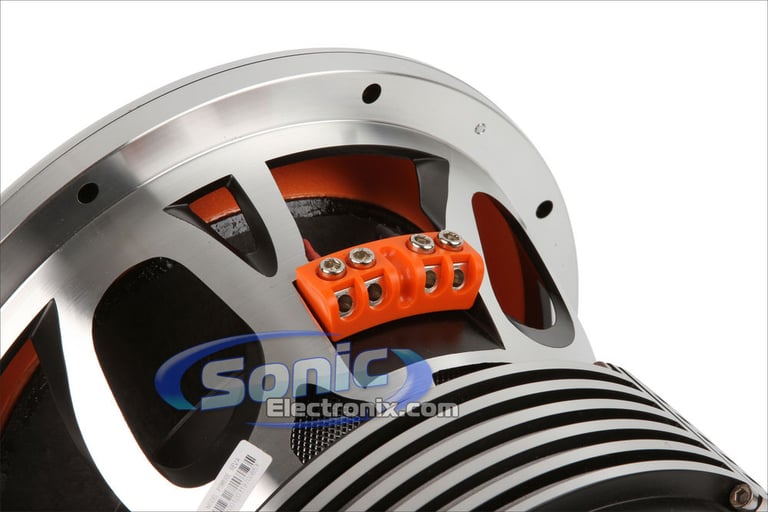

  • 8-gauge lug-lock input and output terminals
  • Dual 2-1/2" voice coils
  • 135 oz. double-stacked magnet
  • Frequency Response: 29-500 Hz
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Alphasonik PSW810E thumbnail
(newest, current model)
Alphasonik PSW810 thumbnail
(previous model, replaced by Alphasonik PSW810E)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alphasonik PSW810E Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alphasonik PSW810E Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alphasonik PSW810E Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alphasonik PSW810E Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
29 - 500 Hz
Sensitivity
89 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Fiber
Woofer Surround
Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-1/8"
Cutout Diameter
10-3/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PSW810E

Weight:

25.00lbs

Internal SKU:

psw810e

Internal Product ID:

26482
