DLS MW10D

10" Single 4 ohm Reference MW Series Car Subwoofer

DLS
Shop all DLS
Product videos
highlight-star-icon

10" Reference MW Series Car Subwoofer • Single 4 Ohm • 800W Peak • 600W Max • 400W RMS • Magnesium Cone • Rubber Surround • Dual Spiders • Die Cast Basket • 4-Layer 3" Copper Voice Coil • 50 oz Ferrite Magnet

Learn more about the dlsmw10d

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights

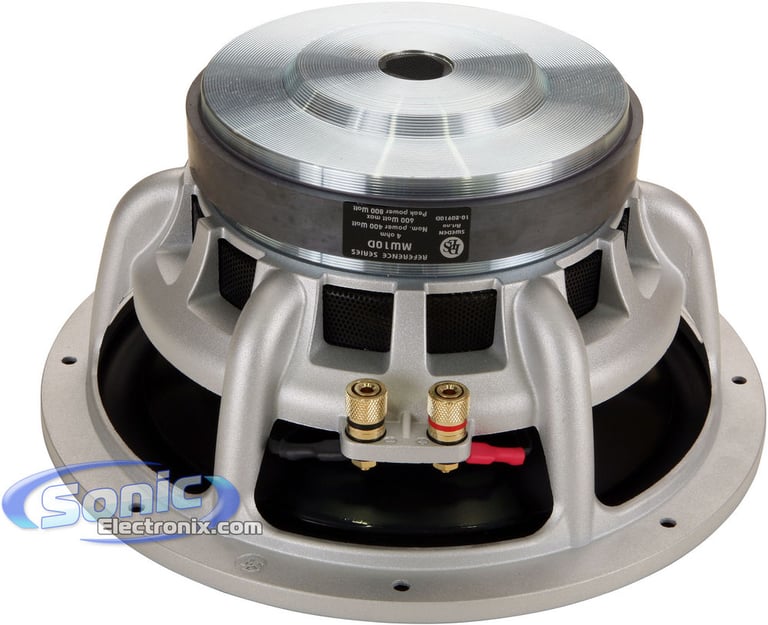

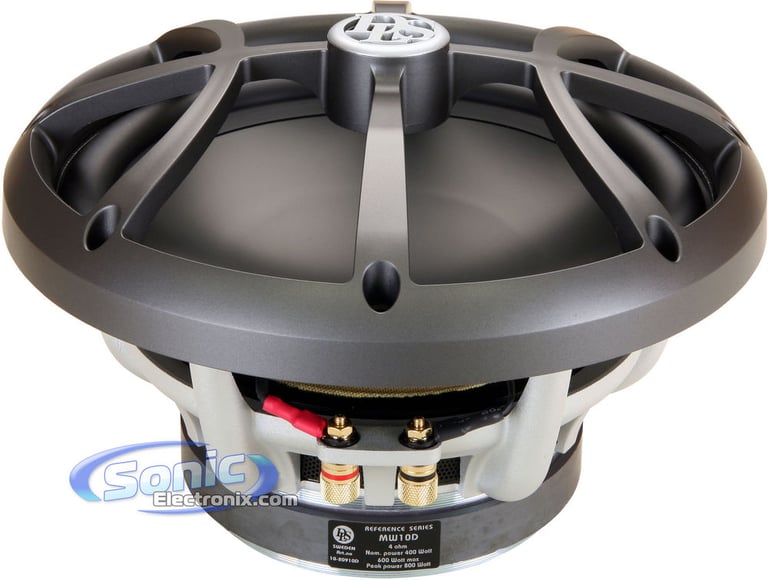

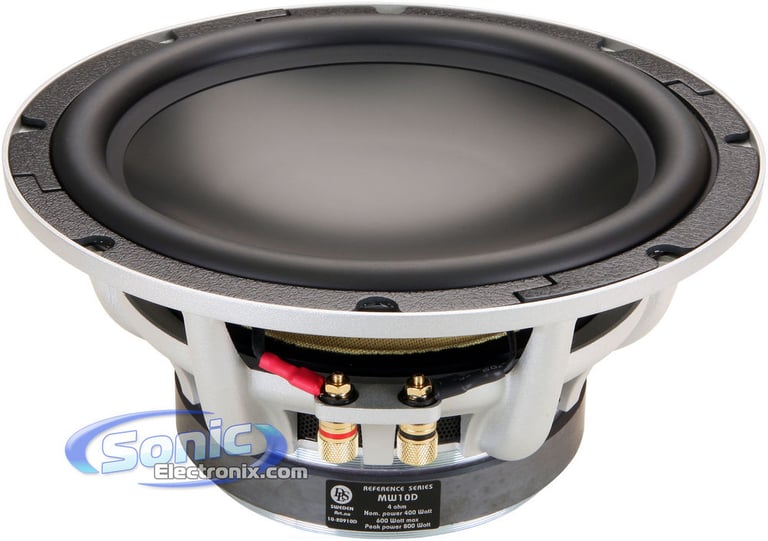

10" Reference MW Series Car Subwoofer • Single 4 Ohm • 800W Peak • 600W Max • 400W RMS • Magnesium Cone • Rubber Surround • Dual Spiders • Die Cast Basket • 4-Layer 3" Copper Voice Coil • 50 oz Ferrite Magnet

Description


DLS brand icon

Authorized dealer

DLS Reference MW Series Subwoofers Are Made for Bass

Some woofers are strictly made for bass output. This DLS MW10D Reference series subwoofer was design to provide excellent booming bass. The woofer is rated at 400W RMS which will give you more than enough bass to really upgrade your car audio system. The woofer is specifically design to be used in a ported enclosure and even comes with its own port to bring out the best possible bass reproduction from this subwoofer. The woofer features a magnesium woofer cone, rubber surround and study die-cast basket for improved, stability, linear movement, rigidity, excursion, and all around sound performance. DLS is a high-end manufacture that doesn't just slap their names on any product. Much research and development has gone into making the MW10D the perfect woofer to use when wanting deep, rich, precise and constant bass.

  • 10" Single 4 Ohm Reference MW Series Car Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • Max: 600 watts
    • RMS: 400 watts
  • Impedance: 4 ohm
  • Magnesium woofer cone
  • Rubber surround
  • Dual spider design for greater linearity
  • Sturdy, die cast basket

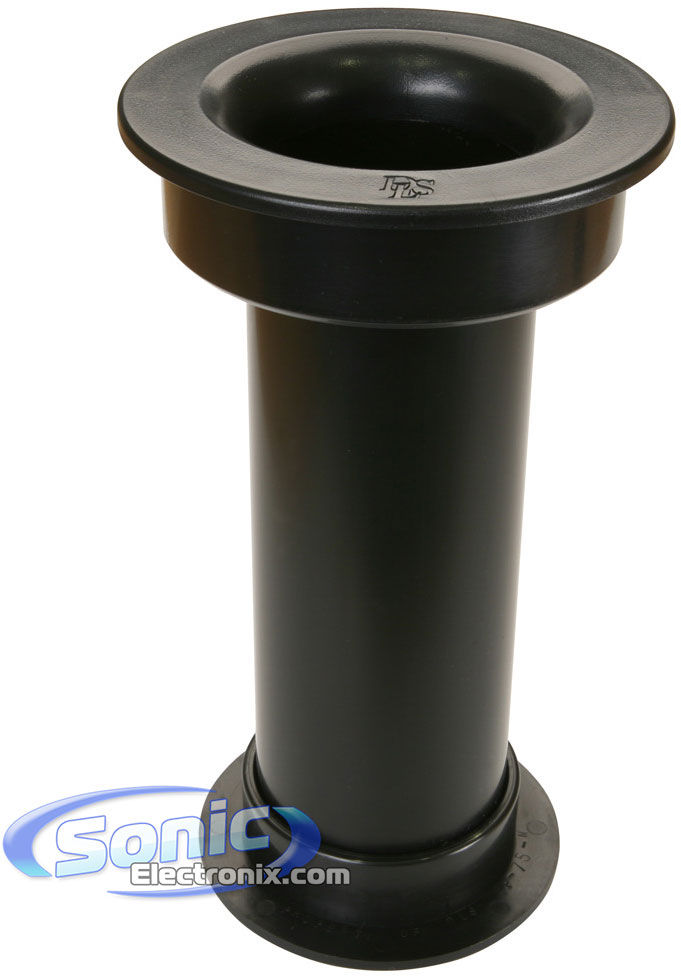

  • Includes port designed specifically for the DLS MW10D subwoofer
  • 4-Layer 3" Copper voice coil
  • 50 oz Ferrite magnet structure
  • Frequency response: 25-2,000 Hz
  • Sensitivity: 87.4 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DLS MW10D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DLS MW10D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DLS MW10D Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 DLS MW10D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Reference MW Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 2,000 Hz
Sensitivity
87.4 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Magnesium
Woofer Surround
Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
.81 cubic feet
Maximum Ported Box Volume
.81 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

MW10D

Weight:

10.00lbs

Internal SKU:

dlsmw10d

Internal Product ID:

26514
