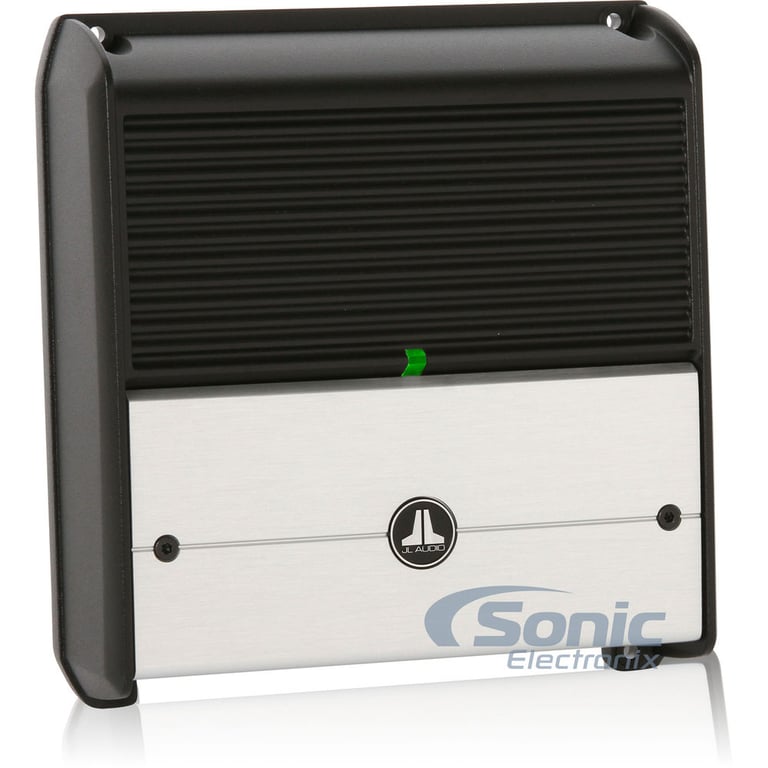

JL Audio XD200/2 Open Box Image 1 — JL Audio XD200/2 Open Box

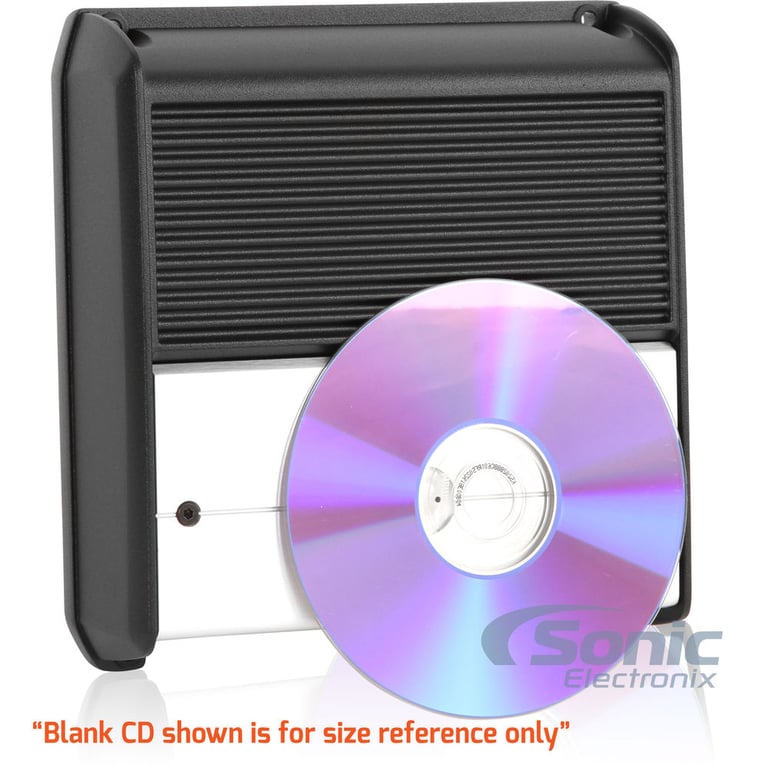

JL Audio XD200/2 Open Box Image 2 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 3 — JL Audio XD200/2 Open Box

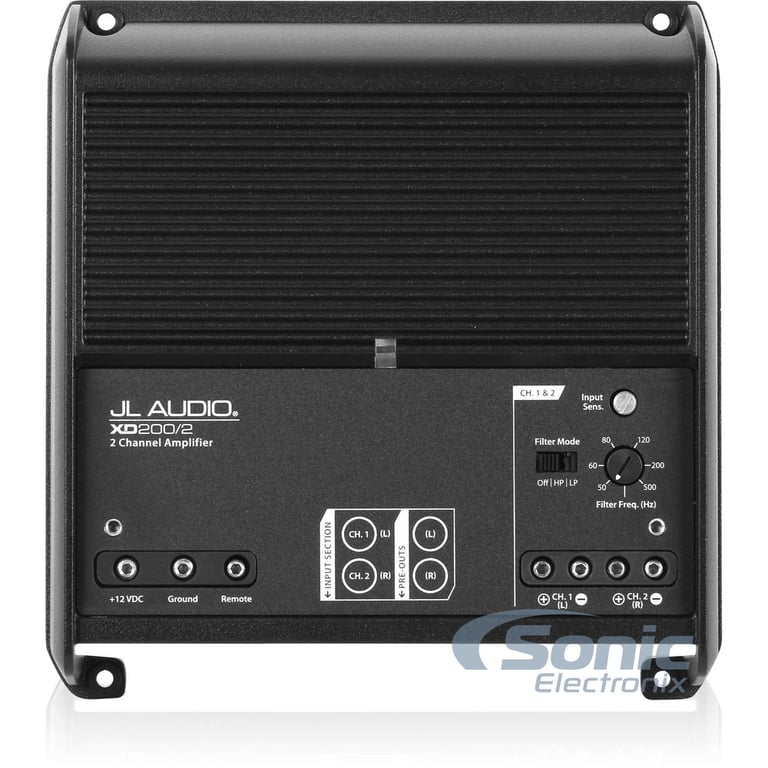

JL Audio XD200/2 Open Box Image 4 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 5 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 6 — JL Audio XD200/2 Open Box

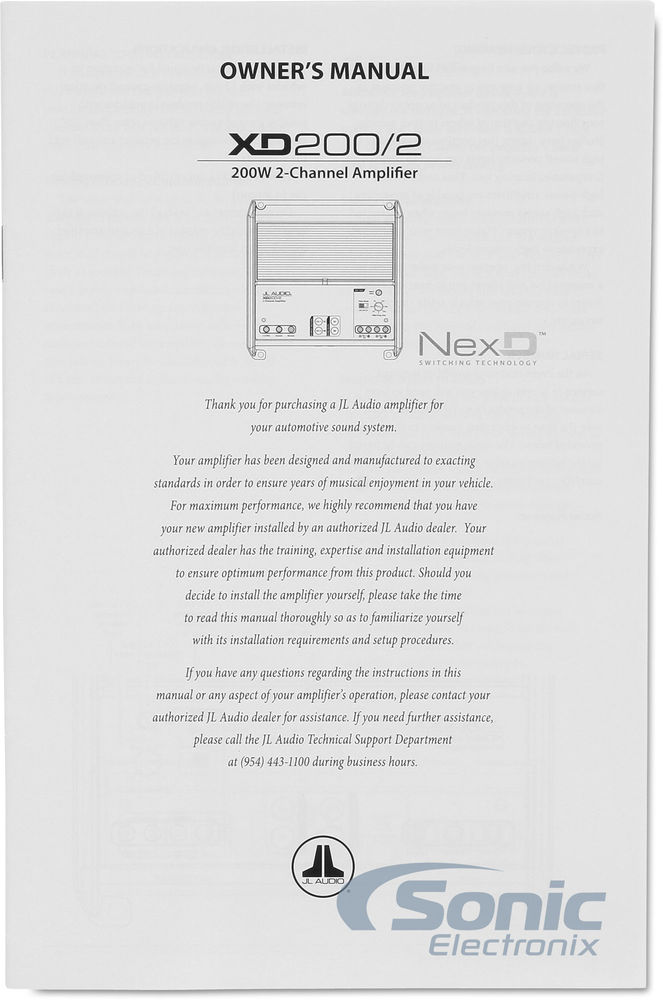

JL Audio XD200/2 Open Box Image 7 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 8 — JL Audio XD200/2 Open Box

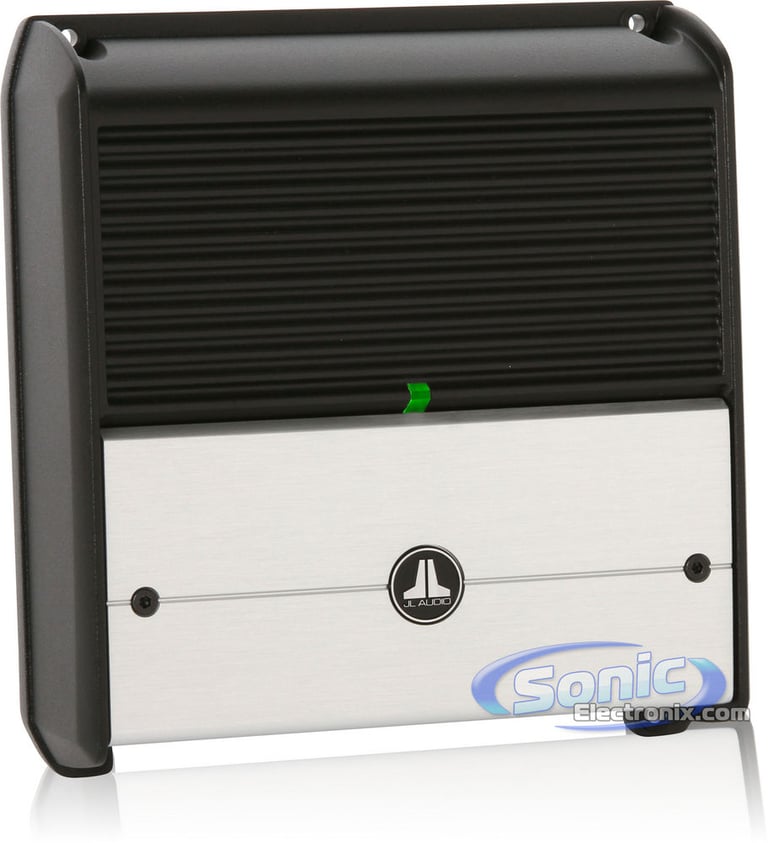

JL Audio XD200/2 Open Box Image 9 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 10 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 11 — JL Audio XD200/2 Open Box

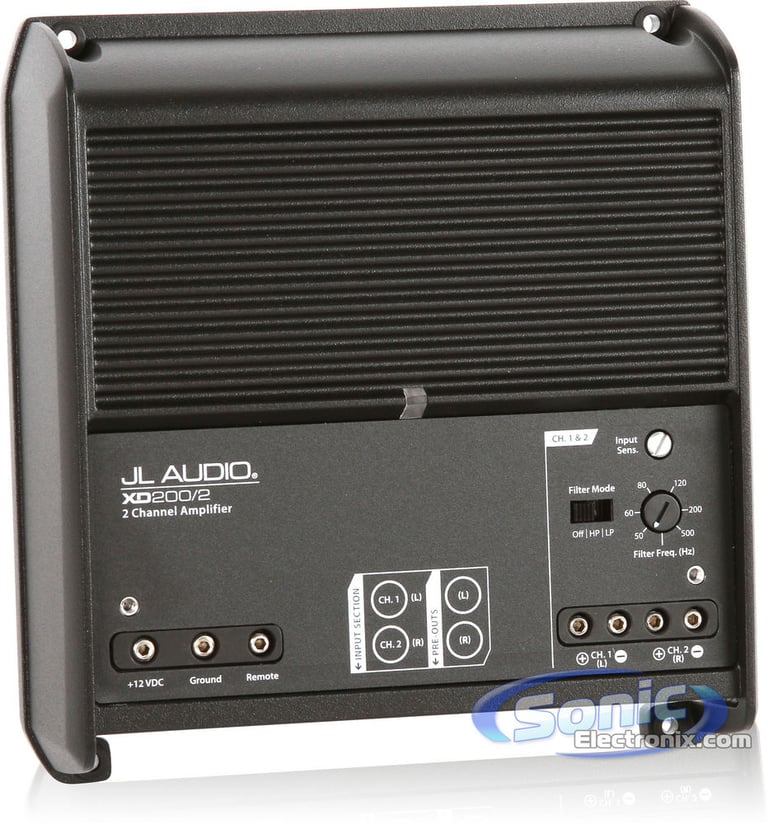

JL Audio XD200/2 Open Box Image 12 — JL Audio XD200/2 Open Box

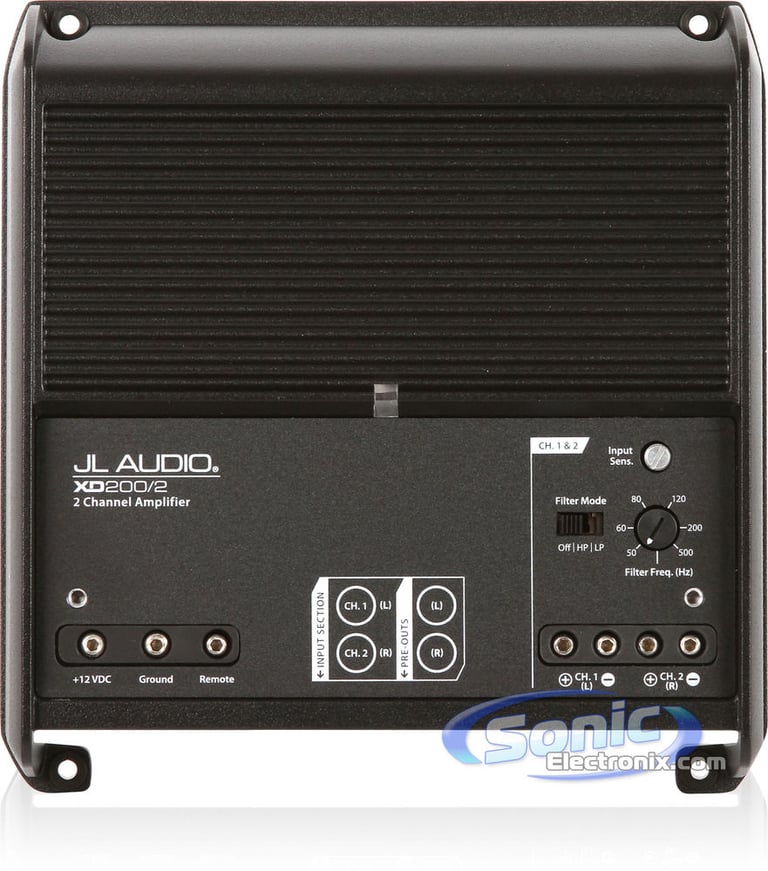

JL Audio XD200/2 Open Box Image 13 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 14 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 15 — JL Audio XD200/2 Open Box

JL Audio XD200/2 Open Box Image 16 — JL Audio XD200/2 Open Box

Product videos

Product highlights

XD Series 2-Channel Class D Car Amplifier • 100W x 2-Chan @ 2 Ohm • NexD Ultra-High Speed Topology • Preamp RCA Outputs • Variable High/Low-Pass Filter • 3-Way System Protection Circuitry • Remote Bass Input

Learn more about the LS-xd2002-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

XD Series 2-Channel Class D Car Amplifier
RMS Power Rating (14.4V):
- 4 ohm: 75 watts x 2 chan.
- 2 ohm: 100 watts x 2 chan.
- Bridged, 8 ohm: 150 watts x 1 chan.
- Bridged, 4 ohm: 200 watts x 1 chan.
RMS Power Rating (12.5V):
- 4 ohm: 60 watts x 2 chan.
- 2 ohm: 90 watts x 2 chan.
- Bridged, 8 ohm: 120 watts x 1 chan.
- Bridged, 4 ohm: 180 watts x 1 chan.
Unregulated MOSFET switching type power supply
NexD Ultra-High Speed Class D topology
Wired JL Audio HD-RLC remote level control sold separately
LED power (green) and protect (red/yellow) indicators
Independent input sensitivity controls
State-of-the-art microelectronic components
2/1 channel operation
Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events
Studio-grade signal processing with fully variable crossover filters
Extruded aluminum alloy system setting security cover
Total amplifier efficiencies exceeding 80%
Noise-killing, highly flexible differential-balanced inputs
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty compact unitary cast alloy heat sink for extreme heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals
Input sensitivity:
- Level: 100mV-4V
Variable high-pass filter (50-500 Hz, 12 dB/octave Butterworth)
Variable low-pass filter (50-500 Hz, 12 dB/octave Butterworth)
Damping factor: >150 @ 4 ohm per chan./ 50Hz
Frequency response: 12-22,000 Hz

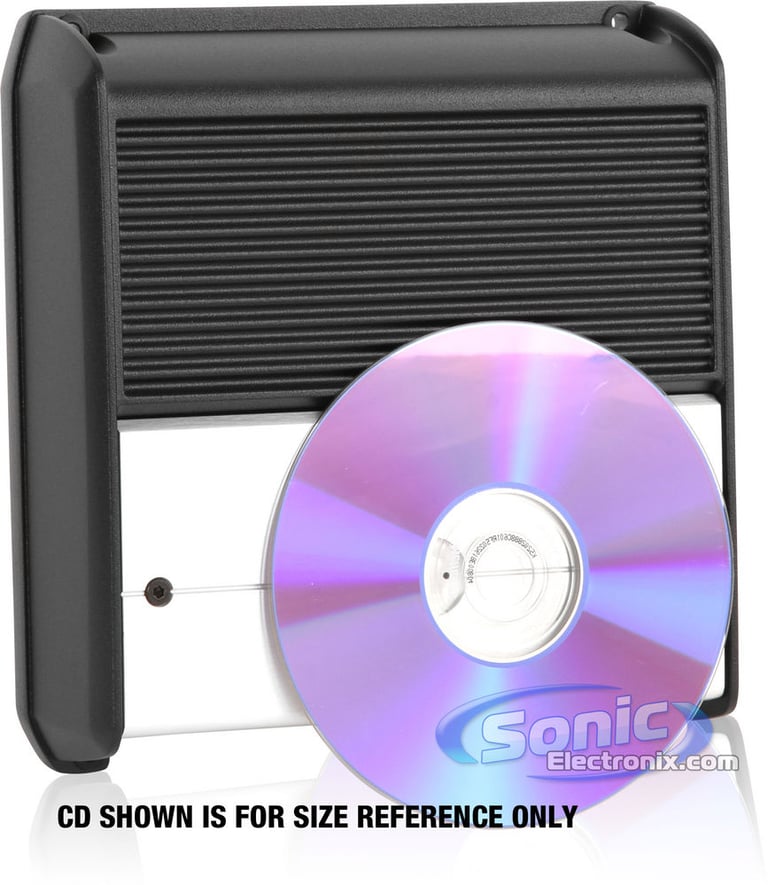

Dimensions: 8-9/16"L x 7-1/8"W x 2-1/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90 Day Sonic Electronix warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 2 channel

RMS Power @ 2 ohms

100 watts x 2 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

2-Channel

Total RMS Power Output

200 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

1.0%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Signal-to-Noise Ratio

>104 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Fuse Rating

30A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
