See all parts that fit your 1998 Astro

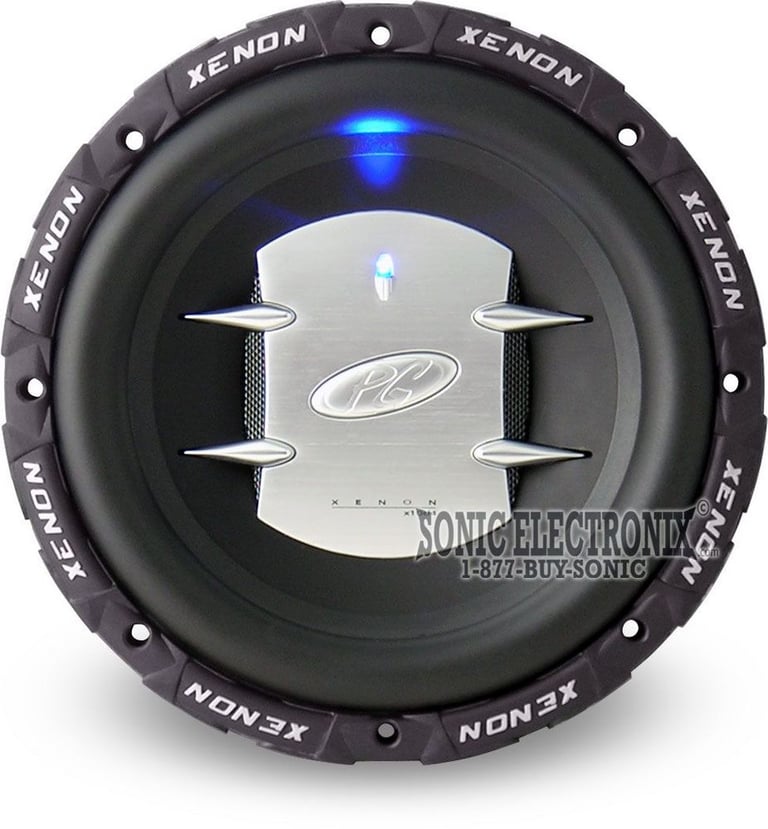

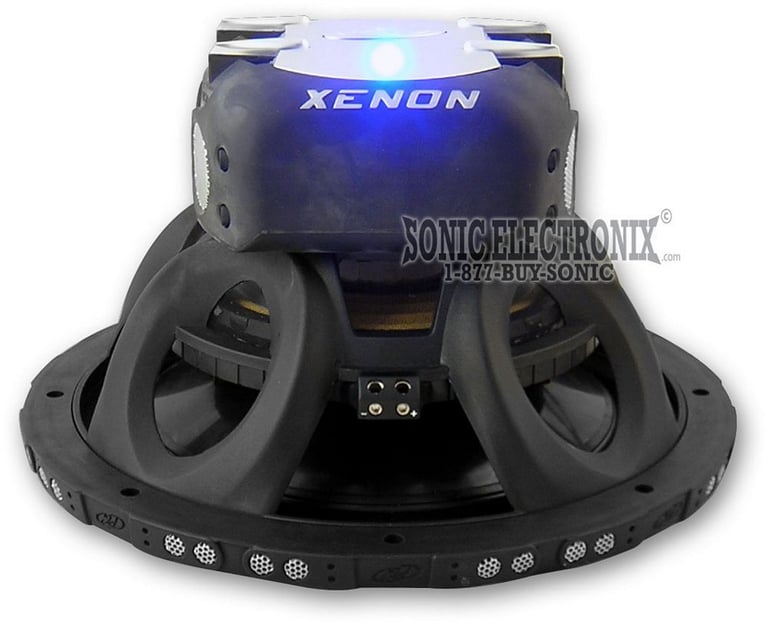

Phoenix Gold X10D4 Xenon 10" (4 ohms DVC)

Product videos
highlight-star-icon

10" Xenon Series (4 ohm Dual Voice Coil) • Blue LED Illumination • 800W Peak / 450W RMS Power Handling • Rubber Surround and Boot Cover • 2.5" Voice Coil • 175oz Y33-Grade Magnet

Learn more about the x10d4

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

NSP46 main

NVX NSP46

300W Peak (100W RMS) 4x6" N-Series 2 Way Coaxial Car Speakers

34
-16.67%

$49.99

List price $59.99

Product Highlights


10" Xenon Series (4 ohm Dual Voice Coil) • Blue LED Illumination • 800W Peak / 450W RMS Power Handling • Rubber Surround and Boot Cover • 2.5" Voice Coil • 175oz Y33-Grade Magnet

Description


Phoenix Gold brand icon

Authorized dealer

  • 10" Dual Voice Coil (4 ohm) Subwoofer
  • Ultra-Low Distortion
  • 2.5" High Temperature Voice Coil
  • Oversized Magnet Assembly
  • Removable Magnet Boot
  • Large Roll Butyl Rubber Surround
  • Computer-Optimized Dual Spiders
  • Custom-Tooled Spider Spacing Ring with Integrated Input Terminals
  • True 38mm (1 1/3") Peak-To-Peak Excursion
  • Injection Molded Grained Polypropylene Cone
  • 8-Piece Injection Molded Polypropylene Dust Cap
  • Expanded Metal Vent Inlays
  • Black Powder Coated Cast Aluminum Basket
  • Dual 8mm Superbright Blue LEDs
  • 175 oz. Y33-Grade Magnet Structure
  • Hex Screw Wire Terminals
  • Click here for the Phoenix Gold Enclosure guide (Adobe Acrobat Reader required)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Phoenix Gold X10D4 Xenon 10" (4 ohms DVC) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Phoenix Gold X10D4 Xenon 10" (4 ohms DVC) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Phoenix Gold X10D4 Xenon 10" (4 ohms DVC) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Phoenix Gold X10D4 Xenon 10" (4 ohms DVC) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
80 dB
Woofer Surround
Large Roll Butyl Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
9-3/16"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

X10D4

Weight:

23.00lbs

Internal SKU:

x10d4

Internal Product ID:

2723

Product and How-to Videos


Customer Ratings & Reviews


Phoenix Gold X10D4 Xenon 10

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome Subs

I have worked in car audio for the past 7 years as a custom installer. I bought two of these Phoenix Gold Xenon X10D4 for my single cab truck. I powered them with a 1000.1 mono block amp at 2ohms. I CAN NOT BLOW THEM! I hit a 149db scale at a car show. Buy these subs!

By Shawn Patrick on April 18, 2009

24 found this helpful
