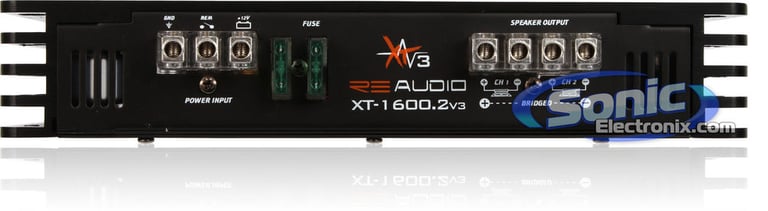

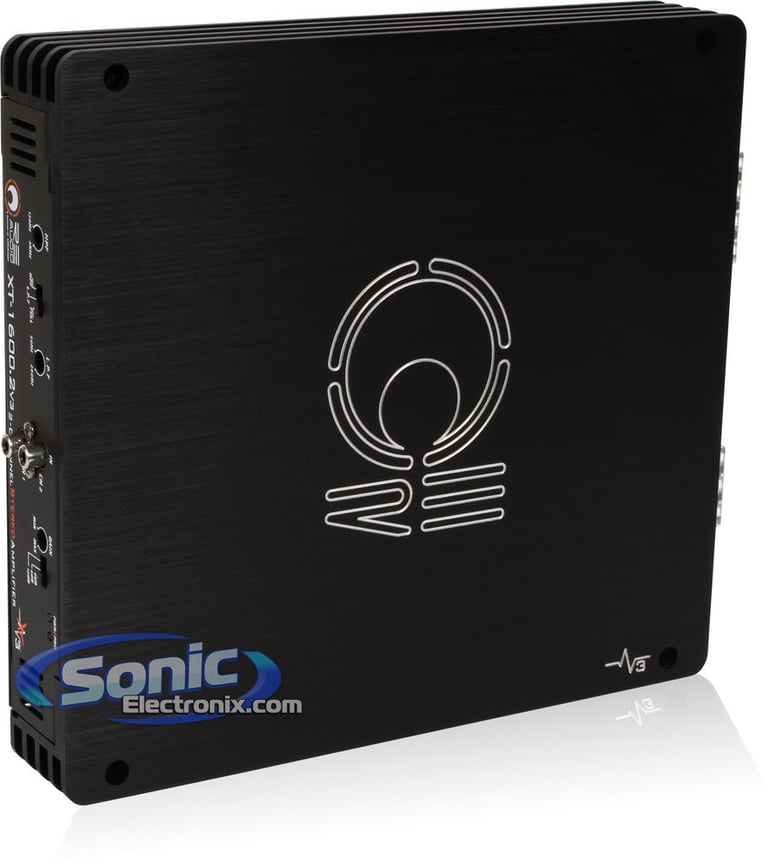

RE Audio XT-1600.2V3

800W, 2-Channel Class A/B Digital Stereo Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

XT V3 Series 2-Channel Digital Car Amplifier • Class AB • 150W x 2 Chan. @ 2 Ohm • 100W x 2 Chan @ 4 Ohm • 300W Bridged • Elevated Efficiency Platform • High-Pass Filter • Low-Pass Filter • Aluminum HeatSink

Learn more about the xt16002v3

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

99-5802 main

Metra 99-5802 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

3
-46.17%

$13.99

List price $25.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

FD1423B main

Scosche FD1423B / FD1423 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

25
-18.81%

$12.95

List price $15.95

99-5804 main

Metra 99-5804 Dash Kit

Install a new Single-DIN car stereo in select 1998-2011 vehicles from Ford, Lincoln, Mercury

3
-42.56%

$26.99

List price $46.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Product Highlights


XT V3 Series 2-Channel Digital Car Amplifier • Class AB • 150W x 2 Chan. @ 2 Ohm • 100W x 2 Chan @ 4 Ohm • 300W Bridged • Elevated Efficiency Platform • High-Pass Filter • Low-Pass Filter • Aluminum HeatSink

Description


RE Audio brand icon

Authorized dealer

RE Audio XT Series Provide Quality and Power

Working in a successful car audio system requires careful planning and quality components. Working in more affordable pricing for high quality product is easier now more than ever with RE Audio’s introduction of the XT Series of amplifiers. The entire line is crafted with precision from the ground up, beginning with the perfectly symmetrical circuit boards – RE Audio designs these with pride showcasing their cleanliness from the circuitry up.

An elevated efficiency platform makes these amplifiers drain less strain on your vehicles charging system to allow for more power output with less draw from your vehicles battery and alternator. Great power output in an affordable package with clean power output is what’s desired from every amplifier on the market, and the RE Audio XT Series of amplifiers provides this with their Multi-Channel and Monoblock lineups.

Offering specific models for 2-Channel, 4-Channel, and Monoblock applications RE Audio has provided a plethora of options to use their amplifiers in, be it an entry level system to a high end competition system. XT Series Amplifiers provide some of the best available value, and don’t cut back on their quality – an amplifier that truly defines quality meeting value.

  • XT V3 Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 150 watts x 2 chan.
    • Bridged, 4 ohm: 300 watts x 1 chan.
  • High speed digital stereo amplifier
  • Elevated Efficiency Platform guarantees the abundance of power, without a heavy drain on the vehicles charging system
  • Remote bass level input (remote level control sold separately)
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Screw terminal barrier strip speaker connector accepts 8-18 AWG speaker wire
  • Soft start turn-on technology
  • 2/1 channel operation
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for excellent heat dissipation
  • Convention cooling system
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Maximum Input Signal: 6V
  • Low level input sensitivity: 200mV to 8V

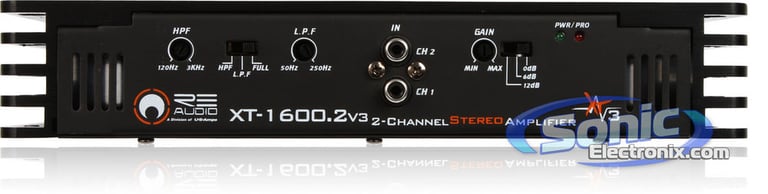

  • Fully adjustable butterworth high and low pass crossover filters
  • Variable high-pass filter (40-1,000 Hz, 12 dB/octave)
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Subsonic filter (15-40 Hz, 24 dB/octave)
  • Average Efficiency:
    • 4 ohm: 70%
    • 2 ohm: 65%
  • Signal-to-Noise Ratio: 110 dB
  • Frequency response: 5-50,000 Hz
  • Dimensions: 14-1/2"L x 10"W x 1-7/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Also Found As: RE Audio, US Amps, XT16002V3, XT-16002V3, XT1600 2V3, XT-1600.2V2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
*There is a misprint on both the product manual and packaging that lists incorrect power output. As an Authorized RE Audio dealer, we have confirmed the accuracy of our specifications and are certain that our listed specifications reflect the corect information.

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
150 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 1,000 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
110 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)

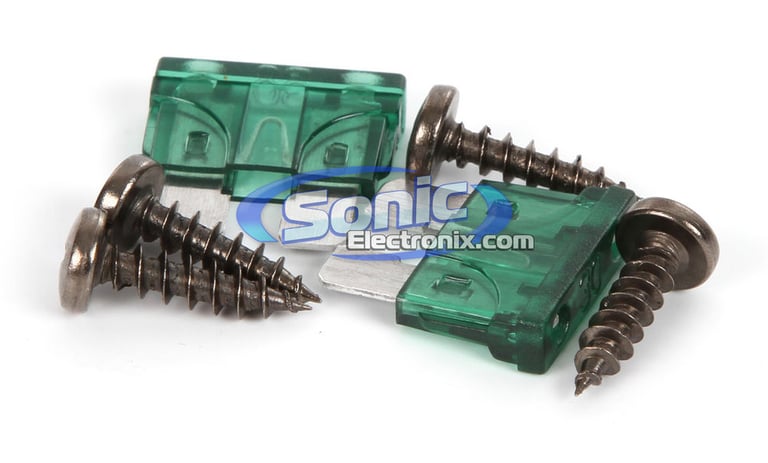

Fuse Rating
20A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XT-1600.2V3

Weight:

6.85lbs

Internal SKU:

xt16002v3

Internal Product ID:

27288

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


RE Audio XT-1600.2V3 thumbnail image

5 star
33%
4 star
56%
3 star
0%
2 star
0%
1 star
11%



Durability
4.4
Value
4.4
Features
3.4
Design
4.1
Usability
4.2

Customer Reviews

Sort by:

Loading...

Good for the money

I hooked one of these up in my friend's car. It's his first system. It's powering a 8 ohm single voice coil Kicker 18" (round) in a 3.1 cubic foot sealed enclosure. The amp pushes the sub well considering the 8 ohm load. The sound is a bit modest for my taste and I'm not sure if the amp is doing the 800-1,000 rms bridged at 4 ohms. On a scale of 1 to 10 I would give that amp a 6 for performance and an 8 for value.

By Tweeter on January 13, 2011

40 found this helpful


good value, confusing specs.

ive had this amp for nearly four years now with no problems. its powered a pair of rockford p3 12s @ 2 ohms each on their own channel. it came with two birth sheets.. one rating it at 400x2 at 2 ohms and another rating it at 500x2 at 2 ohms. i called and the tech told me it was 500. although it says on here its only 300. so i dont know. that being said, ive never had an amplifier last this long. i dont go easy on it at all it gets cranked daily and its never let me down. one thing though, it makes a high pitched noise for about five minutes til it warms up. 4 years and countless hours of enjoyment later shes still kicking

By ryan on February 3, 2013

38 found this helpful


Cheap and Does the job.

Fast Shipping by Sonic. Item in A+ condition.

Value -- 4 stars. Nice little amp to power a little subwoofer. Perfect for those who want better sound without pay much.

Look/ Design -- 3 stars on design because you have to be careful with it since the edge can scratch car's plastic's and all.. Very sharp edges... Again nothing to fency about the look or the design so 3 stars seems legit to me.

Durability - 5 stars since the amp is running fine for now. Can't say if it will be durable as of yet.

Features - 2 stars. Then again... Nothing fency...You pay for what you got. Does the job.

Ease of Use, - 5 Stars. Plug and play.. Really. You need to buy those since they don't come with the kit:

17'' of gauge 8 for power wire
4-5 feet of 8 gauge for ground
15'' of 16 or less gauge for remote control that goes behind the HU.
18'' or less of RCA interconnect
12'' or as you need of speaker wire for your sub (8 gauge maybe?)
2 8 gauge Ring connectors.

Well.. like I said before.. Nice bang for your bucks. Don't expect anything fancy and you'll be happy.

Hope it helps you guys !

Have a nice day.

By MickE on August 11, 2012

36 found this helpful


Awesome amplifier!

I recently purchased this amplifier for my 2 JL 12w3v2's.
My JL 500/1 died so I chose this amp to takes its place.
This amplifier pounds just as hard as my 500/1 if not harder.
Very easy to turn the amp sense the knobs are all on the side of the amp.

By porksoda on March 30, 2011

37 found this helpful


great amp

Awesome amp. I Have it hooked up, bridged to a 800watt single 4 ohm sub, the gain is at about 75%, sealed enclosure, and it drives the crap out of it. I shopped around a lot before I bought this amp, and it, by far has the best bang for your buck. Also I was worried that it being a digital amp would affect the output quality, but its perrrfect. Runs cool, even at 75% gain in the middle of summer. I would definatly recommend.

By scobe on March 12, 2011

36 found this helpful


not as advertised

No 4 gauge power and ground they are more like 8 same size as speaker outputs, no subsonic filter. No rca outputs, no long screws pictured, no bass knob input. Specs claim 500 watts per channel box says 400 @ 14.4v: not even close maybe 200. If it looks too good to be true it is. Pushing 1 10 @ 8ohms had a jl 500/1 before it died same configration not even close the jl would be 250 watts at 8 ohms.

By david on February 6, 2012

35 found this helpful


Good Value, deceitful advertising.

Hooked this up to one kicker 12 bridged at 2 ohms, amp can handle sub easily but its not running anywhere near the rms. Not to mention I had to work really hard to make all my four gauge wires fit. Amp works flawlessly other than actual rms though.

By JDeb on February 10, 2012

33 found this helpful


great amp

i hooked this amp up to two 1000watt 12 in Power Acustik dual voice coil subs wired 2 ohm series. the subs hit hard and the amp holds its own with out any problems. good amp for the price. I have owned several amps and by farthis one is the best!

By charles on March 16, 2011

34 found this helpful


Good amp for the $

Ok, so what I received was not as pictured on sites or box even and the paperwork was different in the box. I called RE and had a discusion with a tech and he explained they were a mid-production run and would power 2 12" Infinity's and he is right. Gain at 1/2 and its hitting well and putting out plenty of clean power, more then anyone can stand without earplugs. The power wire terminals could be bigger but i did get 4ga wires in after I soldered the ends. After seeing and hearing amps 2x the price this is a steal at $120.

By Joe on February 20, 2012

33 found this helpful




KTE-10G.3 small

Alpine KTE-10G.3

Mesh Grille for Alpine 10" R2 and S2 Subwoofers (Black)

$39.95

List price $50.00

PW18400OR small

Hitron PW18400OR (Orange)

400 Ft of 18 Gauge OFC Remote Wire Cable

(1)

$19.99

List price $29.99

FX2-1800 small

SPL FX2-1800

1800W Max, FX Series 2-Channel Amplifier

(1)

$75.15

List price $249.99

09ZCK4 small

Kicker ZCK4 (09ZCK4)

Complete 4 Gauge Z-Series 2-Channel Amplifier Installation Kit

(44)

$69.99

List price $149.99

BG-12-2 small

PAC BG-12

Battery Guard Indicator and Load Shut Down

(1)

$27.95

List price $40.95

V2H6MR small

Visonik V2H6MR

6.5" Single 8 ohm Competition Midrange Woofer Bass Driver

(5)

$34.95

List price $89.99

IBK-N300-2 small

Install Bay IBK-N300

CONNECTOR KIT - 300 PIECE (NYLON)

$15.99

List price $0.00

PTR7 small

Peripheral PTR7 (TR7)

Universal Timer / Trigger Output Module (Same as PAC TR7)

$27.96

List price $34.95

CCA750 small

Clarion CCA750

Audio/Video Connection Cable for iPod / iPhone On Select Clarion Car Stereo Receivers

(4)

$36.99

List price $59.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Kia Rio5

2006 Ford Ranger

2018 Audi A6

2023 Dodge Durango

2014 Buick LaCrosse

2017 Audi Q3

1961 Ford Thunderbird

2000 Saturn LS2

2009 Mazda B4000

2002 BMW 330Ci

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
