Name: JL Audio e1800D R/B
Brand: JL Audio
SKU: LS-e1800d-RB
Price: 249.99 USD
Availability: Discontinued
Rating: 4.0000 (1 reviews)

Shop all JL Audio

by JL Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

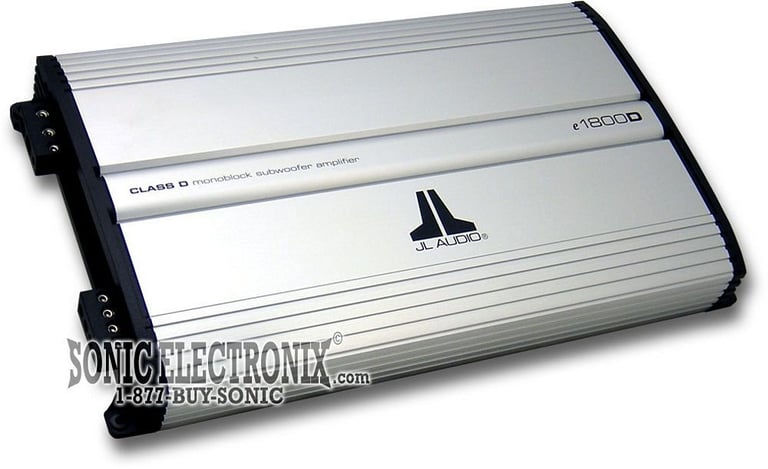

JL Audio e1800D R/B Image 1 — JL Audio e1800D R/B

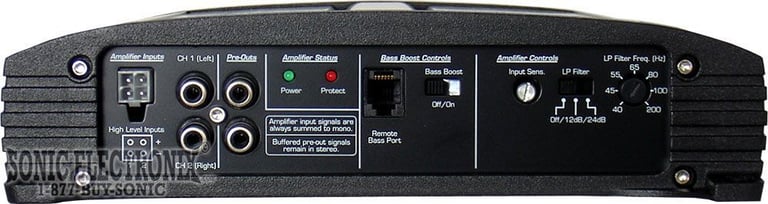

JL Audio e1800D R/B Image 2 — JL Audio e1800D R/B

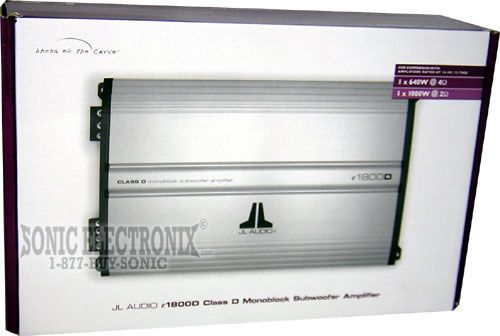

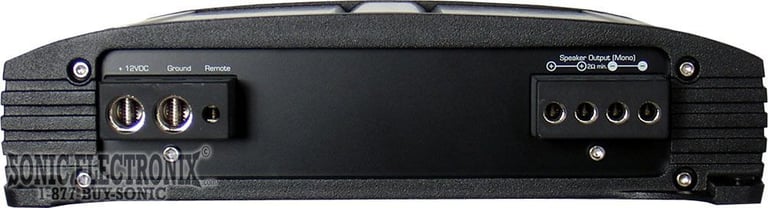

JL Audio e1800D R/B Image 3 — JL Audio e1800D R/B

JL Audio e1800D R/B Image 4 — JL Audio e1800D R/B

Product videos

Product highlights

1000W RMS Class D Monoblock Amplifier • High-Damping Class D Circuit • Built-in Crossover: LPF 20 - 400Hz • 1000W x 1 @ 2 Ohm RMS (14.4V) • 640W x 1 @ 4 Ohm RMS (14.4V) • Pass-through RCA Outputs • High-level Inputs • CEA-2006 Compliant

Learn more about the LS-e1800d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Class D Monoblock Subwoofer Amplifier
High-Damping Class D Circuit with discrete control circuitry
Pass-through RCA outputs
On-board crossover: Variable Low-Pass Filter: 20 -200Hz, Selectable Slope
High level inputs
CEA-2006 Compliant
RMS Power Rating (14.4V):

4 ohm: 640 watts x 1 chan.
2 ohm: 1000 watts x 1 chan.

RMS Power Rating (12.5V):

4 ohm: 480 watts x 1 chan.
2 ohm: 800 watts x 1 chan.

Frequency Response: 10 - 250Hz
Damping Factor: >500 @ 4 Ohm / 50Hz, <250 at 2 Ohm/50Hz
Input Range: 200mV - 8V RMS
Bass EQ: +6dB Fixed Frequency, Fixed 'Q' with port for optional remote bass control
Dimensions: 15.75" L x 9.25" W x 2.36" H
90 days SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

640 watts x 1 channel

RMS Power @ 2 ohms

1000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1000 watts

Minimum Impedance Unbridged

2 ohm

THD at Rated RMS Power

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Low-Pass Crossover Frequency

20 - 400 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 6 dB

Fuse Rating

80A x 1

Customer Ratings & Reviews

Overall rating distribution

5 star		0%
4 star		100%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		5
Features		4
Design		5
Usability		5

Customer Reviews

Sort by:

Great Value!

I owned a KAC 9152D in my BMW running with two 12" A/D/S running @ 2ohms and they did hit hard for about 15min with this amp then kept shutting off on me and I had to lowered the radio in order for the amp to work again, got tired of this problem and got the JL e 1800D and what a diference as soon as I got it hooked to my car the subs were hitting like they wanted to blow apart. I had to lower the gain on this amp almost to min because its got a lot of power this one is the way to go yes a little pricy but good money spent.

By DARKNESS774 on December 19, 2011

3 found this helpful

Report abuse

Add-ons

NVX Remote Level Bass Control with Digital Voltmeter

Controls bass level and frequency and monitor voltage

(10)

$32.99

List price $99.99
