Name: Boss CW3500D R/B
Brand: Boss
SKU: LS-cw3500d-RB
Price: 114.99 USD
Availability: Discontinued

by Boss

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

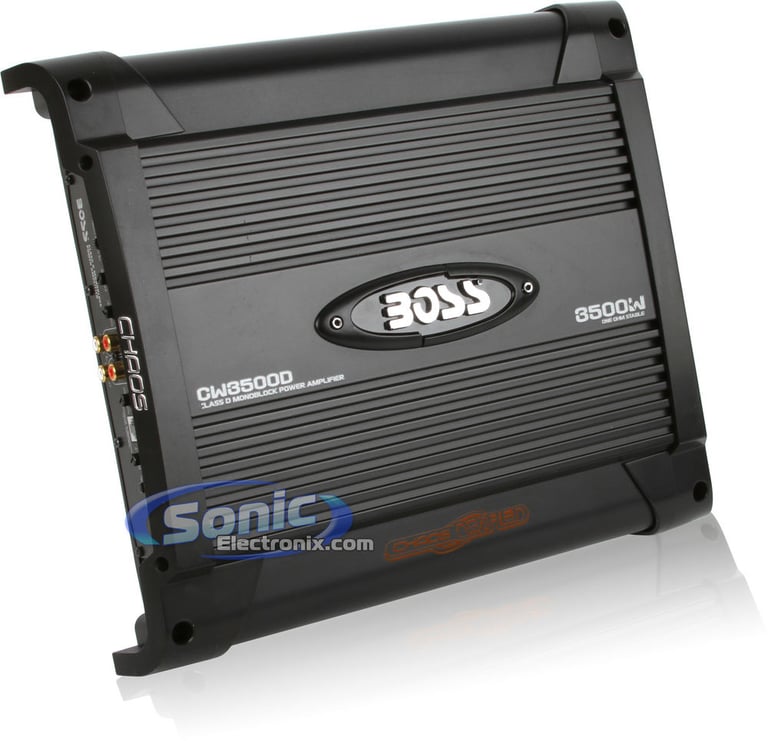

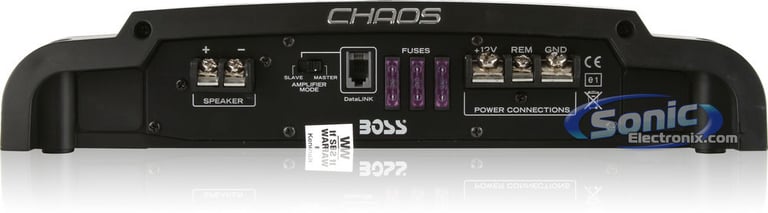

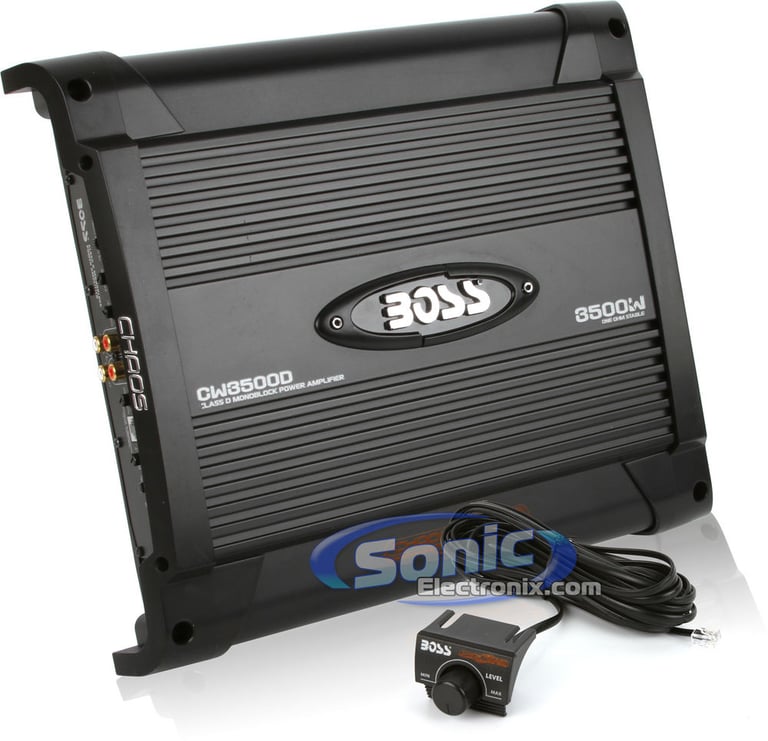

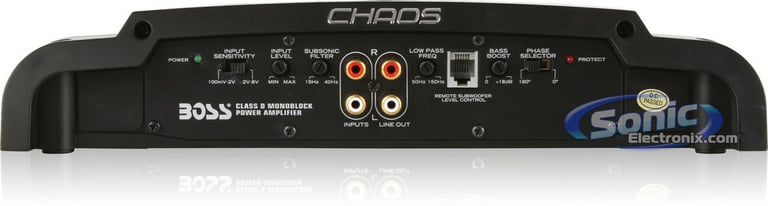

Boss CW3500D R/B Image 1 — Boss CW3500D R/B

Boss CW3500D R/B Image 2 — Boss CW3500D R/B

Boss CW3500D R/B Image 3 — Boss CW3500D R/B

Boss CW3500D R/B Image 4 — Boss CW3500D R/B

Boss CW3500D R/B Image 5 — Boss CW3500D R/B

Product videos

Product highlights

Chaos Series Monoblock Class D Car Amplifier • 1200W x 1 chan. @ 4 Ohm • 2200W x 1 chan. @ 2 Ohm • 3500 MAX • Soft Start Turn-On • 3-Way System Protection Circuitry • DataLink Circuitry • Matte Black Aluminum Alloy Heatsink

Learn more about the LS-cw3500d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Boss Chaos Wired Series Class D Monoblock Car Amplifier
RMS Power Rating:
- 4 ohm: 1200 watts x 1 chan.
MAX Power Rating:
- 2 ohm: 2200 watts x 1 chan.
- 1 ohm: 3500 watts x 1 chan.
Max power output: 3500 watts
Pulse Width Modulated MOSFET power supply

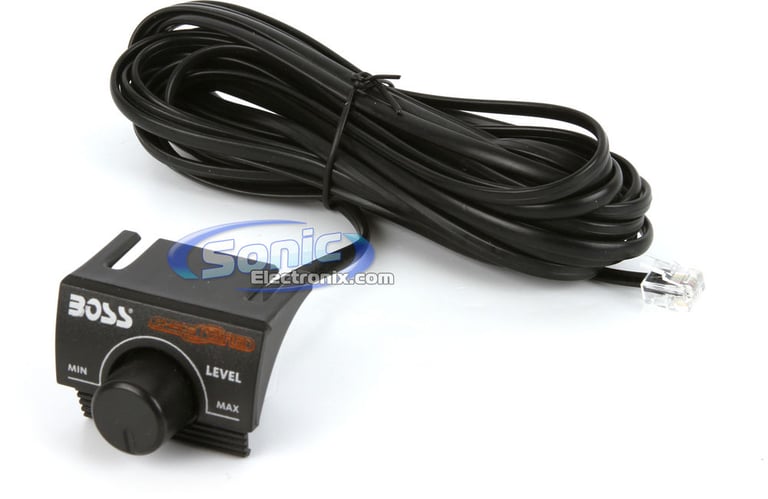

Remote subwoofer level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB)
Soft Start Turn-on
Mono channel operation
Remote turn-on/off circuit
Variable input gain control
Input voltage sensitivity selector
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
DataLink circuitry allows the strapping of 2 CW2500D's together to double the power
Heavy duty Matte Black aluminum alloy heatsink for extreme heat dissipation
Gold-plated RCA level inputs
Nickel-plated speaker and power terminals
Input sensitivity:
- Low level: 100mV-2V
- High level: 2V-8V
Variable low-pass filter (50-150 Hz, 12 dB/octave)
Subsonic filter (15-40 Hz, 24 dB/octave)
Phase Shift: 0-180°
Signal-to-Noise Ratio: 100dB
Fuse Rating: 35A x 2
Frequency Response: 9-250 Hz
Dimensions: 14"L x 11-13/16"W x 2-7/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3500 watts

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

35A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
