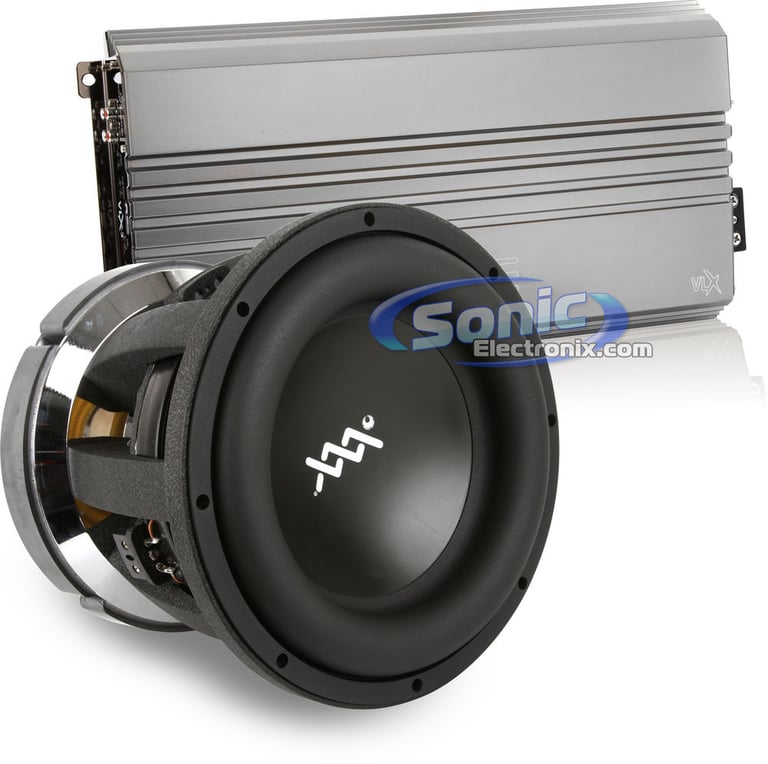

Combo: RE Audio XXX18D2 and RE Audio VLX-3DE

18" Dual 2 ohm XXX Series Subwoofer and a 2400W RMS, 1-Channel Monoblock Amplifier

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

VLX Series Monoblock Class "DE" Digital Stereo Amplifier • 2400W x 1 Chan @ 1 Ohm • 18" XXX Series Car Subwoofer • 2000 Watts RMS • Dual 2 ohm • Rubber Surround • Dual Composite 2-Piece Cone • High Impact Bass Package

Learn more about the xxx18d2_vlx3de

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

14
-56.40%

$108.99

List price $249.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Product Highlights


VLX Series Monoblock Class "DE" Digital Stereo Amplifier • 2400W x 1 Chan @ 1 Ohm • 18" XXX Series Car Subwoofer • 2000 Watts RMS • Dual 2 ohm • Rubber Surround • Dual Composite 2-Piece Cone • High Impact Bass Package

Description


RE Audio brand icon

Authorized dealer

Built for Brutality

You’ve stumbled upon RE Audio’s XXX Subwoofer with a matching VLX amplifier. Don’t be afraid. This package is built for brutality, but capable of so much more. The XXX subwoofer competes with any high output SPL based subwoofer, but is capable of outputting amazing sound quality as well.

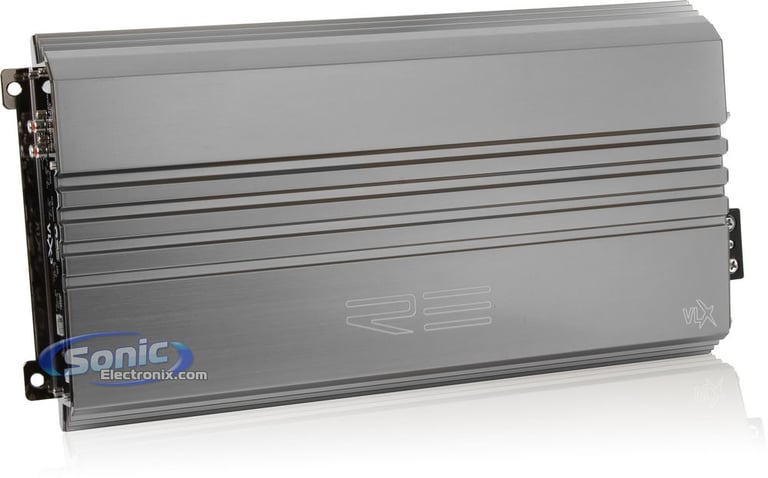

RE Audio has joined the digital amplifier era, and crafted their VLX all digital amplifiers. The VLX Digital amplifiers have such clean internals that RE Audio decided to case them with a transparent bottom. The VLX-3DE outputs 2400 watts RMS at 1 Ohm, this amplifier is meant for those in need of serious power.

This bass package is designed to be installed by wiring the subwoofers Dual 2 Ohm Voice Coils in parallel down to 1 Ohm. This will allow the amplifier to output the full 2400 watts of continuous RMS power to the subwoofer and achieve the best possible bass response from this package. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

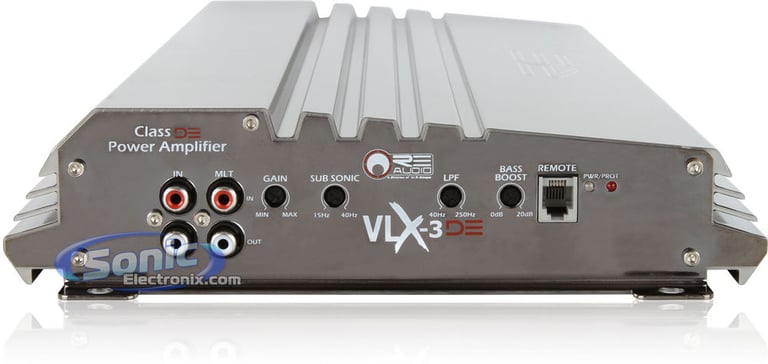

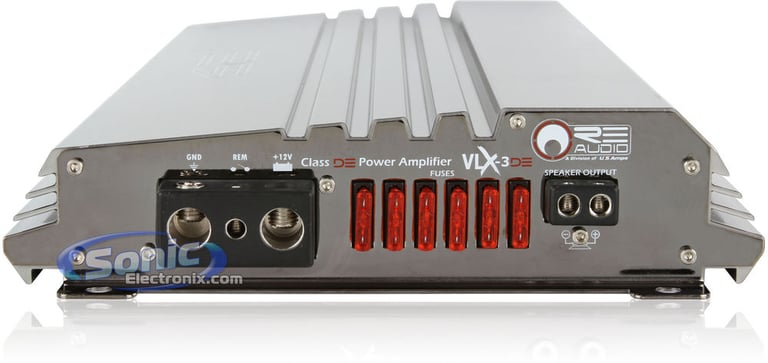

RE Audio VLX Amplifier Features:
  • VLX Series Monoblock Class "DE" Digital Stereo Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 2400 watts x 1 chan.

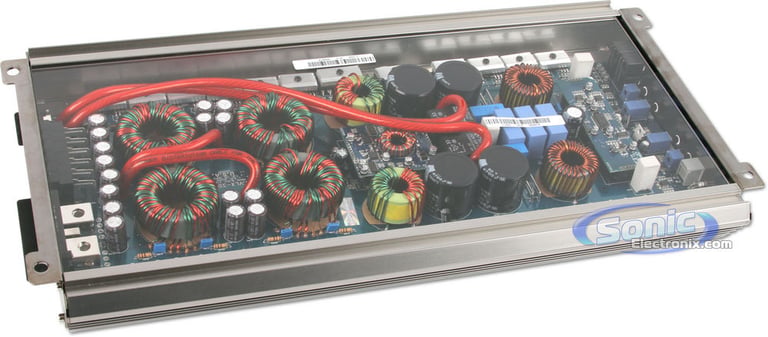

  • Magnetic induction regulated drive power supply
  • Pulse Width Modulated high-current matched MOSFET devices
  • Class DE technology utilizes elevated efficiency platform technology
  • 90% High density construction surface mount technology
  • Metallized high temperature low ESR capacitors
  • High speed audio grade low level stage components
  • Balanced Transformer-less Logic input for highest possible damping factor, slew rate and S/N ratio
  • Stability filter design for reduction in noise

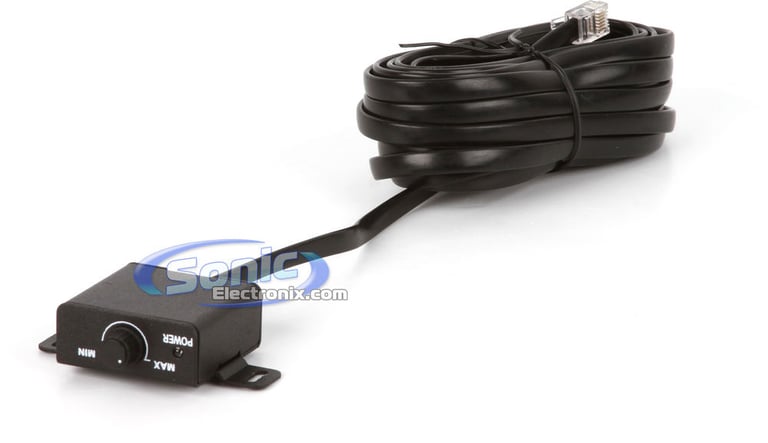

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +20 dB bass boost at 45 Hz)
  • Time delay soft start turn on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy convection cooled heatsink for extreme heat dissipation
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Input sensitivity:
    • Level: 250mV-9V
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Subsonic filter (15-40 Hz, 24 dB/octave)
  • Damping factor: >200
  • CEA-2006 compliant amplifier
  • Frequency response: 20-250 Hz
  • Dimensions: 19-3/4"L x 9-3/4"W x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

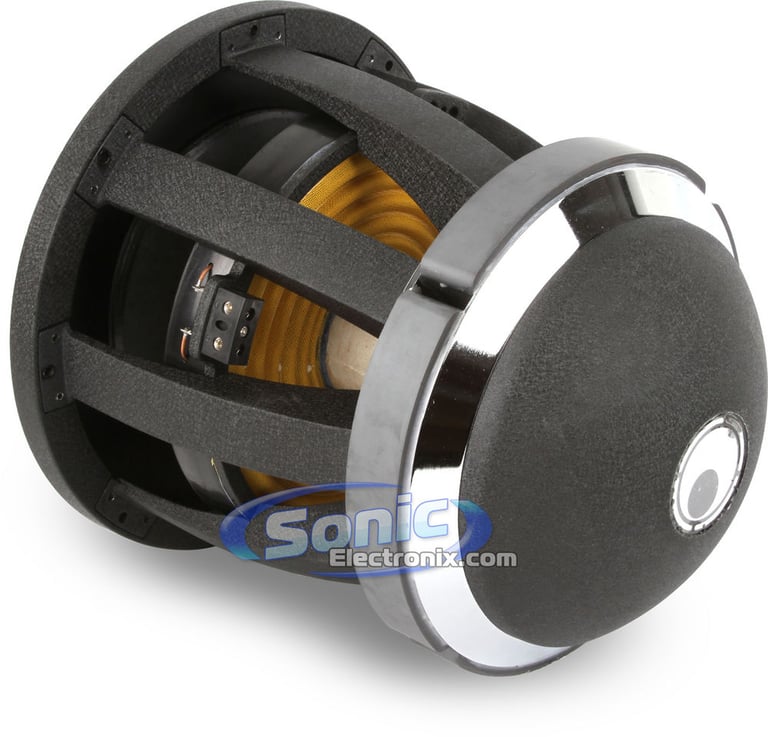

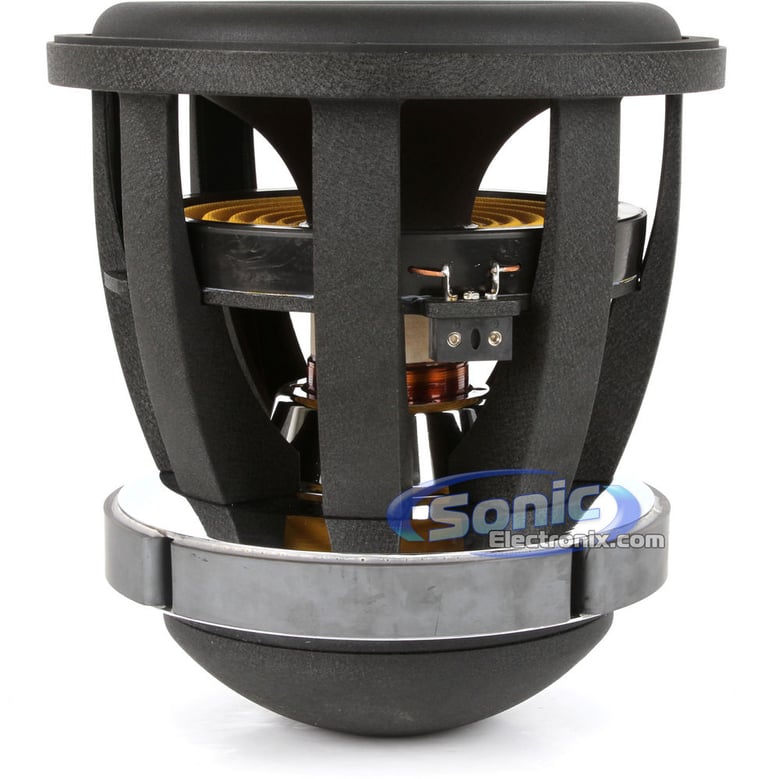

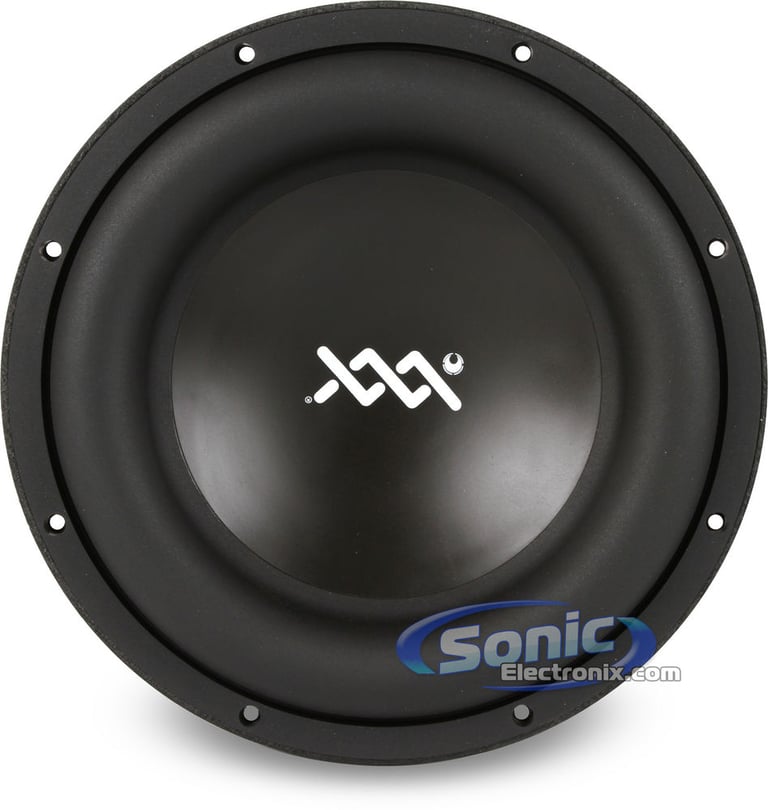

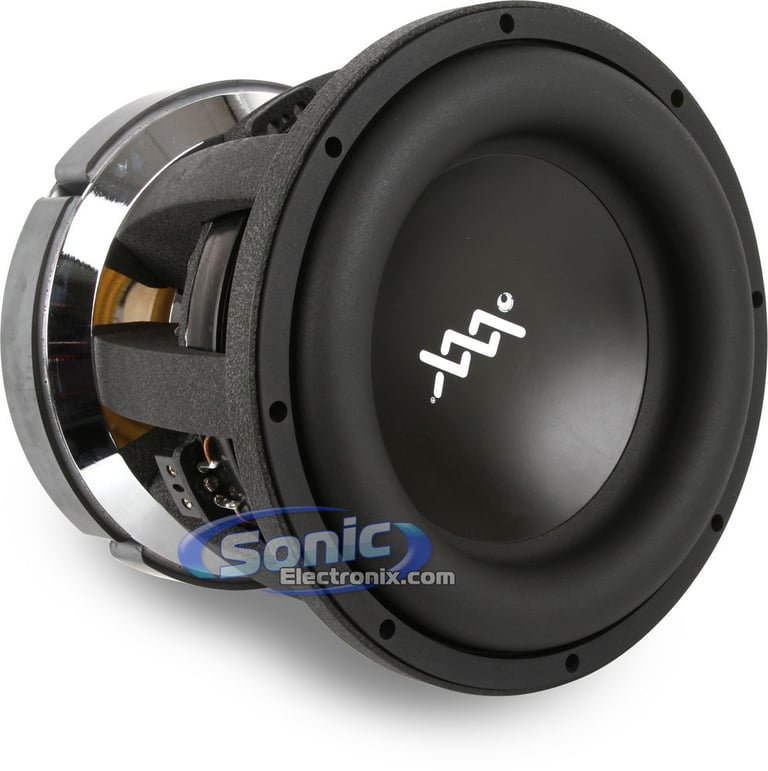

RE Audio XXX Subwoofer Features:
  • 18" Dual 2 ohm XXX Series Car Subwoofer
  • Power Handling:
    • RMS: 2000 watts
  • Impedance: Dual 2 ohm
  • Kevlar reinforced kraft pulp, dual composite 2-piece cone

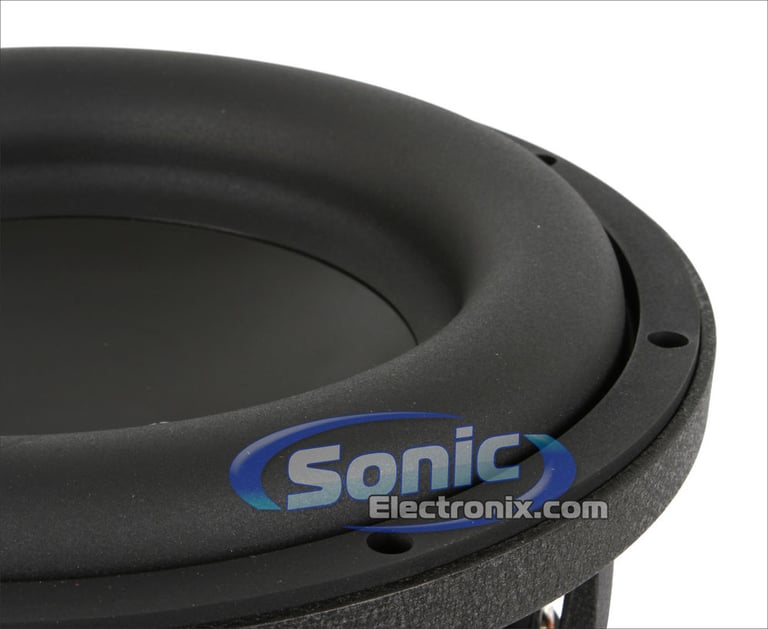

  • Rubber surround
  • Integrated tinsel leads
  • FEA Optimized motor structure
  • Dual progressive spiders
  • Integrated gasket
  • Tork-Tite terminals
  • 3" 4-Layer aluminum flat wire voice coil
  • Split coil design
  • VMS Vented magnet system
  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for sealed or ported enclosures
  • Proudly made in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
XXX 18" T/S Parameters:
  • Electrical Q Value (Qes): 0.68
  • Mechanical Q Value (Qms): 2.82
  • Total Speaker Q Value (Qts): 0.55
  • Free Air Resonance (Fs): 15.60 Hz
  • Equivalent Compliance (Vas): 482 liters
  • One-Way, Linear Excursion (Xmax): 54 mm
  • Efficiency (SPL 1W/1m): 86.20 dB SPL
  • Effective Piston Area (Sd): 1210 cm2
  • DC Resistance (Re): 4.2 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 2000 W
  • Force Factor (Bl): 18.16

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
2400 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
2400 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.09%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 20 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
60A x 6
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
18"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
2000 watts
Total RMS Power Handling
2000 watts
Woofer Surround
Rubber
Woofer Composition
Kevlar reinforced kraft pulp, dual composite 2-piece cone
Minimum Sealed Box Volume
3.3 cubic feet
Maximum Sealed Box Volume
4.0 cubic feet
Minimum Ported Box Volume
6.0 cubic feet
Maximum Ported Box Volume
9.0 cubic feet
Xmax (millimeters)
54 mm
Top-Mount Depth (Mounting Depth)
14-3/4"
Cutout Diameter
17-3/8"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XXX18D2_VLX-3DE

Weight:

128.00lbs

Internal SKU:

xxx18d2_vlx3de

Internal Product ID:

28087

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Combo: RE Audio XXX18D2 and RE Audio VLX-3DE thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.8
Design
4.9
Usability
4.5

Customer Reviews

Sort by:

Loading...

Awesome!!!!

The following review is for XXX18 V2D2, which is a part of the bundle you are viewing.

This sub is the best subwoofer for any car or truck hands down!!!

By Trevor on October 19, 2014

44 found this helpful


Best woofer!!!

The following review is for XXX18 V2D2, which is a part of the bundle you are viewing.

This thing slams I have it in a 10cuft ported box in the back of my jeep and it moves the thing sideways

By BME on September 20, 2015

23 found this helpful


RE Audio XXXv2-18D2

The following review is for XXX18 V2D2, which is a part of the bundle you are viewing.

Hands down the best sub I have ever owned. I went 2 12s kicker L7 to this and so far it has lived up to every spec. I highly recommend it's worth the money in my opinion...

By Mike on September 23, 2016 Checkmark Icon Verified purchase

19 found this helpful


Amazing!!

The following review is for XXX18 V2D2, which is a part of the bundle you are viewing.

It shook my '01 Tahoe to pieces. I recommend this beast if you have the space and power!!

By Thomas on November 9, 2015

16 found this helpful


Great product

The following review is for XXX18 V2D2, which is a part of the bundle you are viewing.

This sub is great my dad has 2 18 and they sound good,i like them cause you probably can hear the bass from 2 blocks awat and people from school like them

By Anonymous on January 27, 2019

14 found this helpful


best sub for ultra low bass

The following review is for XXX18 V2D2, which is a part of the bundle you are viewing.

this sub is one of the best i have heard for ultra low bass . i put this monster into a 12 foot cubic sealed box to get the extra extension and sound quality out of it . this is installed in a hifi home theater system . i have 2000 watts rms running to it. this sub is only designed to hit from 1 hr to 40 he its loudest spl is from 25 to 30 hz . it will hit up to 60 hz but any thing over 40 hz a 12 inch woofer will be it . this sub is designed only for ultra low signals . ok i did a bass test for 1 hx to 100 hz from 1 to 19 you can hear the bass but see the woofer moving about 3 or so inches in and out tearing the house apart !! i have to think in a car it very easily break a window from the flexing very easily . for the spl at 30 hz the loudest it could make a person throw up from the vibration and hurt your ears no hi tech spl meters but i was hitting 135 spl in a 20/20 room at 25. to 30 hz insane low bass ! . if you want loud go with 4 15 inch woofers . if you want super low bass that nobody has this woofer will do it . again its clean sound zero distortion i am comparing it to systems that cost 4000 made for hifi .

By bryan oconner on September 27, 2016

14 found this helpful


Shame on sonic for the discontinue smh

The following review is for XXX18 V2D2, which is a part of the bundle you are viewing.

Ive owned many subs skar audio alpine sundown and usually had these in sets this one sub on a zues elite 3200w shakes my truck like nothing else has this woofer has such an incredible excursion.and even better its rebuildable.hopefully sonic comes back to their senses and continues this product in the future.please note this sub is not for walmart kicker guys that sonic makes their money off of.this sub is for spl lovers "bassheads" the people that spend good money on great products

By Anonymous on May 14, 2019

11 found this helpful


vlx3de

The following review is for VLX-3DE, which is a part of the bundle you are viewing.

this is great ....i've heard this twice and damn so loud it's give's more power in a subwoofer. i wanna have this amp .

By siopao on May 4, 2012

5 found this helpful


THIS AMP IS FOR REAL

The following review is for VLX-3DE, which is a part of the bundle you are viewing.

I do not own this amp, but have seen and heard two of them in a Chevy Suburban, each powering an RE Audio XXX12 2 OHM DVC subwoofer in a custom made 4.1 cubic foot tri-port enclosure. Two high output alternators, four additional batteries, and true 0 gauge wiring. This set up will DESTROY any that I have seen and heard in the past, including JL Audio. Unfortunately, I can only dream of a system like this! RE Audio is for real!

By bostonharris on March 11, 2011

4 found this helpful




XXX12D2_VLX-3DE small

Combo: RE Audio XXX12D2 and RE Audio VLX-3DE

12" Dual 2 ohm XXX Series Subwoofer and a 2400W RMS, 1-Channel Monoblock Amplifier

(2)

$1217.15

List price $2499.97

HCCA124_SK-4500.1D_BAK02 small

4000 Watt Ear Drum Buster Bass Package

Pair of Orion HCCA124 4000 Watts 12" Subwoofers + SKAR Audio SK-4500.1D 4500 Watt Amp + Power Cell + Amp Kit

(225)

$2106.42

List price $4391.84

FZX3500C12U small

MTX Audio Thunderform FZX3500C12U (Charcoal, Unloaded)

Unloaded Single 12" Custom-Fit Bass Slammer Subwoofer Enclosure for 2000-2007 Ford Focus ZX5 / ZX3

$349.95

List price $449.95

APPT1755 small

Presto APPT1755 16 Quart Aluminum Pressure Cooker

Presto 01755 16 Quart Aluminum Pressure Cooker

$89.99

List price $172.00

MDRE9LP/GRN small

Sony MDRE9LP/GRN (MDR-E9LP/GRN) Earbuds In-Ear Headphones - Green

In-Ear Lightweight Stereo Earbud Headphones (Green)

(1)

$8.99

List price $9.99

HP402B small

Kicker HP402B CUSH - Black

Urban-Style Over-Ear Headphones with Adjustable Headband and Comfortably Padded Earcups

(8)

$59.95

List price $79.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Toyota 4Runner

2013 Toyota Sequoia

2014 Scion FR-S

1988 Chevrolet Nova

2011 Aston Martin DB9

2025 Ford Mustang Mach-E

1978 Honda Accord

2024 Jeep Wrangler

1989 Buick Skylark

1992 GMC C1500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
