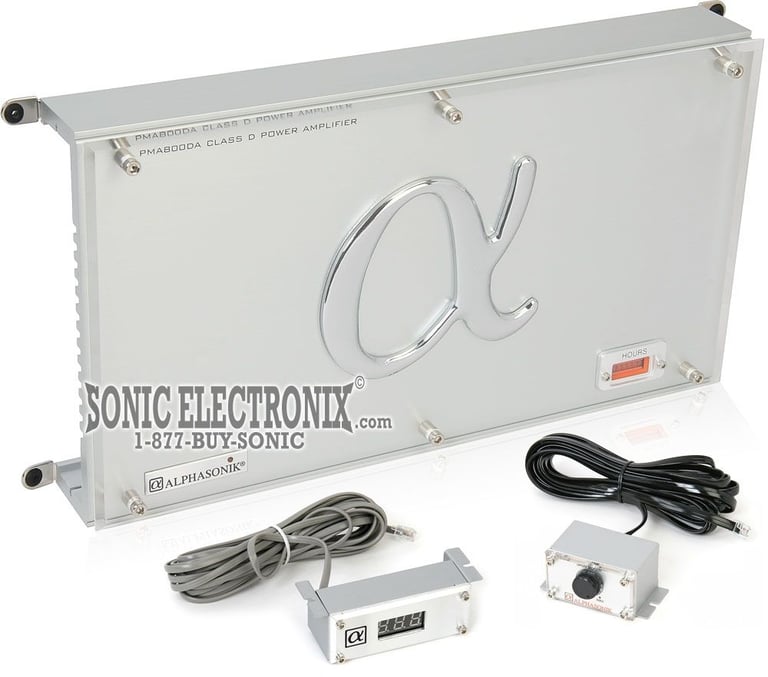

Alphasonik PMA800DA

1640W RMS, Class D Monoblock Amplifier

Product videos
highlight-star-icon

1-Channel Class D Monoblock Power Amplifier • Remote mount digital voltmeter • Remote bass boost control • 1640W x 1 chan. @ 1 Ohm • 1200W x 1 chan. @ 2 Ohm • 800W x 1 chan. @ 4 Ohm

Learn more about the pma800da

We apologize

This item has been discontinued


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Product Highlights


1-Channel Class D Monoblock Power Amplifier • Remote mount digital voltmeter • Remote bass boost control • 1640W x 1 chan. @ 1 Ohm • 1200W x 1 chan. @ 2 Ohm • 800W x 1 chan. @ 4 Ohm

Description


  • 1-Channel Class D Monoblock Power Amplifier
  • RMS Power Rating: 1640 watts x 1 chan. at 1 Ohm Mono
  • RMS Power Rating: 1200 watts x 1 chan. at 2 Ohm Mono
  • RMS Power Rating: 800 watts x 1 chan. at 4 Ohm Mono
  • Hour meter

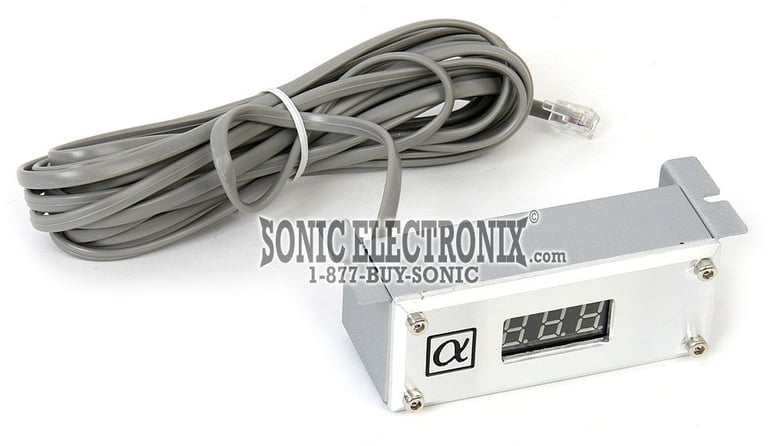

  • Remote mount digital voltmeter

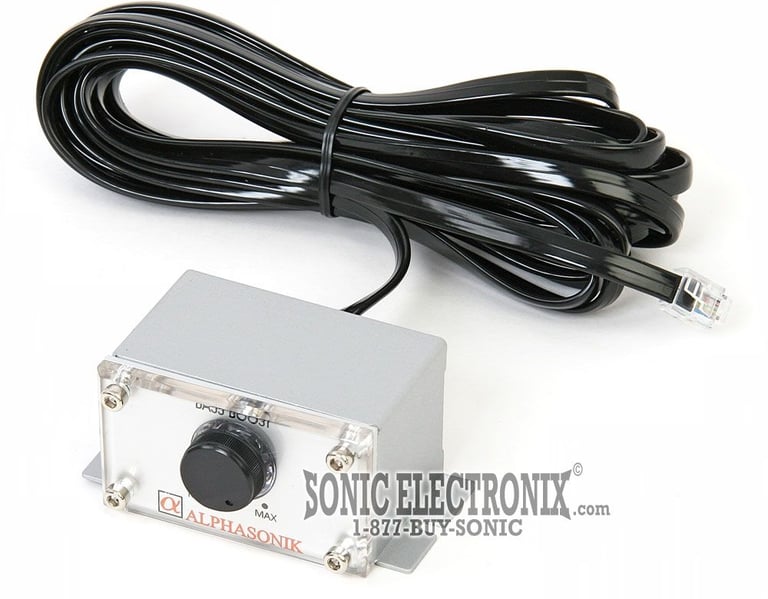

  • Remote bass boost control
  • Heavy duty heat sink
  • Beveled clear acrylic protective cover
  • Tiffany-style input and ouput RCA jacks
  • Removable covers for control and input areas
  • High speed switching power supply
  • Double-sided glass epoxy circuit board
  • THD: 0.08%
  • S/N Ratio: >100dB
  • Frequency Response: 15Hz-150Hz

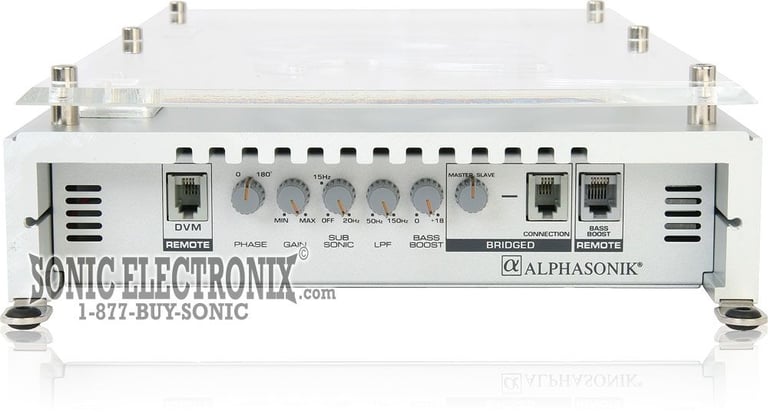

  • Variable Low Pass Filter: 50Hz-150Hz, 24dB/oct
  • Variable Subsonic Filter: Off-20Hz, 24dB/oct
  • Variable Bass Boost at 45Hz: 0~+18dB
  • Variable Phase Shift: 0-180 degrees
  • Input Impedance: 10K ohm
  • 4-Way Protection Circuitry: Thermal, Short Circuit, Overload and DC Offset

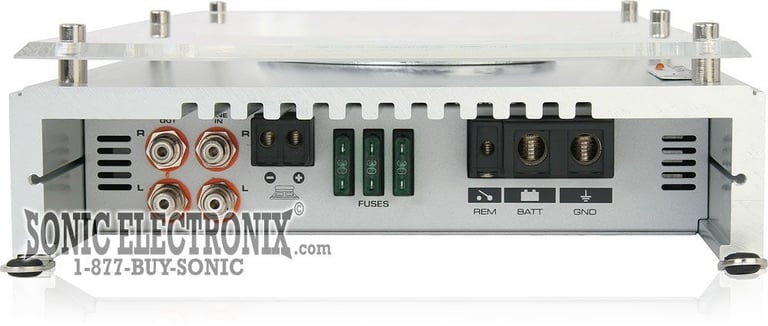

  • On board hook-up terminals
  • Dimensions: 15 3/4L x 9 1/8W x 2 1/2H
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1640 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
1640 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.08%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
Off - 20 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
Yes, 0 - 18 dB at 45Hz

Item Details


Manufacturer:

Model Number:

PMA800DA

Weight:

21.00lbs

Internal SKU:

pma800da

Internal Product ID:

2815

Product and How-to Videos


Customer Ratings & Reviews


Alphasonik PMA800DA thumbnail image

5 star
50%
4 star
0%
3 star
0%
2 star
0%
1 star
50%



Durability
3
Value
3
Features
3
Design
3
Usability
3

Customer Reviews

Sort by:

Loading...

Best amp I have.

I bought this amp when it came out,I'm still using it.No problems except blowing subwoofers.

By Chris on February 19, 2022

1 found this helpful


THINK AGAIN!!!

I just purchsed this amp, from your web site, and it decided to catch on fire!!! It had been running for one chorus of Nine Inch Nails, and started to flame. Gain was a 1/4 the way up, bass boost all the way down, low pass all the way down, and the phase was at 180. NO FUSES BLEW. Neither the main fuse or the 3 PROTECTION fuses built into it popped. In my opinion, this is the WORST amp I have ever had the PLEASURE of putting in any vehicle. And I have been doing this for a LONG time. Save your money and think again. DO I WANT MY CAR TO CATCH ON FIRE?

By Jason on September 24, 2005

1 found this helpful
