Name: SPL XL2-1600 R/B
Brand: SPL
SKU: LS-xl21600-RB
Price: 79.99 USD
Availability: Discontinued

by SPL

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

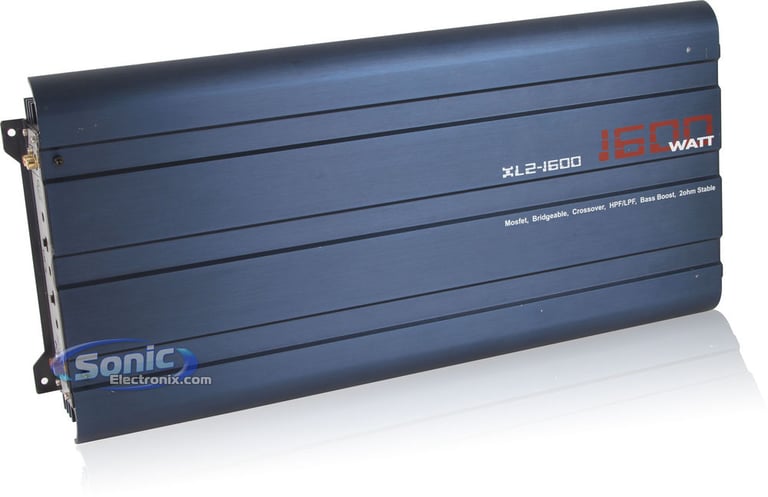

SPL XL2-1600 R/B Image 1 — SPL XL2-1600 R/B

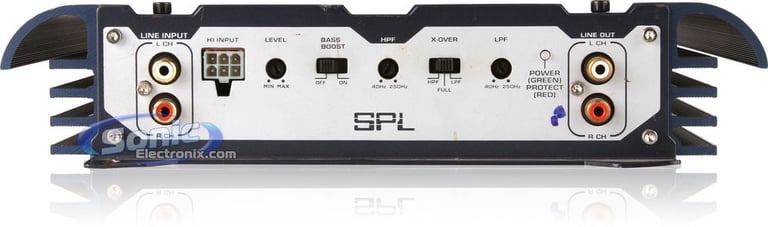

SPL XL2-1600 R/B Image 2 — SPL XL2-1600 R/B

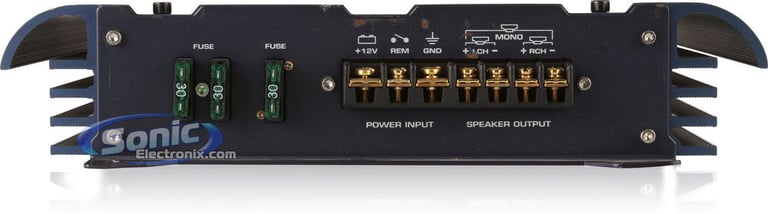

SPL XL2-1600 R/B Image 3 — SPL XL2-1600 R/B

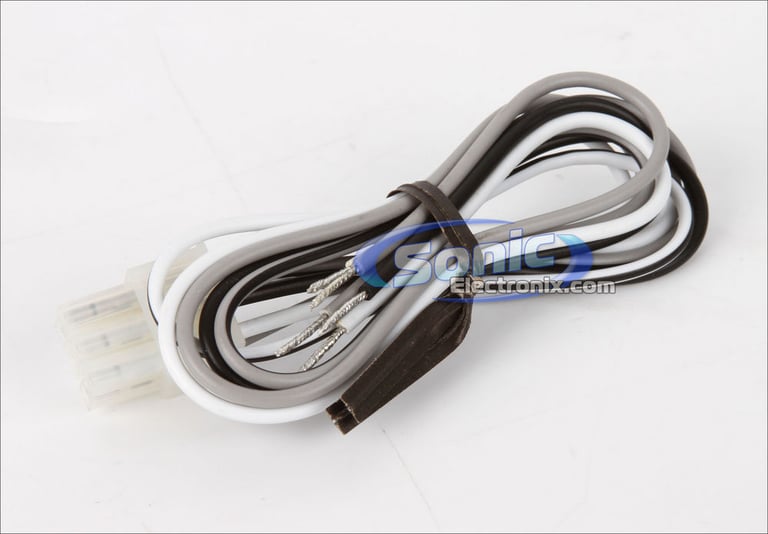

SPL XL2-1600 R/B Image 4 — SPL XL2-1600 R/B

Product videos

Product highlights

XL Series 2-Channel Class A/B Car Amplifier • 740W RMS • 370W x 2 Chan @ 2 Ohm • Switchable On/Off Bass Boost at 45 Hz • Speaker-Level Inputs • Preamp RCA Outputs • Variable High/Low-Pass Filter • Delayed Remote Start

Learn more about the LS-xl21600-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

XL Series 2-Channel Class A/B Car Amplifier
RMS Power Rating:
- 4 ohm: 310 watts x 2 chan.
- 2 ohm: 370 watts x 2 chan.
- Bridged, 4 ohm: 740 watts x 1 chan.
Max power output: 1600 watts
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Switchable on/off bass boost at 45 Hz
Soft delayed remote turn-on
2/1 channel operation
Speaker-level inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Gold-plated RCA level inputs
Gold-plated screw terminals
Adjustable input sensitivity
Variable high-pass filter (40-250 Hz, 24 dB/octave)
Variable low-pass filter (40-250 Hz, 24 dB/octave)
Frequency response: 10-30,000 Hz
Dimensions: 24.1"L x 10.9"W x 2.3"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
Item Condition: Manufacturer Refurbished to work like new
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

310 watts x 2 channel

RMS Power @ 2 ohms

370 watts x 2 channel

Bridged RMS Power

740 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

740 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.02%

Speaker Level Inputs

Yes - with included adapter

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

40 - 250 Hz

Low-Pass Crossover Frequency

40 - 250 Hz

Signal-to-Noise Ratio

97 dB

Channel Separation

55 dB

Remote bass/level controller

Fuse Rating

25A x 3

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
