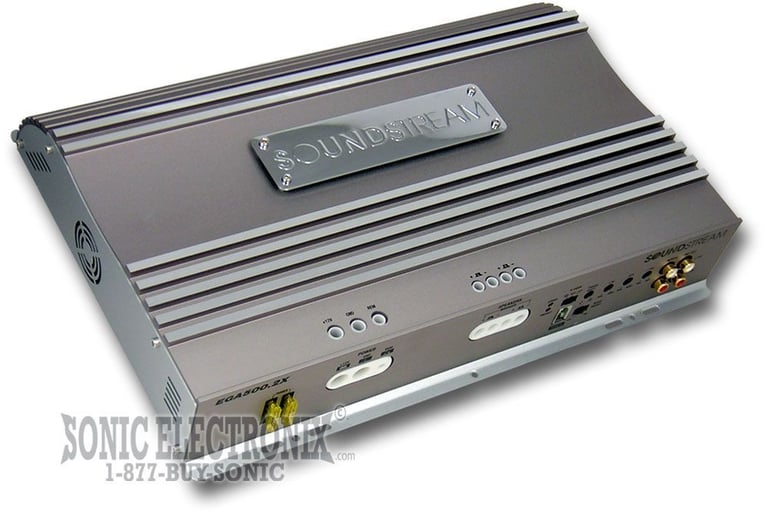

Soundstream EGA500.2X Edge Series

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

500 watts 2-channel power amplifier • fully regulated MOSFET power supply • PWM circuitry • tri-guard amplifier protection • continuously variable high and low-pass crossovers • subwoofer equalizer control switch • OEM floating ground input • tri-mode operation

Learn more about the ega5002x

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

C3-525 main

JL Audio C3-525

300W Peak (150W RMS) 5.25" C3 Series 2-Way 4-ohm Component Speaker System

2

Product Highlights


500 watts 2-channel power amplifier • fully regulated MOSFET power supply • PWM circuitry • tri-guard amplifier protection • continuously variable high and low-pass crossovers • subwoofer equalizer control switch • OEM floating ground input • tri-mode operation

Description


Soundstream brand icon

Authorized dealer

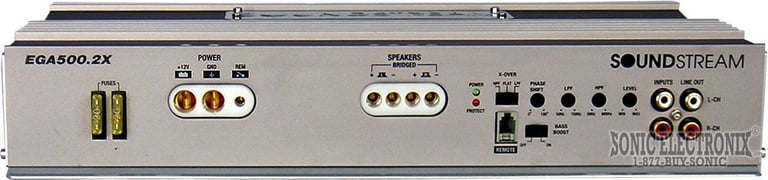

  • 500 watts 2-channel power amplifier
  • fully regulated MOSFET power supply
  • PWM circuitry
  • tri-guard amplifier protection
  • IDI (Intelligent Distress Indicator) gives a visual indication of the amplifier's protection status
  • platinum RCA inputs and outputs
  • bi-linear selectable crossovers for inputs and outputs (hi/ full/ low)
  • continuously variable high and low-pass crossovers
  • subwoofer equalizer control switch
  • variable phase shift control (0° - 180°)
  • input select switch
  • OEM floating ground input
  • platinum 4-gauge power connectors
  • tri-mode operation
  • remote bass boost control input (for use with optional EGA-RM)
  • dimensions (DxHxW): 13" x 2.4" x 11"

Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

186
-38.19%

$255.08

List price $412.71

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
250 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
500 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
500 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 18 dB
Fuse Rating
20A x 2

Item Details


Manufacturer:

Model Number:

EGA500.2X

Weight:

17.00lbs

Internal SKU:

ega5002x

Internal Product ID:

2849
