Scosche Loaded Subwoofer Enclosure + Kicker 2-Channel ZX Series Amplifier • For 2004-2008 Ford F-150 • Uses Factory Mounting Points for a Perfect Fit • Installs Under Rear Bench Seat

Description


Kicker brand icon

Authorized dealer

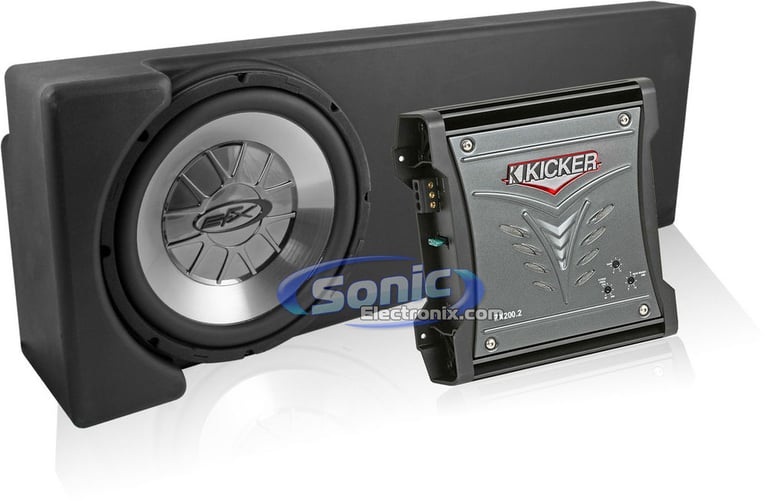

Sonic Electronix Exclusive Scosche Loaded Subwoofer Enclosure + Kicker 2-Channel ZX Series Amplifier

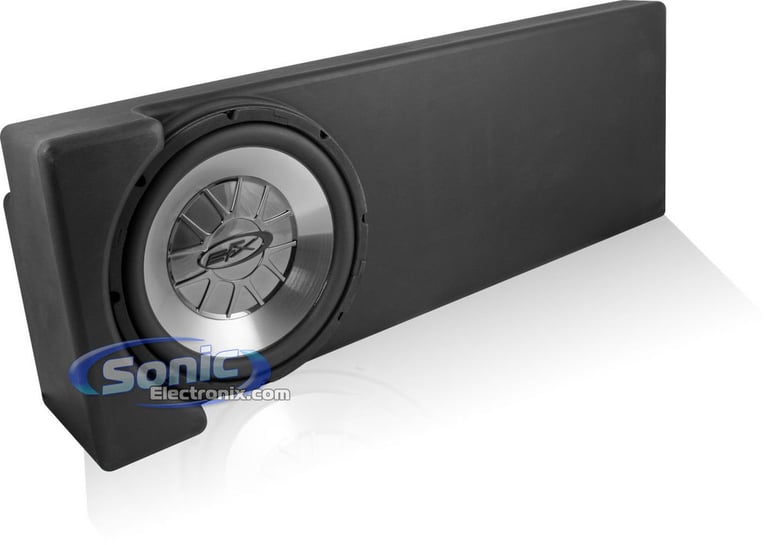

The Scosche FDF15004 is a vehicle specific subwoofer box made for the Ford F-150. Installed in the durable enclosure is a 10" EFX subwoofer capable of producing some deep, low bass. The subwoofer cone is made from a rigid polypropylene cone with a metallic finish. The EFX subwoofer pushes 250 watts RMS and comes equipped with a rear vented 2" voice coil.

The ZX Series amplifier is a perfect match with the loaded subwoofer enclosure. This Kicker amplifier has a power rating of 200 watts RMS and 400 watts peak powered by a MOSFET power supply. The 3-way system protection circuitry and LED power and protect indicators provide this amp with a long lasting life span. This awesome combo package is only available at Sonic Electronix, don't miss out.

FDF15004 Loaded Enclosure Features
  • Loaded Subwoofer Enclosure 2004-2008 Ford F-150
  • Preinstalled with a 10" EFX subwoofer
  • Amplifier Included In this Combo! Kicker 08ZX200.2 Included
  • Installed seamlessly under the rear bench seat
  • Uses factory mounting points for a perfect fit
  • All mounting hardware included
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Injection molded metalized polypropylene cone
  • Rubber surround
  • Black tough coat finish basket
  • High power handling Kapton voice coil bobbin
  • Rear vented 2” voice coil
  • PVC Rubber magnet boot
  • Frequency response: 30-500 Hz
  • Nickel plated spring load binding posts

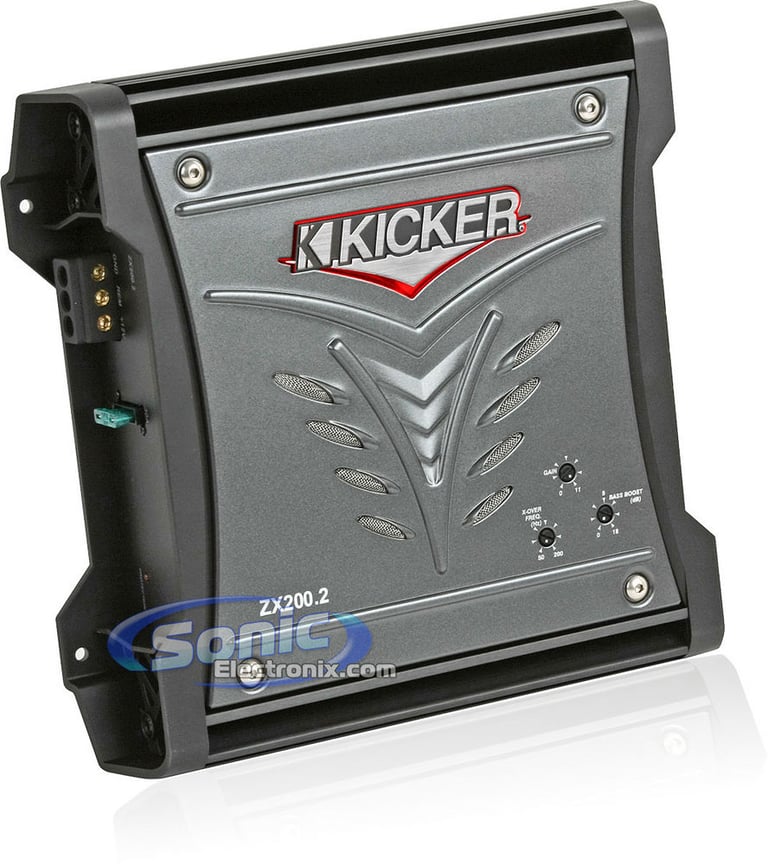

08ZX200.2 Amplifier Features
  • ZX Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 2 chan.
    • 2 ohm: 100 watts x 2 chan.
    • Bridged, 4 ohm: 200 watts x 1 chan.
  • Max power output: 200 watts x 2 chan.
  • MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • Balanced differential inputs make KICKER ZX Amplifiers compatible with any factory radios
  • Eliminates unwanted noise in a system

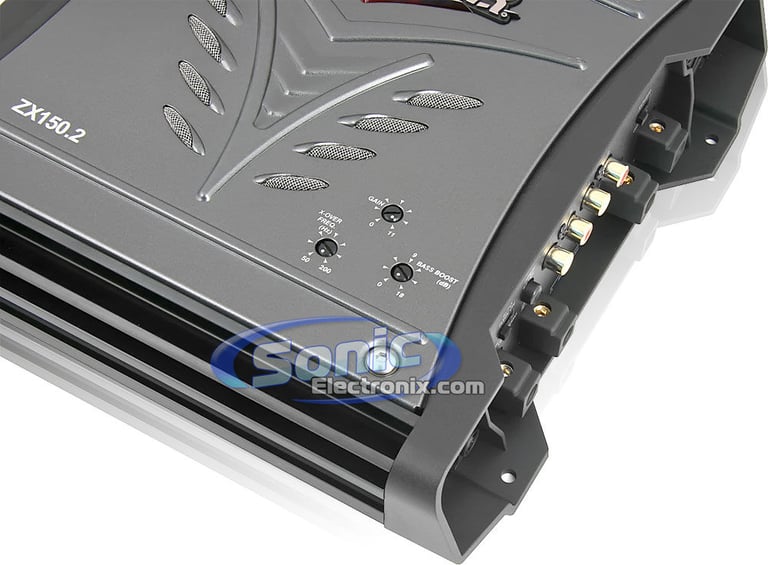

  • Boost, gain, and crossover frequencies are top-mounted for easy access, and a handy protection indicator featuring a new flashing yellow low-voltage light enhances the end panel
  • Bridgeable operation

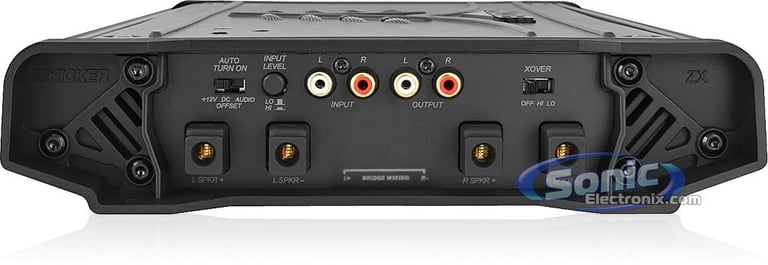

  • Speaker-level inputs compatible (switchable) through RCA connection, Kicker 09ZISL required and sold separately
  • Preamp RCA outputs
  • Automatic turn on modes: remote, DC offset, or signal sense

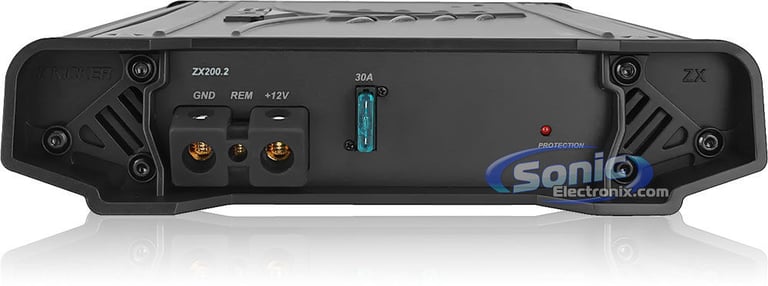

  • Thermal, voltage, and short circuit protection circuitry
  • Variable high-pass filter (50-200 Hz, 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20000 Hz
  • Dimensions: 10-1/4"L x 9-5/8"W x 2-1/8"H
  • 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(255)

$486.93

List price $677.43

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

46CS65_46CS69_VA4_XK84_SK small

Pair Kicker 6.5" and 6x9" Speakers + NVX Amp w/ Free Amp Install Kit

  • Kicker CSC65 600W Peak 6.5-inch 2-Way Coaxial 4-Ohm Speakers
  • CSC693 900W Peak 6x9-inch 3-Way Coaxial 4-Ohm Speakers with Integrated Midrange
  • NVX VADM4 v2 500W RMS Micro Full-Range Class D 4-Channel Amplifier
  • XKIT84 Full Spec 8 Gauge 100% OFC Complete 4-Channel Wiring Kit with RCA
  • Sonic Electronix Premium Polyurethane Foam Can Insulator Sleeve Koozie

(243)

$401.94

List price $637.94

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(244)

$311.43

List price $533.42

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
70 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 1 channel
Peak Power Output
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
94 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
30A x 1
CEA-2031 Compliant
Yes
Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
10"
Voice Coil(s)
Single
RMS Power Handling
250 watts
Total RMS Power Handling
250 watts
Peak Power Handling
500 watts
Total Peak Power Handling
500 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Polypropylene
Frequency Response
30 - 500 Hz
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

FDF15004_08ZX200.2

Weight:

24.00lbs

Internal SKU:

fdf15004_08zx2002

Internal Product ID:

28915

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


500W Ford Kicker + Scosche Bass Package thumbnail image

5 star
67%
4 star
20%
3 star
13%
2 star
0%
1 star
0%



Durability
4.4
Value
4.4
Features
4.3
Design
4.6
Usability
4.8

Customer Reviews

Sort by:

Loading...

zx200.2

The following review is for 08ZX200.2, which is a part of the bundle you are viewing.

I have this amp pushing two 12 8 ohm comps bridged at four pun amp half way up and it pushes them perfectly awesome clean sounding bass. The best part is that it actually said it was rated 258 on the birth sheet. Kicker all the way!!!

By zach on August 5, 2010

16 found this helpful


Sounds Great

The following review is for 08ZX200.2, which is a part of the bundle you are viewing.

Sounds good. I got it workin 4 6x8 2way alpine. Only problem is it over heats if I don't have all my windows open in my truck, but I got a fan to keep it cool now and it simple to hook up.

By James on May 7, 2011

12 found this helpful


Good box. Good sound

The following review is for FDF15004, which is a part of the bundle you are viewing.

i have a 2006 f-150 crew cab, and intalled this in with the kicker zx200.2 amp. it hit pretty hard with the amp not even turned up half way I think if you were to replace the EFX with one of the cvt shallow mounts from kicker it wound sound better but overal its good

By f-150 on November 20, 2010

10 found this helpful


Great value

The following review is for 08ZX200.2, which is a part of the bundle you are viewing.

This product was good for the time being and even after I sold it they was still workin good as new

By chancey on October 29, 2010

11 found this helpful


Fantastic Value!!!

The following review is for FDF15004, which is a part of the bundle you are viewing.

Absolutely incredible sound. I wasn't sure if this would be very good especially for the price but WOW what a great sounding bass I get now.
I bought this with a Hitron HA-600.2 amp and I have been blown away with the sound I get. Well made enclosure and very easy to install.
Fast shipping and fantastic price. Highly recommended. You won't believe the sound quality.

By Tom on October 6, 2010

10 found this helpful


Good price

The following review is for 08ZX200.2, which is a part of the bundle you are viewing.

I recommended. Came with all what you need. easy. Read installation instruction.

By Norma on September 17, 2010

11 found this helpful


Great sub- Great Buy

The following review is for FDF15004, which is a part of the bundle you are viewing.

Having changed all door speakers and head unit in my 05 F-150 I was looking to add some bass without spending a fortune and wanted a sub that wouldn't take away from the cab space. I purchased the sub and Kicker Amp combo- skeptical at first of the molded plastic sub box I was quickly convinced I made the right purchase. The sub fit perfectly and was a breeze to install.The sound in my truck is incredible with great bass and clarity.
Six months later and loving it. I would purchase again

By Retlaw on April 25, 2011

9 found this helpful


SOUNDS GOOD

The following review is for 08ZX200.2, which is a part of the bundle you are viewing.

I like the amp and it does a good job pushing the 4 six and a half inch speakers they are hooked to. But the amp will overheat and quit playing. I have it in the cuddy of a boat and there isnt much air flow. I guess it doesnt have an internal fan. If it does mine isnt working. I have a portable fan I have blowing on it when we are stopped and playing the radio and it will keep it going.

By PORKY on November 17, 2010

11 found this helpful


Sick

The following review is for 08ZX200.2, which is a part of the bundle you are viewing.

This amp is the sht. My subs used to overpower my highs. With this amp i can now hear the words and the amp is really clean. I have it running all four speakers in my car(left channel for left speakers and right channel for right speakers). There is no need for a 4 channel amp. i can turn my stereo up to 80% and it sounds very clean. It always sounds like High Definition. Highly recommended.

By The Boss on July 30, 2009

12 found this helpful


A pleasant surprise

The following review is for FDF15004, which is a part of the bundle you are viewing.

I was reluctant to buy something with a no name sub, at such a cheap cost, and the weight of the box didn't seem like any other quality sup box. But your not paying nearly as much as the name brand ones, so what can you expect. It came with mounting brackets, which was nice because it didn't say anything about hardware in the add, and I was wondering how I was gonna get it to NOT slide around, and it fits perfectly under the back driver side seat, and doesn't stick out like other boxes do.
I was blown away at the good deep bass, and the tight beats this package put out. I hooked it up in my 2005 f150 xlt supercab to a Rockford Fosgate Prime amp R150-2. A little tuning, and I was set to go. This setup will not win you any competitions, but if you want some nice sound at a cheap price, this is the way to go! I listen to mostly hip/rap and hard rock, and so far this sub has handled it all. If I break the sub, I will probably just modify the box for a different subwoofer, but overall I am VERY pleased with my purchase.

By Bassinyomouth on March 7, 2011

8 found this helpful




No picture

Pioneer TS-M801PRO (Sold Individually) (Open Box, Great)

700W Peak (200W RMS) 8″ PRO Series 4-Ohm Midbass Pro-Audio Car Speaker

$125.99

List price $240.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2021 Toyota 4Runner

2011 MINI Countryman

1989 Dodge Caravan

2023 Audi Q5

2015 Dodge Viper

1982 Subaru Brat

1990 Lexus ES250

2003 Chevrolet Astro

2020 Ford Expedition Max

2001 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
