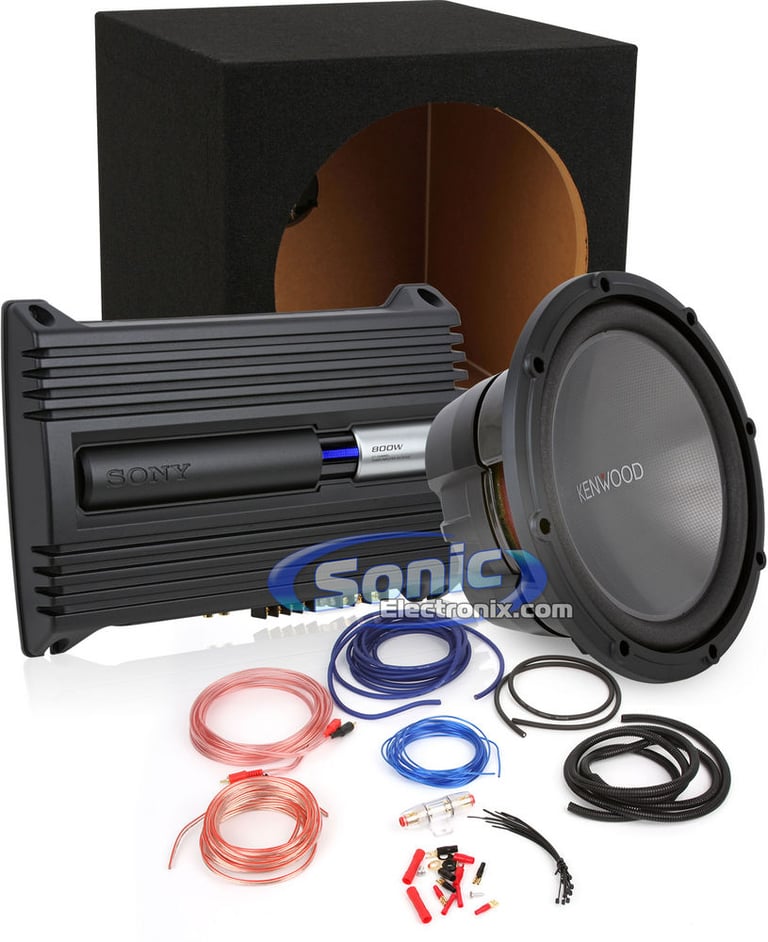

1200W Complete Sony + Kenwood Bass Package

Sony XM-ZR1252 Amplifier + Kenwood KFC-W3012 Sub + 8 Gauge Amp Kit + 12" Sealed Box

Kenwood
Shop all Kenwood
EXCLUSIVE
Product videos
highlight-star-icon

Bass Package including Sony XM-ZR1252 Amplifier, Kenwood KFC-W3012 Subwoofer, 8 Gauge Amplifier Installation Kit, and 12" Sealed Box • Everything you Need to add Bass to your Car

Learn more about the xmzr1252_kfcw3012

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

14
-56.40%

$108.99

List price $249.95

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49

Product Highlights


Bass Package including Sony XM-ZR1252 Amplifier, Kenwood KFC-W3012 Subwoofer, 8 Gauge Amplifier Installation Kit, and 12" Sealed Box • Everything you Need to add Bass to your Car

Description


Kenwood brand icon

Authorized dealer

Sonic Exclusive Subwoofer Combo

The only thing better than getting serious bass in your car is not having to do the hard work of configuring all the right components. Leave the hard work to sonic and let us build you a system that will bring your car audio system to the next level! This 1200 watt bass package includes the Sony XM-ZR1252 Amplifier, a single Kenwood KFC-W3012 Subwoofer, a 8 Gauge Amplifier Installation Kit, and a 12" Sealed Box. The ZR series amplifier will provide reliable and clean power to the Kenwood subwoofer. Matched with the 12" sealed enclosure, the Kenwood subwoofer sounds great and fits in smaller cars and SUVs.

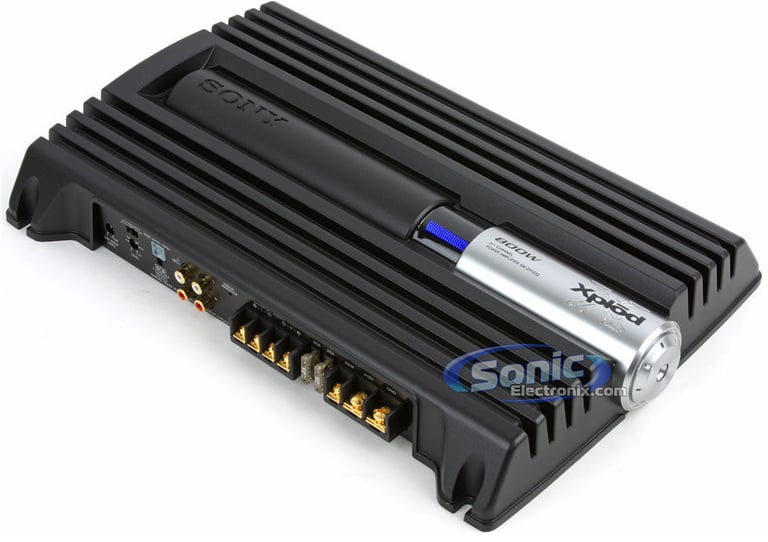

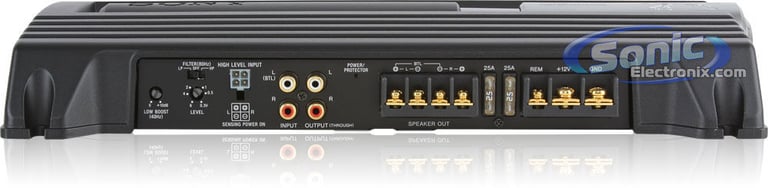

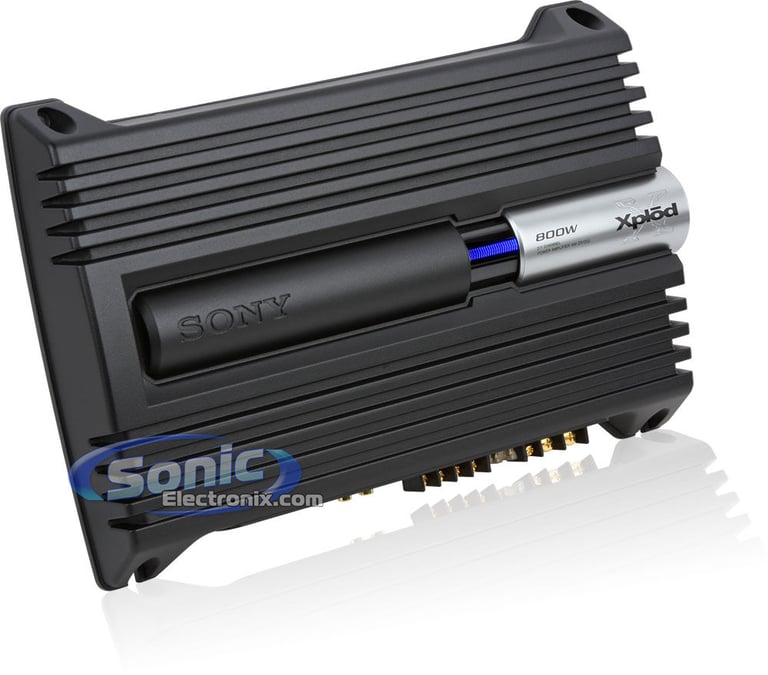

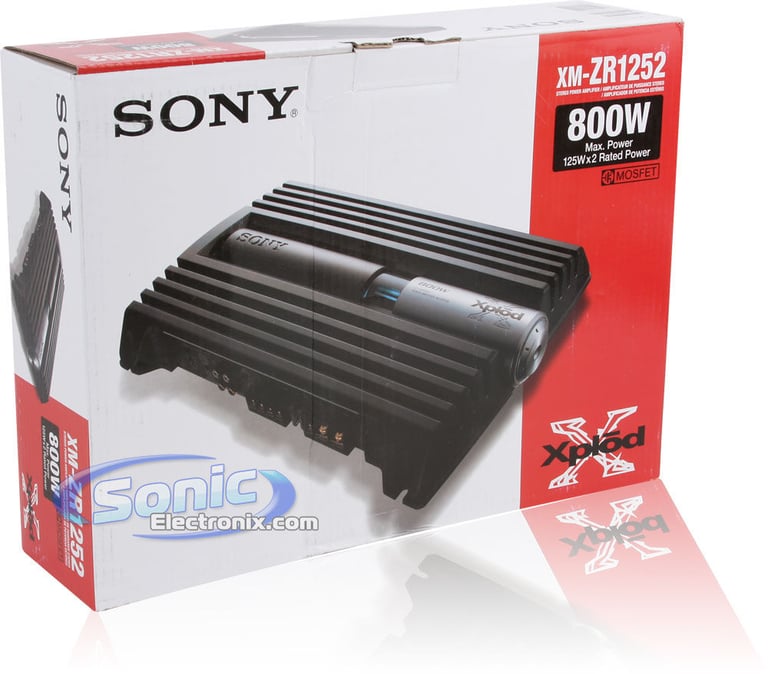

Sony XM-ZR1252 Amplifier Features:

  • ZR Series 2-Channel Power Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 2 chan.
    • 2 ohm: 170 watts x 2 chan.
    • Bridged, 4 ohm: 340 watts x 1 chan.
  • Max power output: 800 watts
  • Pulse power supply
  • OTL (output transformerless circuit) circuit
  • LED power/protection indicator
  • Bass Boost (0-10 dB at 40 Hz)
  • High-level sensing power on feature
  • RCA inputs
  • Gold plated speaker terminals
  • High level input connector
  • Speaker terminal outputs
  • High-pass filter (80 Hz, 12 dB/octave)
  • Low-pass filter (80 Hz, 18 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 5-50,000 Hz
  • Dimensions: 15-5/8L x 10-1/8W x 2-3/4H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

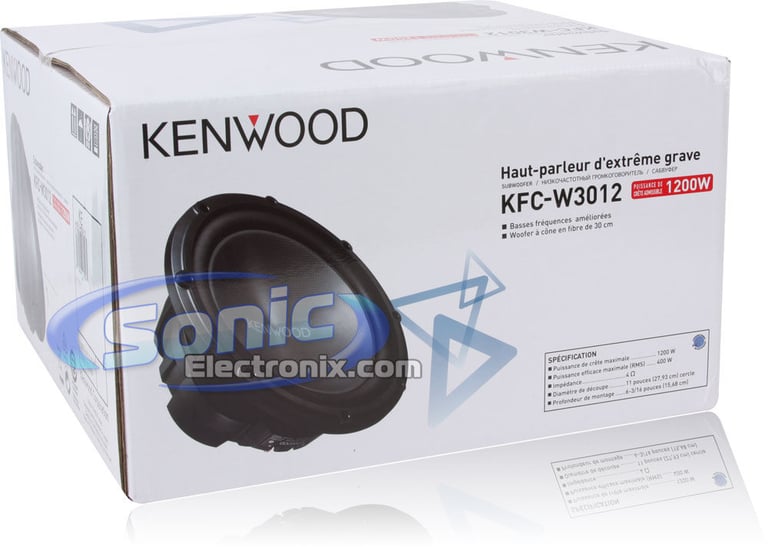

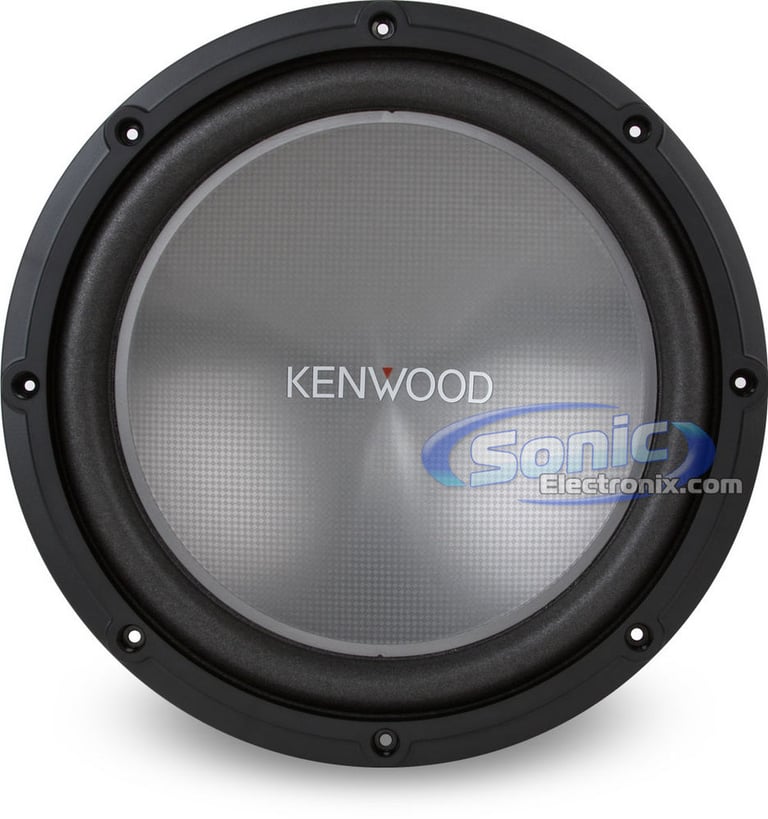

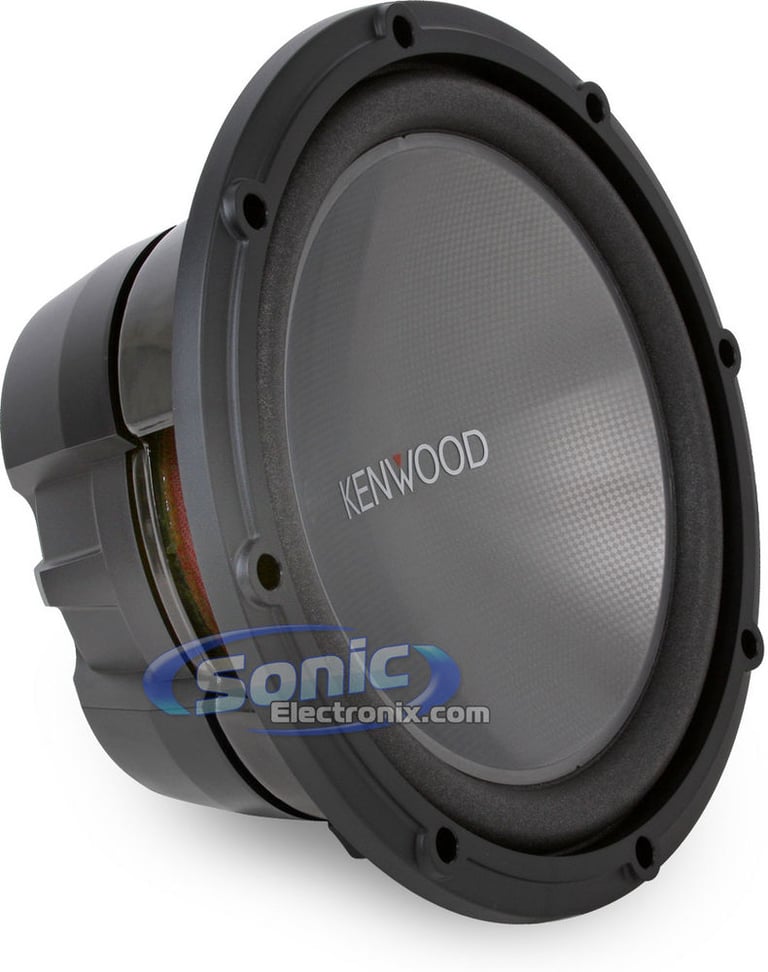

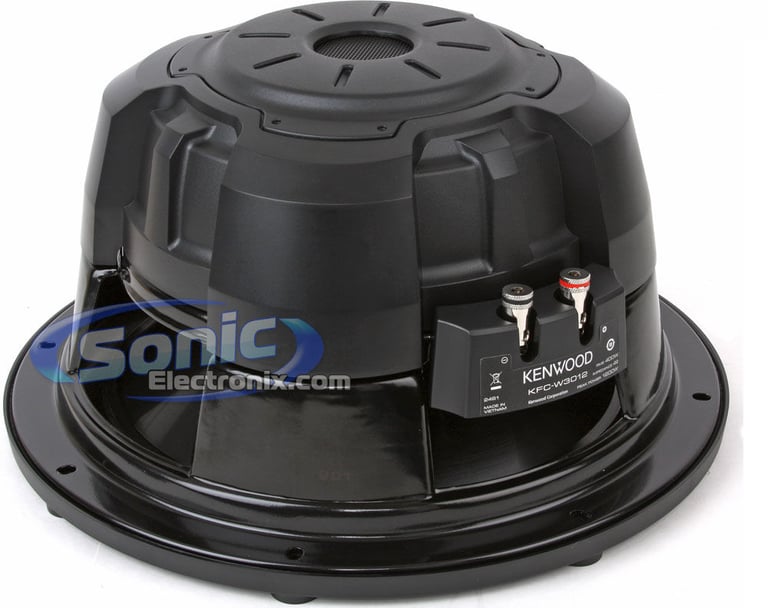

Kenwood KFC-W3012 Subwoofer Features:

  • 12" Single 4 ohm KFC Series Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 400 watts
  • Polypropylene cone woofer
  • Urethane foam surround
  • Linear spider design for increased excursion
  • Spring post terminals
  • Double stacked magnet
  • Frequency response: 39-300 Hz
  • Sensitivity: 86 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

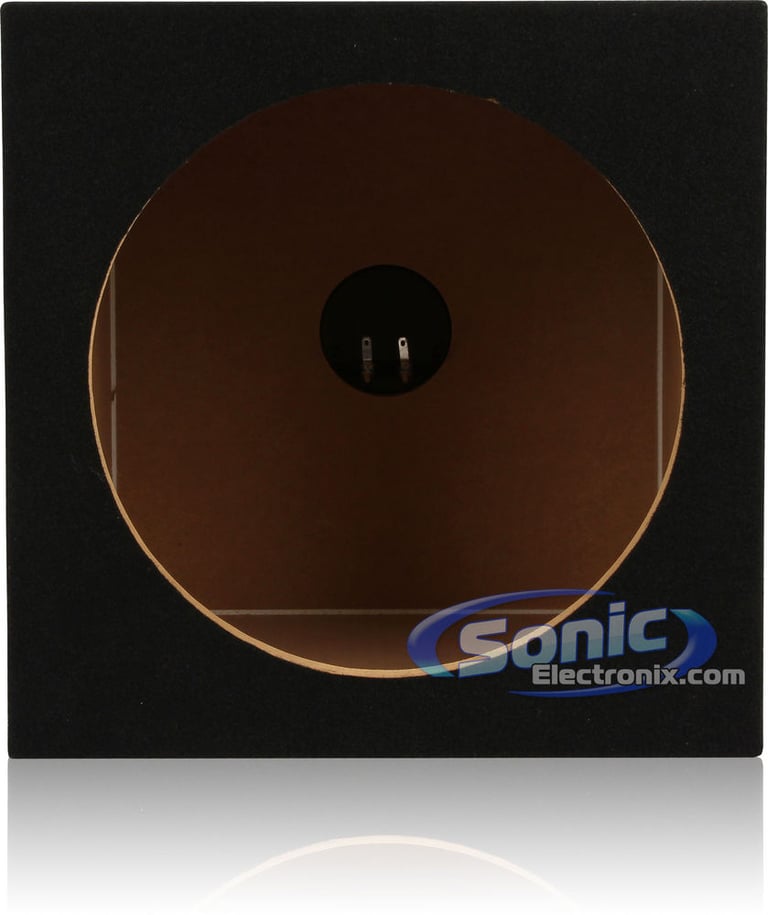

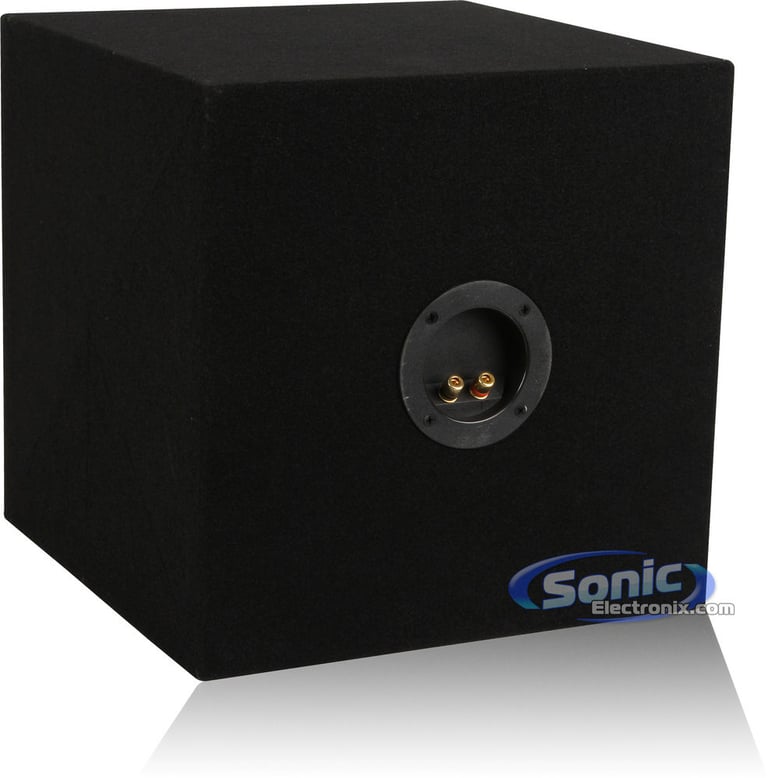

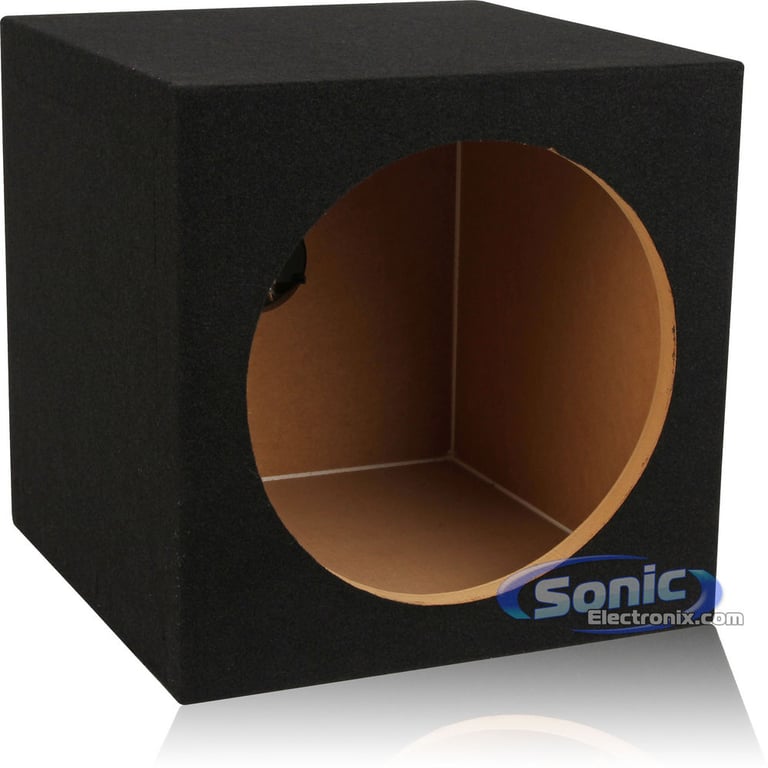

Absolute SS-12 Enclosure Features:

  • 12" Sealed Square Subwoofer Enclosure
  • Black carpet

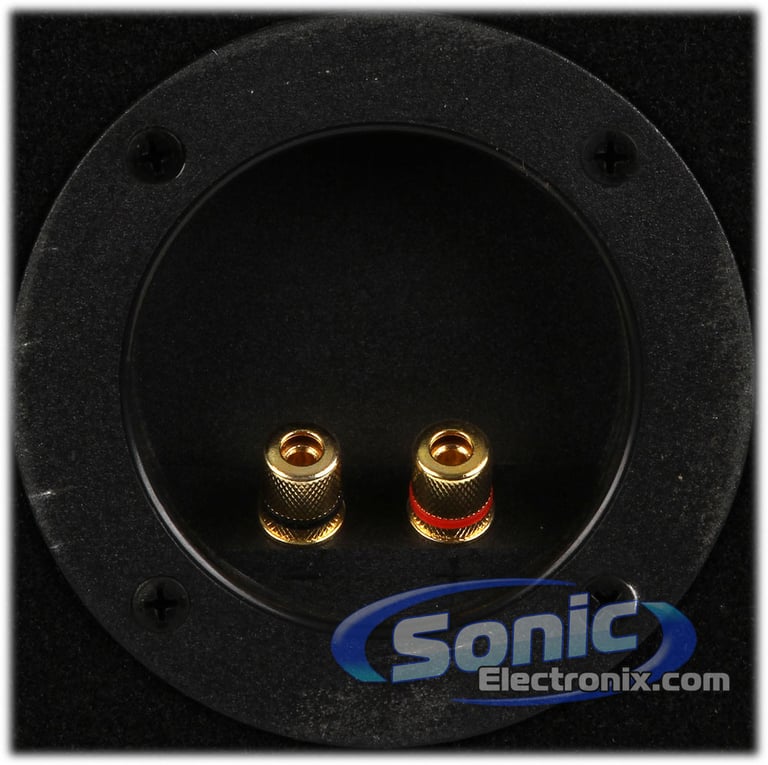

  • Gold plated binding posts
  • Banana clip ready
  • Mounting depth: 13"
  • Cutout diameter: 11-1/8"
  • Box volume: 1.13 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 14"D x 14"W x 14"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

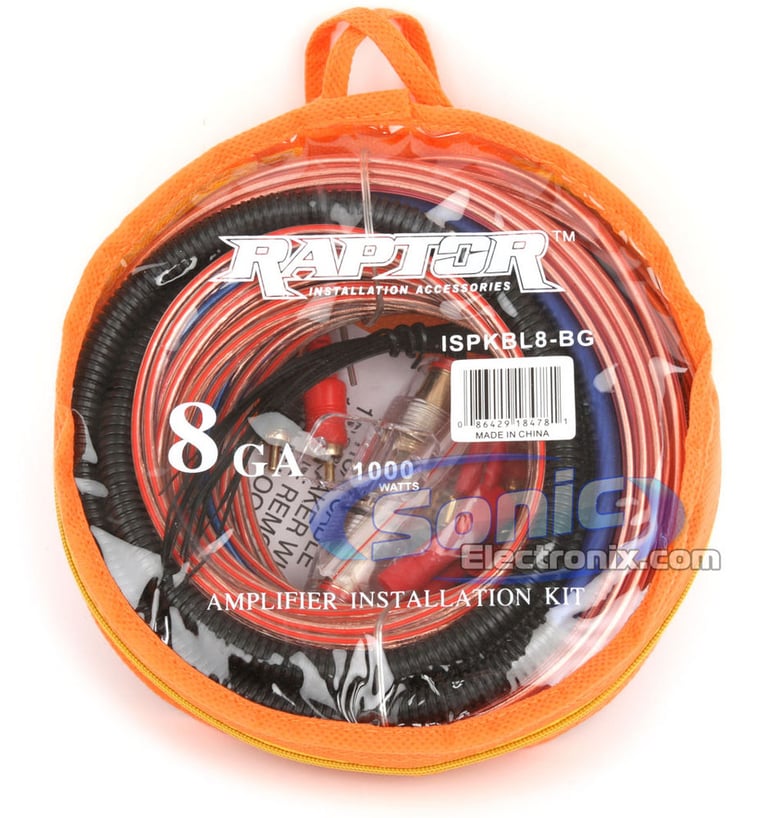

Raptor Amplifier Installation Kit Features:

  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Package Includes:

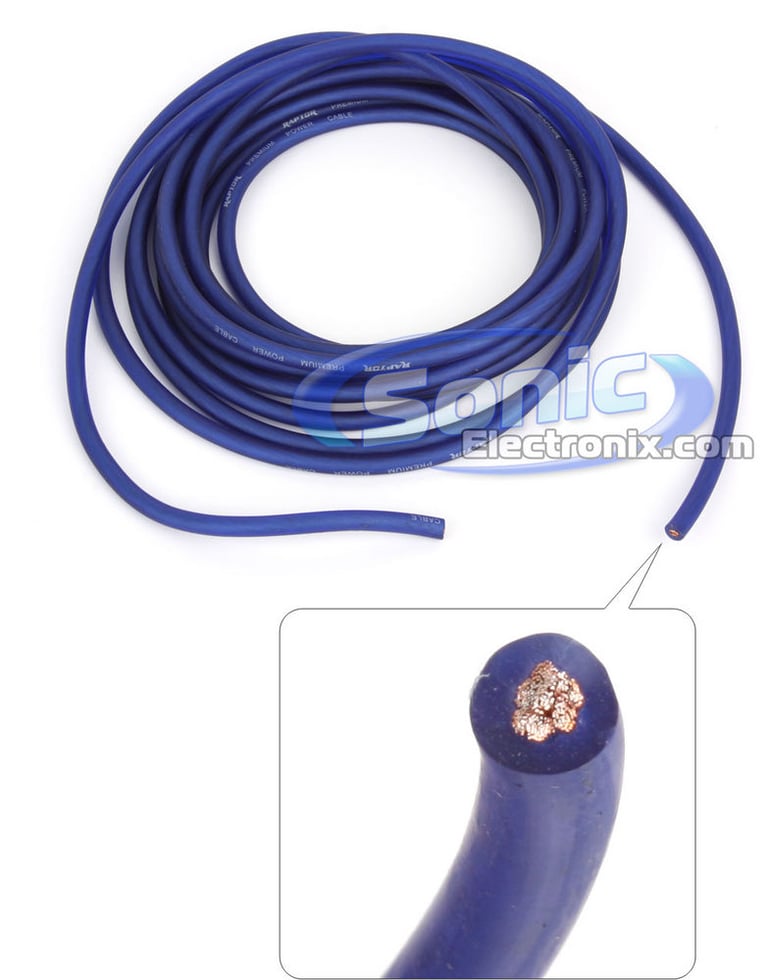

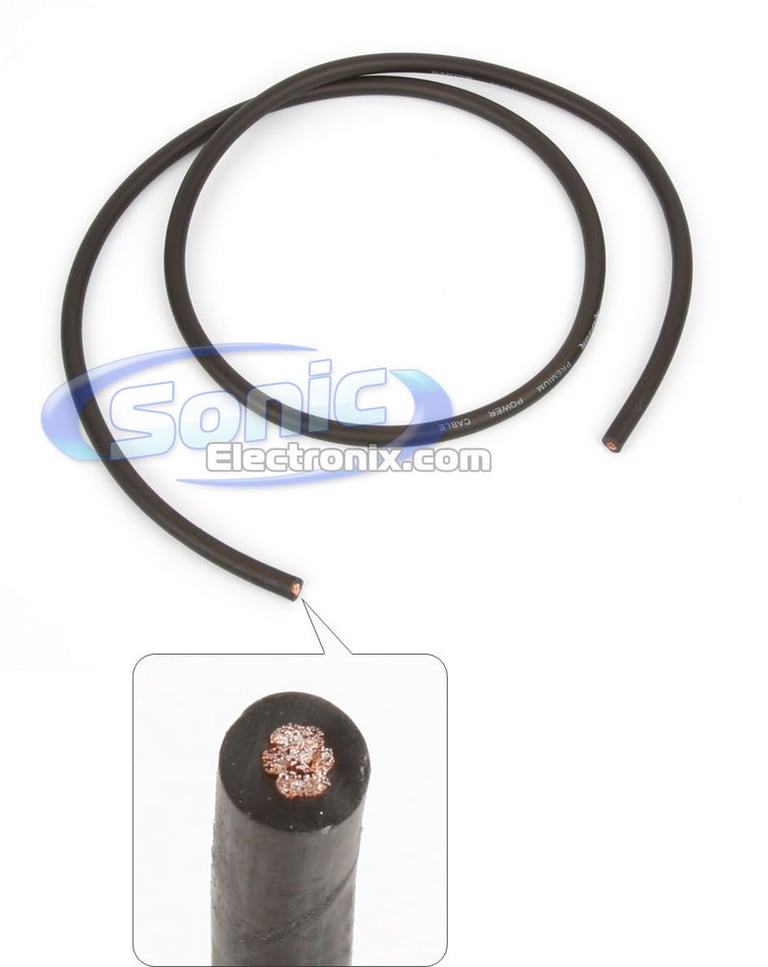

  1. 17 ft. of 8 Gauge blue power cable
  2. 3 ft. 8 Gauge black ground cable

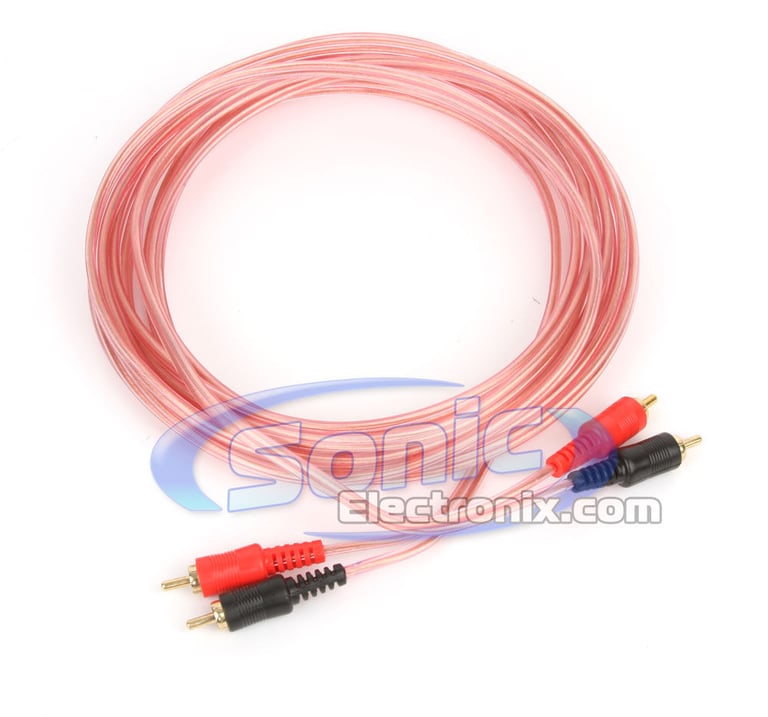

  3. 17 ft. Neon blue series RCA cable

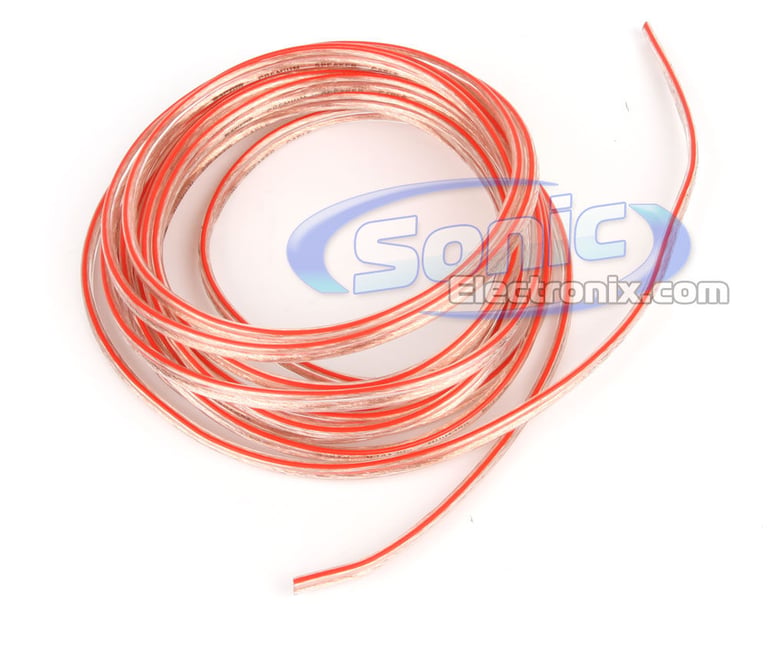

  4. 16 ft. of Premium speaker cable

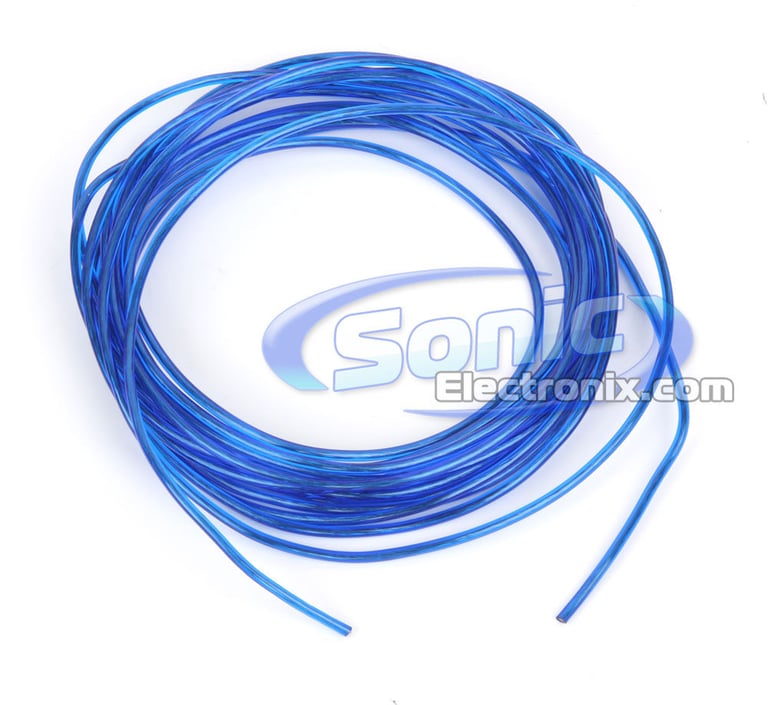

  5. 17 ft. of 18 Gauge blue remote turn-on wire

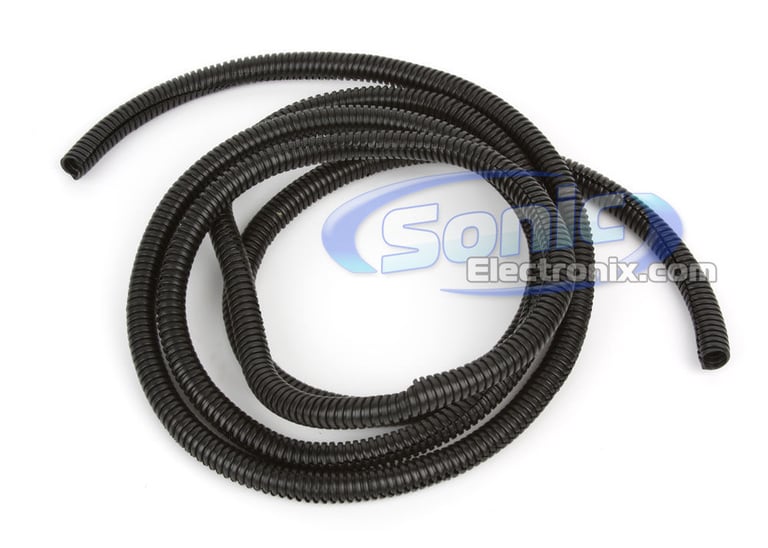

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

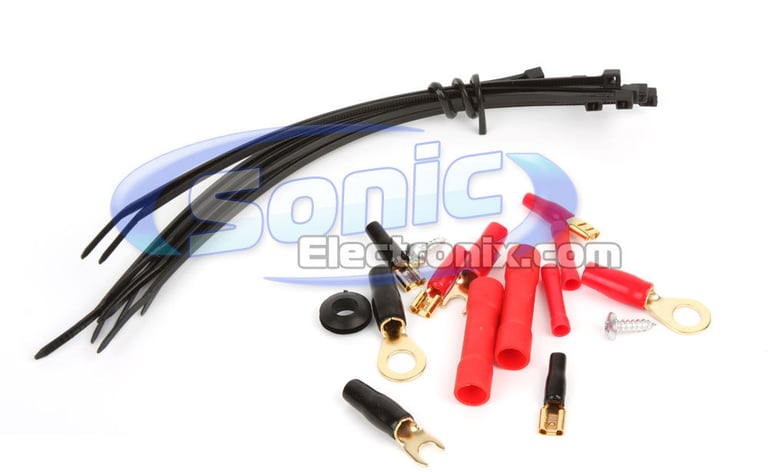

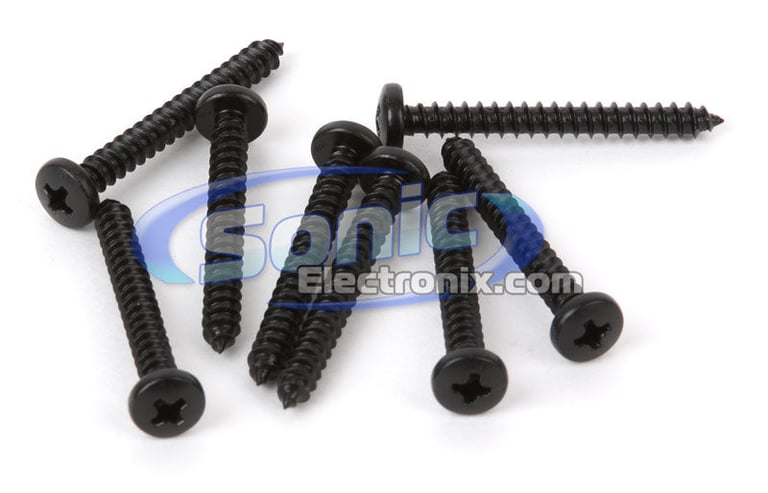

  9. All Necessary Hardware for Installation

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
170 watts x 2 channel
Bridged RMS Power
340 watts x 1 channel
Peak Power Output
800 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
.04%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
N/A - 80 Hz
Low-Pass Crossover Frequency
N/A - 80 Hz
Signal-to-Noise Ratio
93 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
400 watts
Total RMS Power Handling
400 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
1200 watts
Woofer Surround
Urethane
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86 dB
Frequency Response
39 - 300 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
14"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XM-ZR1252_KFC-W2512

Weight:

50.00lbs

Internal SKU:

xmzr1252_kfcw3012

Internal Product ID:

29199

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


1200W Complete Sony + Kenwood Bass Package thumbnail image

5 star
62%
4 star
29%
3 star
8%
2 star
0%
1 star
2%



Durability
4.5
Value
4.7
Features
4.3
Design
4.5
Usability
4.7

Customer Reviews

Sort by:

Loading...

Good Product

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

Used this package on my Mazda 6 i Sport and it covered the length of the car fine. Had scrap to splice off onto multiple amps.

By NETech on November 14, 2011

37 found this helpful


Comes with everything you need at a great price!

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

I ordered this kit for my two 12" mtx subs and a one channel amp and it came with all of the wiring necessary to gets my subs bumping

By Luke on August 23, 2010

35 found this helpful


Eh..

The following review is for KFC-W3012, which is a part of the bundle you are viewing.

My friend bought two of these hooked to a Kenwood 1800 watt amp. These subs are not even close to hitting 1200 watt. Maybe they hit 400, but they dont sound like it. My two Kicker comps hit harder than these with a 600 watt amp. 6 months later the Kenwood sub spider ripped off of the cone. Good sub, for a while, they don't bump.

By tony on March 31, 2011

34 found this helpful


sick nasty

The following review is for KFC-W3012, which is a part of the bundle you are viewing.

Ok well I didn't order this sub I ordered the previous model and got this one so i got it half off I guess? idk ? but dude this sub hits pretty good I herd it in B*** B** and in my car and its amazing. this is my first sub i only have 1 in my car cuz i drive a 96 jetta gls, kinda small but this sub is good, i recomend this subwoofer to anyone who wants to bump.

By vespa on March 29, 2011

35 found this helpful


Very Satisfying

The following review is for KFC-W3012, which is a part of the bundle you are viewing.

I bought two of these subs and put them in a sealed box built to the specs given with the subs. I ran a RFL600D to these subs producing 600 RMS at 2 ohms to these subs. They HIT hard. Unfortunately one of the subs "fried". It was hard to explain but a month after install one of the subs started sounding funny so I unhooked the speakers then hooked them back up and one of the subs was permanently altered. The sub sounds OKAY in a box by itself but once i wire it up with another one..it sounds horrible. Good buy though and great performance

By Spencer on February 13, 2011

36 found this helpful


Big Sound, Little Money

The following review is for KFC-W3012, which is a part of the bundle you are viewing.

This was a fantastic deal! To get a brand new Sub and not have to pay the store price. I have been telling everyone about this great deal!

By Leslie on February 16, 2011

35 found this helpful


alright

The following review is for KFC-W3012, which is a part of the bundle you are viewing.

Great bass however I blew it in a month with a 400W Kicker amp...

By TWITCH on February 4, 2011

32 found this helpful


THE BESTT!!!!!!!

The following review is for KFC-W3012, which is a part of the bundle you are viewing.

I have one of these in my basement. I connected it to a Lanzar Max 224 (1000w) amp and it Pounds!! if you think a cheep amp like Lanzar is not good quality, IT IS!! I couldn"t ask for a better amp for the price! If your wondering how to power a car amp in your house its REALLY EASY!!.. You need to get a PC power suply ($5) and search on Youtube: how to hook up car amp in home. theres tons of videos.

By Wes on January 20, 2011

31 found this helpful


Awesome

The following review is for KFC-W3012, which is a part of the bundle you are viewing.

I love these subs and for the price you cant beat it, I have 2 of these hooked up to an Autotek AT1000 and wow do they bang hard for rly underpowering them but overall great subwoofer and clean deep bass as well.

By Phillip on January 19, 2011

28 found this helpful


This amp can take a beating.

The following review is for XM-ZR1252, which is a part of the bundle you are viewing.

I've got this baby wired to two 10" Kicker CompVR (800W RMS and 1600W MAX combined!). They're wired at 2-ohms in bridge and let me tell you, this amp can push them!

By Dude on December 28, 2009

14 found this helpful




HAFX5W small

JVC HAFX5W (HA-FX5-W) Gummy-Plus In-Ear Headphones - White

Lightweight Rubber Earbuds w/ 3 Sets of Silicone Earpieces (White)

$8.99

List price $9.99

FREEDOM JF3 & SB2RR small

JayBird FREEDOM JF3 & Sportsband SB2 - Runner Red (2-Pack)

Freedom Active Sports Wireless Bluetooth Stereo Earbuds Headset

(16)

$125.12

List price $199.98

Delta 613X small

Deaf Bonce Black Hydra Delta 613X

240W Peak (120W RMS) 6.5" Black Hydra Series 2 Way Coaxial 4-ohm Speakers

(2)

$59.90

List price $59.90

BH-FDVD9-Gray small

TKO Audio BH-FDVD9 (Gray)

9" TFT-LCD Overhead Flip Down Ceiling-Mount Monitor with Built-in DVD Player and Remote

$159.99

List price $349.99

DREX12IP/PNK small

Sony DR-EX12IP - Pink

In-Ear Lightweight Stereo Earbud Headphones w/ iPod Remote

$14.99

List price $34.99

No picture

Naztech Boa Sunburst Orange Size 1 (8912)

Universal Orange Vertical Cell Phone Case

$8.49

List price $34.99

E02i Black small

FiiO E02i Rocky - Black

Metal Shell Portable Headphone Amplifier with Rechargeable Battery

(2)

$18.99

List price $39.99

H1-12K-G2 small

G2 Series H1-12K-G2 HID Xenon headlights

12,000K H1 Xenon Headlamp Bulbs Canbus HID (High Intensity Discharge) Headlight Conversion Kit

(16)

$65.56

List price $250.35

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1992 Honda Civic

1989 Audi 200 Quattro

2012 Ford Taurus

2009 Toyota Sequoia

2006 Jeep Commander

2020 Ram 1500 Classic

2019 Honda Civic

2021 Lexus ES350

1977 Buick Skylark

1977 Dodge Aspen

Vehicle
Store
Delete

2002 Harley Davidson FXD/I Dyna Super Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
