Name: Hifonics XX-OLYMPUS R/B
Brand: Hifonics
SKU: LS-xxolympus-RB
Price: 259.99 USD
Availability: Discontinued

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

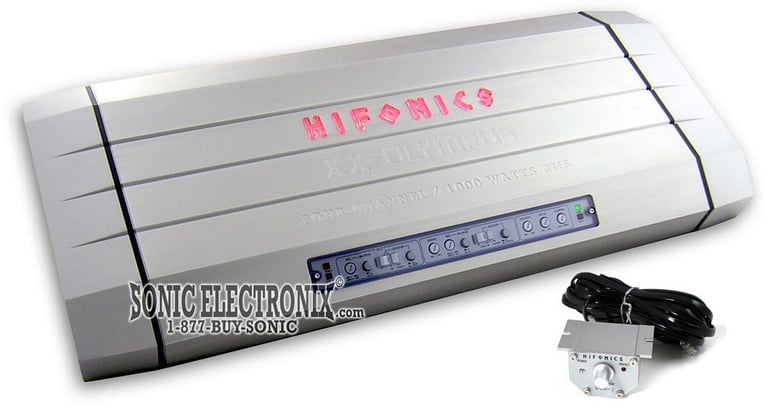

Hifonics XX-OLYMPUS R/B Image 1 — Hifonics XX-OLYMPUS R/B

Hifonics XX-OLYMPUS R/B Image 2 — Hifonics XX-OLYMPUS R/B

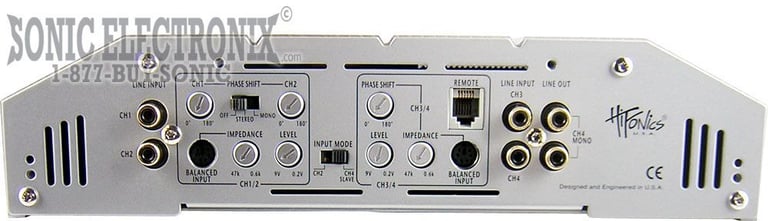

Hifonics XX-OLYMPUS R/B Image 3 — Hifonics XX-OLYMPUS R/B

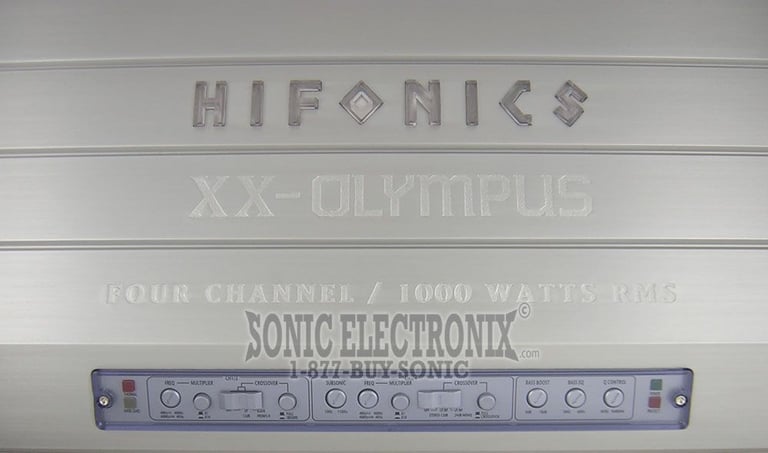

Hifonics XX-OLYMPUS R/B Image 4 — Hifonics XX-OLYMPUS R/B

Hifonics XX-OLYMPUS R/B Image 5 — Hifonics XX-OLYMPUS R/B

Product videos

Product highlights

Generation XX Series 4-Channel Ultra Class A/B Car Amplifier • 200W RMS x 4-Chan @ 2 ohm • 125W RMS x 4-Chan @ 4 Ohm • RCA Output • Bass Remote • Illuminated Hifonics Badge • Removable Endcaps

Learn more about the LS-xxolympus-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Generation XX Series 4-Channel Ultra Class A/B Car Amplifier
RMS Power Rating:
- 4 ohm: 125 watts x 4 chan.
- 2 ohm: 200 watts x 4 chan.
- 1 ohm: 250 watts x 4 chan.
- Bridged, 4 ohm: 400 watts x 2 chan.
Full PMW Ultra-Fi Mosfet Power Supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +18 dB bass boost at 30-60 Hz)
Soft Start Turn-on
4/3/2 channel operation
Package includes power from the gods
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- Low level: 200mV-9V
- High level: 400mV-18V
Variable High-pass filter (10-4,000 Hz, 12 dB/octave)
Variable low-pass filter (40-400 Hz, 24 dB/octave)
Damping factor: >280
Frequency response: 2-70,000 Hz
Dimensions: 26-3/16"L x 11-1/8"W x 2-3/4"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-day Manufacturer's warranty
Item Condition: Factory Refurbished

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

125 watts x 4 channel

RMS Power @ 2 ohms

200 watts x 4 channel

RMS Power @ 1 ohm

250 watts x 4 channel

Bridged RMS Power

400 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

2000 watts

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

40 - 4000 Hz

Low-Pass Crossover Frequency

40 - 400 Hz

Signal-to-Noise Ratio

95 dB

Channel Separation

>70 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
