Name: Hifonics Jupiter 1.5K OPEN BOX
Brand: Hifonics
SKU: LS-jupiter15k-OB
Price: 164.99 USD
Availability: Discontinued

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

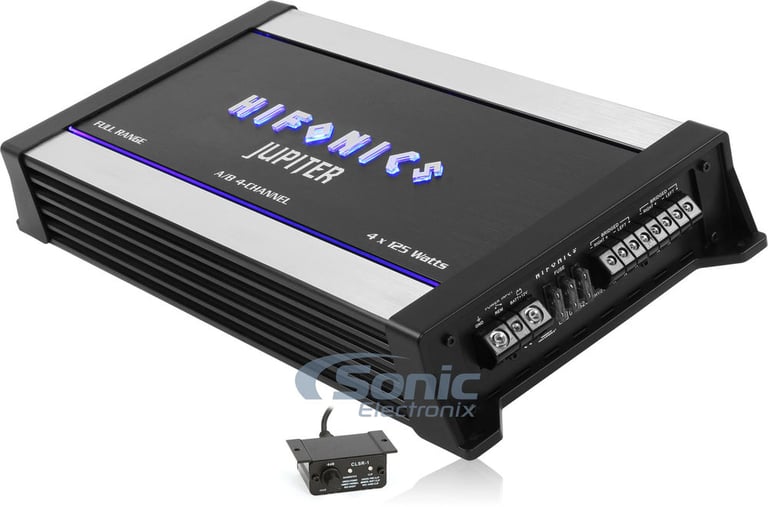

Hifonics Jupiter 1.5K OPEN BOX Image 1 — Hifonics Jupiter 1.5K OPEN BOX

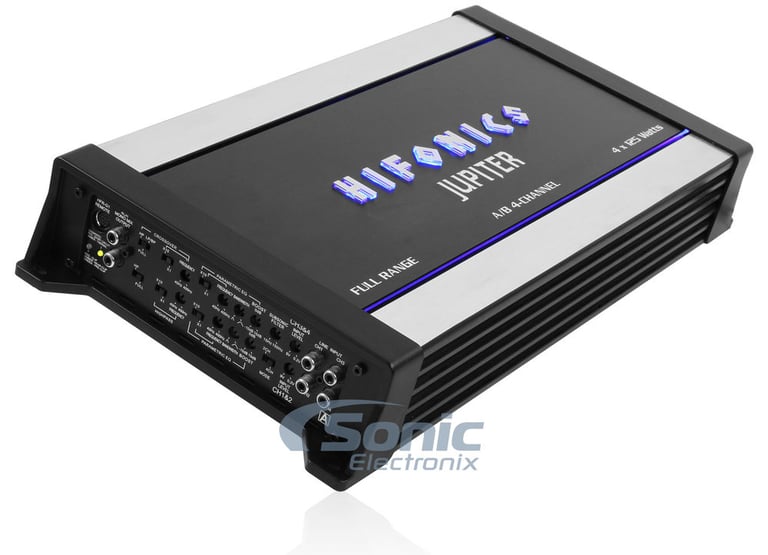

Hifonics Jupiter 1.5K OPEN BOX Image 2 — Hifonics Jupiter 1.5K OPEN BOX

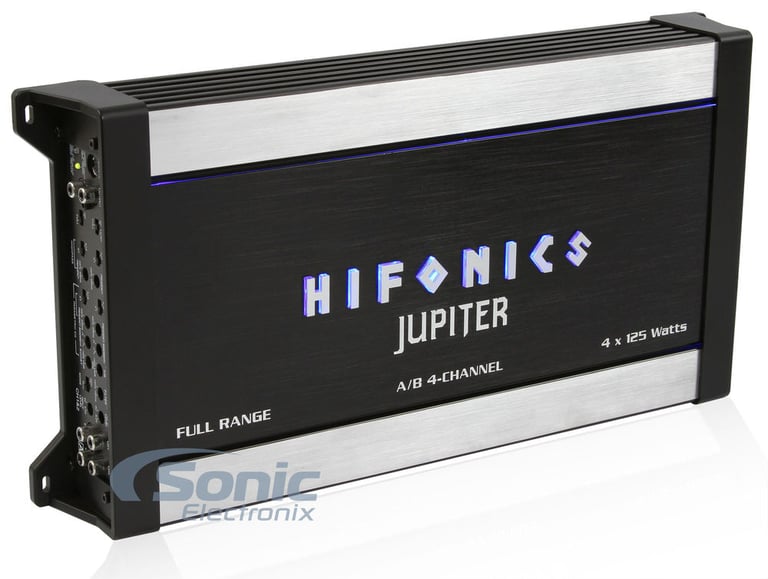

Hifonics Jupiter 1.5K OPEN BOX Image 3 — Hifonics Jupiter 1.5K OPEN BOX

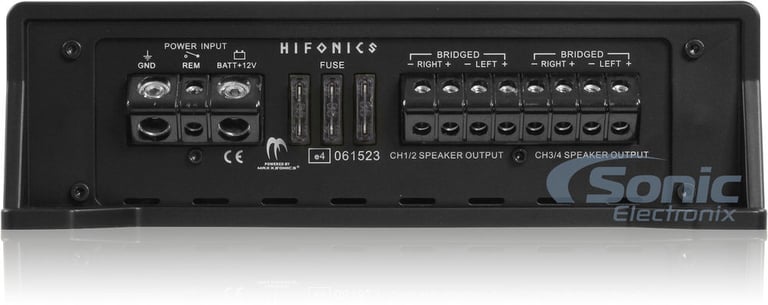

Hifonics Jupiter 1.5K OPEN BOX Image 4 — Hifonics Jupiter 1.5K OPEN BOX

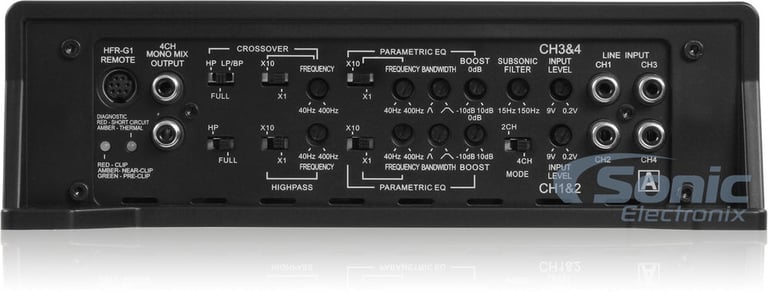

Hifonics Jupiter 1.5K OPEN BOX Image 5 — Hifonics Jupiter 1.5K OPEN BOX

Hifonics Jupiter 1.5K OPEN BOX Image 6 — Hifonics Jupiter 1.5K OPEN BOX

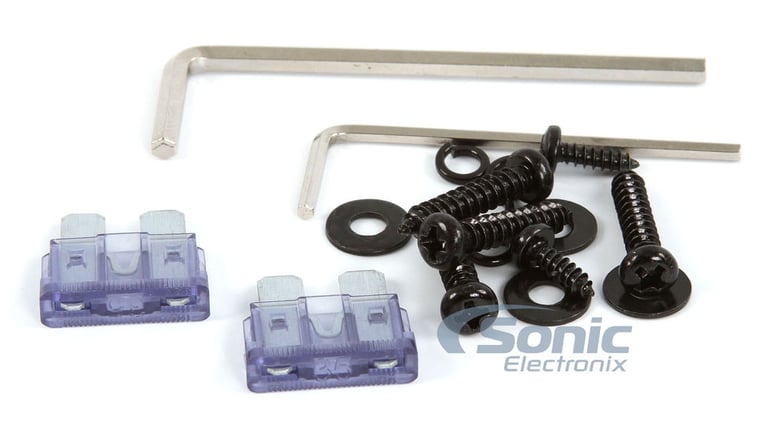

Hifonics Jupiter 1.5K OPEN BOX Image 7 — Hifonics Jupiter 1.5K OPEN BOX

Hifonics Jupiter 1.5K OPEN BOX Image 8 — Hifonics Jupiter 1.5K OPEN BOX

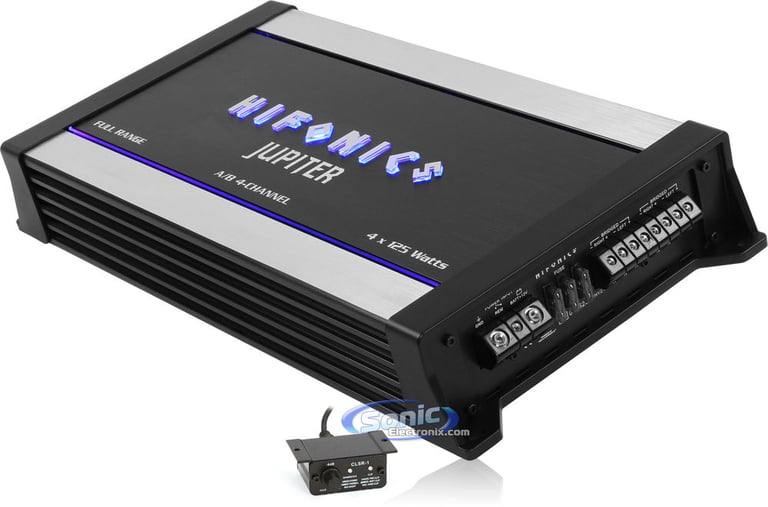

Hifonics Jupiter 1.5K OPEN BOX Image 9 — Hifonics Jupiter 1.5K OPEN BOX

Hifonics Jupiter 1.5K OPEN BOX Image 10 — Hifonics Jupiter 1.5K OPEN BOX

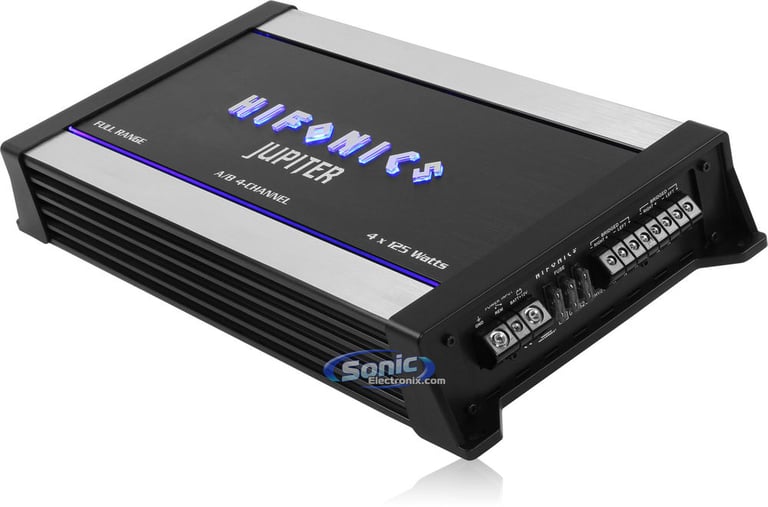

Hifonics Jupiter 1.5K OPEN BOX Image 11 — Hifonics Jupiter 1.5K OPEN BOX

Hifonics Jupiter 1.5K OPEN BOX Image 12 — Hifonics Jupiter 1.5K OPEN BOX

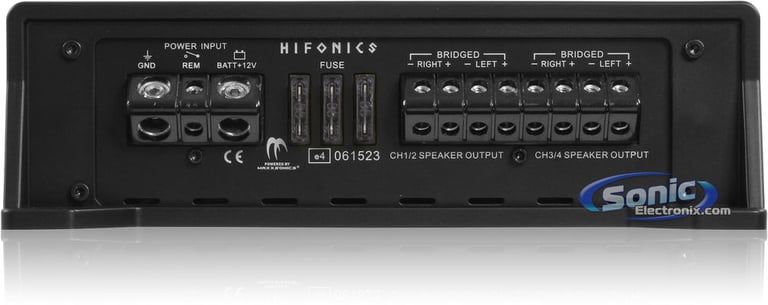

Hifonics Jupiter 1.5K OPEN BOX Image 13 — Hifonics Jupiter 1.5K OPEN BOX

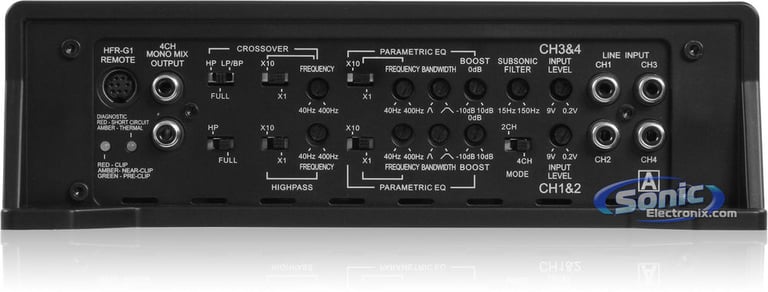

Hifonics Jupiter 1.5K OPEN BOX Image 14 — Hifonics Jupiter 1.5K OPEN BOX

Hifonics Jupiter 1.5K OPEN BOX Image 15 — Hifonics Jupiter 1.5K OPEN BOX

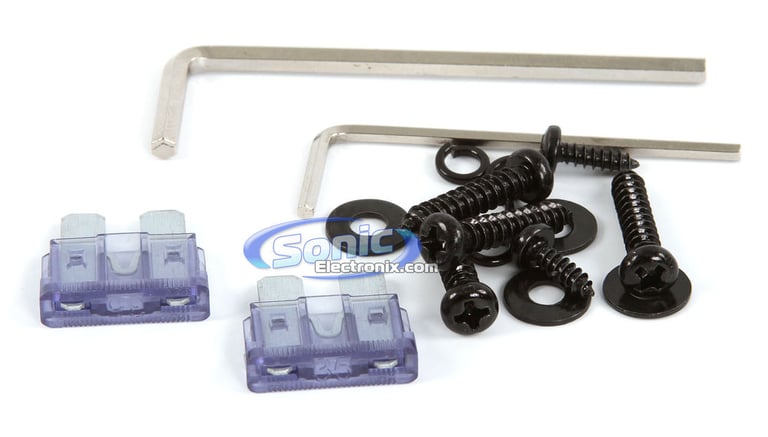

Hifonics Jupiter 1.5K OPEN BOX Image 16 — Hifonics Jupiter 1.5K OPEN BOX

Product videos

Product highlights

• 125W x 4-Chan. @ 4 ohm
• 180W x 4-Chan. @ 2 ohm
• 360W x 2 Chan. @ 4 ohm
• 4-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Unique Adjustable Bass Boost and Crossover's with x10 Multiplier for Bi-Amping Speakers

Learn more about the LS-jupiter15k-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

INSTALLED/ USED The Peak of the Mountain

Welcome to the top. You've stumbled upon pure excellence with a Hifonics logo on it. Mt. Olympus amplifiers have been engineered meticulously throughout Hifonic's long-standing time in the car audio industry - and the result is an amplifier series that is simply too powerful for mere mortals.

The Hifonics JUPITER Mt. Olympus series amplifier is a high-powered Super A/B Class 4-Channel car amp. It features 720 watts of RMS power, and plenty of tuning adjustments to ensure your music is playing exactly how you want to hear it.

General Features:

Series 4-Channel Class A/B Car Amplifier
RMS Power Rating:

4 ohm: 125 watts x 4 chan.
2 ohm: 180 watts x 4 chan.
Bridged, 4 ohm: 360 watts x 2 chan.

Pulse Width Modulated MOSFET power supply

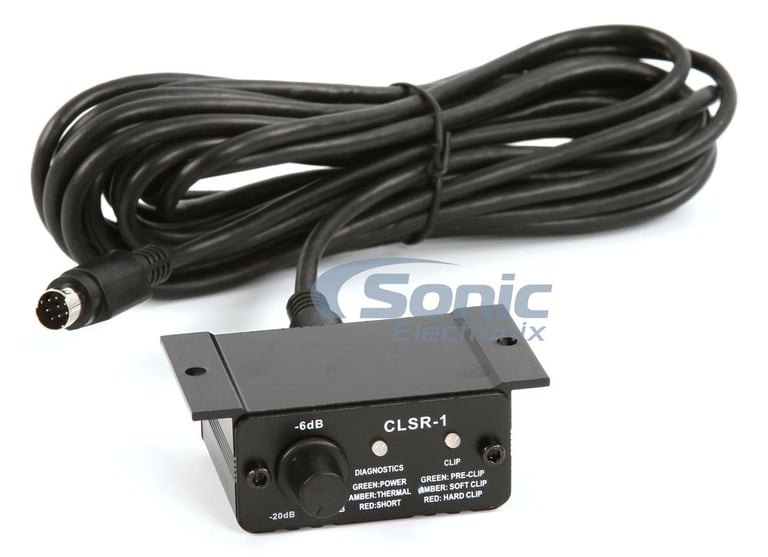

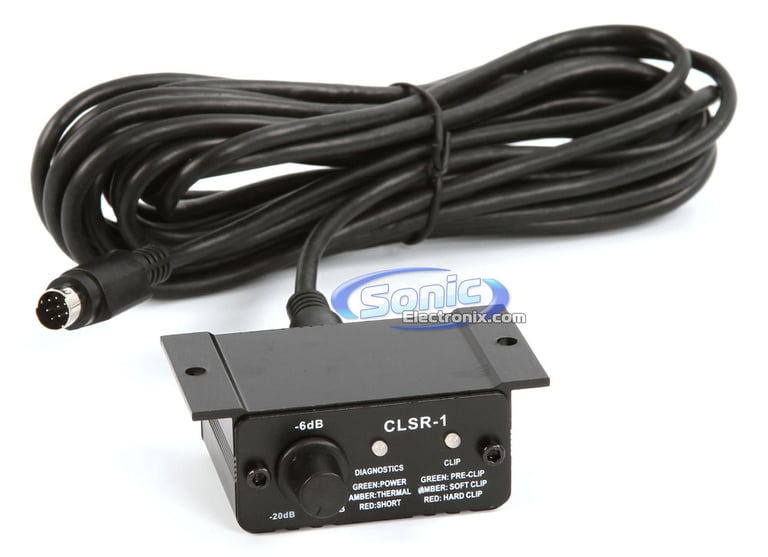

Wired remote bass level control included
LED power (green) and protect (red) indicators
Uniquely Adjustable Bass Boost

-10 to +10 dB bass boost
40-400 Hz variable frequency selection
Wide or narrow boost width

Soft start turn-on
4/3/2 or Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
4-way protection circuitry (thermal, overload, DC, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Level: 0.2V - 9.0V

Variable high-pass filter (40-400 Hz with 10x multiplier)
Variable low-pass filter (35-250 Hz)
Subsonic filter for channel's 3/4 (24 dB at 15-150 Hz with 10x multiplier )
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 9"W x 17-3/4"L x 2-3/4"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

125 watts x 4 channel

RMS Power @ 2 ohms

180 watts x 4 channel

Bridged RMS Power

360 watts x 2 channel

Amplifier Specifications

Series

Mt. Olympus Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

720 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

15 - 1500 Hz

Low-Pass Crossover Frequency

40 - 4000 Hz

Signal-to-Noise Ratio

90 dB

Channel Separation

80 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Yes

Fuse Rating

External 300A Fuse Required (Not Included)

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
