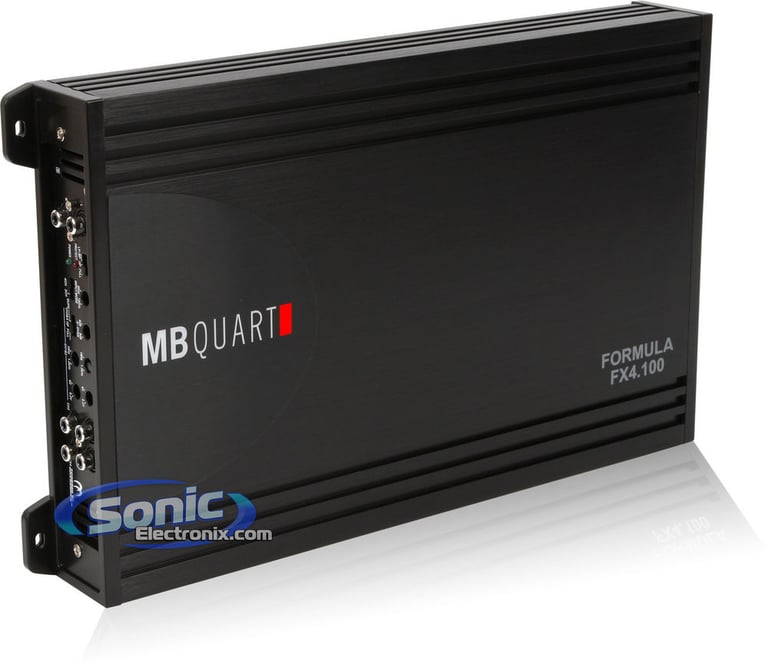

MB Quart FX4.100

800W RMS, 4-Channel Formula Series Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

Formula Series 4-Channel Class A/B Car Amplifier • 100W at 4 Ohm • 200W at 2 Ohm • PWM MOSFET Power Supply • Variable High Pass Filter • Variable Low Pass Filer • Variable Bass Boost • 4 Way Protection Circuitry

Learn more about the fx4100

We apologize

This item has been discontinued


Loading...
TOYNU3 main

GROM Audio TOYNU3 (GROM-USB3-TOY)

Android and iOS Smartphone Integration for Select 2003-2012 Lexus, Scion and Toyota Vehicles

1
82-TY1 main

Metra 82-TY1

Speaker Adapter & Harness Kit for select 1998-2024 vehicles from Toyota, Lexus, Subaru (Front or Rear Speakers)

1
-44.20%

$23.99

List price $42.99

SWRTY-61J main

Crux SWRTY-61J Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2003-2019 vehicles from Toyota, Lexus

-35.71%

$102.60

List price $159.60

LEX4VL2 main

GROM Audio LEX4VL2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2004-2007 vehicles from Lexus, Toyota

95-8160G main

Metra 95-8160G Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 LS430 (Gray)

1
-49.16%

$29.99

List price $58.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-15.39%

$109.99

List price $129.99

Product Highlights


Formula Series 4-Channel Class A/B Car Amplifier • 100W at 4 Ohm • 200W at 2 Ohm • PWM MOSFET Power Supply • Variable High Pass Filter • Variable Low Pass Filer • Variable Bass Boost • 4 Way Protection Circuitry

Description


MB Quart brand icon

Authorized dealer

MB Quart FX4.100 Features:
  • Formula Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 200 watts x 4 chan.
    • Bridged, 4 ohm: 400 watts x 2 chan
  • PWM (Pulse Width Modulated) MOSFET power supply

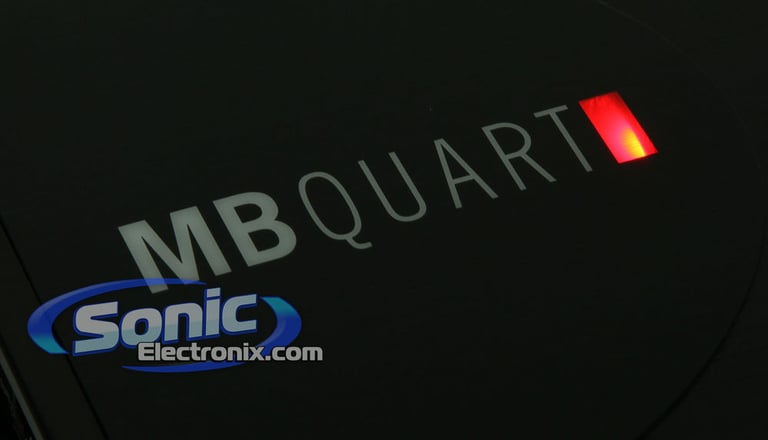

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +9 dB bass boost at 45 Hz
  • 4/3/2 Channel operation

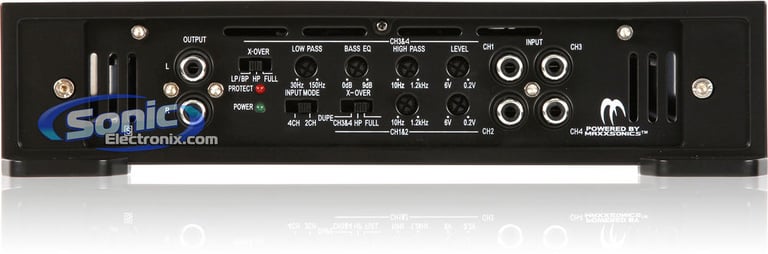

  • Unbalanced RCA input jack
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs

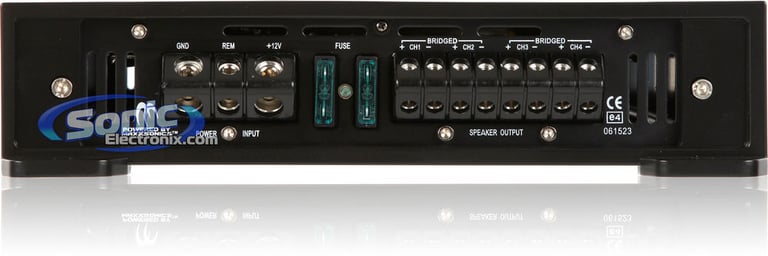

  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Signal to noise ratio: 90dB
  • Channel separation: 80dB
  • Variable low-pass filter: 30-150 Hz
  • Variable high-pass filer: 10-1200 Hx
  • LP/HP/Full crossover switch
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 15-15/16"L x 9-1/2"W x 2-1/4"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
Not Specified
Total RMS Power Output
800 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 1200 Hz
Low-Pass Crossover Frequency
30 - 150 Hz
Subsonic Filter
Not Specified
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

FX4.100

Weight:

11.00lbs

Internal SKU:

fx4100

Internal Product ID:

33005

Product and How-to Videos


Customer Ratings & Reviews


MB Quart FX4.100 thumbnail image

5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
5
Features
4.7
Design
3.7
Usability
5

Customer Reviews

Sort by:

Loading...

Mb quart amp

A solid amp for the price. Puts out clean sound. Alot cleaner then my previous sound storm amps. I have this thing powering the re audio components and re audio subs and its very nice.

By Brandon on December 26, 2012

10 found this helpful


Great Amp

This amp looks simple but it packs alot of power under the hood.

By Chang Pang on April 29, 2012

9 found this helpful


Great amp!

Bought 2 of these to power door and back deck speakers and they work great.

By Marshall on April 19, 2011

10 found this helpful


Powerfull Amp

the is very power i recommend it for mids or bass
its not that well on tweeters..but overall can't complain , it doesn't get hot and runs my 8" audiopipe dry mids and 2 pyramid tweets
way out of control..

By CHANG on July 10, 2012

8 found this helpful


love it

I got this amp to run my mids and highs i have four mb quart 5x7 mids and 4 tweeters and it puts out good clean sound and power

By josh on September 19, 2012

7 found this helpful


Good Amp for the money

I bought this because i needed a 4 channel in my truck. I went against all reviews saying that the onix series from MB Quart sucks and doesnt put out what its recommended, but i tested this amp with a DMM and after calculations i found that it puts out about 85-90 rms at 3.3 ohms. That is a great for the amp only costing $150. This amp is working well for me making my truck sound great. would def recomend this amp for anybody on a budget. if you have more money to spend then use it cuz there are better quality amps but i like this amp and will have it for awhile. Dont be afraid of the amp getting too hot because class AB amplifiers get hot. if you need one to stay cool then get a Class D amplifier, they are more effective so the energy isnt wasted and turned to heat.

By Travis on September 5, 2012

7 found this helpful




TSUNAMI BIG 3 KIT-BLUE small

Tsunami Big 3 Kit (Blue)

Sonic Exclusive Big 3 Upgrade Combo Package (1/0 AWG Cable)

(6)

$115.29

List price $216.91

99-5808 small

Metra 99-5808 Dash Kit

Install a new Single-DIN car stereo in select 2004-2007 vehicles from Ford, Mercury

$18.99

List price $32.99

HK298 small

MA Audio HK298

400 watts, 2-Channel Amplifier

(2)

$99.99

List price $249.99

3MBBNCF small

Install Bay 3MBBNCF

3M Blue 16/14 Gauge 0.156" Female Nylon Bullet Connectors

$23.99

List price $38.99

HK398 small

MA Audio HK398

600 watts, 2-Channel Amplifier

(1)

$139.99

List price $359.99

VIR-5100 small

Soundstream VIR-5100

In-Dash DVD, CD, MP3 Receiver with 5" TFT-LCD Touchscreen Monitor, USB Port and Aux In-put

$229.95

List price $319.99

E-CB200MR small

Install Bay E-CB200MR

Waterproof 200A Circuit Breaker

$97.99

List price $108.99

KS-AR7501D small

JVC Arsenal KS-AR7501D

1200W Max, Class D Monoblock Amplifier

(1)

$169.99

List price $379.99

PSW410 small

Alphasonik PSW410

10" Dual 4 ohms Alpha 400 Series Subwoofer

(4)

$89.99

List price $149.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2006 Lexus LS430

2014 Ram 2500

2006 Subaru Forester

2016 Ford Explorer

1998 Mitsubishi Eclipse

2011 Ford Explorer

2011 Subaru Outback

2016 Subaru Outback

2002 Saab 9-3

2009 Volkswagen Eos

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
