Audiobahn A2200HCJ

2000W 2-Channel Class AB High Current Car Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

2-Channel Class AB High Current Car Amplifier • 300W x 2 Chan @ 4 Ohm • 600W x 2 Chan @ 2 Ohm • 2000W x 1 Chan @ 1 Ohm • High Gloss Chrome-Plated Finish • Dual Cooling Fans • Chrome Flame Fan Grilles

Learn more about the a2200hcj

We apologize

This item has been discontinued


Loading...
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Limited time!
CELEBRITY 100 main

JBL CELEBRITY 100 (JBLCELEBRITY100)

Single DIN Digital Audio Receiver with Bluetooth

2
-42.89%

$39.95

List price $69.95

Product Highlights


2-Channel Class AB High Current Car Amplifier • 300W x 2 Chan @ 4 Ohm • 600W x 2 Chan @ 2 Ohm • 2000W x 1 Chan @ 1 Ohm • High Gloss Chrome-Plated Finish • Dual Cooling Fans • Chrome Flame Fan Grilles

Description

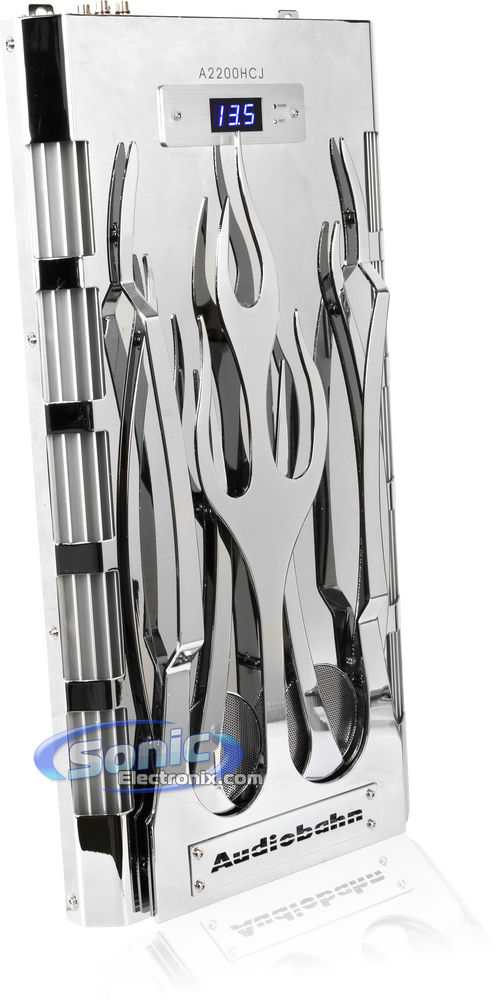

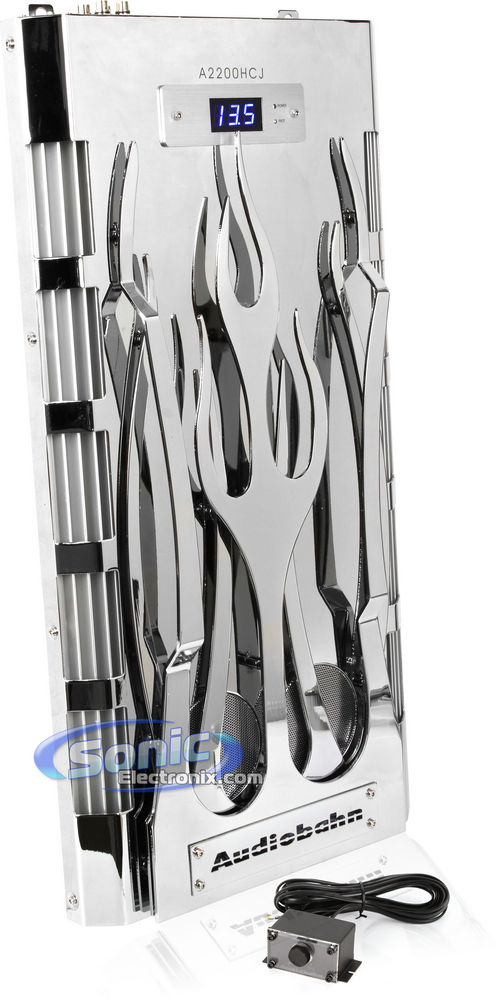

Audiobahn A2200HCJ High Current Series Amplifier

Sonic Electronix is now carrying Audiobahn's new 2011 amplifiers. The High Current series features the same attractive appearance you are used to from Audiobahn with the chrome plated flame design top panel. The high current series also comes equipped with dual cooling fans that keep the amps temperature at a safe operating level, cobalt blue illumination to add to the eye catching appearance, and a large display voltage meter with blue illuminating redaout. A fully functional bass control remote with a blue backlight knob is also included in Audiobahn's new high current series amplifiers. There are 3 options in power to choose from which include a 2400 watt, 2200 watt, and a 2000 watt configuration, all being powered by a PWM MOSFET power supply.

Stability

Audiobahn High Current amplifiers utilize an advance power supply to increase the stability of their traditional AB MOSFET circuitry. This means High Current amplifiers can operate at much lower impedances and output more power than traditional AB MOSFET amplifiers. These competition amplifiers are stable to impedances as low as 1 ohm mono which allows them to drive maximum power to any component in a vehicle’s sound system. Audiobahn also employs unregulated power supplies which implies the higher the voltage of your electrical system, the more power the amplifier will produce. This makes these power-hunger amplifiers ideal for competition.

Digital Meter

Digital meters are featured on all Audiobahn High Current amplifiers. Adding an element of control, the visual indicator allows you to see the voltage of your vehicle and how much voltage the amplifier is receiving. The digital volt meter’s cobalt blue LED illumination is visible in the dark.

4-Way Protection Circuitry

All Audiobahn amplifiers feature 4-way protection circuitry which is designed to defend the amplifiers from thermal overload, internally-contained short circuits, voltage overload and DC offset. 4-Way protection ensures that these amplifiers will continue to operate despite the “real world” mishaps that can occur in the mobile audio environment.

Product Features
  • 2-Channel Class AB High Current Car Amplifier
  • RMS Power Rating:
    • 4 ohm (Stereo): 300 watts x 2 chan.
    • 2 ohm (Stereo): 600 watts x 2 chan.
    • 1 ohm (Stereo): 850 watts x 2 chan.
    • 4 ohm (Mono): 500 watts x 1 chan.
    • 2 ohm (Mono): 1000 watts x 1 chan.
    • 1 ohm (Mono): 2000 watts x 1 chan.
  • PWM MOSFET power supply
  • Large display volt meter with blue illumination
  • Variable Bass Boost (0-18 dB)
  • High gloss chrome-plated finish
  • 2-Channel operation
  • Throughput RCA connections
  • Cobalt blue illumination
  • Double-Sided glass epoxy circuit board
  • Dual cooling fans help to maintain its optimum operating temperature
  • Chrome flame fan grilles for an enhanced appearance
  • 4-Way Protection Circuitry: Thermal, Short Circuit, Overload , and DC Offset
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-Plated RCA level inputs
  • Nickel-Plated block terminals
  • Input Sensitivity: 200mV-8V
  • Variable Low-Pass Filter (30-120 Hz, 24 dB/octave)
  • Variable High-Pass Filter (50-750 Hz, 24 dB/octave)
  • Subsonic Filter (20-45 Hz)
  • Frequency Response: 10-20,000 Hz
  • Signal-To-Noise Ratio: >100 dB
  • Dimensions: 23"L x 11-15/16"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty
