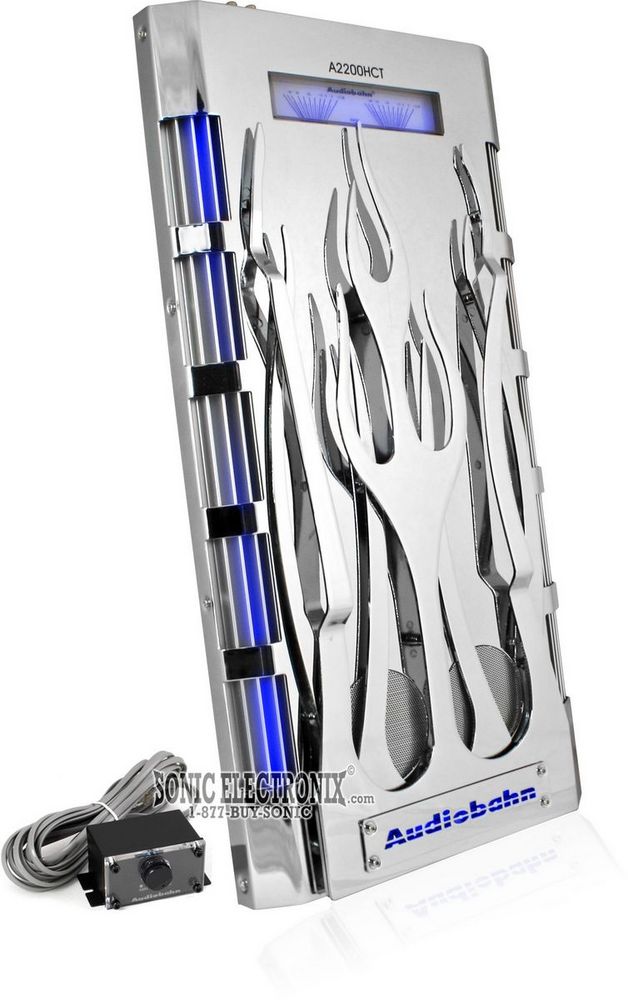

Audiobahn A2200HCT

3200W Max, High Current 2-Channel Amplifier

7
Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

3200W Max, High Current Series 2-Channel Amplifier with Bass Remote • 1600W RMS @ 1 ohm • 800W RMS @ 2 ohms • 400W RMS @ 4 ohms • Blue Illuminated VU Meter • Beautiful Chrome Design Heatsink • S/N Ratio: 100dB • Bass Boost: 0-18dB

Learn more about the a2200hct

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

a2200hcj thumbnail

Audiobahn A2200HCJ

OUR PRICE: $399.99

View item

Product Highlights

3200W Max, High Current Series 2-Channel Amplifier with Bass Remote • 1600W RMS @ 1 ohm • 800W RMS @ 2 ohms • 400W RMS @ 4 ohms • Blue Illuminated VU Meter • Beautiful Chrome Design Heatsink • S/N Ratio: 100dB • Bass Boost: 0-18dB

Description

Audiobahn
  • 3200W Max, High-Current 2-Channel Car Amplifier
  • RMS Power Rating:
    • 200 watts x 2 chan. @ 4 ohms
    • 400 watts x 2 chan. @ 2 ohms
    • 800 watts x 2 chan. @ 1 ohm
    • Bridged:
      • 400 watts x 1 chan. @ 4 ohms
      • 800 watts x 1 chan. @ 2 ohms
      • 1600 watts x 1 chan. @ 1 ohm
  • Max Power Output: 3200 watts @ 1 ohm

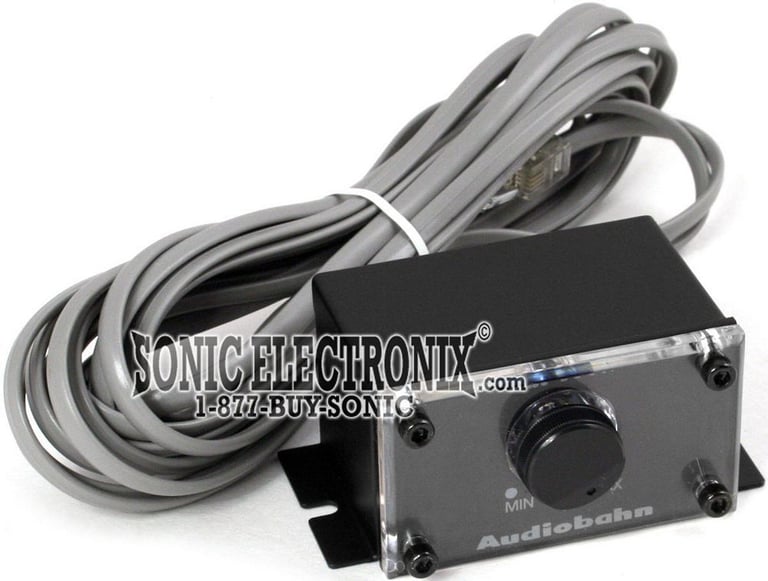

  • Wired Remote Bass Level Control Included with Blue Illuminated Knobs
    • Also illuminates red to indicate when amplifier is clipping
  • High-Current, Non-Regulated Power Supply
  • Preamp Outputs
  • Cobalt Blue LED Illuminated Heat Sink Design (on/off switch for your preference)
  • Thermal Regulated, Air Induction Dual Cooling Fans
  • Double Sided PCB (Circuit Board)
  • High Gloss Chrome Plated Finish

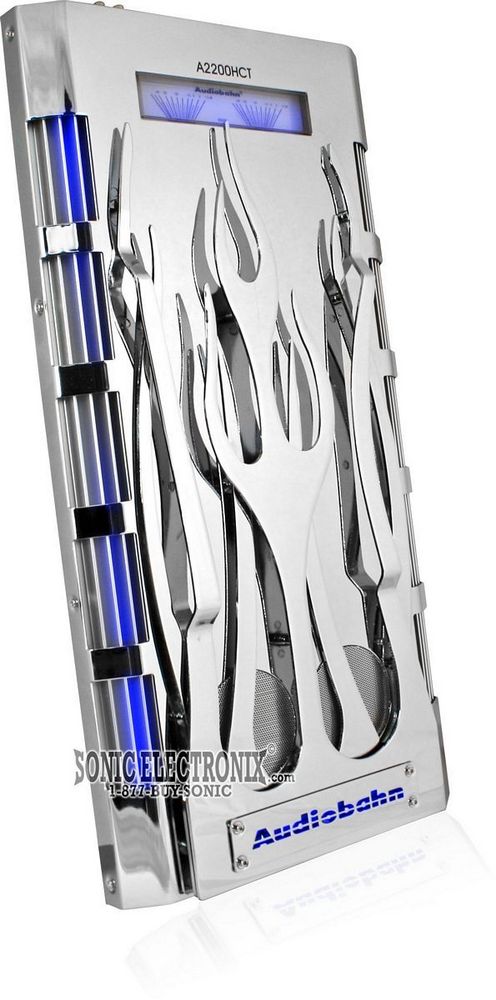

  • Unique, Clean Chrome Fire/Flame Design
  • Blue Illuminated VU Meters Indicating Output Response
  • Clear Power and Speaker Connectors

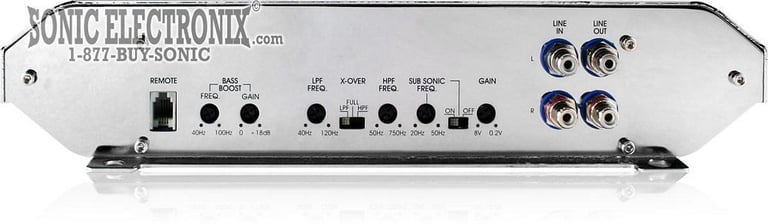

  • Variable Bass Boost: 0-18dB @ 40-100Hz
  • Variable Low-Pass Crossover: 40-120Hz
  • Variable High-Pass Crossover: 50-750Hz
  • Variable Subsonic Filter: 20-50Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • THD: 0.05%
  • Channel Separation: 50dB
  • Input Sensitivity: 200mV - 8V
  • 1/0- or 2-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 23" L x 11-15/16" W x 2-1/2" H
    • Note: Flames add an additional 1" to the height
  • 1-year SonicElectronix.com warranty

Product history:

Audiobahn A2200HCJ thumbnail
(newest, current model)
Audiobahn A2200HCT thumbnail
(previous model, replaced by Audiobahn A2200HCJ)

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 2 channel
RMS Power @ 2 ohms
400 watts x 2 channel
RMS Power @ 1 ohm
800 watts x 2 channel
Bridged RMS Power
1600 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total Peak Power Output
3200 watts
Total RMS Power Output
1600 watts
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
40 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes

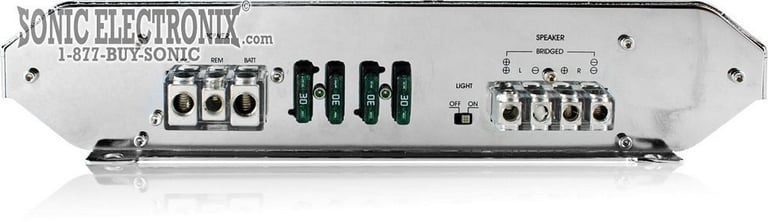

Fuse Rating
30A x 4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Audiobahn

Model Number:

A2200HCT

Weight:

30.00lbs

Internal SKU:

a2200hct

Internal Product ID:

60
