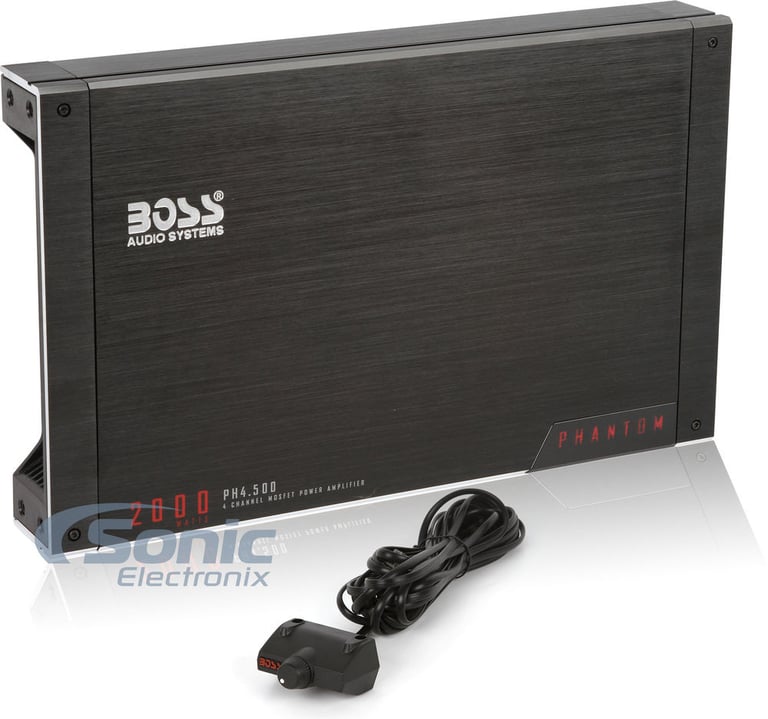

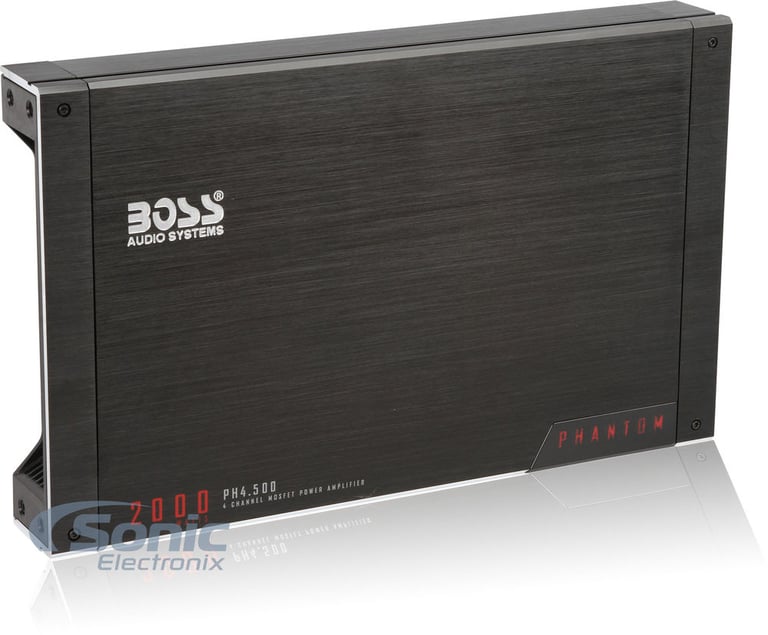

Boss PH4.500

2000W 4-Channel MOSFET Power Phantom Series Class AB Car Amplifier with Remote Subwoofer Level Control

Boss
Shop all Boss
Product videos
highlight-star-icon

• 2000W Max
• MOSFET Power Supply
• Remote Subwoofer Level Control Included
• Bass Boost
• Thermal and Speaker Short Protection
• Black Anodized Heatsink
• Input Gain Control

Learn more about the ph4500

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

PNW-525 main

AudioControl PNW-525

150W Peak (100W RMS) 5.25″ PNW Series 2-way 3-ohm Coaxial Car Speakers

1
-7.72%

$239.00

List price $259.00

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

15
-33.36%

$79.96

List price $119.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

59
-11.77%

$74.99

List price $84.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8

Product Highlights


• 2000W Max
• MOSFET Power Supply
• Remote Subwoofer Level Control Included
• Bass Boost
• Thermal and Speaker Short Protection
• Black Anodized Heatsink
• Input Gain Control

Description


Boss brand icon

Authorized dealer

General Features:

  • Phantom Series Class AB 4-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 4 chan.
  • Max Power Rating:
    • 2 ohm: 500 watts x 4 chan.
    • Bridged @ 4 Ohm: 1000 watts x 2 chan.
  • MOSFET PWM (Pulse Width Modulated) power supply

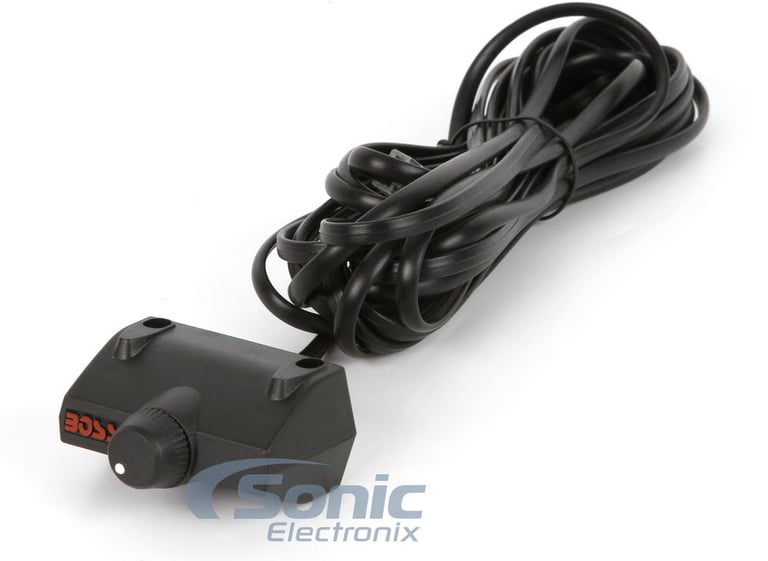

  • Remote subwoofer level control included
  • LED Power and protection indicators
  • Bass Boost allows further flexibility of the subwoofer with a variable of 0-18 dB
  • Variable input gain control for more precise adjustments
  • Remote turn-on/turn-off circuit
  • Soft turn on circuit
  • Input voltage sensitivity selector
  • Thermal and speaker short protection
  • Black anodized heatsink

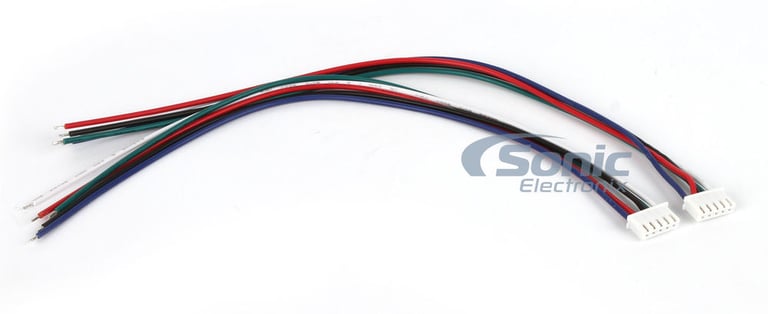

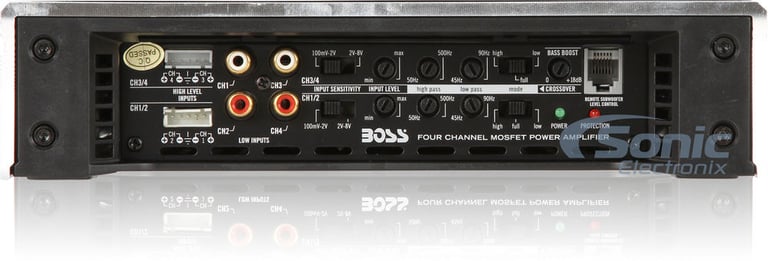

  • Gold-plated RCA low & high level inputs

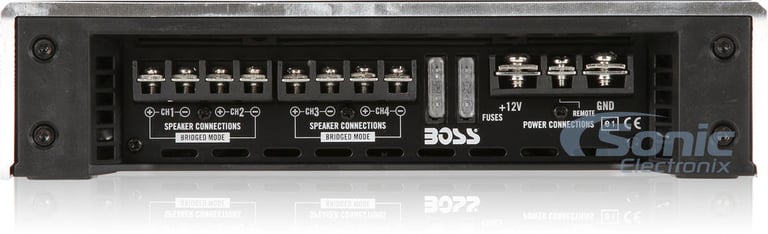

  • Nickel-plated speaker and power terminals
  • Variable Low-Pass Filter (45-90 Hz, 12 dB/octave)
  • Variable High Pass Filter (50-150 Hz)
  • Frequency Response: 90-50,000 Hz
  • THD (Total Harmonic Distortion): 0.01%
  • Signal-to-Noise Ratio: 103 dB
  • Channel Separation: 90 dB
  • Damping Factor: +125
  • Dimensions: 9-1/2"L x 15-1/2"W x 2-1/4H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 4 channel
Amplifier Specifications
Series
Phantom Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 150 Hz
Low-Pass Crossover Frequency
45 - 90 Hz
Channel Separation
103 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PH4.500

Weight:

12.50lbs

Internal SKU:

ph4500

Internal Product ID:

34168

Product and How-to Videos


Customer Ratings & Reviews


Boss PH4.500 thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great Value

I would highly recommend this product, Look good, Built good, Sounds good, Still pumping hard.

The only down side i found is that, can not go down to 2 Ohm!

Other than that is a really great product for your $$$$!!!

By Tamas F. on September 18, 2013
