Digital Audio DAB4002

400W, 2-Channel Class A/B MOSFET Amplifier

Digital Audio
Shop all Digital Audio
Product videos
highlight-star-icon

DAB Series 2-Channel Class A/B Car Amplifier • Total RMS Power: 400 Watts • Pulse Width Modulated MOSFET Power Supply • Preamp RCA Outputs • 4-Way System Protection • Frequency Response: 10-38,000 Hz

Learn more about the dab4002

We apologize

This item has been discontinued


Loading...
iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
43DSC6804 main

Kicker DSC680 (43DSC6804)

400W Peak (100W RMS) 6x8” DS Series 2 Way Coaxial 4-ohm Car Speakers

13
-10.53%

$84.99

List price $94.99

Product Highlights


DAB Series 2-Channel Class A/B Car Amplifier • Total RMS Power: 400 Watts • Pulse Width Modulated MOSFET Power Supply • Preamp RCA Outputs • 4-Way System Protection • Frequency Response: 10-38,000 Hz

Description


Digital Audio brand icon

Authorized dealer

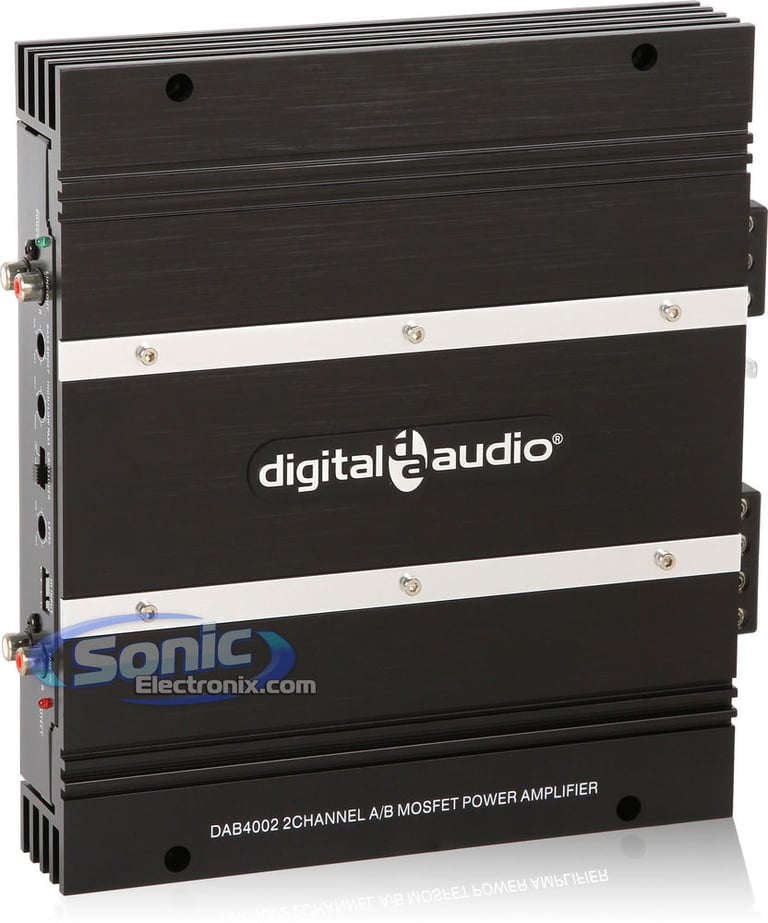

  • DAB Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 200 watts x 2 chan.
    • Bridged, 4 ohm: 400 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Oversized capacitor tanks
  • Gold plated input and output connectors
  • Simultaneous mono/stereo operation capability
  • Soft remote on/off circuitry
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost)
  • 2/1 or Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink
  • Input sensitivity:
    • High/Low level: 0.02-10V
  • Variable high-pass filter (40-400 Hz, 12 dB/octave)
  • Variable low-pass filter (40-400 Hz, 12 dB/octave)
  • Frequency response: 10-38,000 Hz
  • Dimensions: 8-3/8"L x 9-9/16"W x 1-11/16"H
  • 10-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
Not Specified
Total RMS Power Output
400 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
65 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DAB4002

Weight:

6.00lbs

Internal SKU:

dab4002

Internal Product ID:

34661
